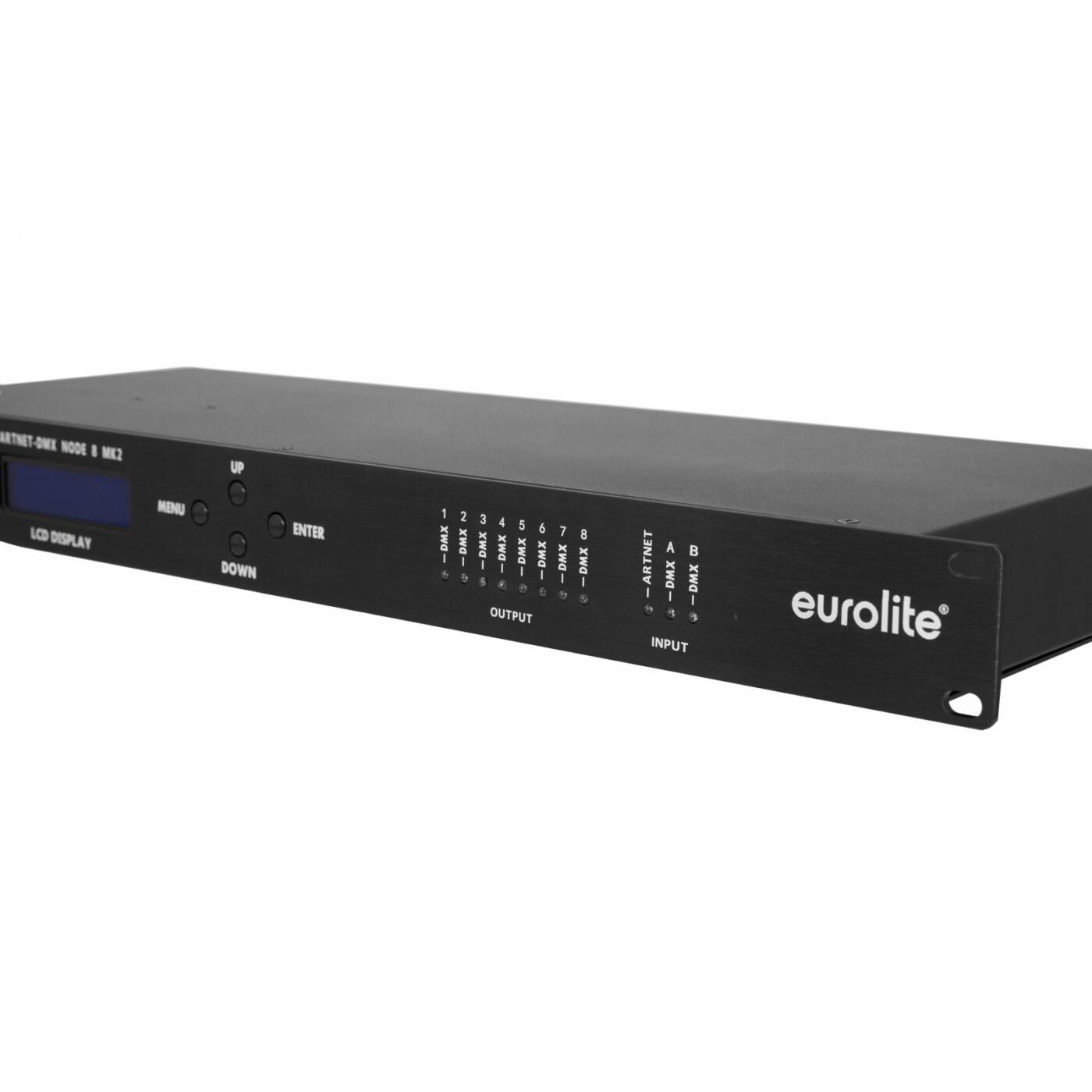

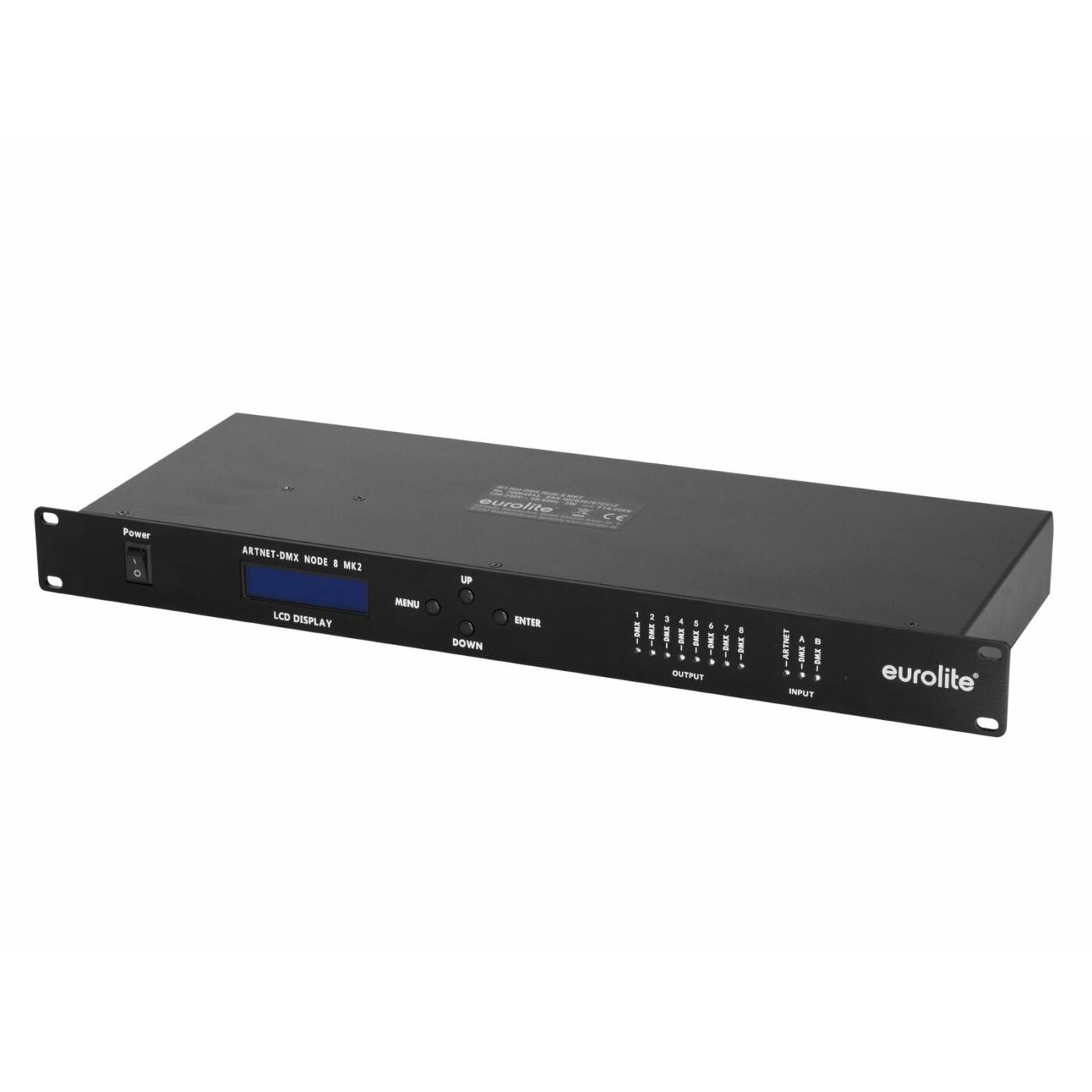

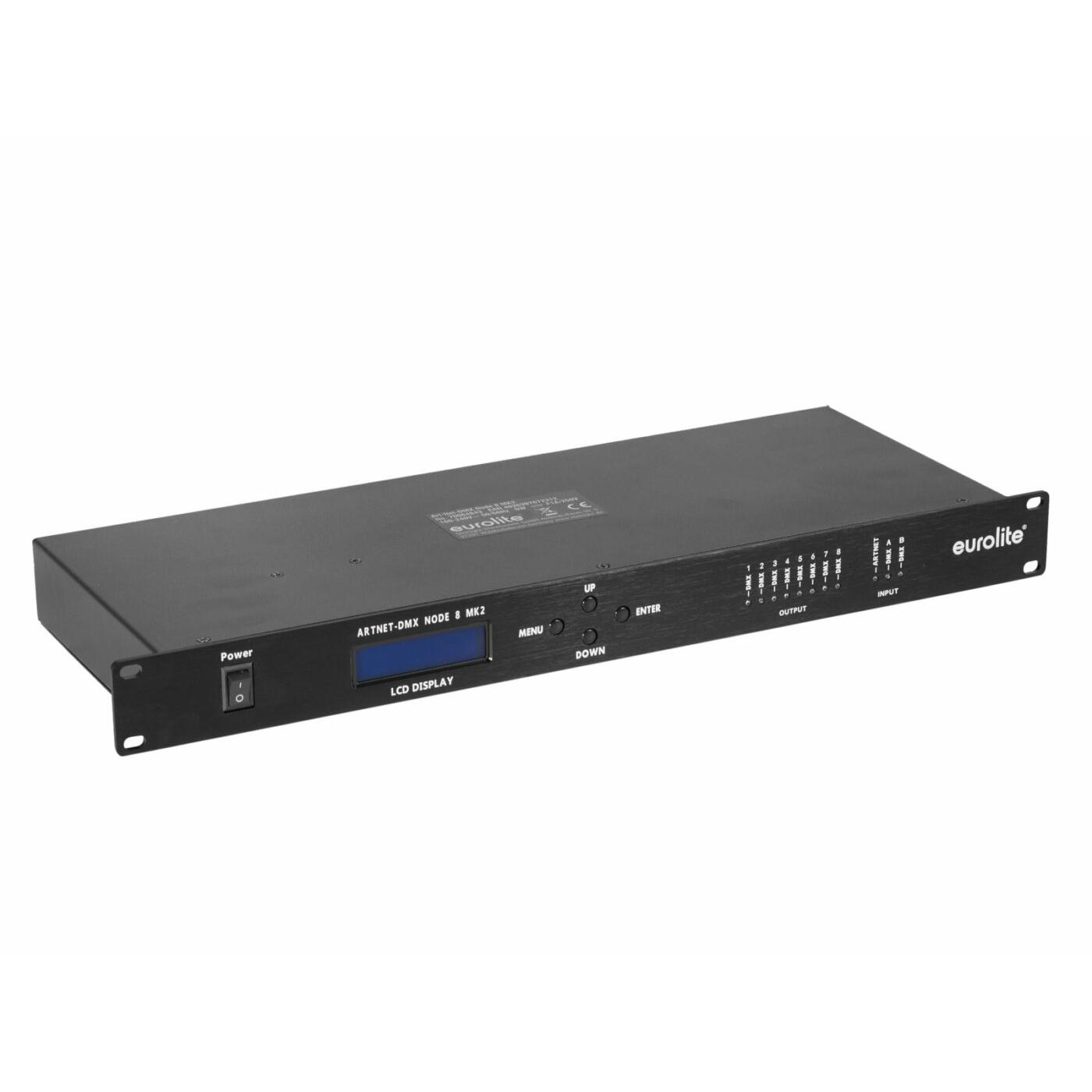

EUROLITE Art-Net/DMX Node 8 MK2
Original price was: €534,31.€380,67Current price is: €380,67.
Description
Art-Net interface distributes 8 universes to XLR
- Distributes Art-Net data to 8 DMX512 universes (4096 channels)
- Parallel DMX input possible (1024 channels)

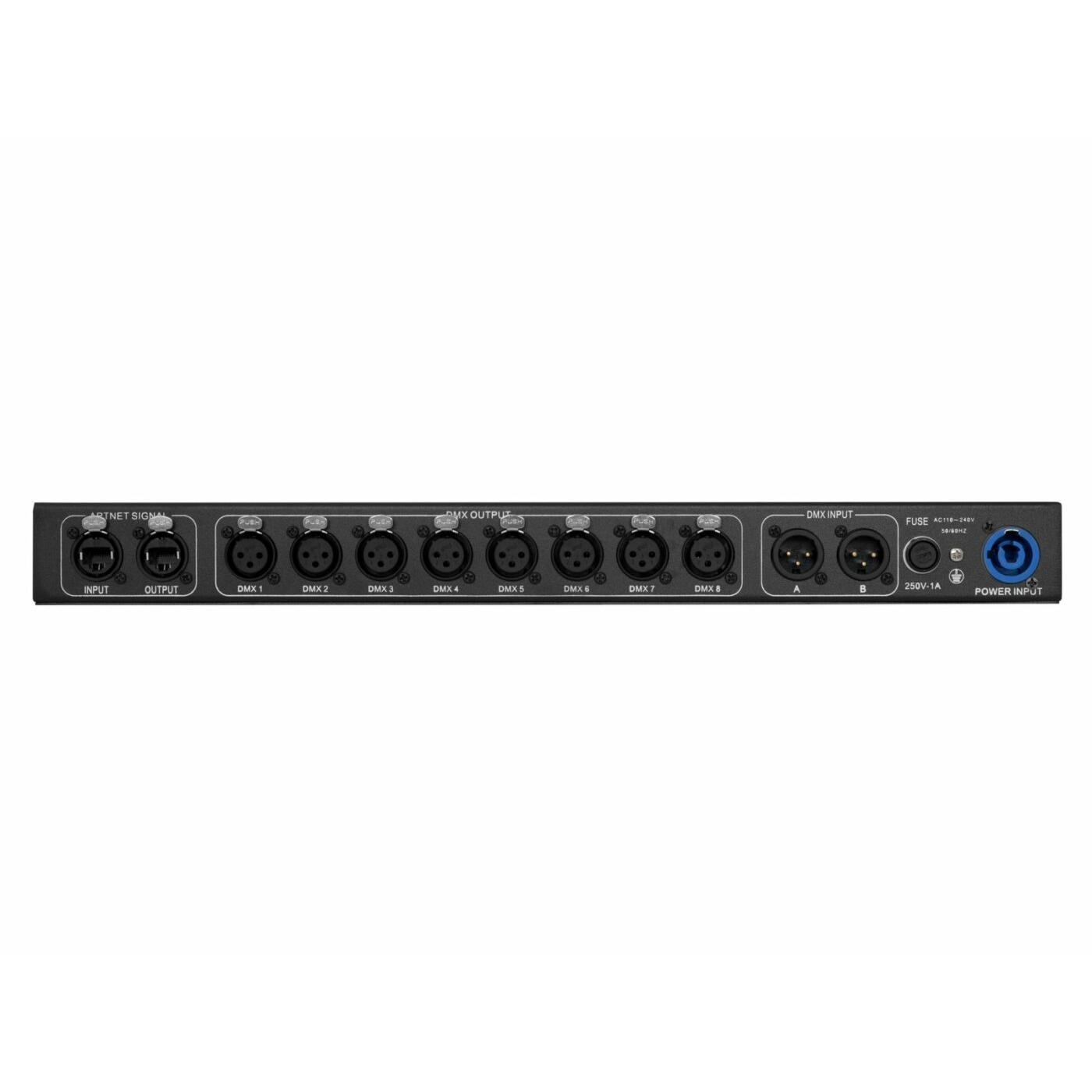

- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- 2 x Neutrik etherCON in/through port
- Serial connection possible

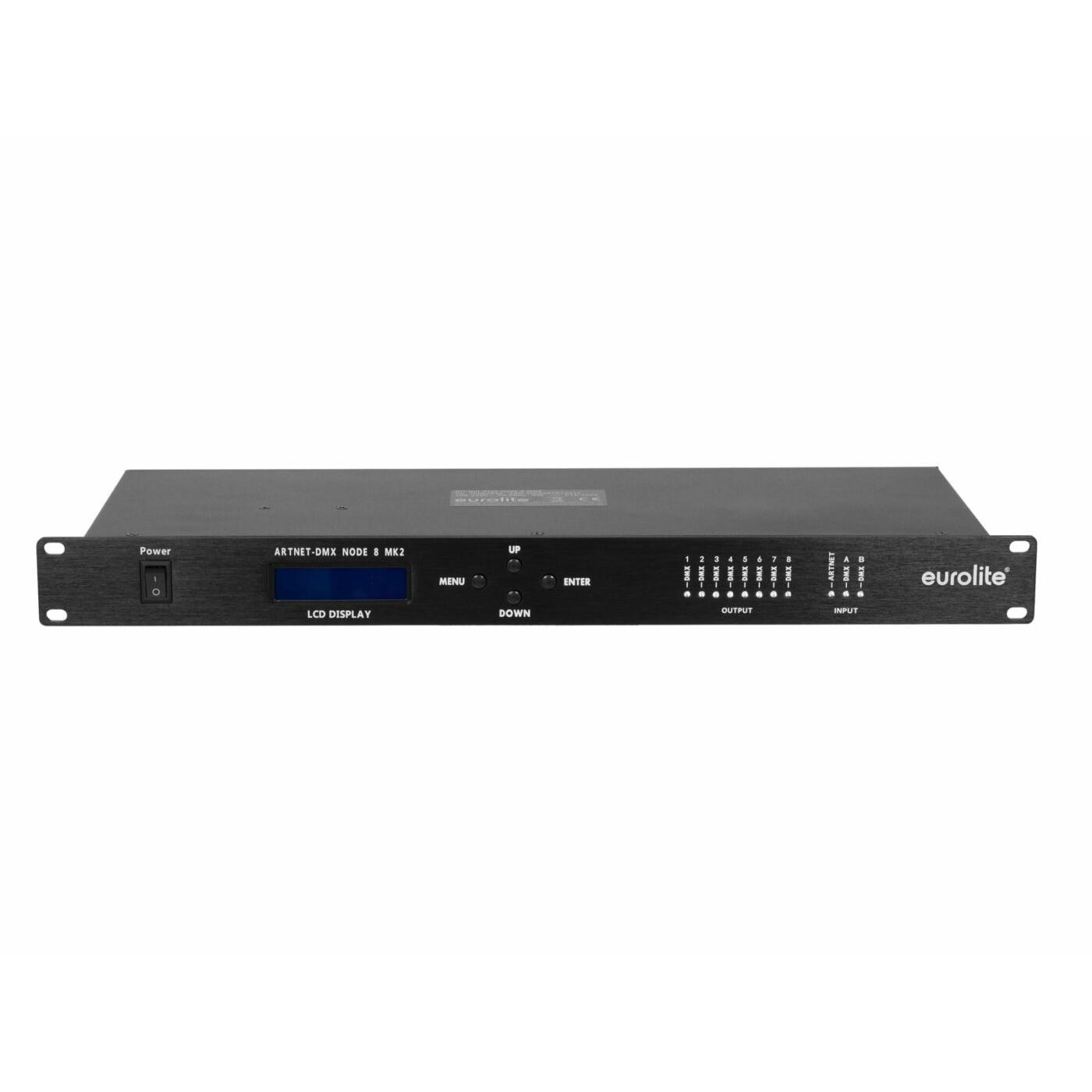

- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| DMX512 inputs: | 2 x 3-pin XLR male |
| DMX512 outputs: | 8 x 3-pin XLR female |
| Ethernet: | 2 x RJ45 10/100 Mbps (Neutrik etherCON) |
| Protocol: | Art-Net 3 |
| Dimensions (L x W x H): | 483 x 175 x 44 mm |
| Weight: | 2.4 kg |
Specifications
| Weight | 2,8 kg |
|---|---|
| Dimensions | 0,0900 × 0,5700 × 0,2100 m |
| Weight kg | 24 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 5 |
