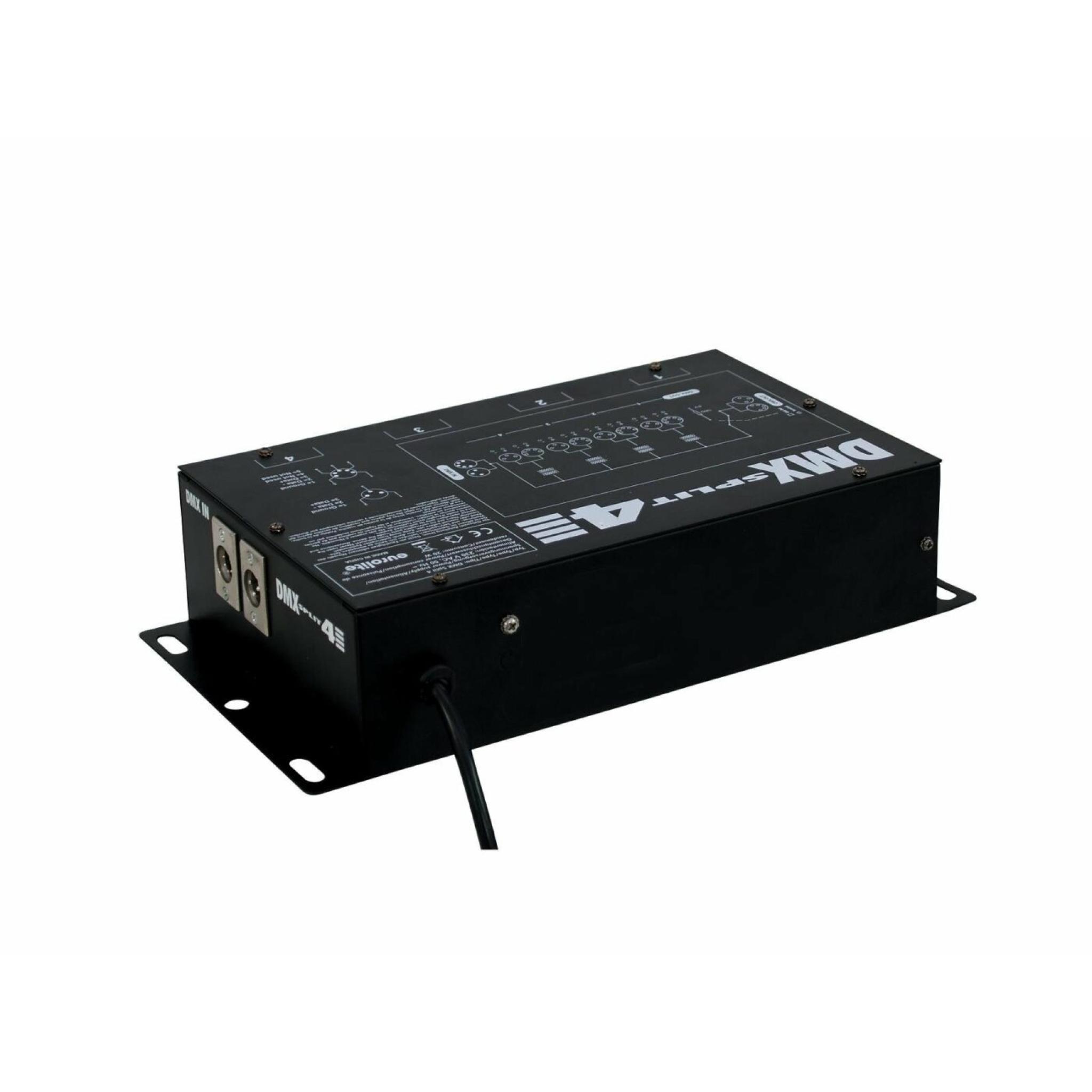

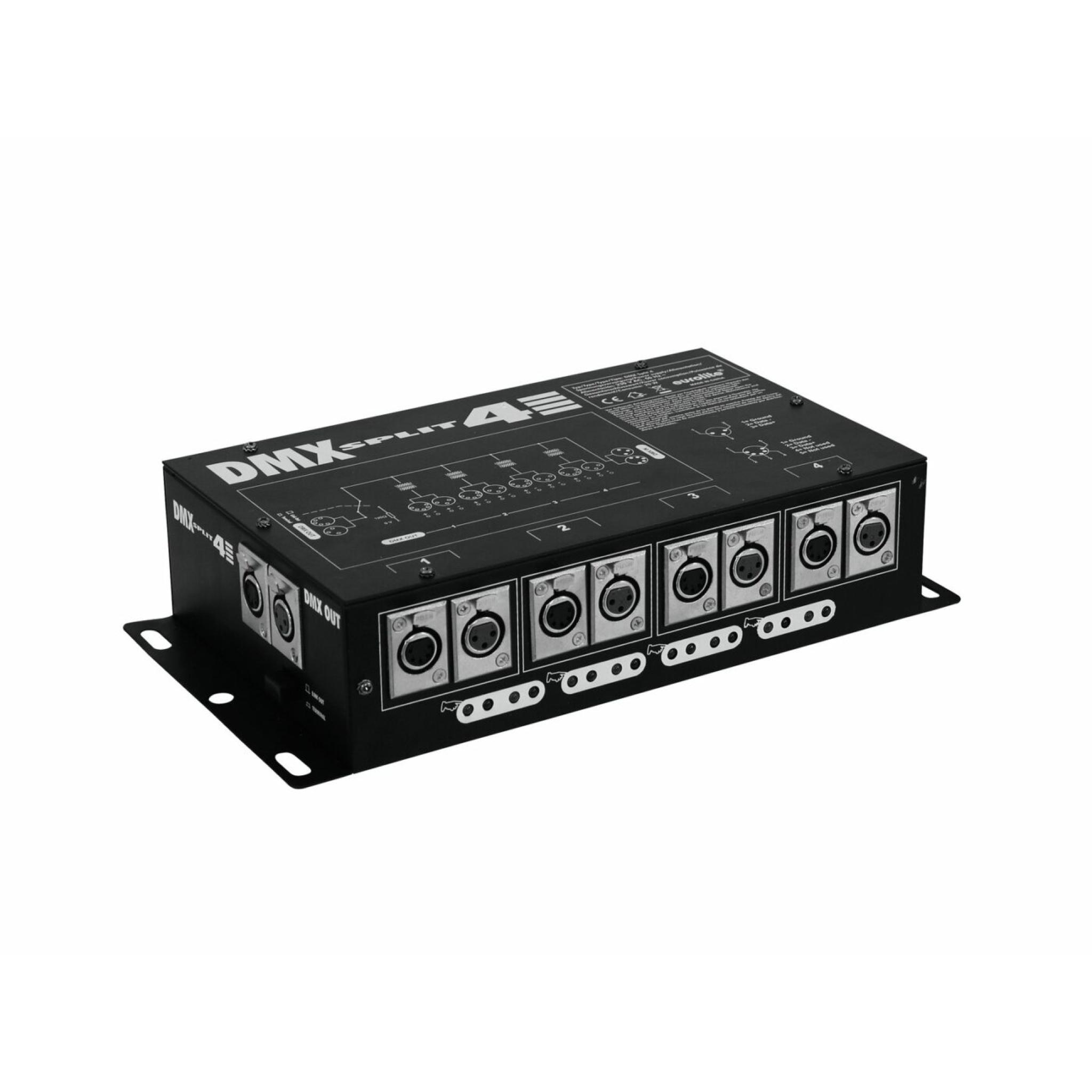

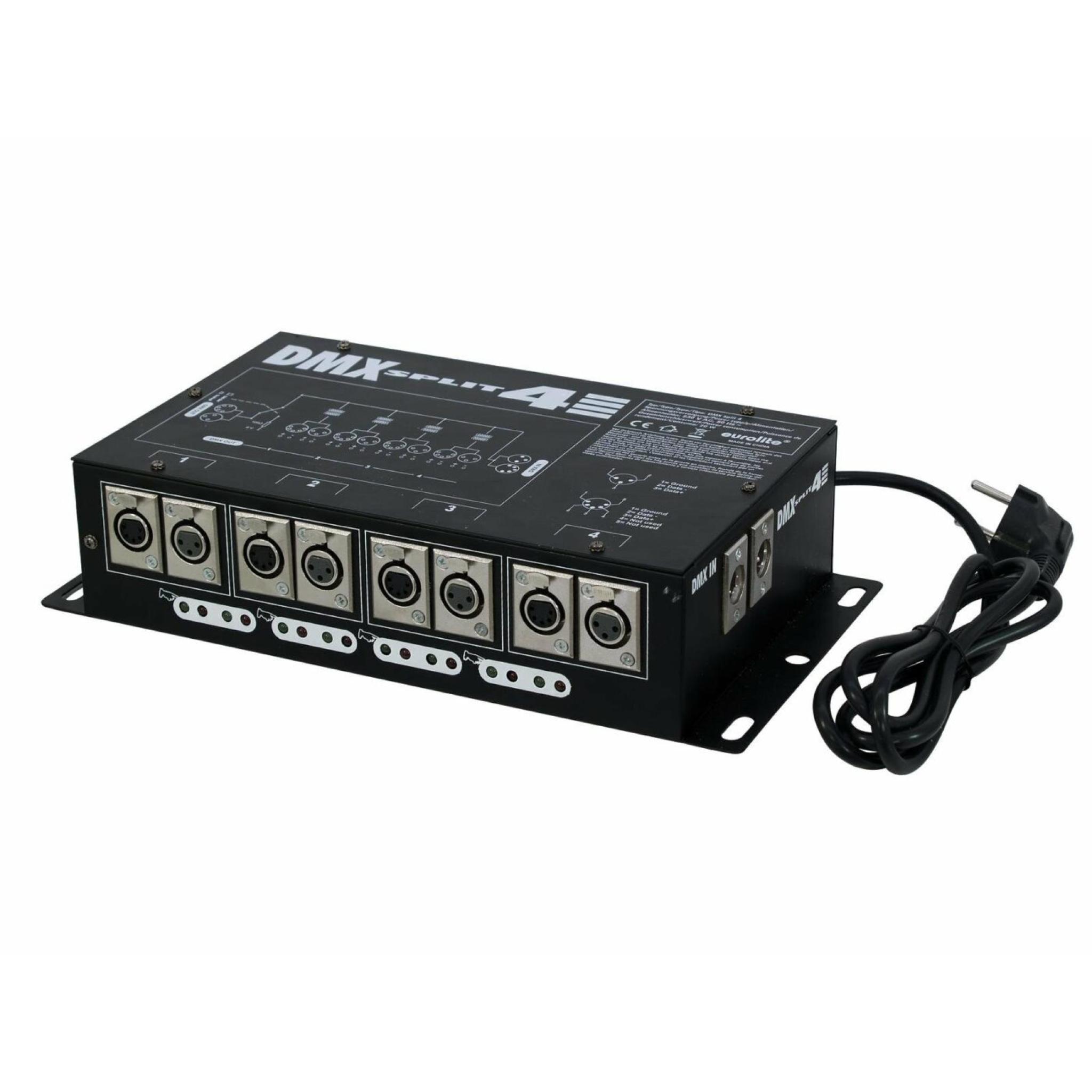

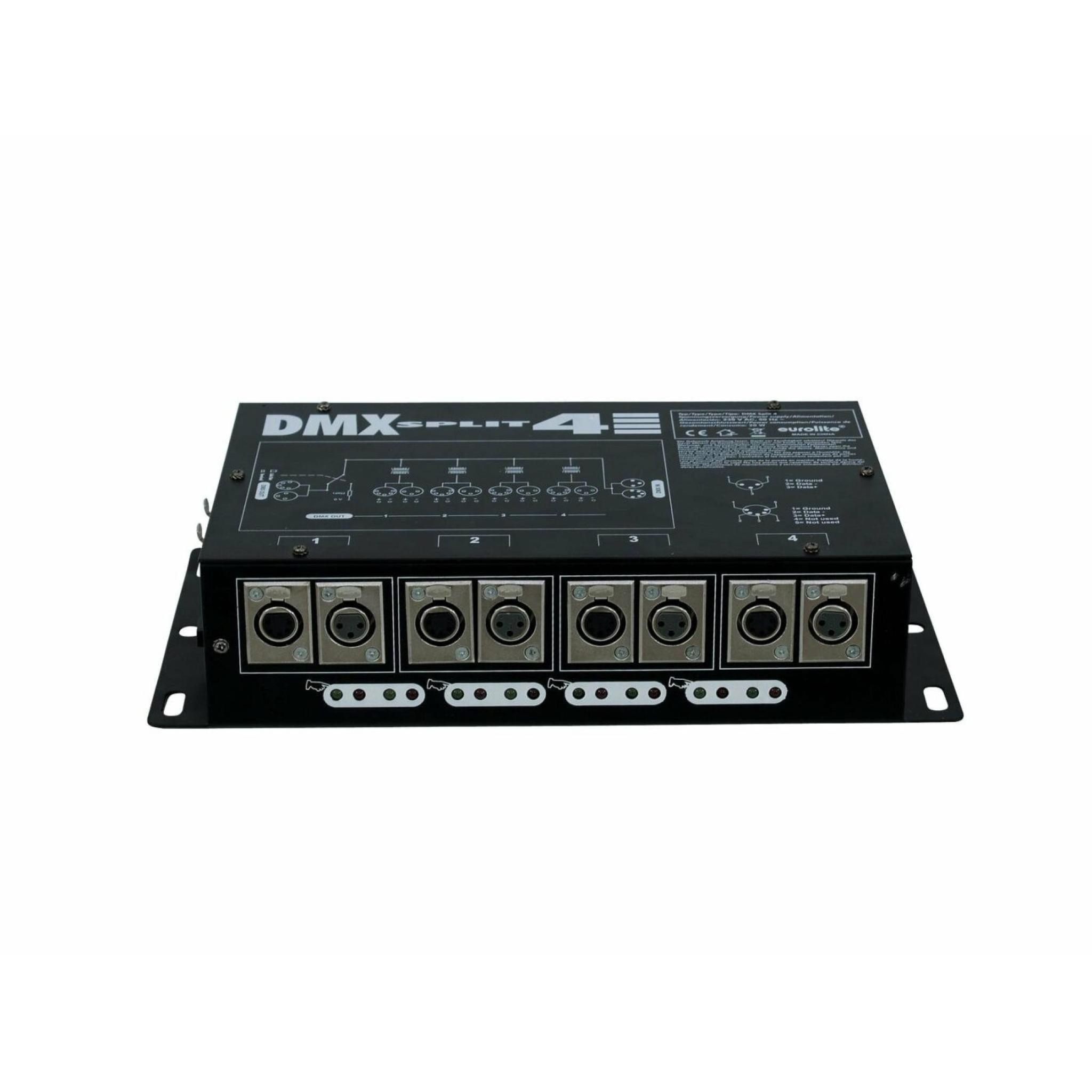

EUROLITE DMX Split 4 Splitter
Original price was: €117,81.€88,58Current price is: €88,58.
Description

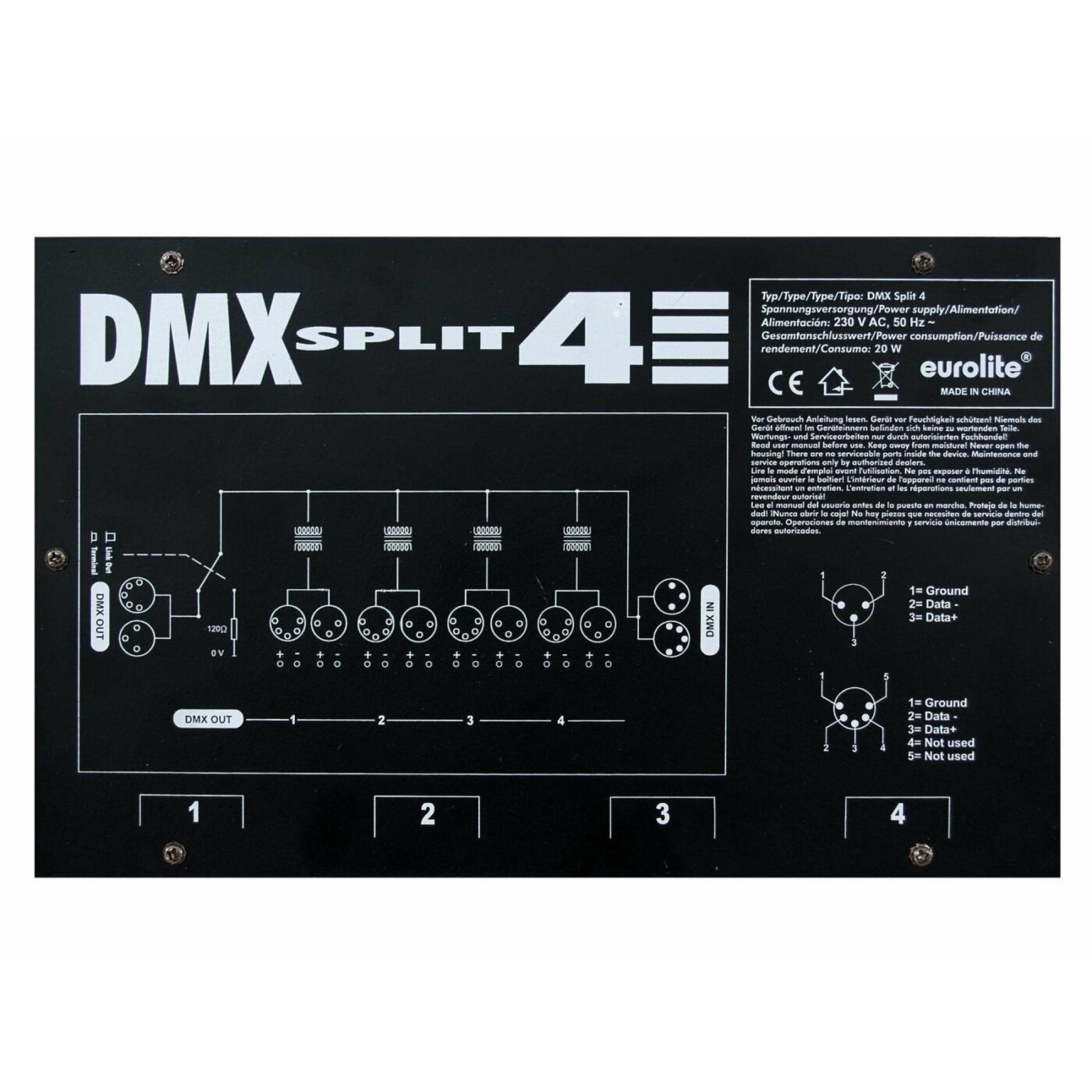

Splitter with 4 galvanized isolated outputs, 3-pin & 5-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 4 x DMX output
- Input and outputs galvanically isolated
- Connections XLR 3-pin and 5-pin
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 20 W |
| DMX connection: | 3-pin or 5-pin XLR |
| Dimensions (L x W x H): | 325 x 190 x 80 mm |
| Weight: | 3 kg |
Specifications
| Weight | 2,96 kg |
|---|---|
| Dimensions | 0,1500 × 0,5000 × 0,2500 m |
| Weight kg | 3 |
| Length mm | 325 |
| Width mm | 190 |
| Height mm | 80 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 20 |
