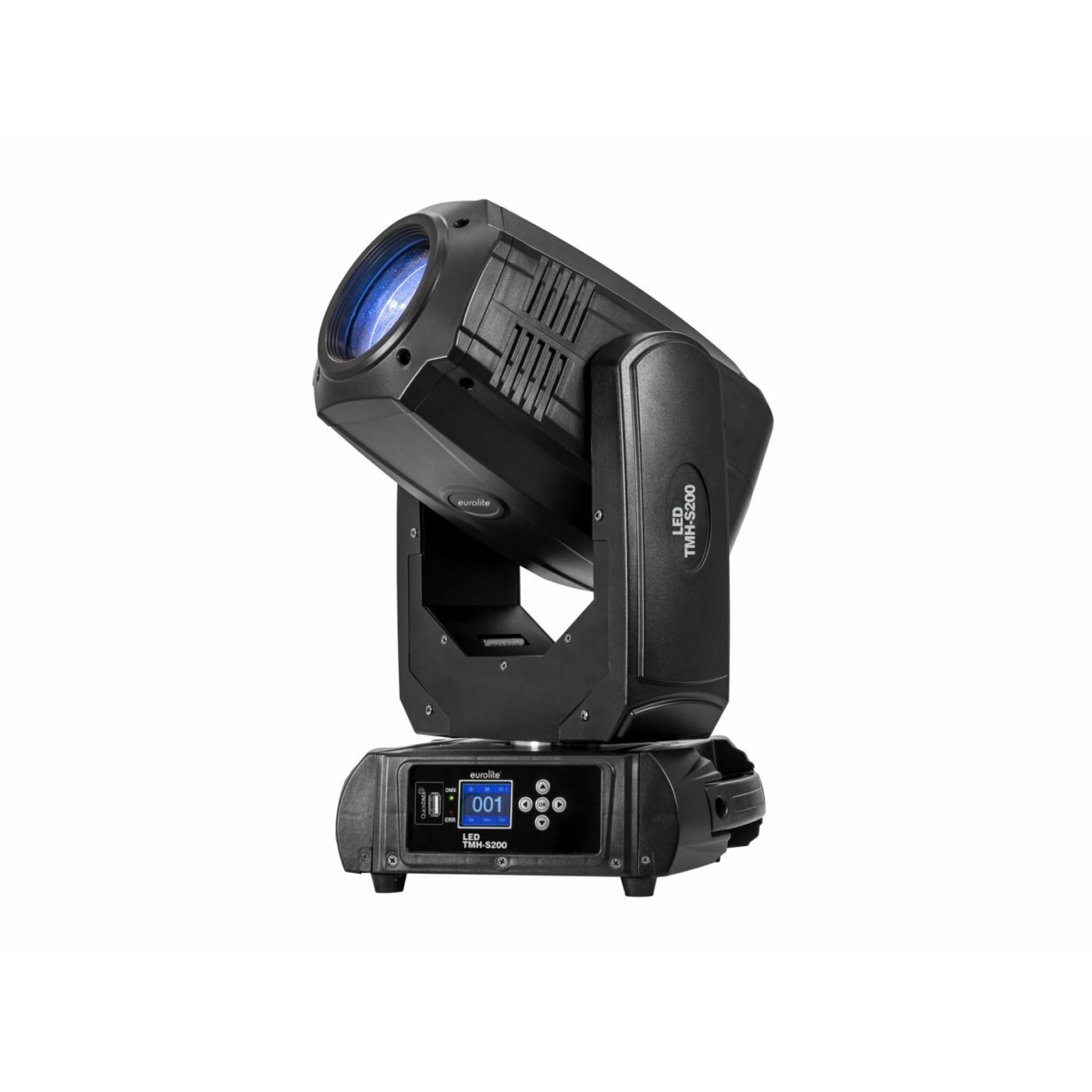

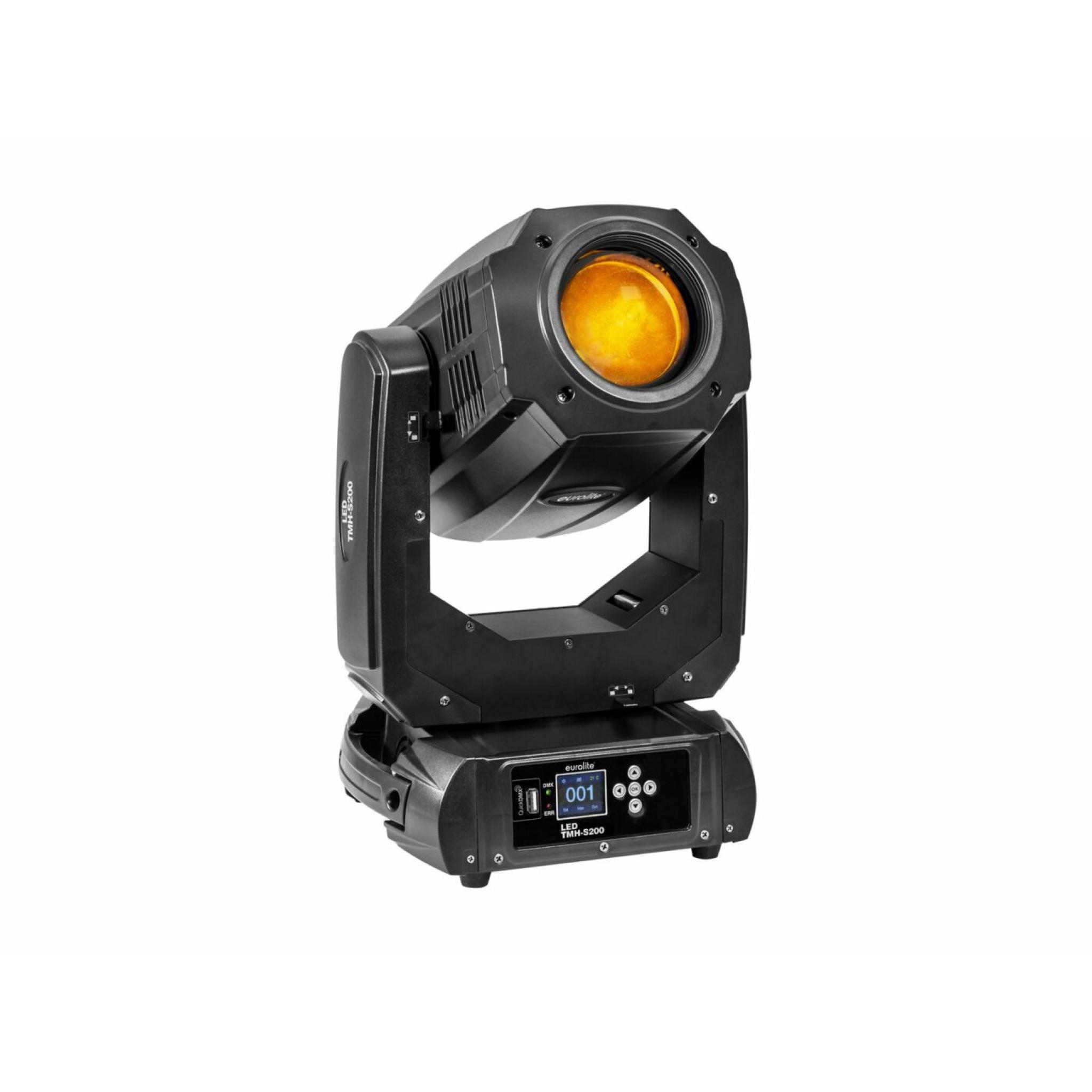

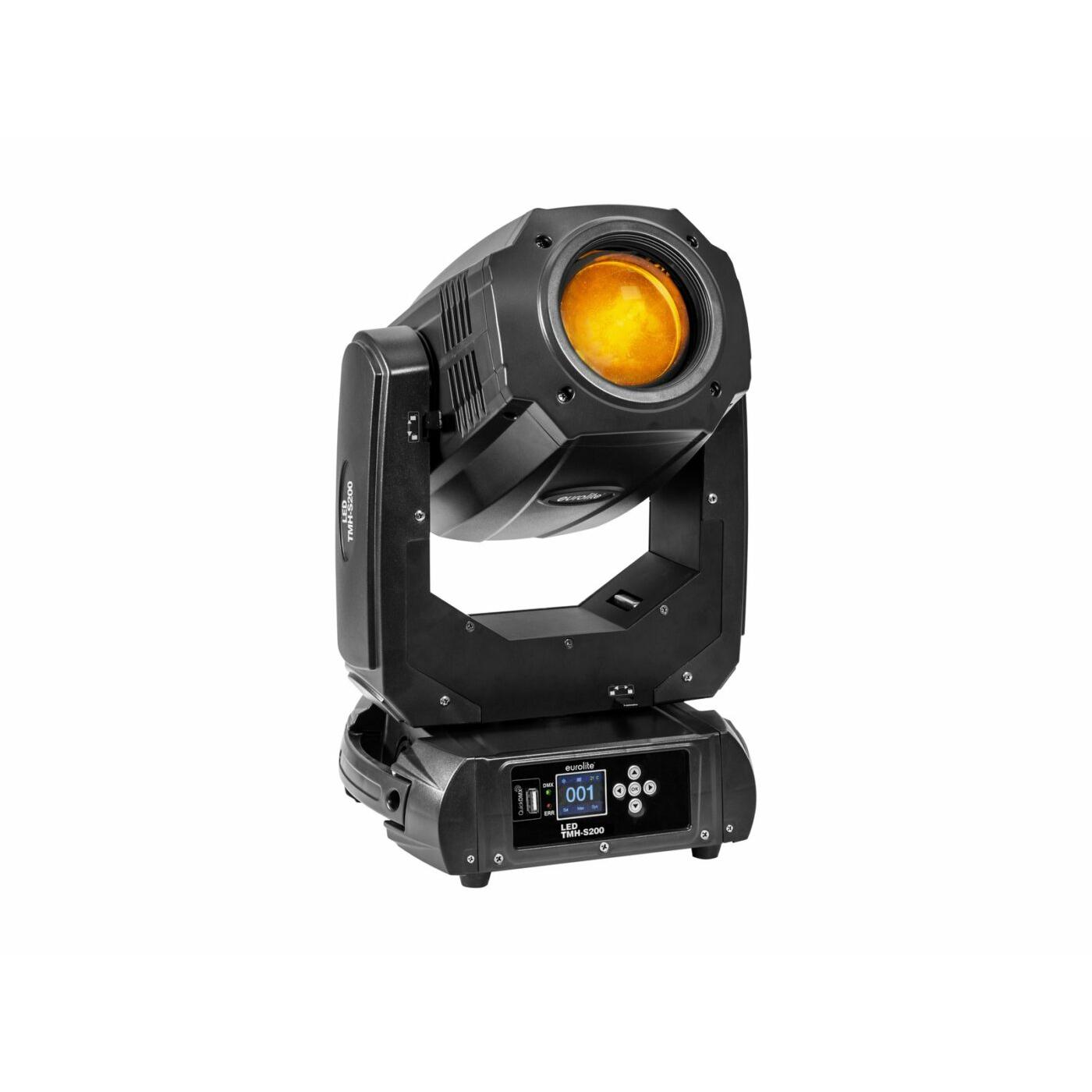

Eurolite moving head – movinghead – LED – TMH-S200 Spot
Original price was: €1.188,81.€881,09Current price is: €881,09.
Uitverkocht - Neem contact met ons op voor meer informatie.
Description
LED moving head spot with color wheel, static and rotating gobo wheel, prism, frost, focus and zoom
- Equipped with a cold white 200 W COB LED
- Positioning within 540° PAN and 270° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Auto, music, master/slave and DMX mode
- Sound-control via built-in microphone
- Color wheel with 9 dichroic color filters and white
- Rainbow effect with adjustable speed in both directions
- Rotating 3-facet prism
- The prism rotate in both directions and at different speeds, prism index function
- Gobo-wheel 1 with 9 static metal gobos and open
- Gobo-wheel 2 with 7 rotating gobos and open
- All rotating gobos can be interchanged
- With gobo shake function
- Frost-filter
- Strobe effect with 1-18 flashes per second
- Internal programs
- Dimmer
- Dimmer speed (step response) adjustable
- Motorized focus
- Motorized zoom with 8-22° beam angle
- Fan-cooled
- Automatic position correction
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- P-Con terminals for power linking up to 8 units

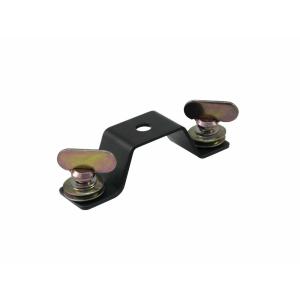

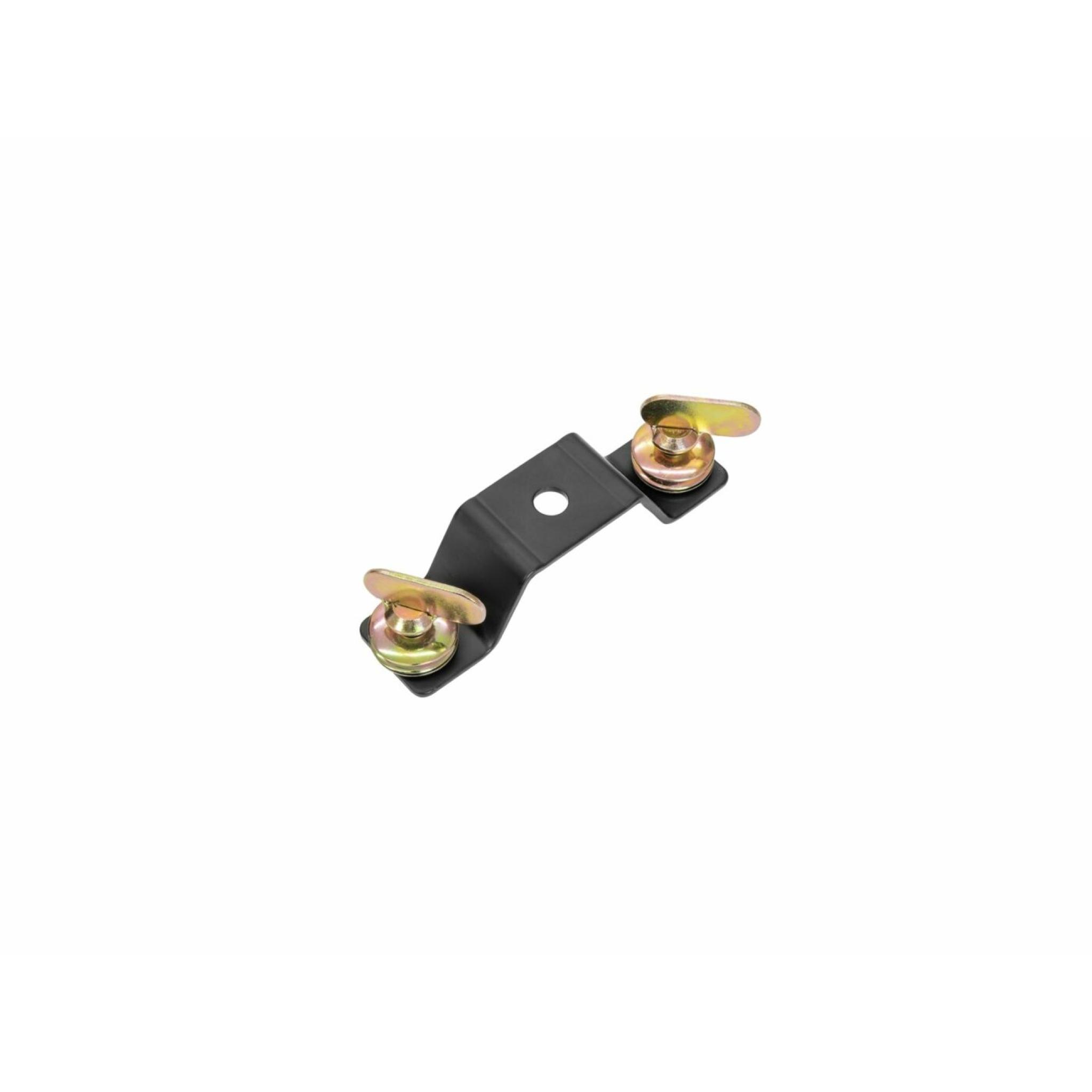

- Additional rubber feet when the spot shall be positioned on the floor
- LED: 1 x COB (chip-on-board) 200 W CW
- Color wheel 1 x 9 dichroitic colors and open
- Control: Stand-alone; QuickDMX via USB (optional); DMX; Master/slave function; Sound to light via Microphone
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 250 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | Device fuse 5 x 20 mm T, 3.15 A Fuse replaceable |
| LED: | 1 x COB (chip-on-board) 200 W CW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 1 – 18 Hz |
| Equipment: | Prisma 3-fold; Frost filter; Gobo wheel with rotating gobos; Gobo wheel with static gobos; Zoom motor-driven; Focus motor-driven; Color wheel |
| Color generation: | Color wheel 1 x 9 dichroitic colors and open |
| Gobos: | Gobo wheel with static gobos, 9 gobos and open Shake effect |
| Gobo wheel with rotating gobos, 7 gobos and open outside diameter 20mm image diameter 15mm Shake effect |
|
| DMX channels: | 17 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| QuickDMX via USB (optional) | |
| DMX | |
| Master/slave function | |
| Sound to light via Microphone | |
| Beam angle (1/2 peak): | 8 – 22° |
| Housing color: | Black |
| Width: | 30.5 cm |
| Height: | 51.5 cm |
| Depth: | 33.0 cm |
| Weight: | 13.70 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
