Sale!

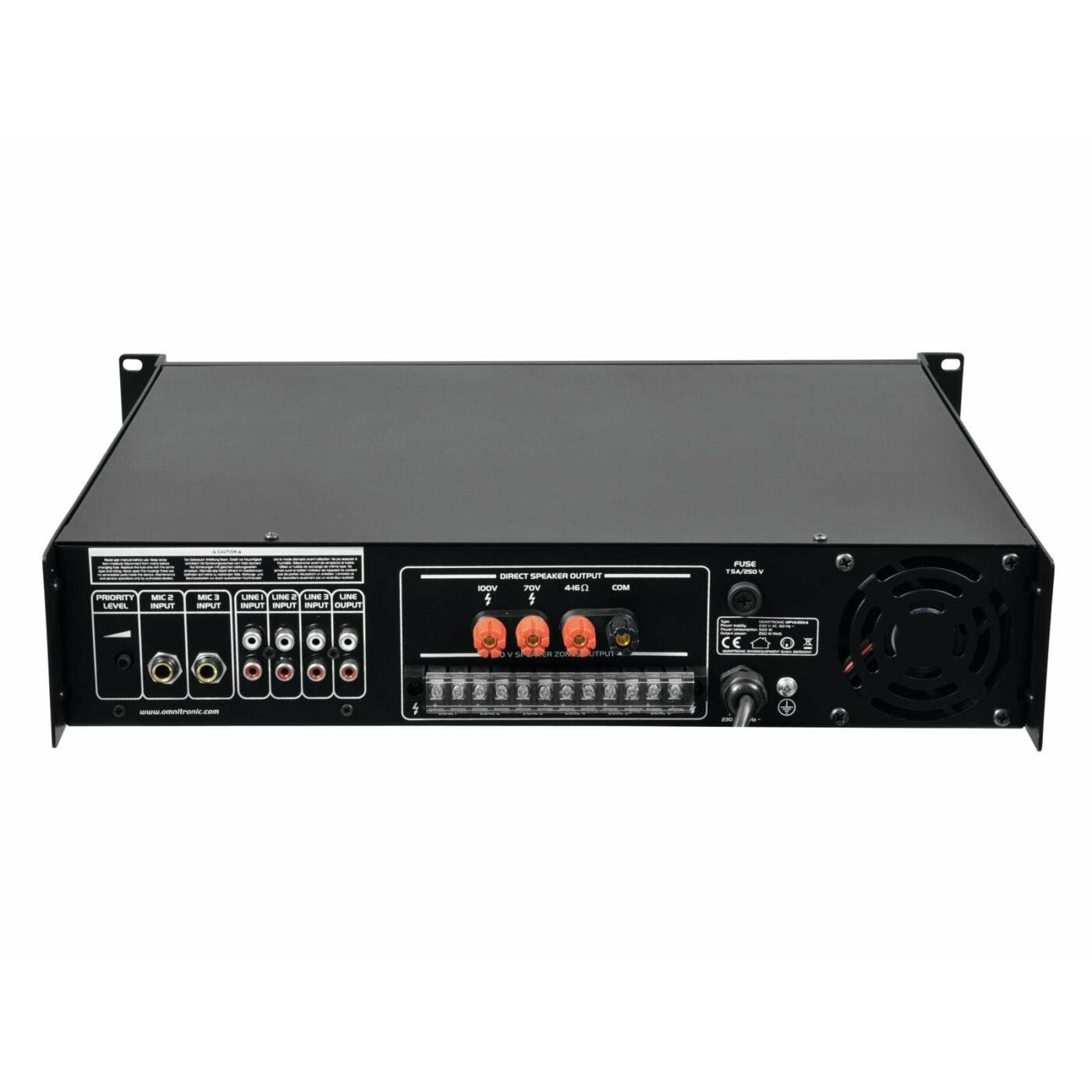

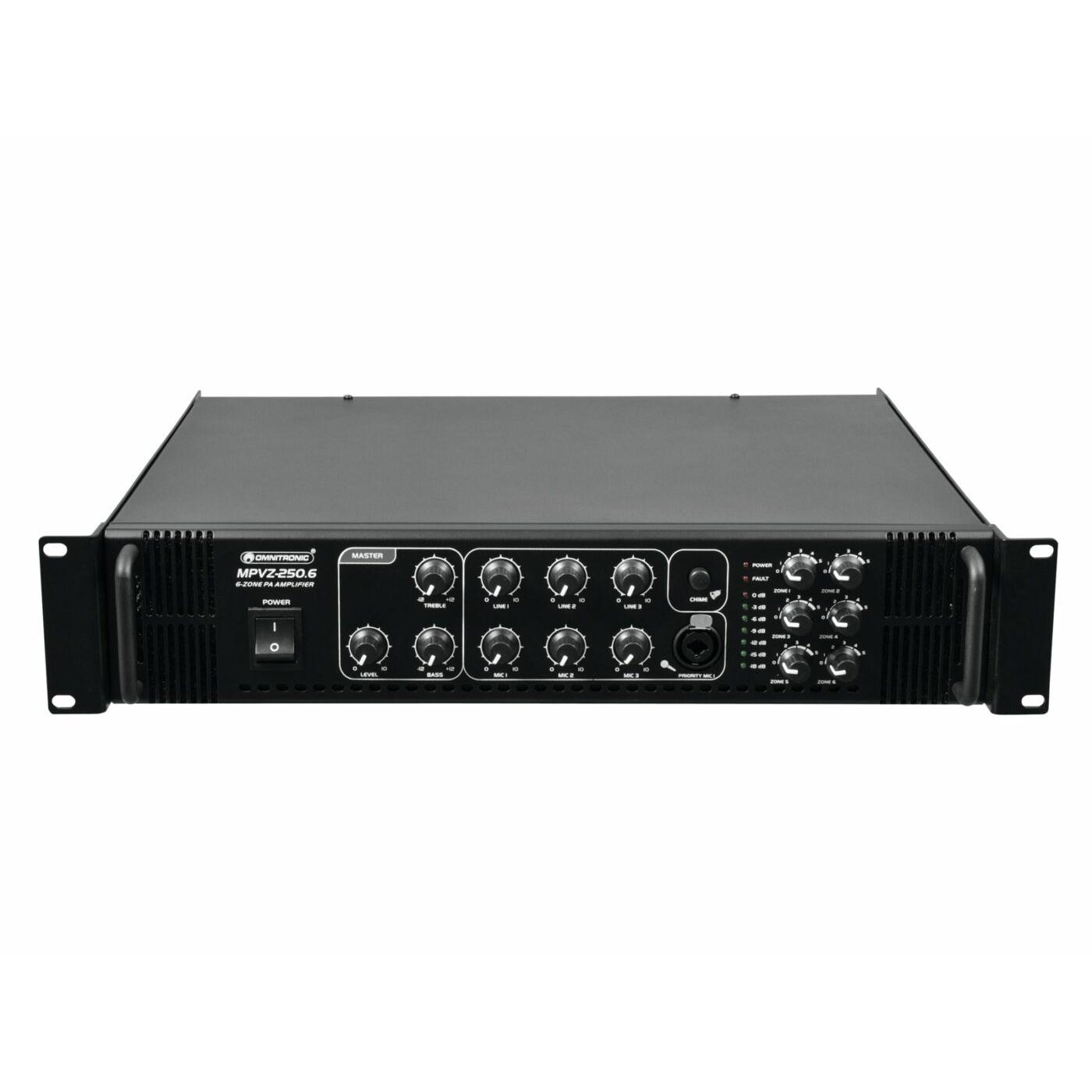

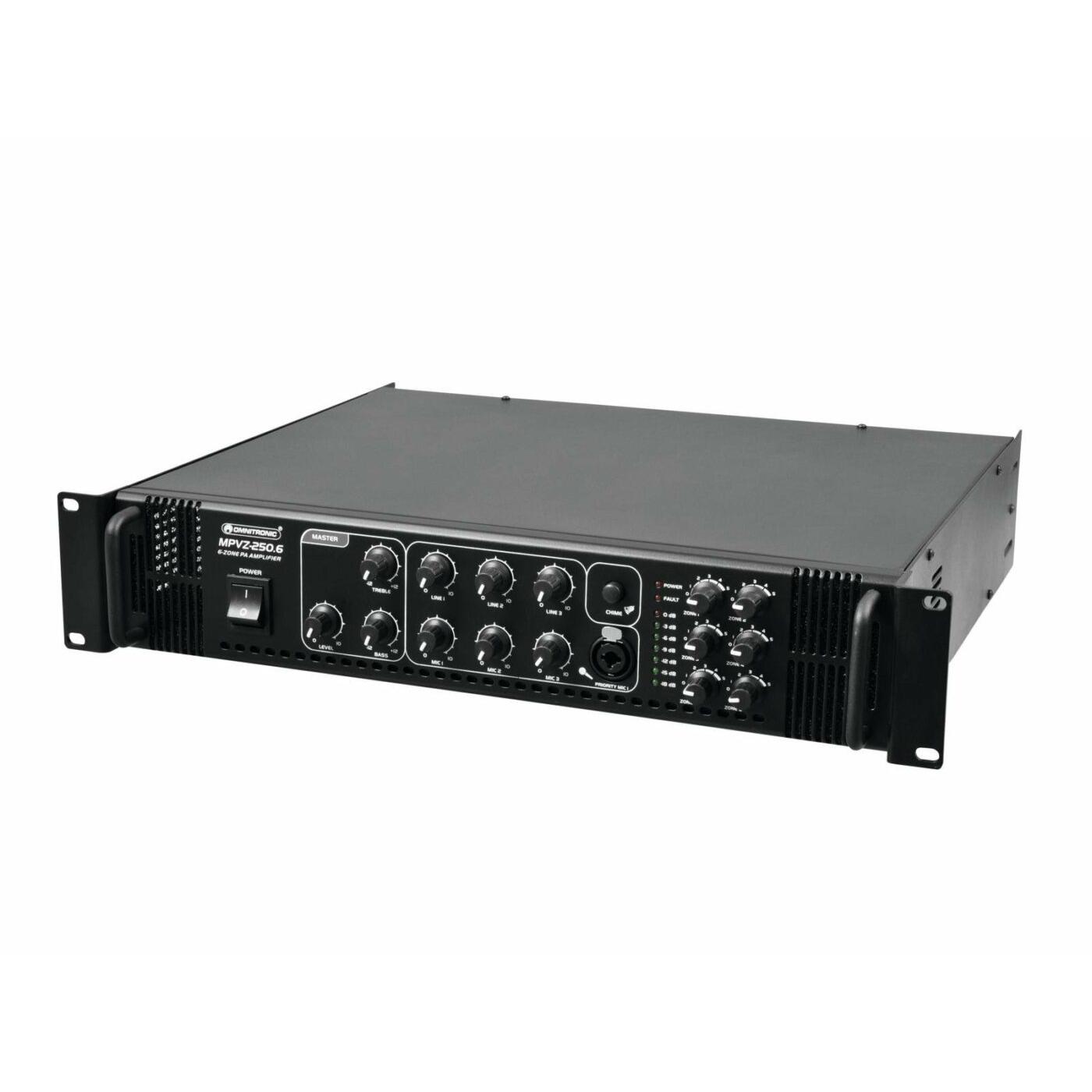

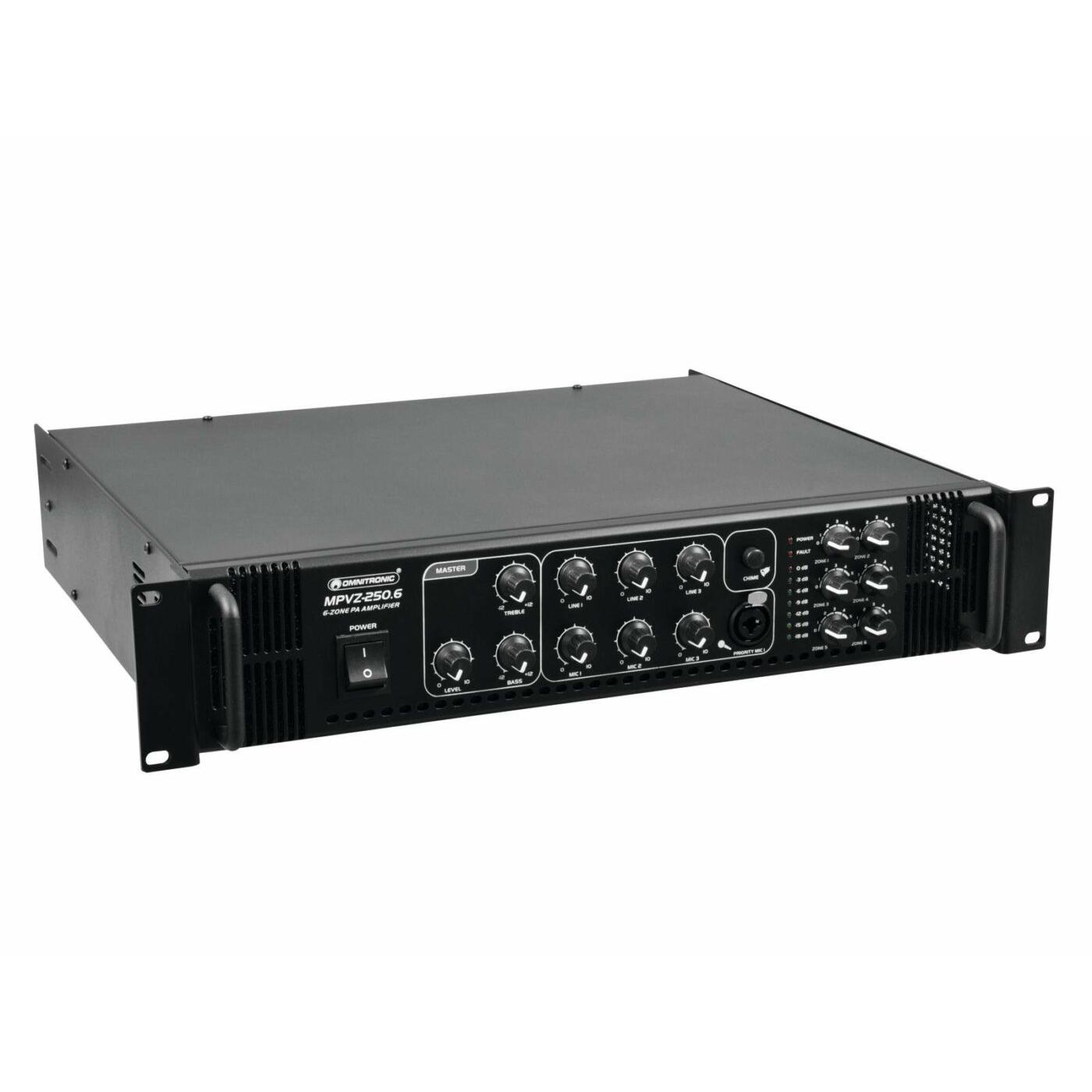

OMNITRONIC MPVZ-250.6 PA Mixing Amplifier
Original price was: €612,85.€415,30Current price is: €415,30.
Description
6-zone PA mono mixing amplifier, 250 watts, adjustable zones
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Master PA output (70 V and 100 V)
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| Output power: | 250 W RMS |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Output current: | 3.6 A (70 V), 2.5 A (100 V) |
| Mic inputs: | 5 mV, 600 ohms |
| Line inputs: | 300 mV, 10 kohms |
| Speaker connectors: | Screw connectors, terminal block |
| Frequency range: | 80-16000 Hz |
| Distortion: | 0.5 % (1 kHz) |
| S/N ratio: | 85 dB (line), 75 dB (mic) |
| Dimensions: | 483 x 385 x 92 mm |
| Weight: | 12 kg |
Specifications
| Weight | 12,75 kg |
|---|---|
| Dimensions | 0,1850 × 0,5550 × 0,4750 m |
| Height cm | 9.2 |
| Mode of operation | Class-AB |
| Weight kg | 14 |
| Depths cm | 38.5 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 500.00 |
| Frequency range Hz | 80 – 16000 |
| Output power W RMS | 250 |
| Master Equalizer | 1 x 2 band tone control Mono |
