EUROLITE LED PIX-12 Swing QCL Zoom Bar
  • EUROLITE LED PIX-12 Swing QCL Zoom Bar
EUROLITE LED PIX-12 zwenkbare QCL-zoomstang - Afbeelding 2
EUROLITE LED PIX-12 zwenkbare QCL-zoomstang - Afbeelding 3
EUROLITE LED PIX-12 zwenkbare QCL-zoomstang - Afbeelding 4
EUROLITE LED PIX-12 zwenkbare QCL-zoomstang - Afbeelding 5

EUROLITE LED PIX-12 zwenkbare QCL-zoomstang

  • 12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix) LEDs controlled separately
  • With a beam angle of 2° - 28°
  • 164 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
  • With a beam angle of 120°
  • Beam effect; strobe effect; uplight effect

Oorspronkelijke prijs was: €1.249,00.Huidige prijs is: €1.069,14.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51930386 Categorieën: , ,

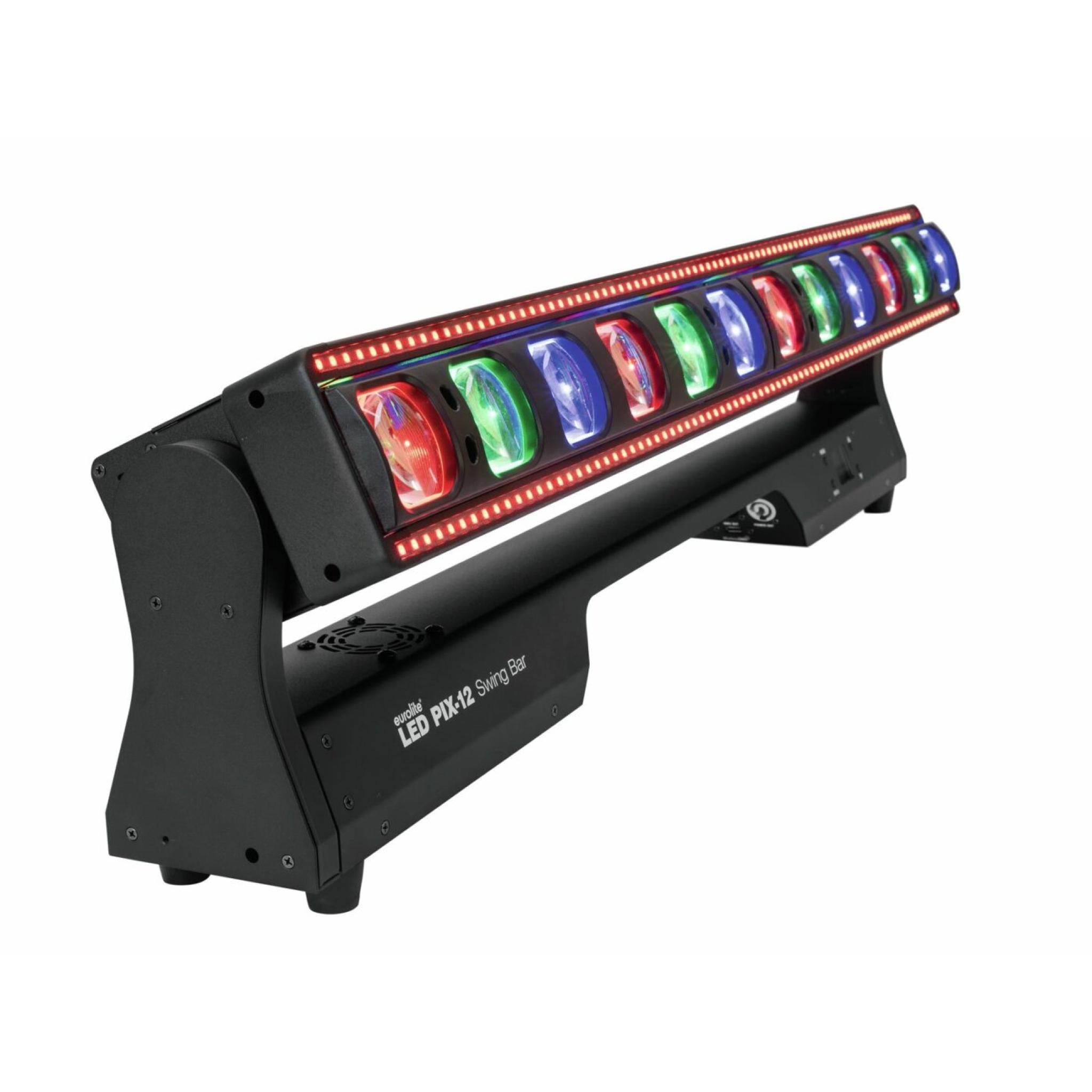

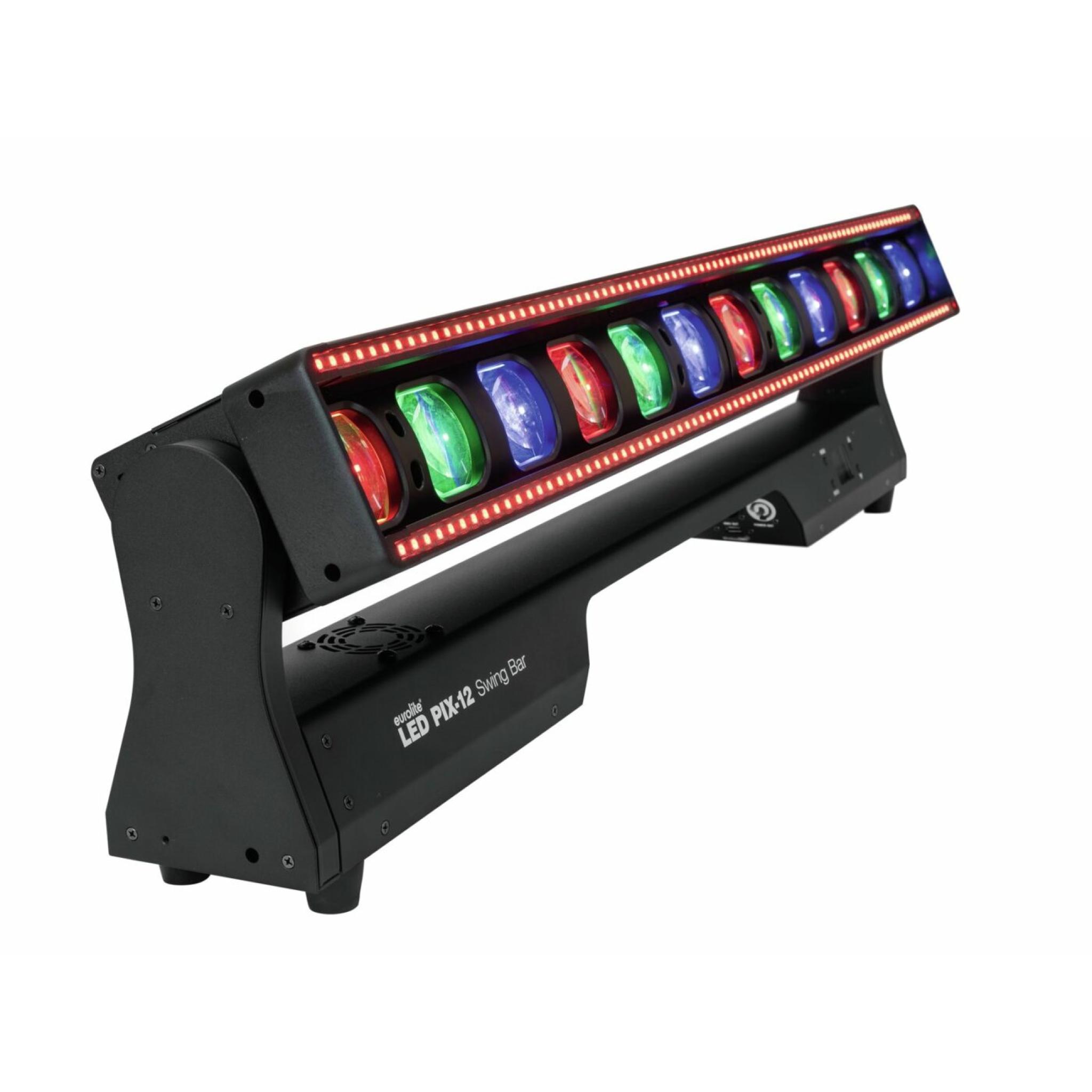

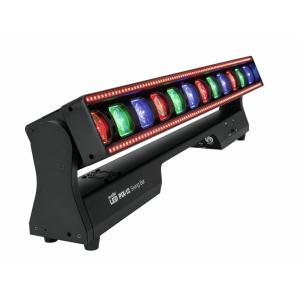

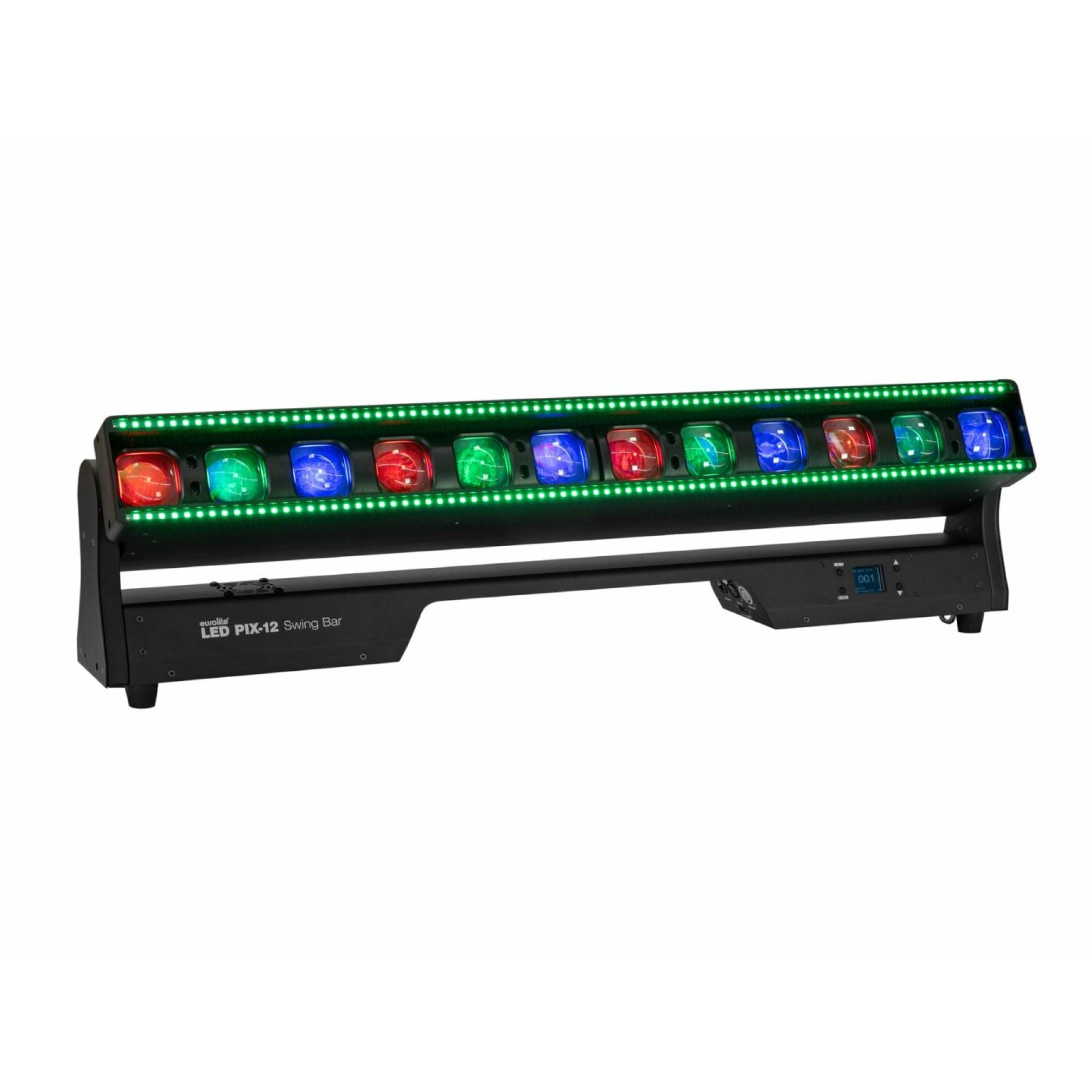

Motorized tiltable LED light effect bar with 12 high-performance LEDs, two zoom ranges from 2° to 28° and 164 effect LEDs

  • 12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
    LEDs controlled separately
  • With a beam angle of 2° - 28°
  • 164 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
  • With a beam angle of 120°
  • Beam effect; strobe effect; uplight effect
  • Positioning within 180° TILT
  • Exact 16 bit resolution at Dimmer
  • Zoom motor driven
  • Color blend stepless; background color adjustable; program speed adjustable; running light adjustable; dimmer curves with adjustable response; Dimmer speed (step response) adjustable; pulse-width modulation variable
  • 6 integrated show programs
  • Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); ArtNet; RDM
  • DMX fail mode (hold; blackout; auto)
  • The device is cooled by cooling fan at the base
  • Flicker-free
  • With omega bracket
  • Monochrome LCD display
  • 4 rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; stage; concerts/FoH's; rental
  • Application possibility: Standing; suspended

Package contents

  • 1 x light effect, 1 x user manual, 1 x power cord, 2 x omega bracket


Power supply
100-240 V AC, 50/60 Hz
Power consumption
310 W
IP classification
IP20
Protection class
Protection class I
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction
3 x 1,5 mm² H05VV-F
Cable length
1,4 m
Power output
P-Con (gray), mounting version
Device fuse
5 x 20 mm, T 3 A fuse replaceable
Lamp type
LED lamp
LED type
12 x 40 W 4in1 QCL RGBW (homogenous color mix)164 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Max. TILT movement
180° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate
1 - 20 Hz
Equipment
Zoom motor driven
DMX channels
28; 34; 67
DMX input
3-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version
Network connection
Protocol: ArtNet 3 via 2x RJ-45 E-Con (F) mounting version
Cooling
1 x cooling fan at the base
Control
Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); ArtNet; RDM
Projection
Flicker-free
DMX fail mode
Hold; blackout; auto
Beam angle
120°2° - 28°
Beam angle (1/2 peak)
Ambient light 120° multicolor
Beam angle (1/10 peak)
Beam 2 - 28°
Housing color
Black
Attachment system
2x omega bracket
Display type
Monochrome LCD display
USB port
Type A
Transport aid
4 x rubber feet
Material
Metal, painted
Dimensions
Width: 1 mDepth: 12 cmHeight: 28,5 cm
Weight
15,70 kg
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting
