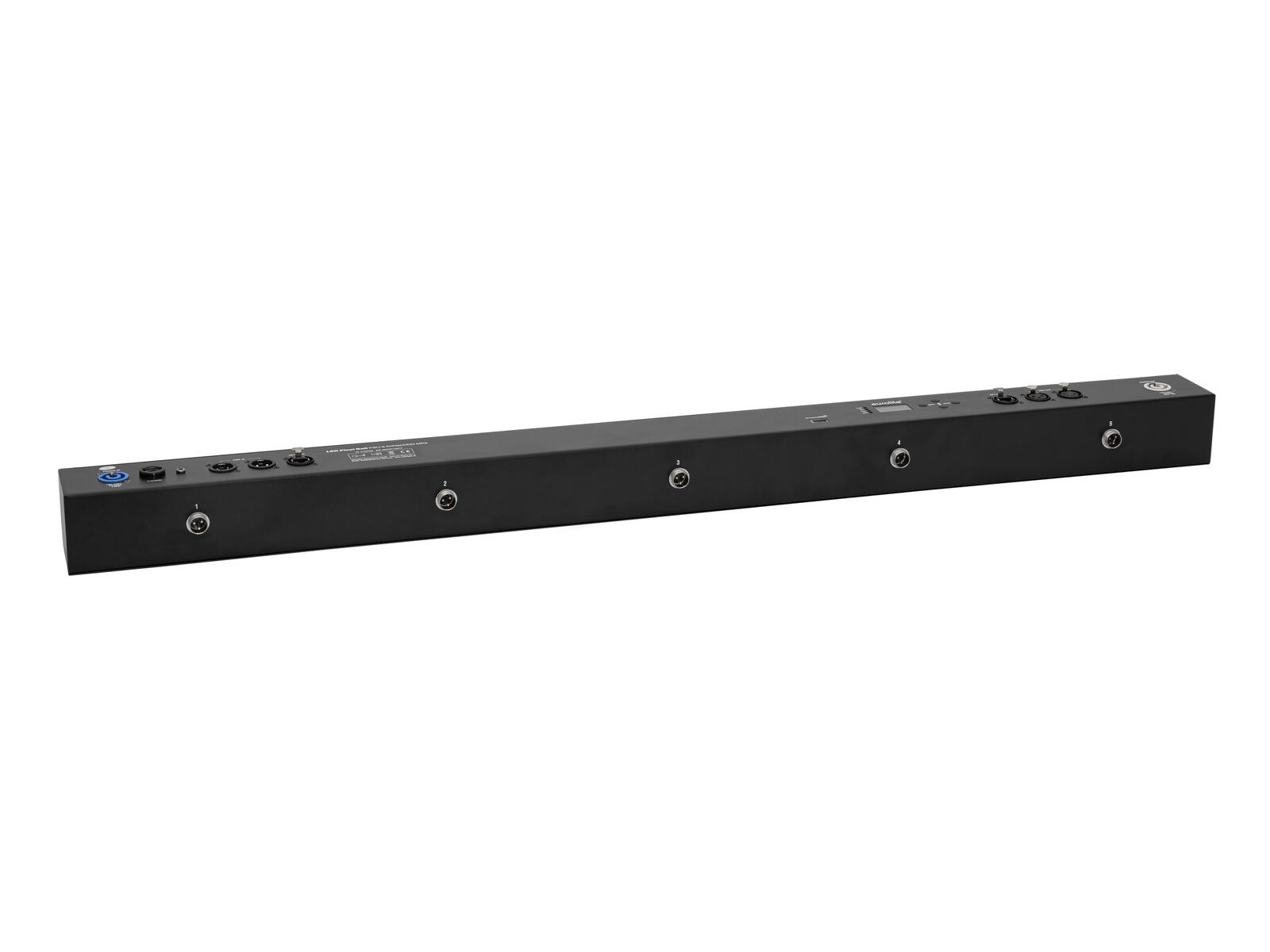

EUROLITE LED Pixel Bal PSU-5 ArtNet/DMX MK2

Series connection of 6 strings per output possible
Up to 150 pixel balls per bar can be controlled
30 integrated show programs
Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode (hold; blackout)

Oorspronkelijke prijs was: €399,00.Huidige prijs is: €341,54.

Advies nodig? Neem contact op — we helpen je graag!

Internationale verzending in heel Europa.

Op voorraad — vandaag besteld, in huis op 14 mei

Artikelnummer: 51928765 Categorieën: Nieuwe producten, Pixelsystemen, Verlichting & Effects

Beschrijving

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2

Series connection of 6 strings per output possible
Up to 150 pixel balls per bar can be controlled
30 integrated show programs
Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode (hold; blackout)
Monochrome OLED display
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Interface
The device is cooled by passive convection cooling
For application areas such as: Clubs/dancing school; wedding/gala/events; installation; restaurants, bars and hotels
Silent operation
Application possibility: Suspended; wall mounting

Package contents

Specificaties

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 130 W
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction: 3 x 1,0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 1 A fuse replaceable
DMX channels: 3; 5; 7; 10; 15; 19
DMX input: 3-pin XLR (M) mounting version5-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version5-pin XLR (F) mounting version
Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode: Hold; blackout
Housing color: Black
Display type: Monochrome OLED display
USB port: Type A
Use of brands: Built with SEETRONIC connector
Material: Metal
Housing design: Interface
Dimensions: Length: 100 cmDepth: 7,7 cmHeight: 10,7 cm
Weight: 3,65 kg
Noise classification: Class 0 (no noise at all)
