EUROLITE LED THA-120F MK2 Theater Spot

  • Variable color temperature 2400 K - 8500 K
  • With a beam angle of 3° - 48°
  • Zoom manual
  • Exact 16 bit resolution at Dimmer, color
  • Very quiet working noise

Oorspronkelijke prijs was: €712,81.Huidige prijs is: €599,00.

Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 18 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 41602131 Categorie:

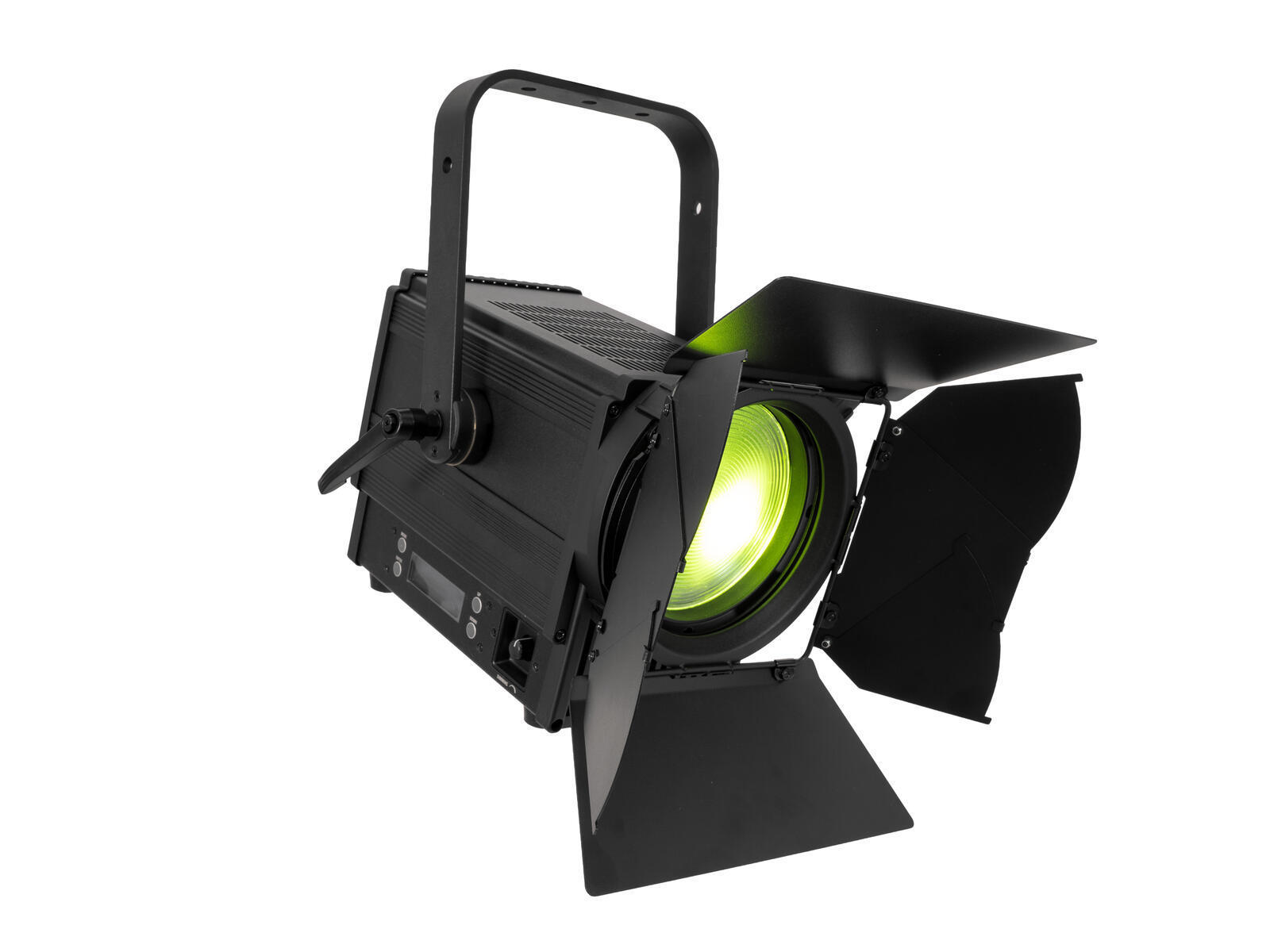

While the original THA-120F was limited to colored light and pastel tones, the new version now delivers excellent white light performance as well.This is made possible by a color mixing system based on red, green, blue, and lime. The broad-spectrum lime enables particularly clean yellow and orange tones, as well as high-quality cool white and warm white light; something that was not previously achievable with traditional RGBW fixtures.Behind the Fresnel lens is a manual zoom with a range from 3° to 48°, allowing flexible adjustment of the beam angle.A specially designed low-noise fan mode makes the fixture suitable for noise-sensitive environments. In addition, the PWM frequency can be adjusted from 1200 Hz to 25 kHz in 12 steps.The fixture also comes with a rotatable barndoor with four leaves. Two of the leaves can be extended, allowing for precise and optimal beam shaping at all times.

Fresnel spotlight (fresnel lens), 120-W-COB (chip-on-board)-LED 4in1 RGBL, extremely quiet, DMX

  • Variable color temperature 2400 K - 8500 K
  • With a beam angle of 3° - 48°
  • Zoom manual
  • Exact 16 bit resolution at Dimmer, color
  • Very quiet working noise
  • Flicker-free
  • Dimmer electronic; dimmer curves; Dimmer speed (step response); pulse-width modulation adjustable; color blend stepless
  • Wash effect
  • 1 LED 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
  • Direct color selection for 117 preset colors
  • With mounting bracket
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
  • Application possibility: On stand; suspended
  • Control via DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone


Scope of delivery
  • 1 x spotlight
  • 1 x user manual
  • 1 x power cord
  • 1 x barndoor
  • 1 x filter frame


Power supply
100-240 V AC, 50/60 Hz
Power consumption
130 W
Protection class
Protection class I
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction
3 x 1.5 mm² H05VV-F
Power output
P-Con (gray), mounting version
Fuse
5 x 20 mm, T 2 A fuse replaceable
Lamp type
LED lamp
LED type
1 x 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
Flash rate
1 - 20 Hz
Equipment
Zoom manual
DMX channels
1; 2; 4; 6; 16

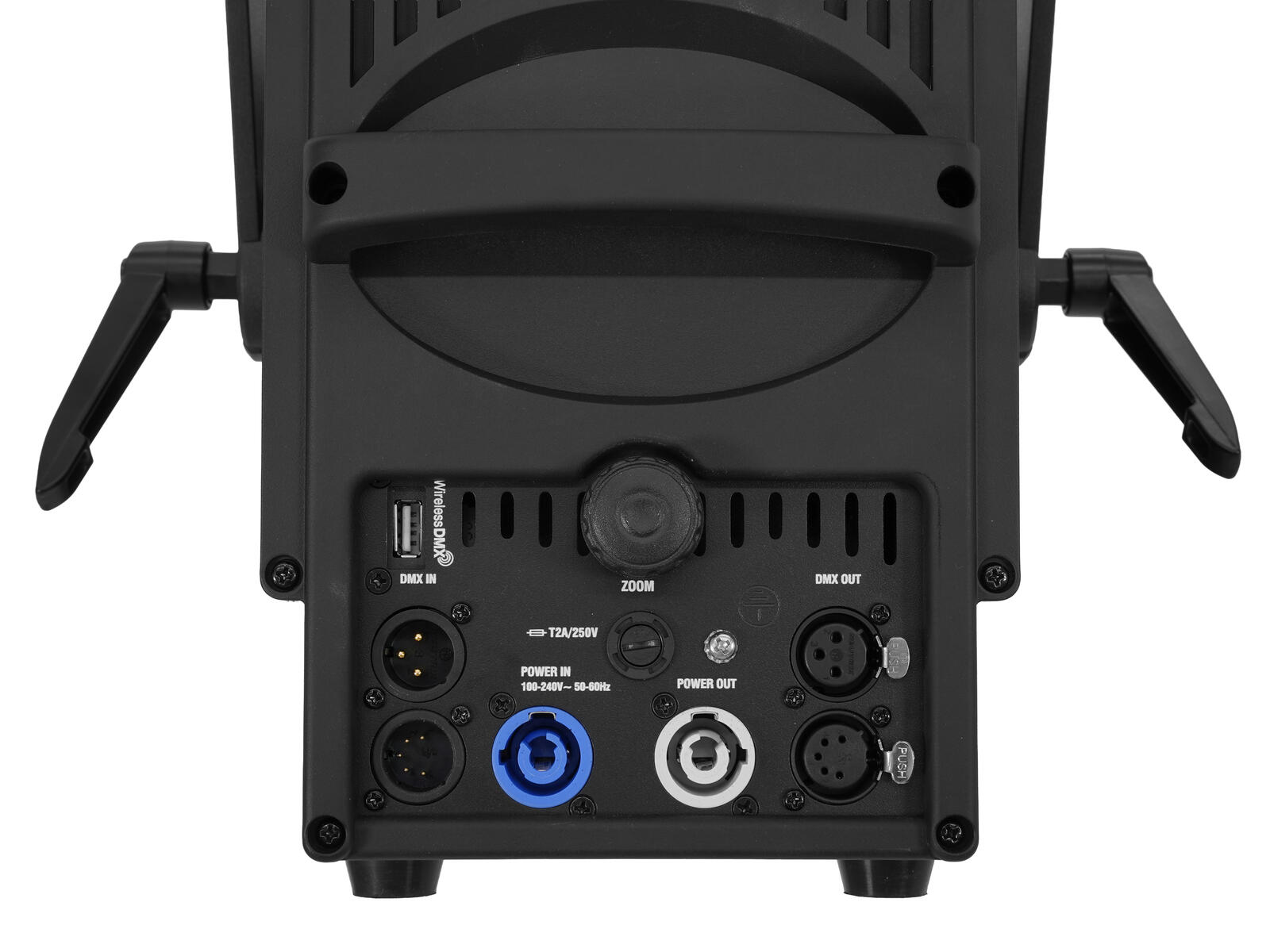

DMX input
5-pin XLR (M) mounting version3-pin XLR (M) mounting version
DMX output
5-pin XLR (F) mounting version3-pin XLR (F) mounting version
Cooling
1 x temperature-controlled fan
Control
DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone
Fixtures available for
GDTF (GrandMA3); Light Captain; Light´J
Projection
Flicker-free
DMX features
RDM For bidirectional communication over the DMX line
DMX fail mode
Hold; blackout; manual
Beam angle
3° - 48°
Beam angle (1/2 peak)
3 - 26°
Beam angle (1/10 peak)
14 - 48°
Color temperature
2400K - 8500K adjustable
Lamp life
30000 h
Housing color
Black
Attachment system
Mounting bracket

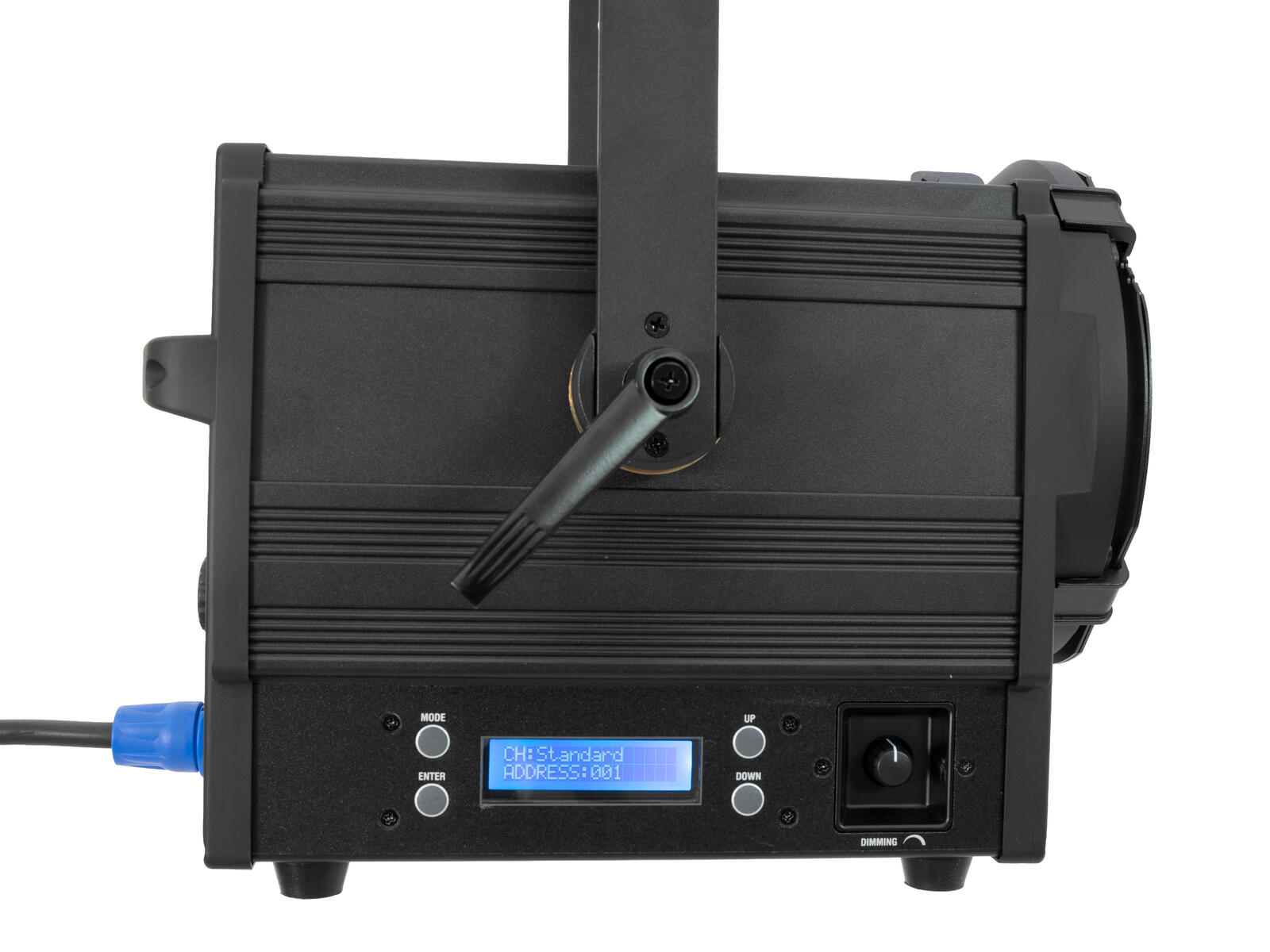

Display type
Monochrome LCD display
USB port
Type A
Diameter mounting holes
3 x Ø10mm
Use of brands
Built with SEETRONIC connector
Material
Aluminum
Dimensions
Length: 35.0 cmWidth: 31.5 cmHeight: 39.5 cm
Weight
7.10 kg
Noise classification
Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting

Download de handleiding (PDF, Duits + Engels):

📖 Handleiding openen

Bron: fabrikant (Steinigke / Eurolite).
