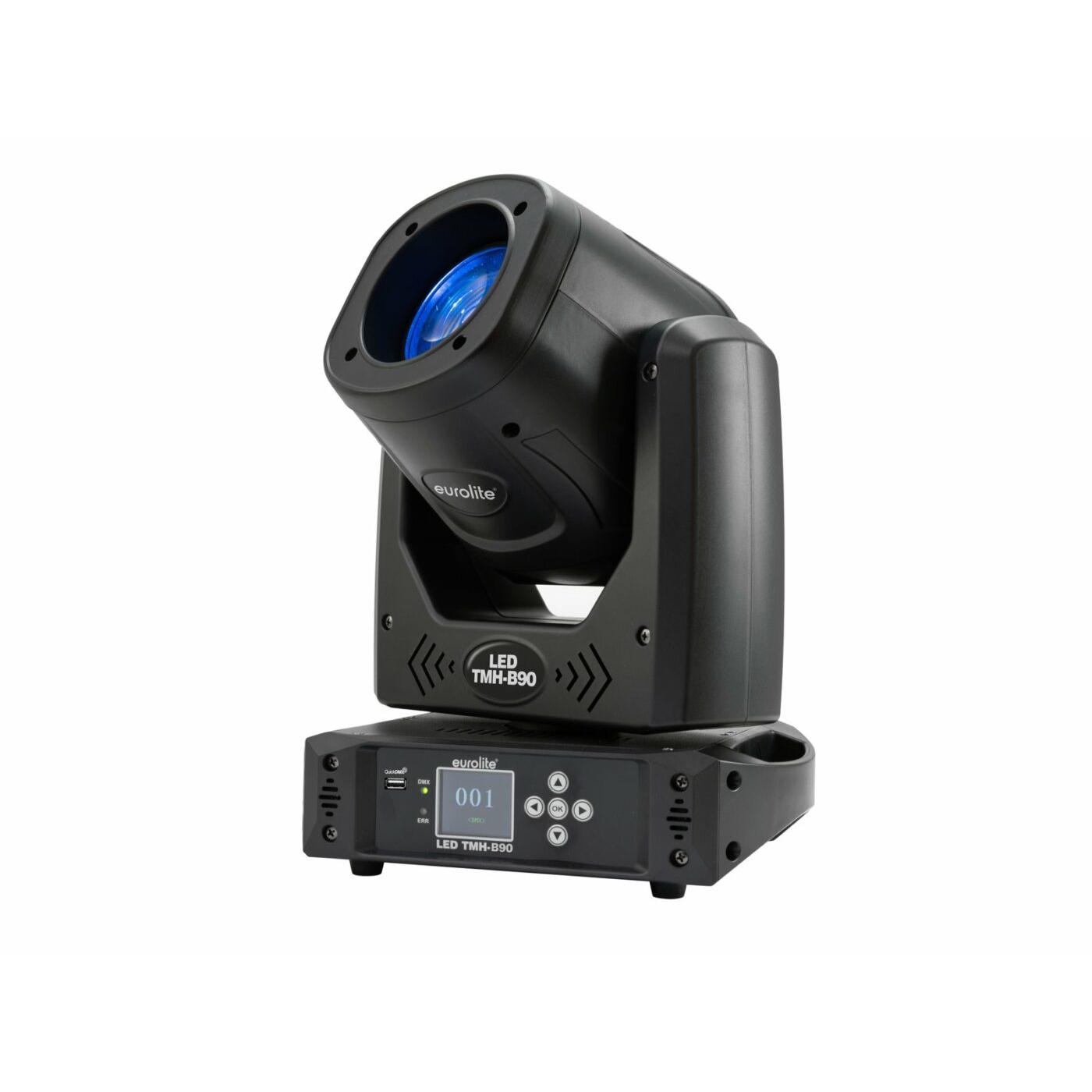

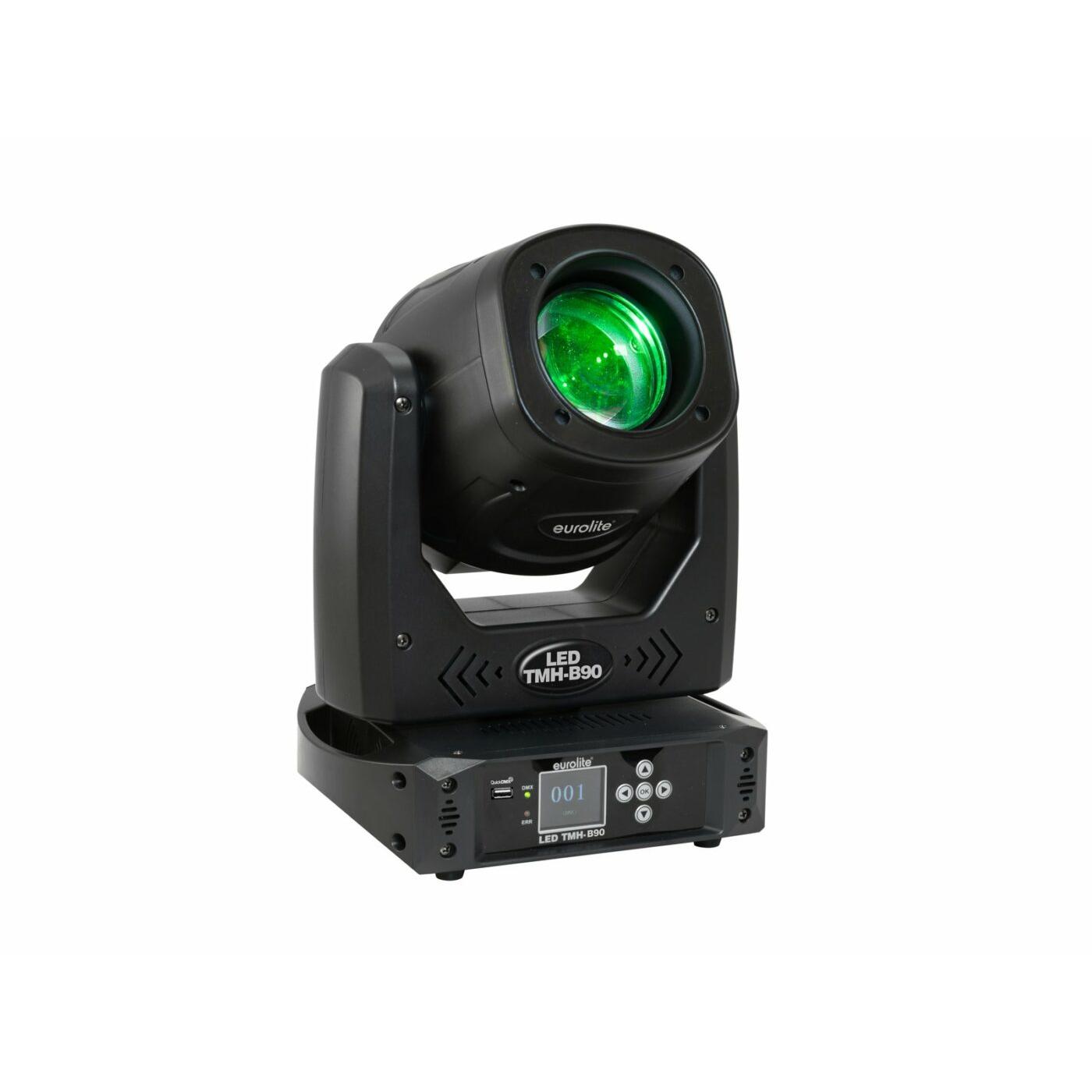

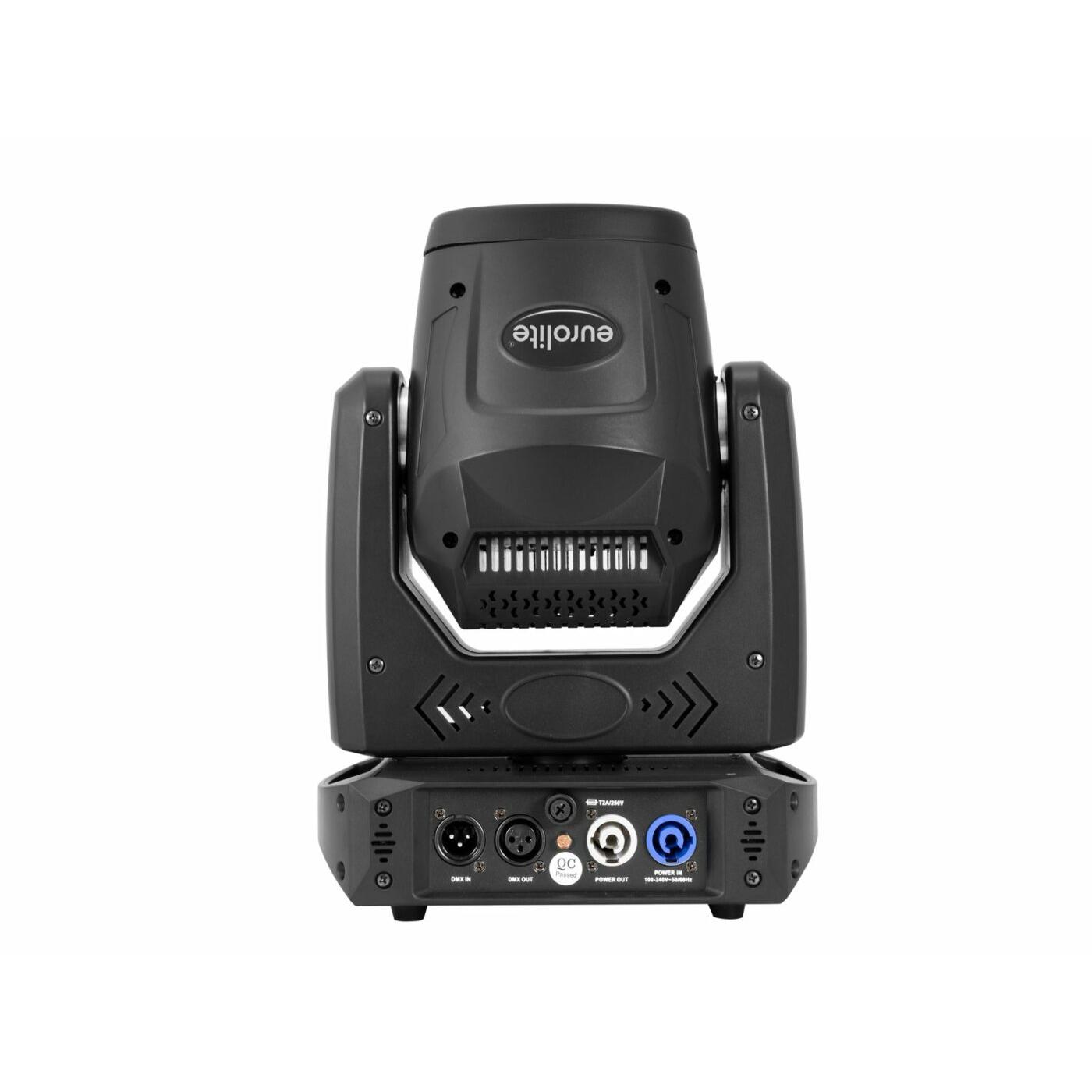

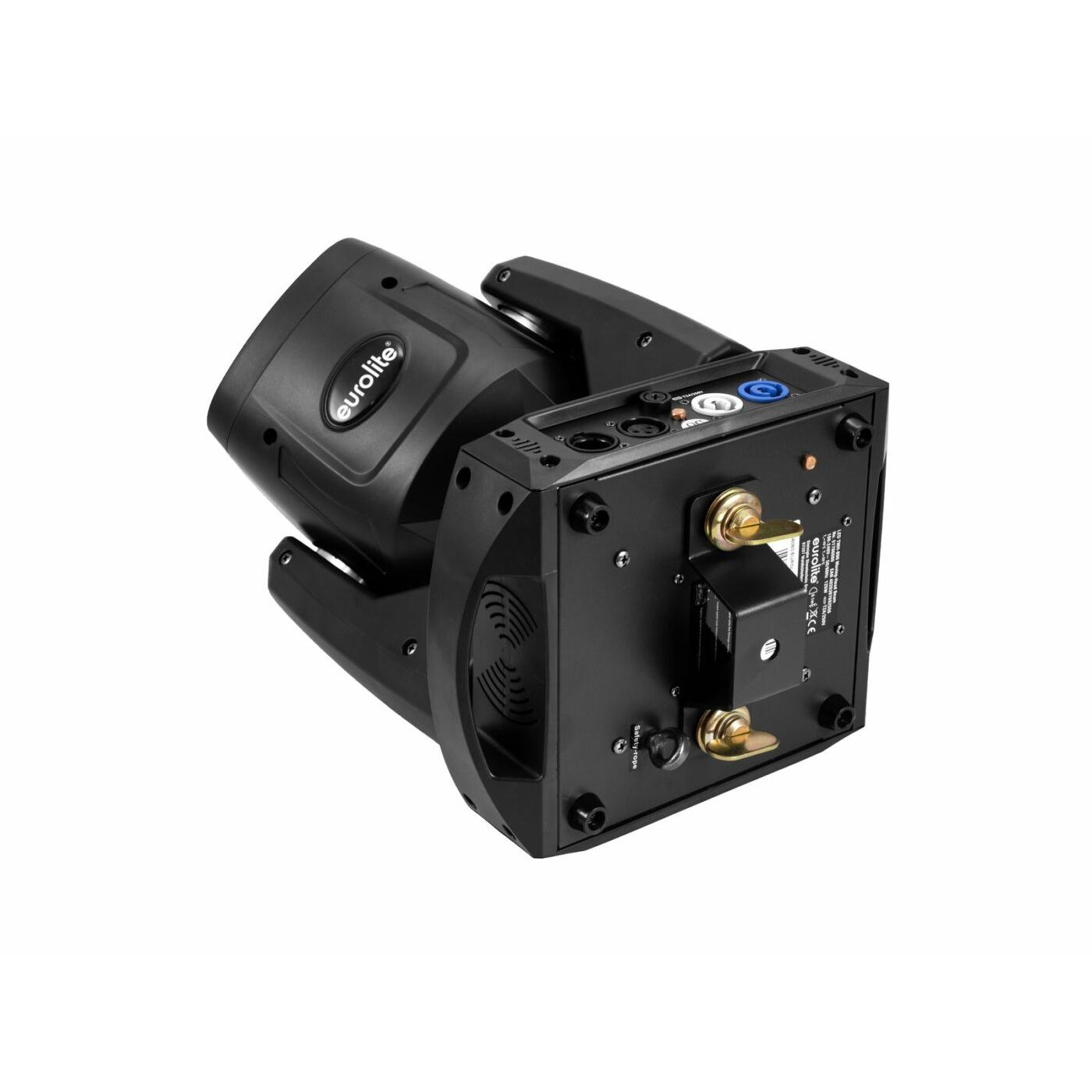

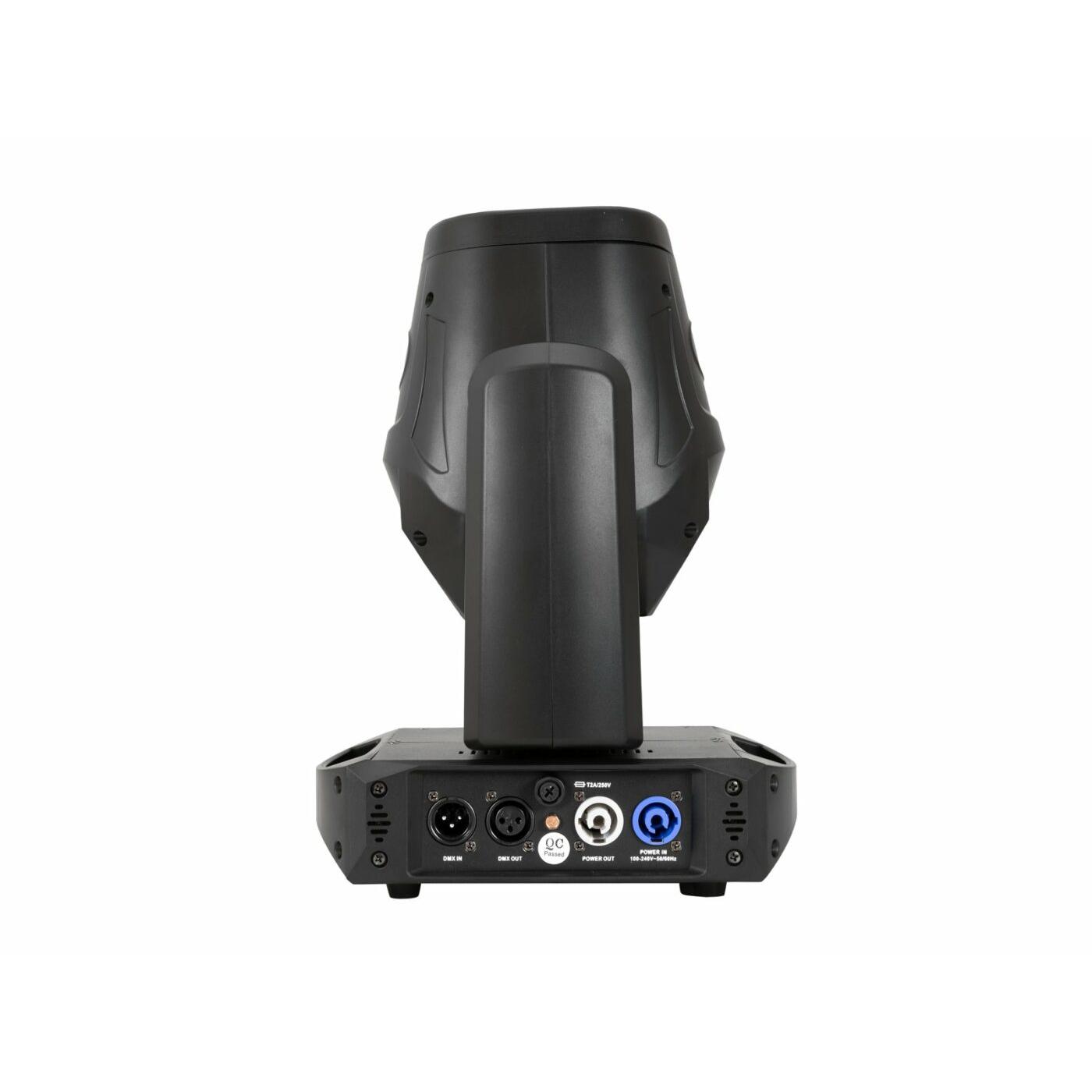

EUROLITE LED TMH-B90 Moving Head Beam
  • Productvideo
EUROLITE LED TMH-B90 Moving Head Beam - Afbeelding 2
EUROLITE LED TMH-B90 Moving Head Beam - Afbeelding 3
EUROLITE LED TMH-B90 Moving Head Beam - Afbeelding 4
EUROLITE LED TMH-B90 Moving Head Beam - Afbeelding 5

EUROLITE LED TMH-B90 Moving Head Beam

  • Equipped with a cold white 90 W COB LED
  • Positioning within 540° PAN and 200° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Sound-control via built-in microphone

Oorspronkelijke prijs was: €449,00.Huidige prijs is: €384,34.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51786080 Categorieën: ,

LED moving head beam with color wheel, static gobo wheel, prism and focus

  • Equipped with a cold white 90 W COB LED
  • Positioning within 540° PAN and 200° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Sound-control via built-in microphone
  • Rotating 8-facet prism
  • The prism rotates at different speeds
  • Strobe effect with 2-20 flashes per second
  • Internal programs
  • Dimmer
  • Motorized focus
  • Frost filter
  • Automatic position correction
  • Supports QuickDMX - the wireless DMX system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Additional rubber feet protect the device when positioned on the floor
  • LED: 1 x COB (chip-on-board) 90 W CW
  • Color wheel 7 dichroic filters plus open Rainbow effect with adjustable speed in both directions
  • Gobo wheel with static gobos, 13 gobos und open shake effect
  • Can be operated in 14 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
  • Flicker-free projection
  • Effect: Single Beam

Power supply
100-240 V AC, 50/60 Hz
Power consumption
125 W
IP classification
IP20
Protection class
Class I
Power connection
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse
Device fuse 5 x 20 mm, T 2 A Fuse replaceable
Lamp type
LED lamp
LED
1 x COB (chip-on-board) 90 W CW
Max. TILT movement
Exact positioning (16 bit resolution) 200° Auto position correction (feedback)
Max. PAN movement
Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate
2 - 20 Hz
Equipment
Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold; frost filter
Color generation
Color wheel 7 dichroic filters plus open
Gobos
Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels
14
DMX input
3-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version
Cooling
Cooling fan
Control
Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
Beam angle
3°
Beam angle (1/2 peak)
3°
Illuminance in Lux (lx)
CW 3m: 33839 lx, 6m: 10454 lx
Housing color
Black
Display type
LCD display
Dimensions
Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm
Weight
6,20 kg
Legal specifications Special product
Not designed for household room illumination
intended use
show effect lighting
