EUROLITE LED TMH-H240 Beam/Wash/Bloemeffect

Eurolite LED TMH-H240 Beam/Wash/Flower Effect – 3-in-1 Moving Head for Professional Light Shows

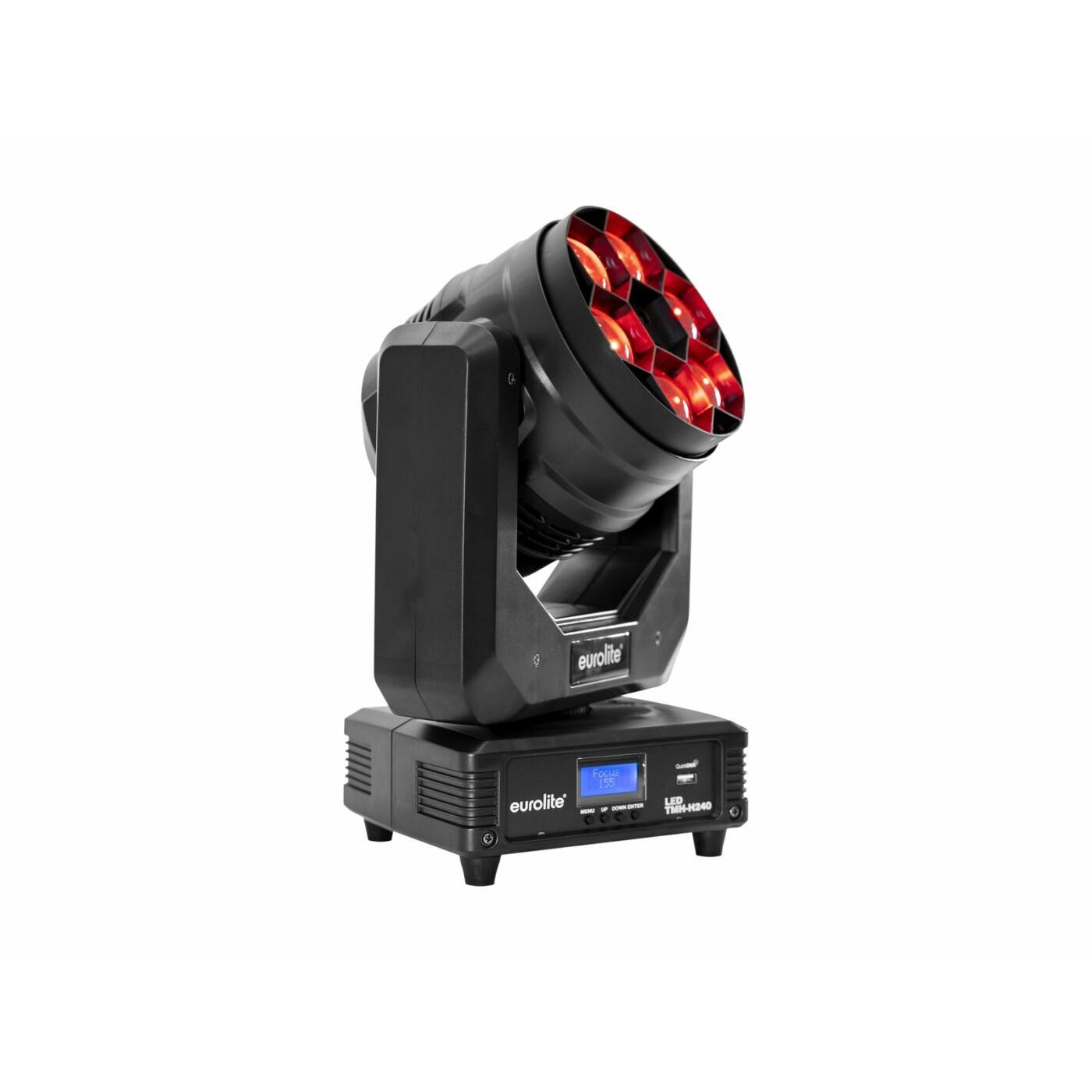

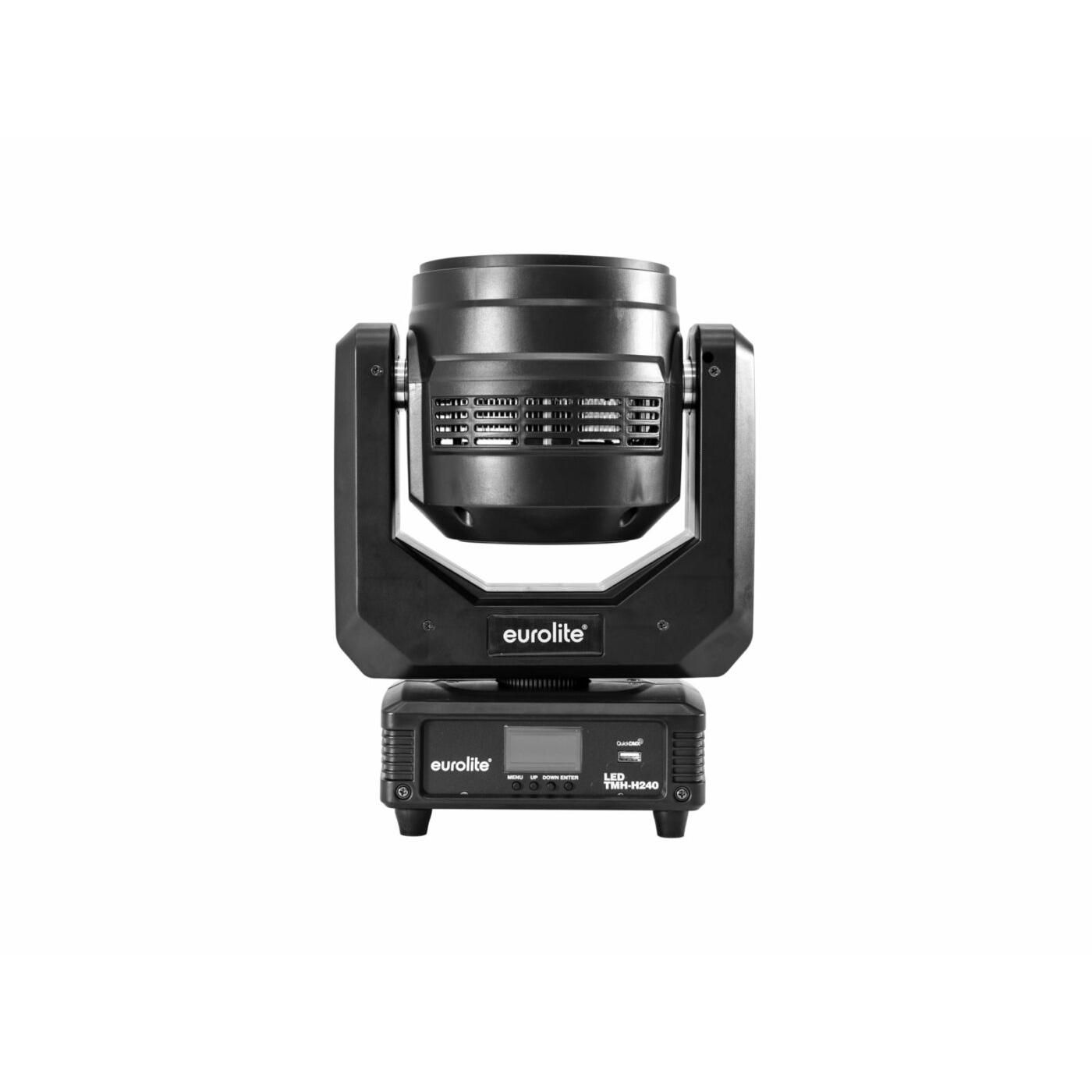

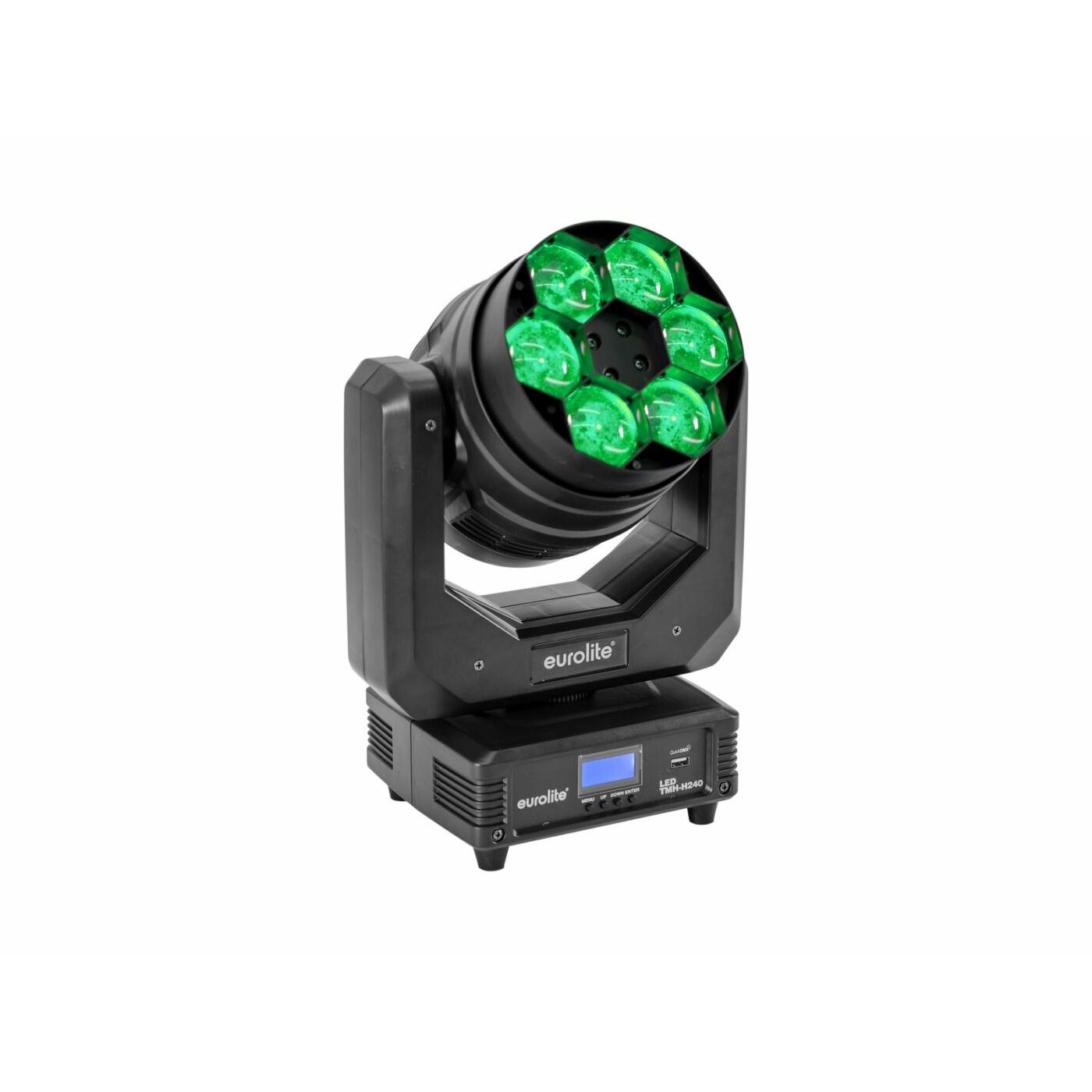

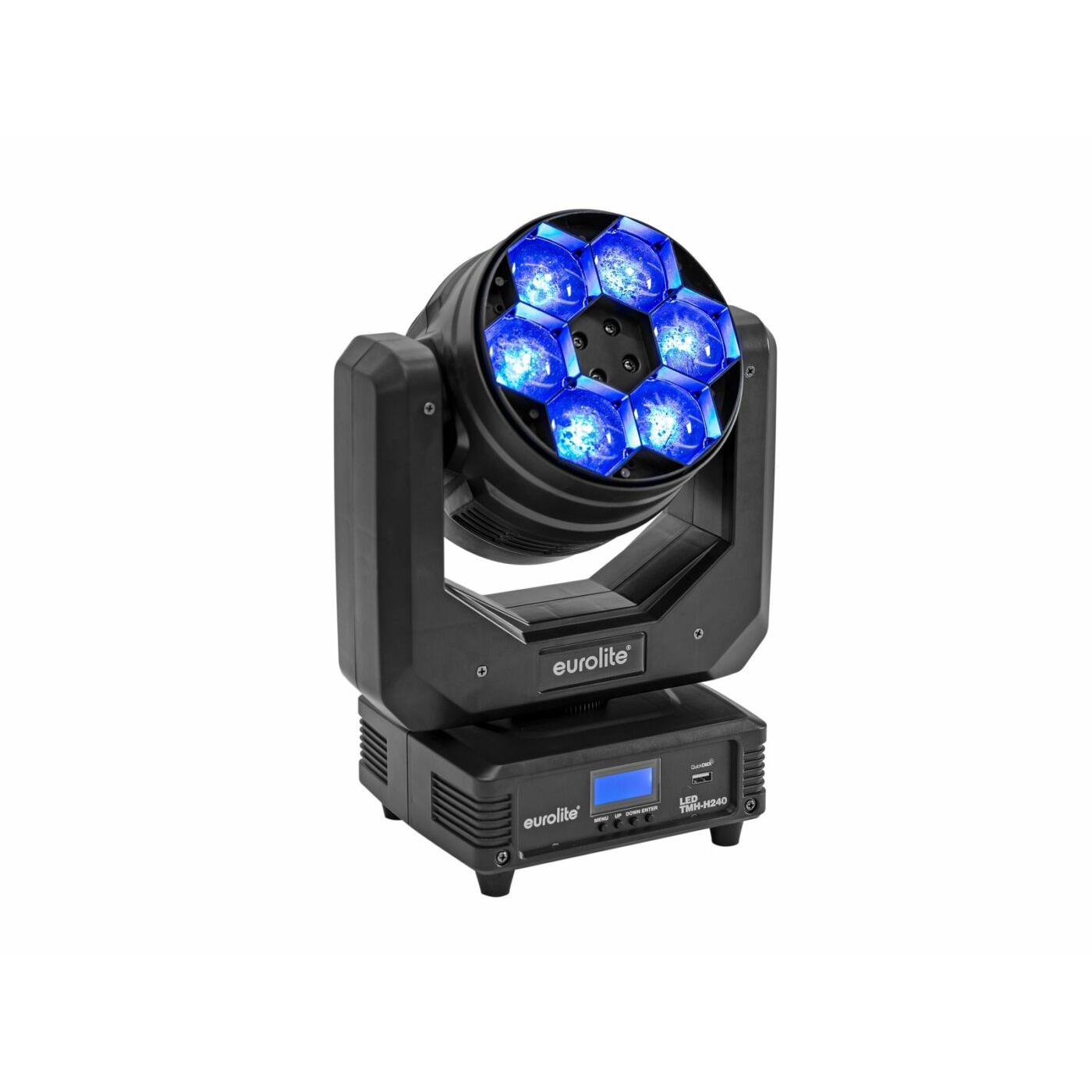

The Eurolite LED TMH-H240 is a versatile 3-in-1 moving head, combining beam, wash, and flower effects in a single compact fixture. Equipped with six powerful 40 W RGBW QCL LEDs, it delivers outstanding brightness, rich color mixing, and a wide range of dynamic effects. With its motorized zoom (2°–40°), individual LED control, and flexible operating modes, the TMH-H240 is the ideal choice for professional stages, clubs, and event productions.

Key Features

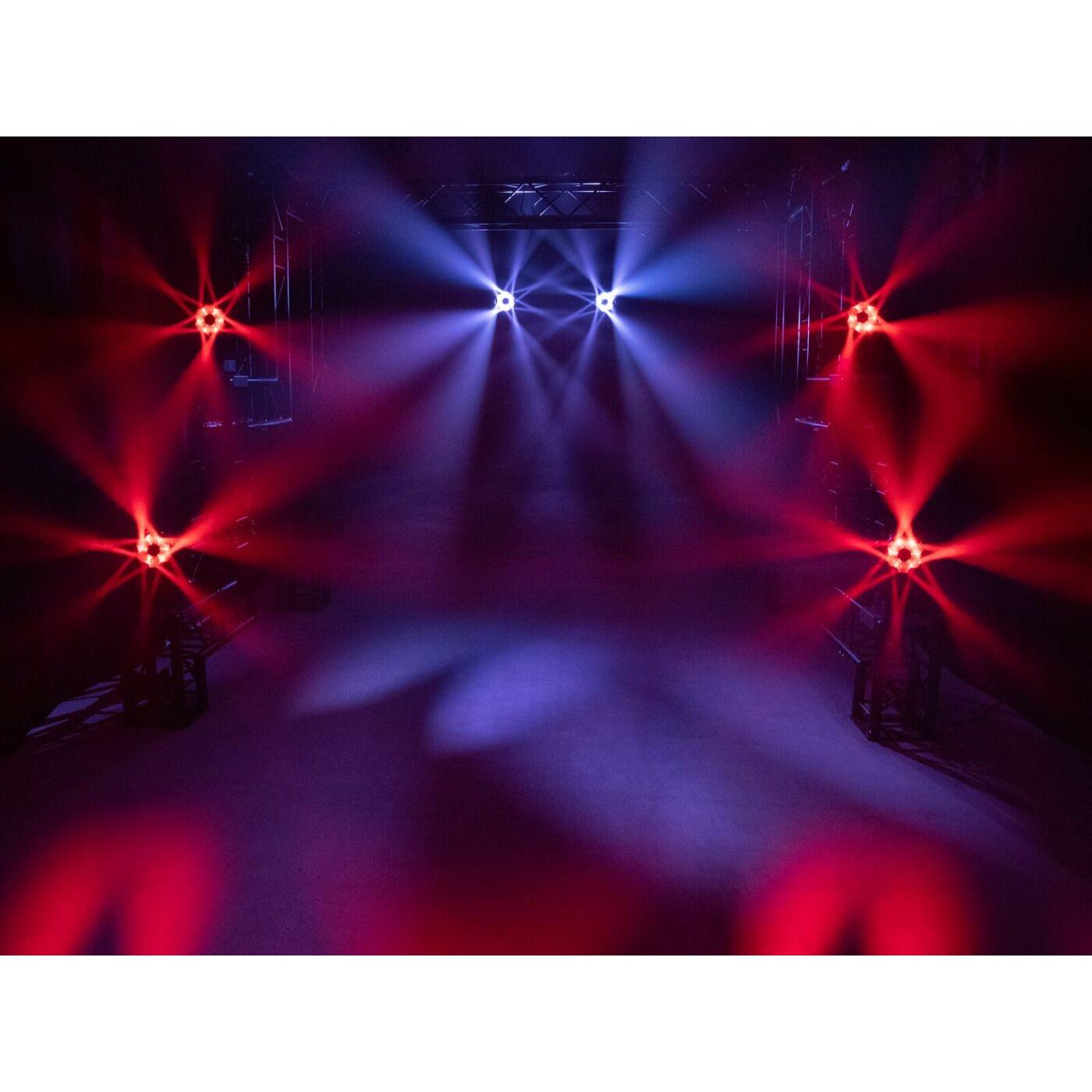

• 3-in-1 functionality: Combines beam, wash, and flower effects in one unit

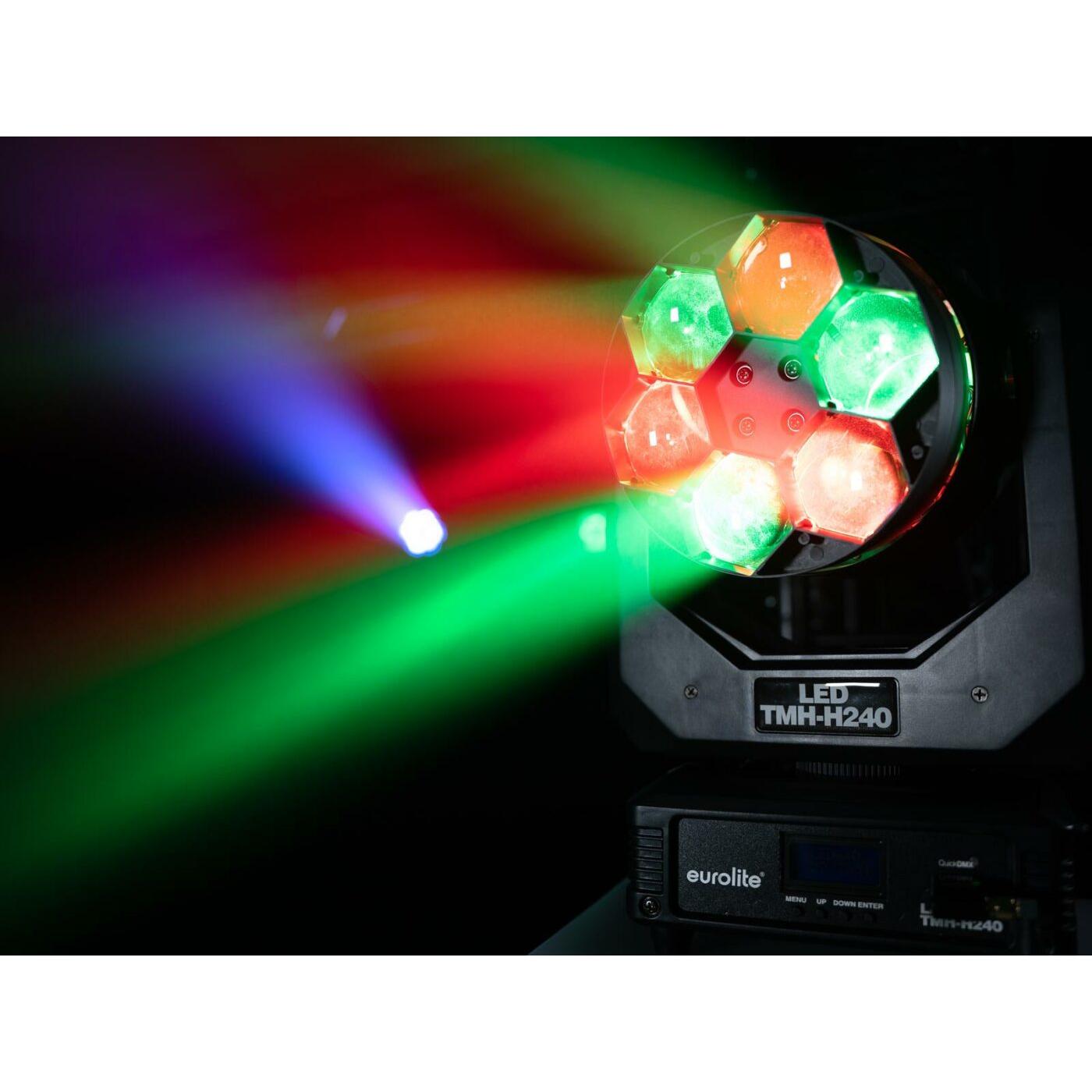

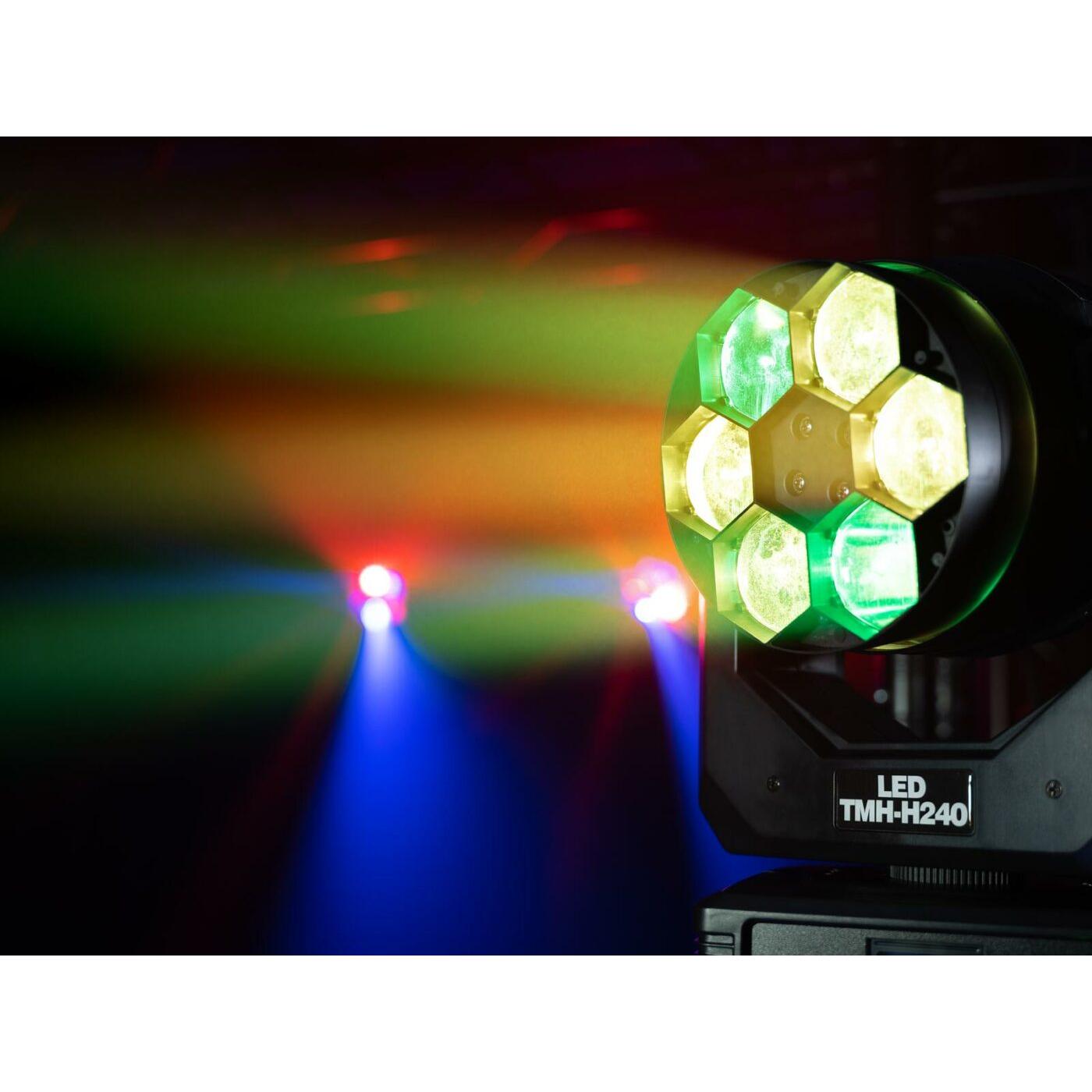

• High-performance LEDs: Six 40 W RGBW QCL LEDs ensure powerful output and smooth color mixing

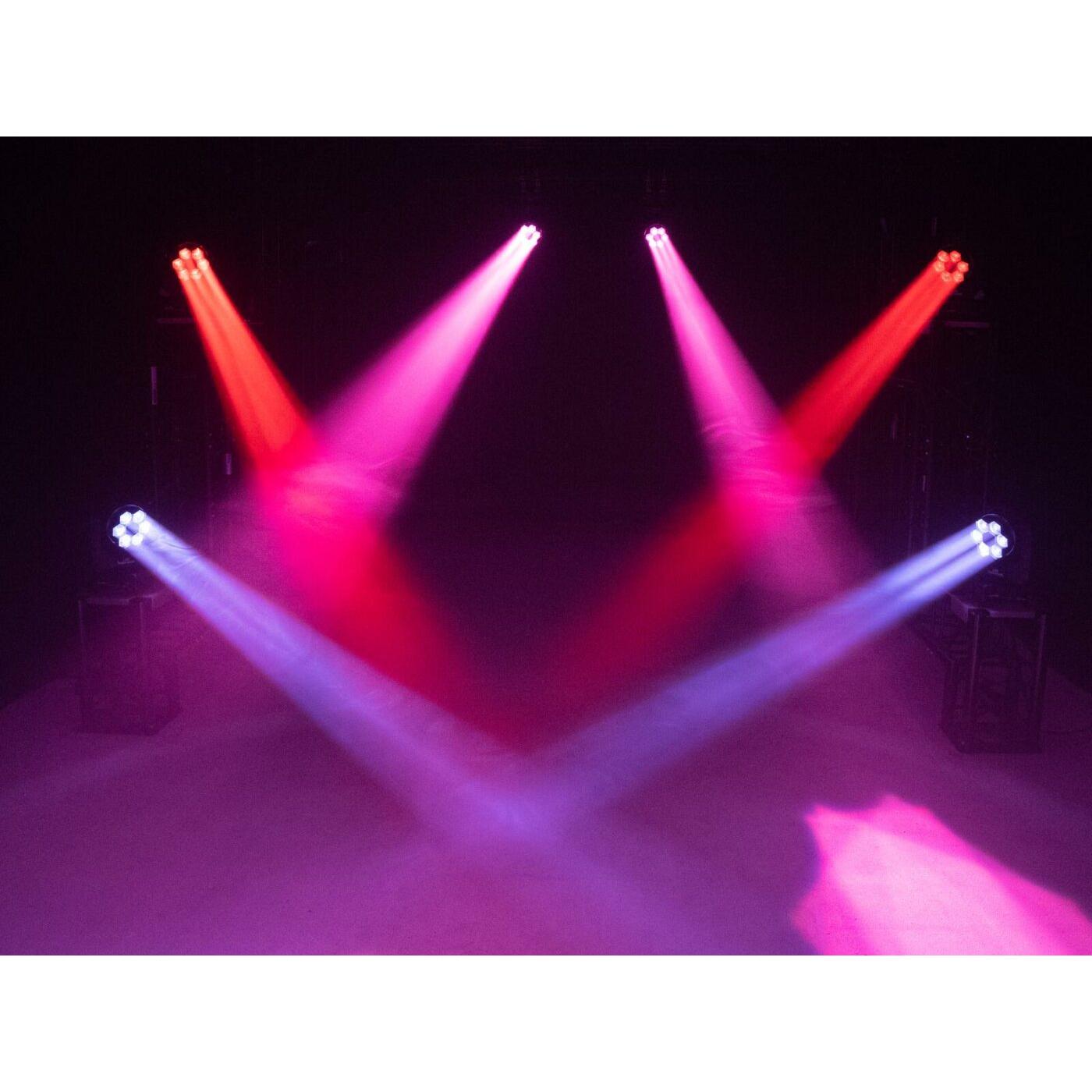

• Motorized zoom: Adjustable beam angle from 2° to 40° – from razor-sharp beams to wide washes
• Pixel control: Each LED can be controlled individually via DMX for creative effects
• Flexible control options: DMX (16, 21, 24, 32 or 56 channels), stand-alone, sound-to-light with built-in microphone, master/slave, QuickDMX via USB (optional), W-DMX and CRMX via USB (optional)
• Built-in shows: Pre-programmed light shows for instant use
• Strobe effect: Adjustable flash rate from 1–25 Hz
• Accurate positioning: 16-bit resolution with automatic position correction (PAN 540°, TILT 240°)
• User-friendly: LCD display and included omega brackets for quick setup

Technical Specifications

• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: 190 W
• LED type: 6 x 40 W 4-in-1 QCL RGBW
• Beam angle: 2°–40°
• PAN movement: 540° (switchable to 360°), 16-bit resolution
• TILT movement: 240°, 16-bit resolution
• DMX channels: 16, 21, 24, 32, 56

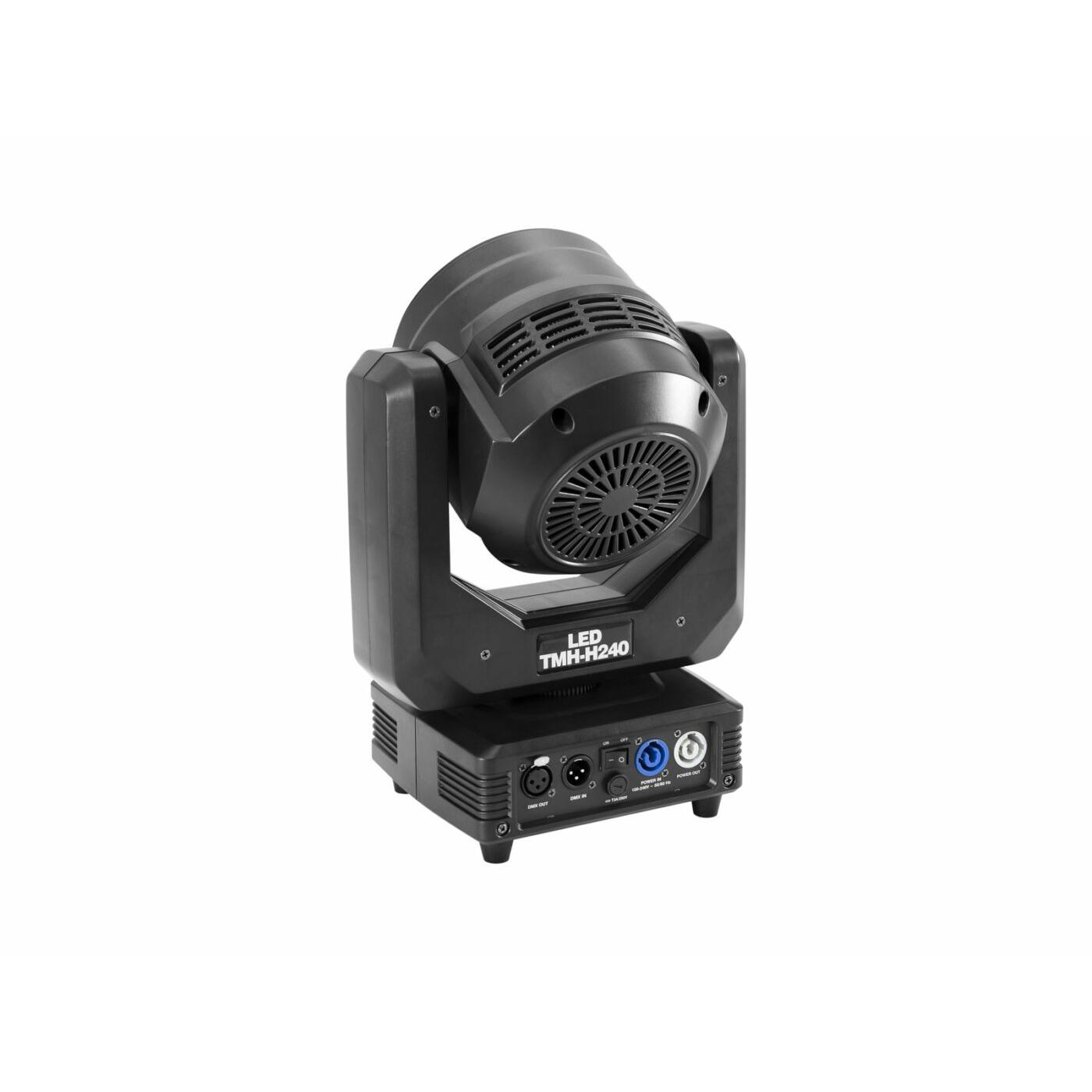

• DMX connections: 3-pin XLR in/out
• Display: LCD display
• Dimensions (W x D x H): 26 x 18 x 33 cm
• Weight: 6.1 kg
• Cooling: Temperature-controlled fan
• Included: Power cable, 2 omega brackets, XLR cable, manual

Perfect Applications

• Professional stages and theaters
• Clubs and discotheques
• Festivals and large-scale events
• Rental and mobile setups

Benefits at a Glance

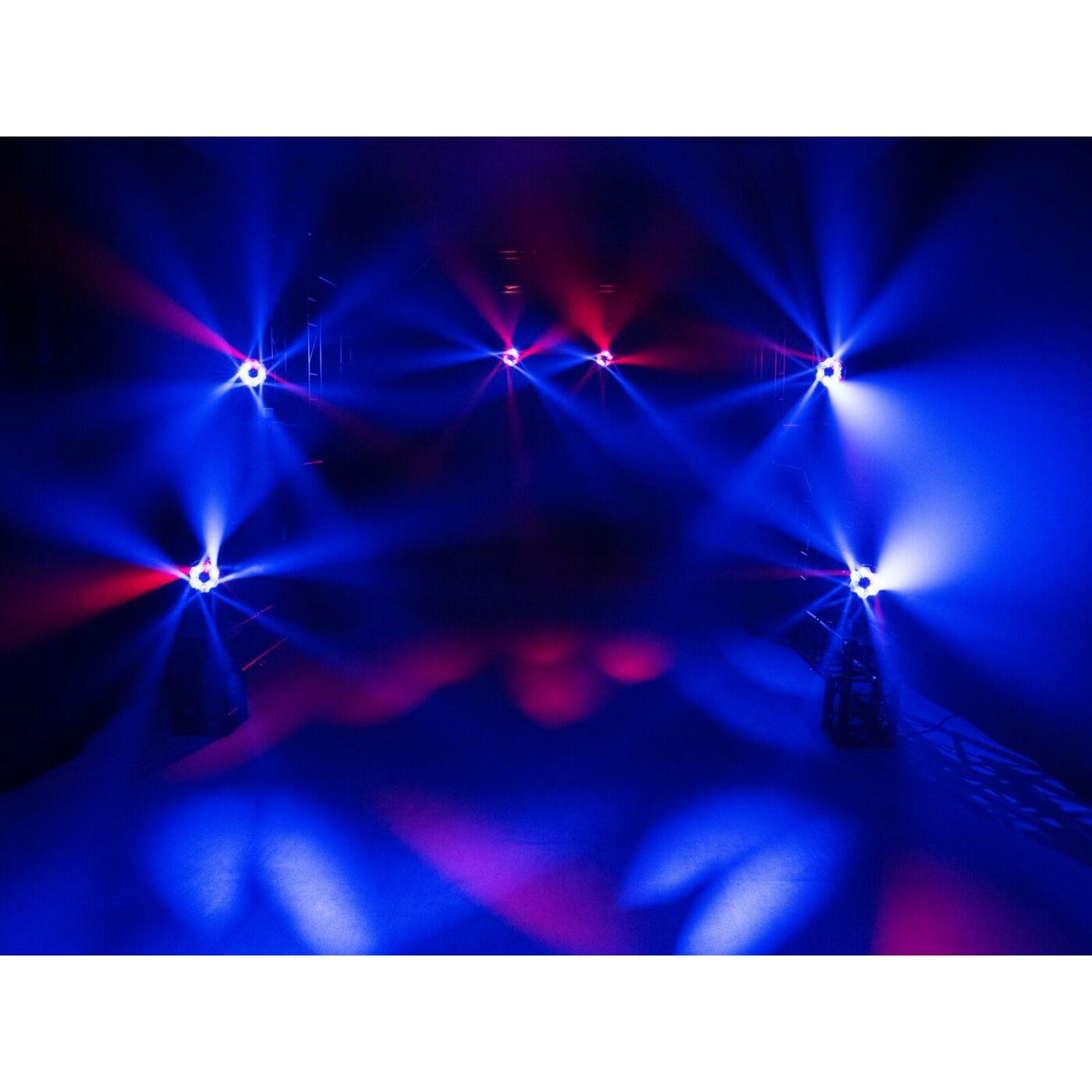

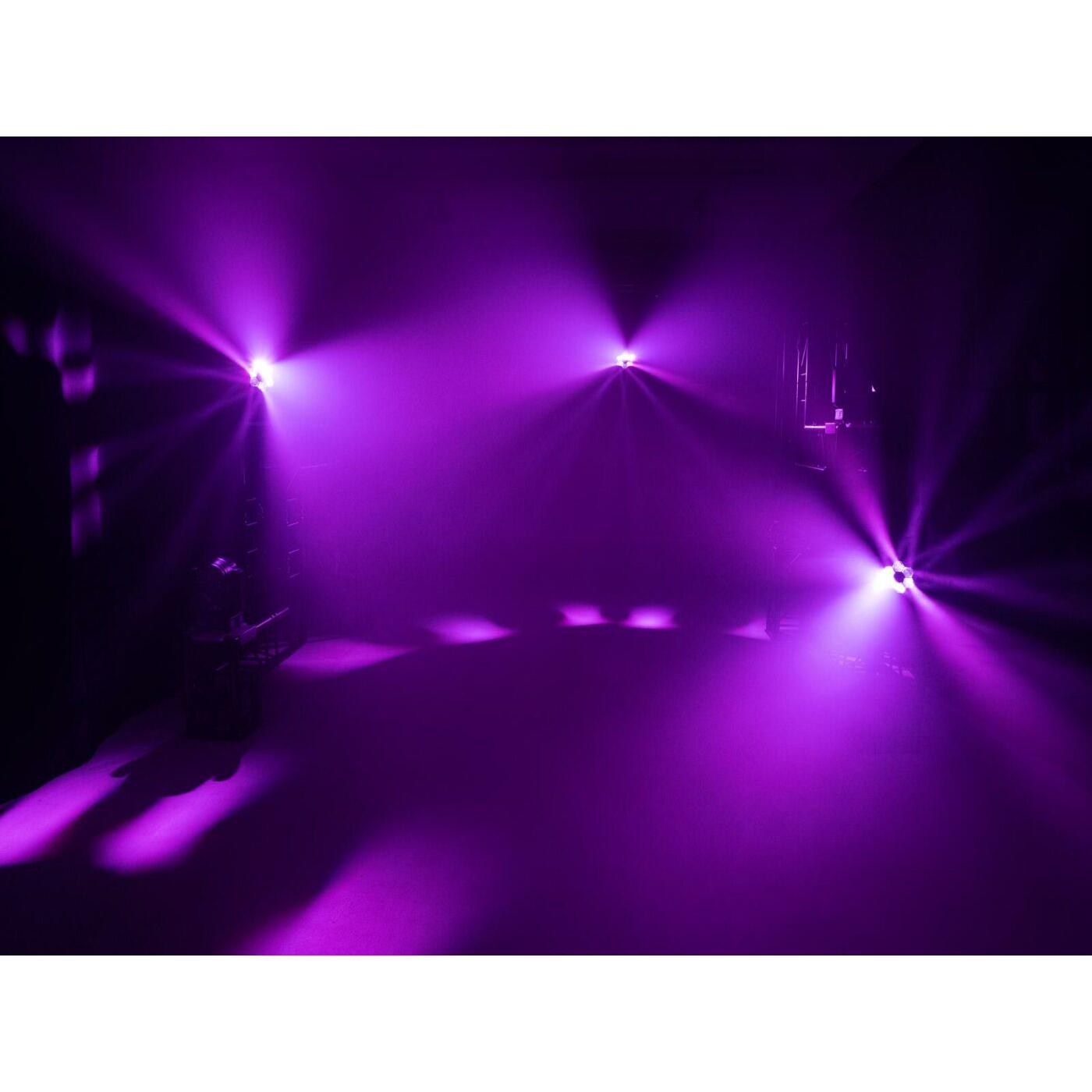

• Versatile effects: Combines beam, wash, and flower effects for dynamic shows
• Powerful performance: Bright output with six 40 W RGBW LEDs
• Flexible operation: Supports multiple DMX modes and optional wireless control
• Compact & portable: Lightweight design for easy transport and setup
• Professional usability: Simple operation with LCD menu and included accessories

With the Eurolite LED TMH-H240 Beam/Wash/Flower Effect, you get a powerful, flexible, and professional lighting solution suited for both fixed installations and mobile use. Whether you are a lighting designer, technician, or event organizer, this moving head offers everything you need to deliver an impressive light show.
