EUROLITE LED TMH-H60 Hybrid Moving Head Spot/Flower

  • 1 LED 60 W COB (chip-on-board) cold white (CW)
  • 6 LEDs 10 W SMD 5050 4in1 RGBW
  • Positioning within 540° PAN, 180° TILT
  • Exact positioning (16 bit resolution)
  • Lens rotation

Oorspronkelijke prijs was: €355,81.Huidige prijs is: €299,00.

Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 15 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51786071 Categorie:

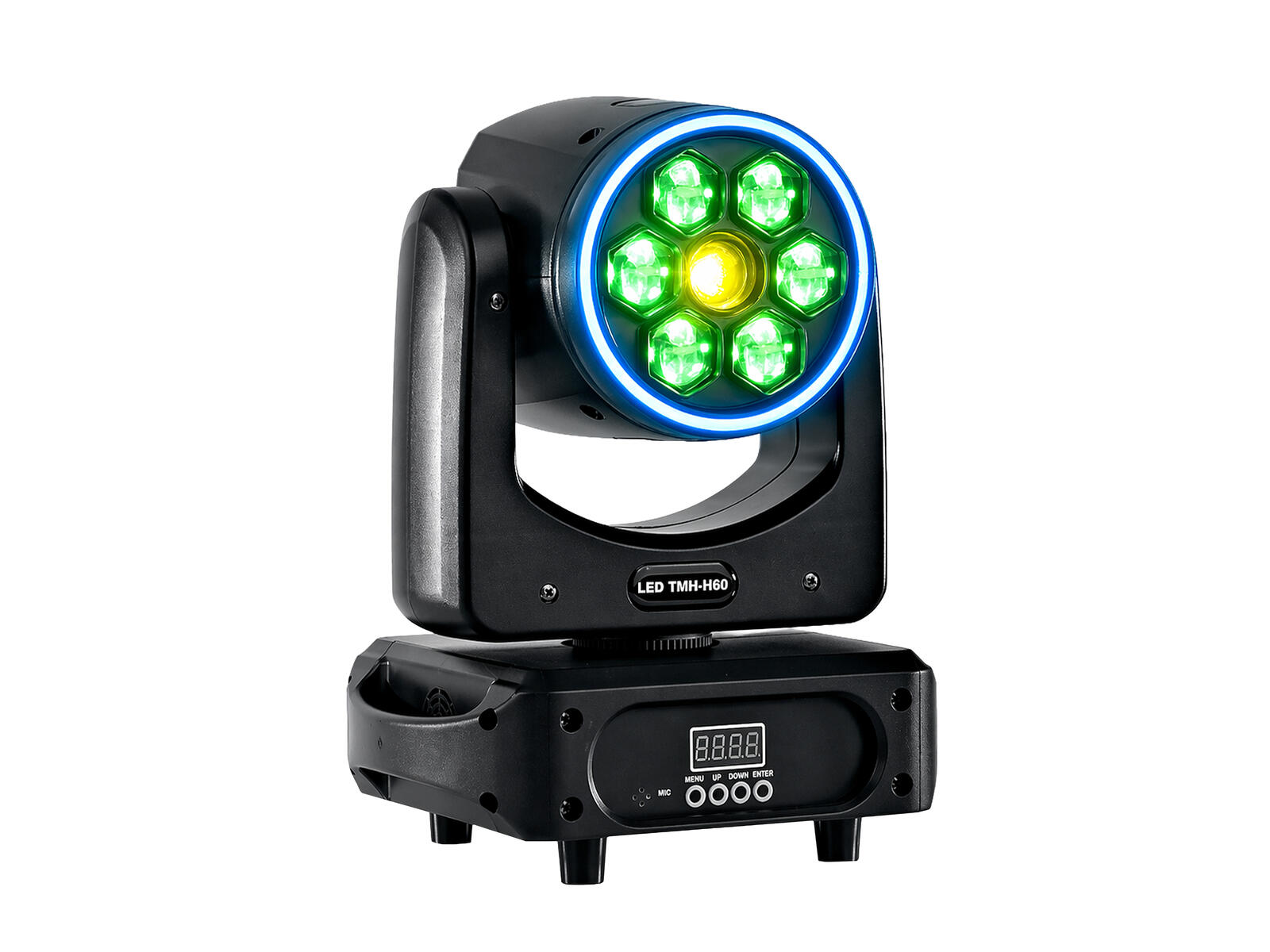

This moving head offers more than meets the eye. At its center is a 60 W LED, combined with a gobo wheel featuring seven gobos and a color wheel with eight colors. The spot has a beam angle of 14°, making it ideal for precise projections.Surrounding the central lens are six additional lenses, each equipped with a 10 W RGBW LED. These create the second effect: as the entire lens assembly rotates, the beams are continuously redirected, producing a dynamic flower effect in haze.As a third effect, an outer ring of 24 colored LEDs provides additional visual possibilities. These can create a colored frame or be used for various animation effects.This results in three distinct effects that can be freely combined to create versatile and dynamic light shows.

Compact moving head spot with color wheel, static gobo wheel, flower effect and hypno ring

  • 1 LED 60 W COB (chip-on-board) cold white (CW)
  • 6 LEDs 10 W SMD 5050 4in1 RGBW
  • Positioning within 540° PAN, 180° TILT
  • Exact positioning (16 bit resolution)
  • Lens rotation
  • Dimmer
  • Spot effect; flower effect
  • Color wheel with 7 dichroic filters plus open
    half colors selectable
  • Gobo wheel with static gobos, 7 gobos and open
    shake effect
  • Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
  • With a beam angle of 14°
  • With omega bracket
  • 4 digit 7-segment LED display
  • 2 Rugged carrying handles
  • Rubber feet
  • Flicker-free
  • The device is cooled by temperature-controlled fan at the head; low-noise cooling fan at the base
  • For application areas such as: Clubs/dancing school; wedding/gala/events; party room; stage; mobile djs / entertainer; restaurants, bars and hotels
  • Application possibility: Standing; suspended


Scope of delivery
  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 1 x omega bracket


Power supply
100-240 V AC, 50/60 Hz
Power consumption
145 W
Protection class
Protection class I
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Fuse
5 x 20 mm, T 2 A fuse replaceable
Lamp type
LED lamp
LED type
1 x 60 W COB (chip-on-board) cold white (CW)6 x 10 W SMD 5050 4in1 RGBW24 x 0.2 W SMD 5050 3in1 R/G/B (homogenous color mix)
Max. TILT movement
180° exact positioning (16 bit resolution)
Max. PAN movement
540° exact positioning (16 bit resolution)
Flash rate
1.5 - 17 Hz
Equipment
Lens rotation
Color generation
Color wheel with 7 dichroic filters plus openHalf colors selectable
Gobos
Gobo wheel with static gobos, 7 gobos and openShake effect
DMX channels
16; 26
DMX input
3-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version
Cooling
Temperature-controlled fan at the headLow-noise cooling fan at the base
Control
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
Fixtures available for
Light´J; Light Captain; Colorchief
Projection
Flicker-free
PWM frequency
10600 Hz
DMX fail mode
Hold; blackout
Beam angle
14°
Beam angle (1/2 peak)
Spot 14°
Beam angle (1/10 peak)
Spot 14°
Housing color
Black
Attachment system
Omega bracket
Display type
4 digit 7-segment LED display
USB port
Type A
Carrying handle
2 pc/pcs
Transport aid
Rubber feet
Diameter mounting holes
1 x Ø11mm
Material
Plastic
Dimensions
Width: 23.0 cmDepth: 17.5 cmHeight: 31.0 cm
Weight
4.15 kg
Noise classification
Class 2 (slight noise)
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting

Download de handleiding (PDF, Duits + Engels):

📖 Handleiding openen

Bron: fabrikant (Steinigke / Eurolite).
