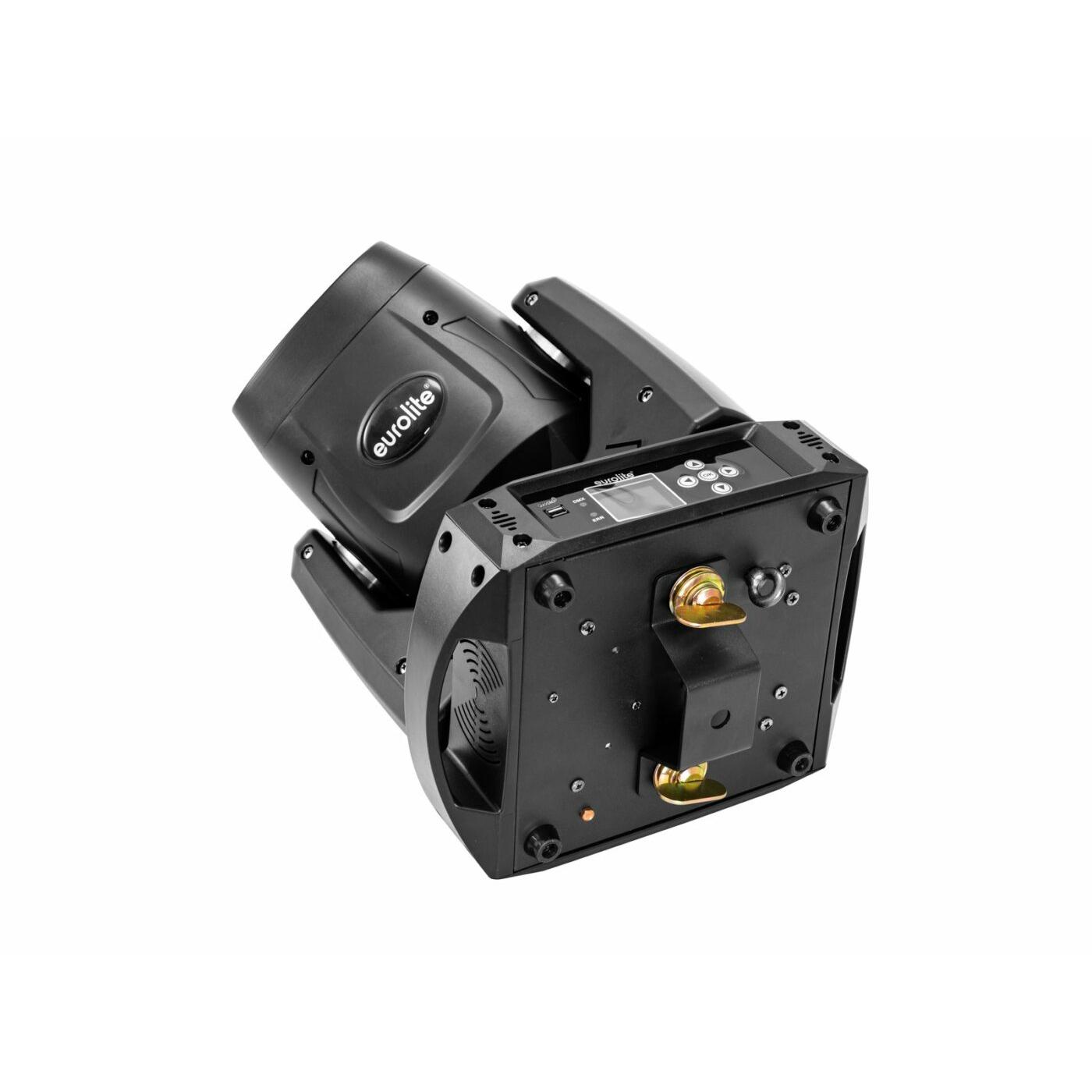

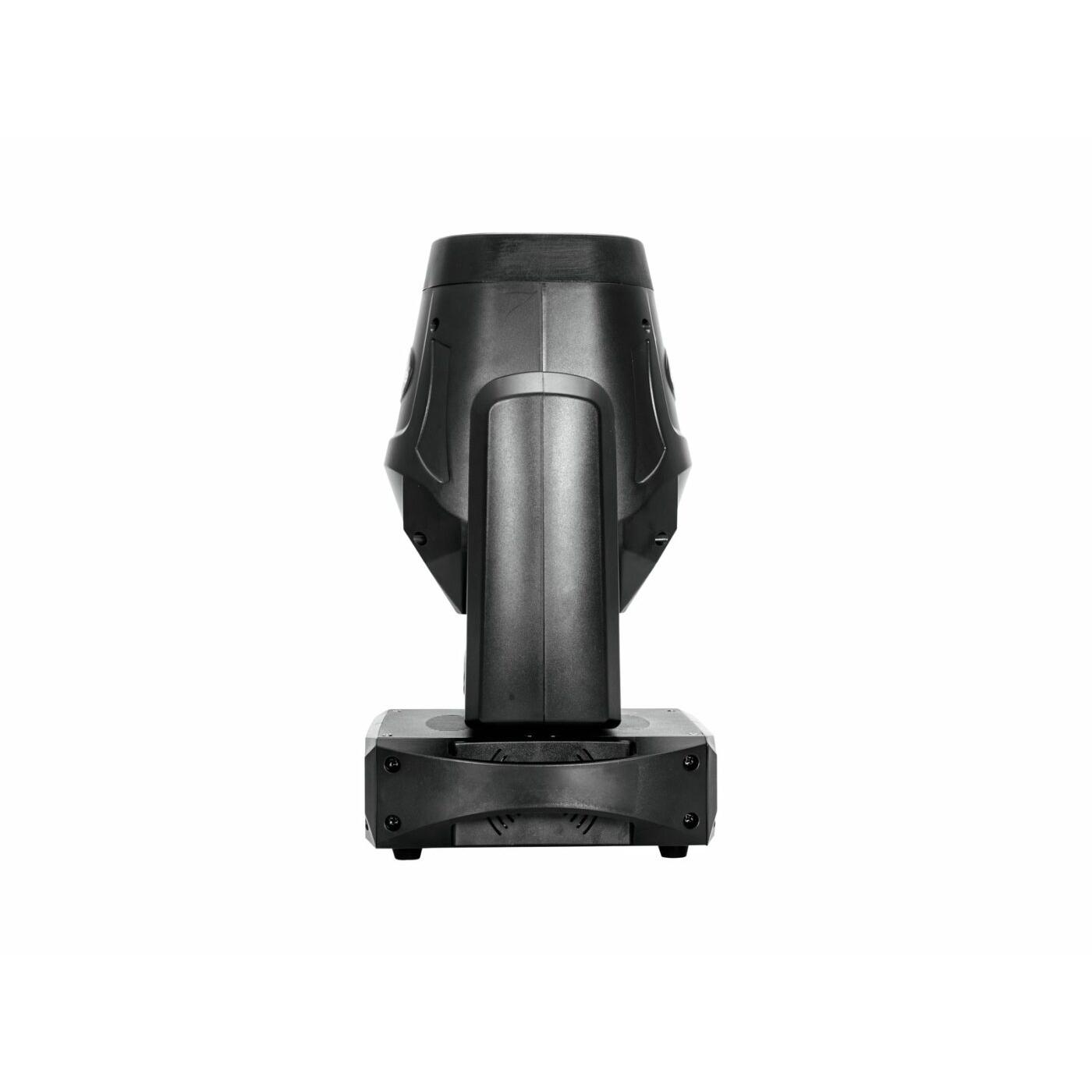

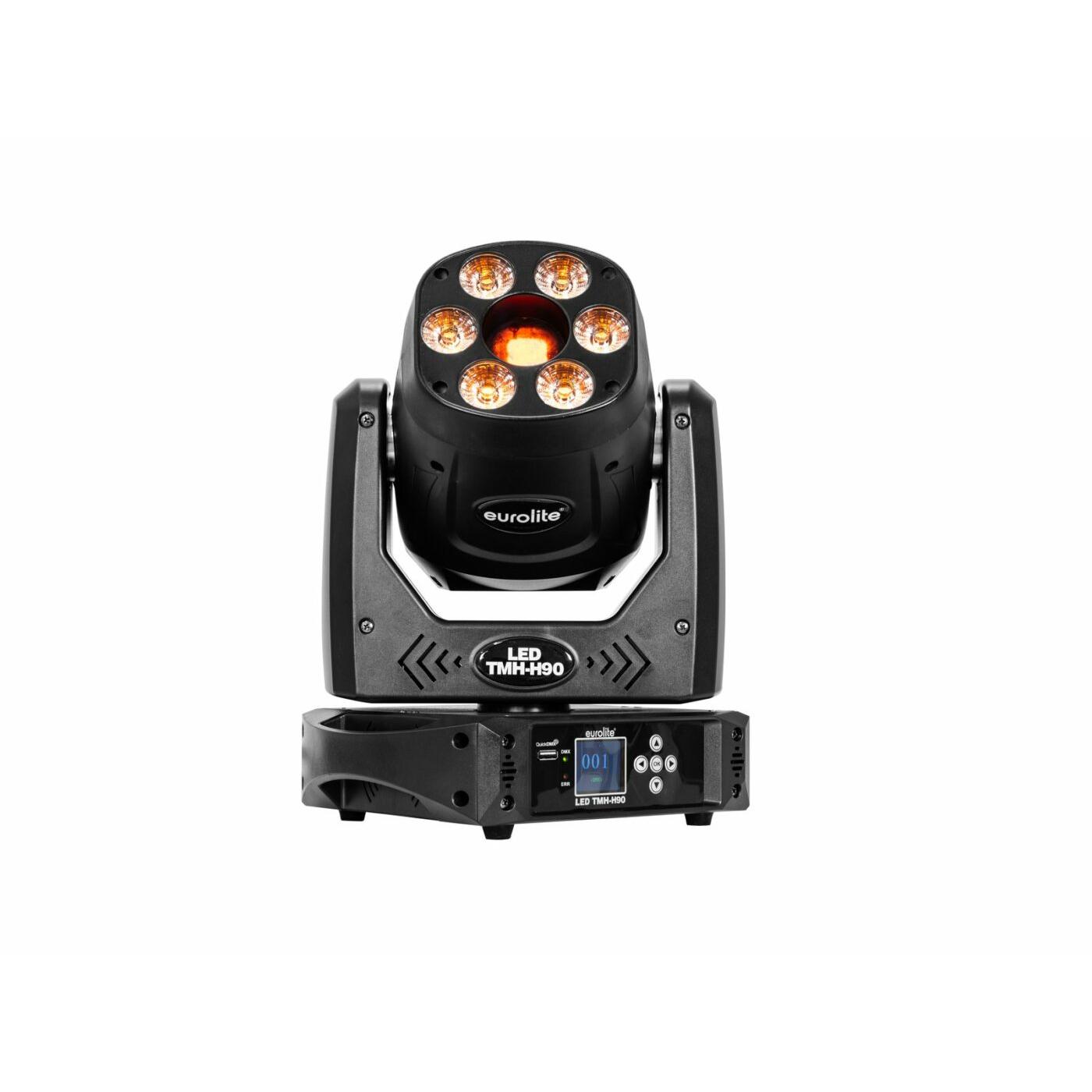

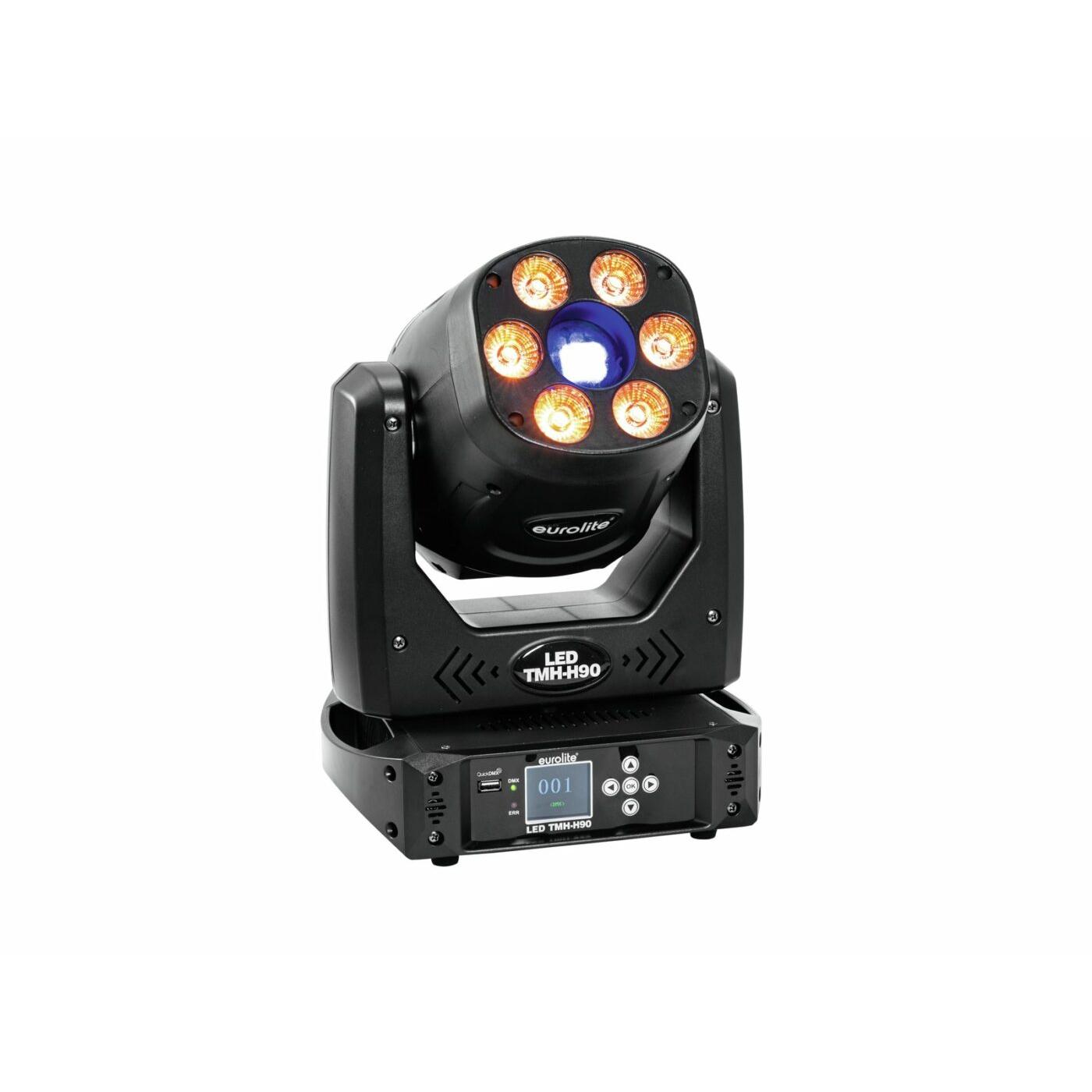

EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB
  • Productvideo
EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB - Afbeelding 2
EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB - Afbeelding 3
EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB - Afbeelding 4
EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB - Afbeelding 5

EUROLITE LED TMH-H90 Hybride Moving Head Spot/Wash COB

  • Bright spotlight and full-fledged washlight in one device
  • Positioning within 540° PAN and 200° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Sound-control via built-in microphone

Oorspronkelijke prijs was: €529,00.Huidige prijs is: €452,82.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51786077 Categorieën: ,


LED moving head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus

  • Bright spotlight and full-fledged washlight in one device
  • Positioning within 540° PAN and 200° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Sound-control via built-in microphone
  • Rotating 3-facet prism
  • The prism rotates at different speeds
  • Strobe effect with 2-30 flashes per second
  • Internal programs
  • Dimmer
  • Motorized focus
  • Automatic position correction
  • Supports QuickDMX - the wireless DMX system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Additional rubber feet protect the device when positioned on the floor
  • LED: 1 x COB (chip-on-board) 90 W CW
  • LED: 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
  • Color wheel 1 x 7 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with static gobos, 7 gobos and open
    shake effect
  • Gobo wheel with rotating gobos, 6 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for exchanging gobos without tools
  • Can be operated in 25 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
  • Flicker-free projection
  • Effect: Gobo effect


Power supply
100-240 V AC, 50/60 Hz
Power consumption
135 W
IP classification
IP20
Protection class
Class I
Fuse
5 x 20 mm, T 2 A Fuse replaceable
Lamp type
LED lamp
LED
1 x COB (chip-on-board) 90 W CW6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Max. TILT movement
Exact positioning (16 bit resolution) 200° Auto position correction (feedback)
Max. PAN movement
Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Equipment
Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel
Color generation
Color wheel 1 x 7 dichroic filters plus open
Gobos
Gobo wheel with static gobos, 7 gobos and openShake effectGobo wheel with rotating gobos, 6 gobos and openOutside diameter 21.8mmImage diameter 16mmShake effectGobos changeableSlot-in gobo system for exchanging gobos without tools
DMX channels
25
DMX input
3-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version
Power connection
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cooling
Cooling fan
Control
Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
Beam angle
13°
Beam angle (1/2 peak)
Spot 13°Wash effect 20°
Beam angle (1/10 peak)
Wash effect 38°
Illuminance in Lux (lx)
Spot CW 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lxWash effect R red 1m: 974 lx, 3m: 101 lx, 6m: 26 lxWash effect G green 1m: 2008 lx, 3m: 244 lx, 6m: 66 lxWash effect B blue 1m: 518 lx, 3m: 49 lx, 6m: 13 lxWash effect CW 1m: 2527 lx, 3m: 257 lx, 6m: 69 lxWash effect A amber 1m: 733 lx, 3m: 83 lx, 6m: 21 lxWash effect UV 1m: 16 lx, 3m: 2 lx, 6m: 1 lxWash effect all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx
Housing color
Black
Display type
Multicolor LCD display
Dimension
Width: 25.0 cmDepth: 22.0 cmHeight: 36.0 cm
Weight
6.80 kg
Legal specificationsEcodesign regulation
Yes
Special product
Not designed for household room illumination
Purpose
Show effect lighting
