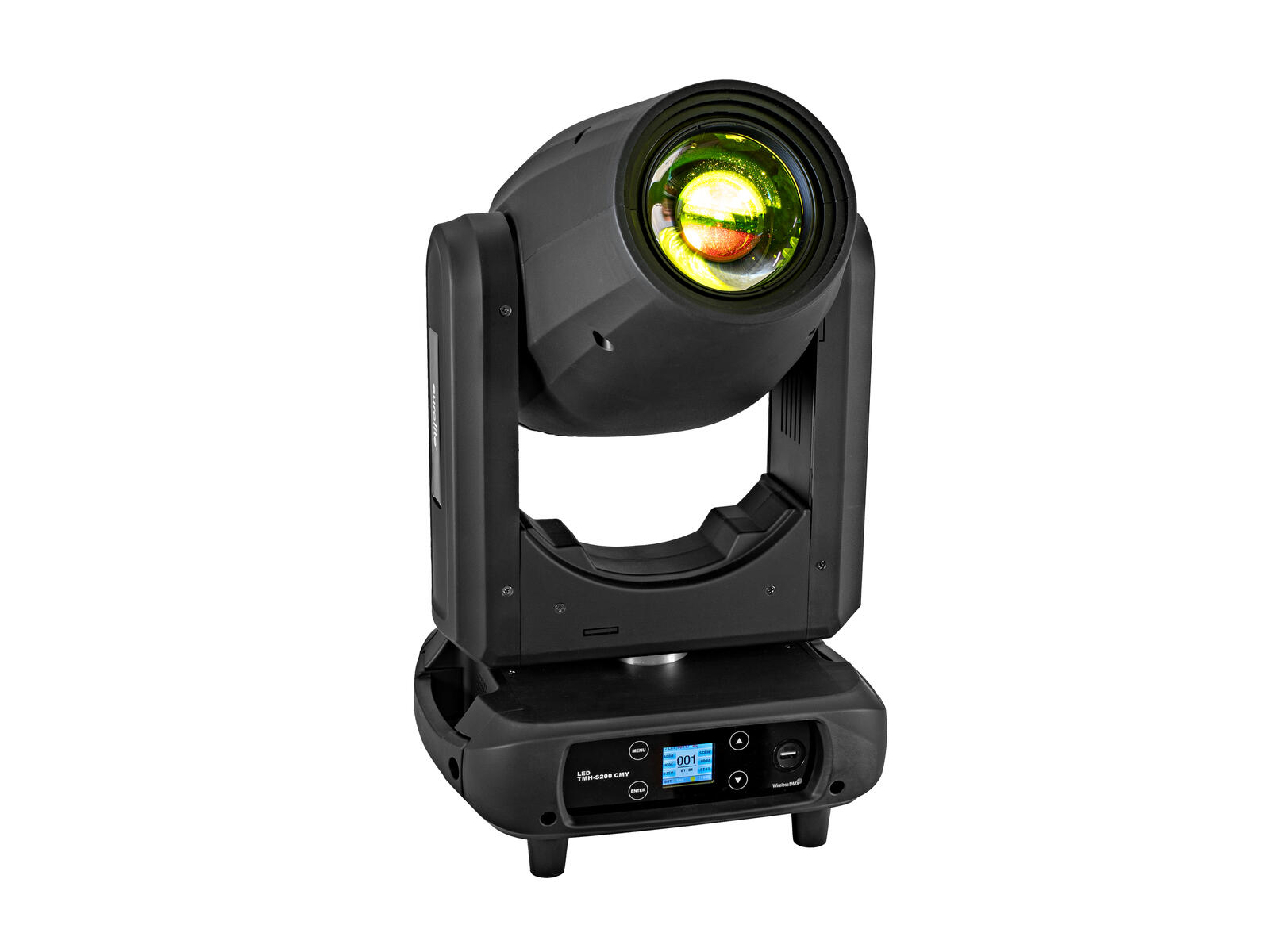

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash

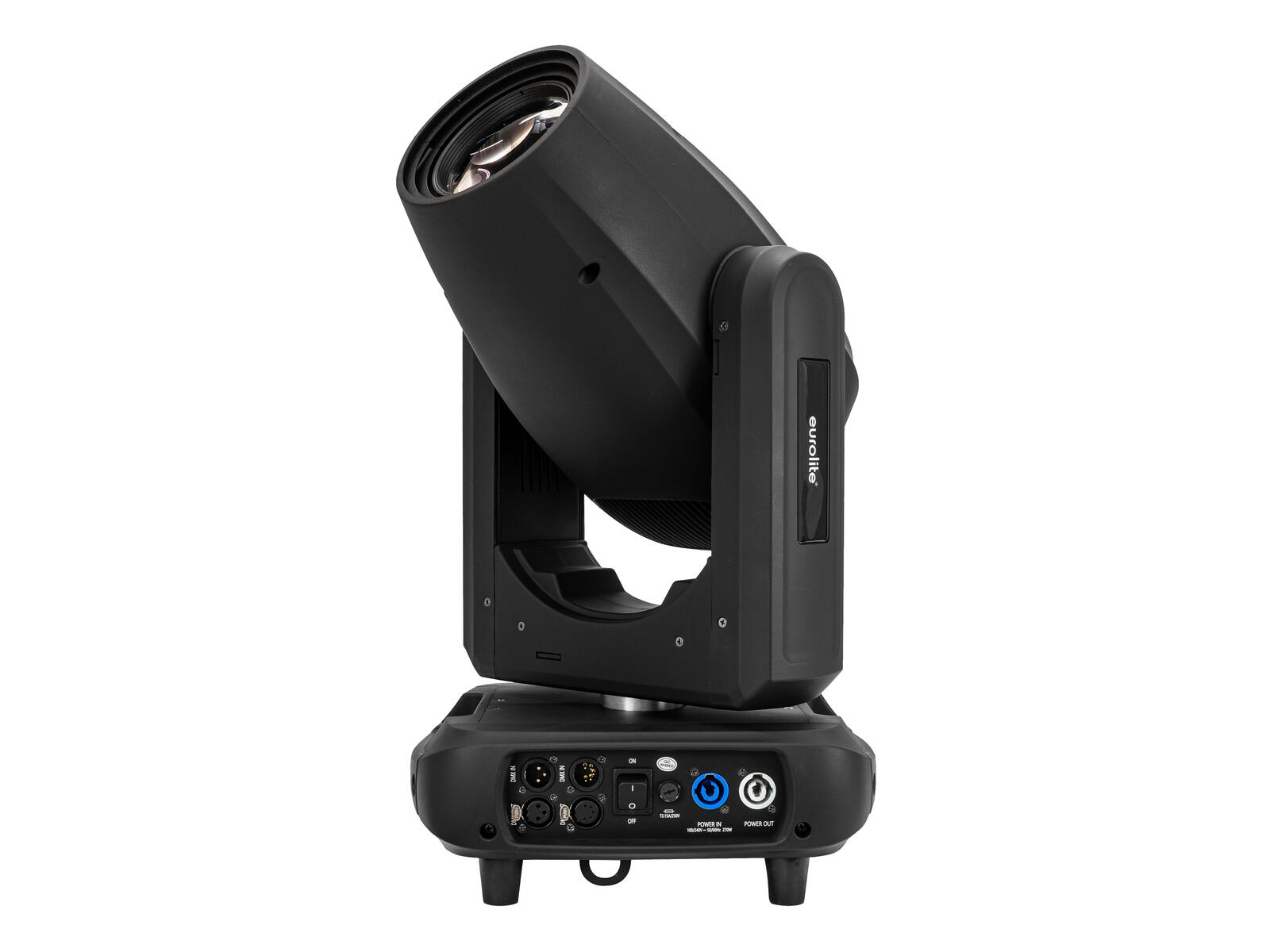

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash - Afbeelding 2

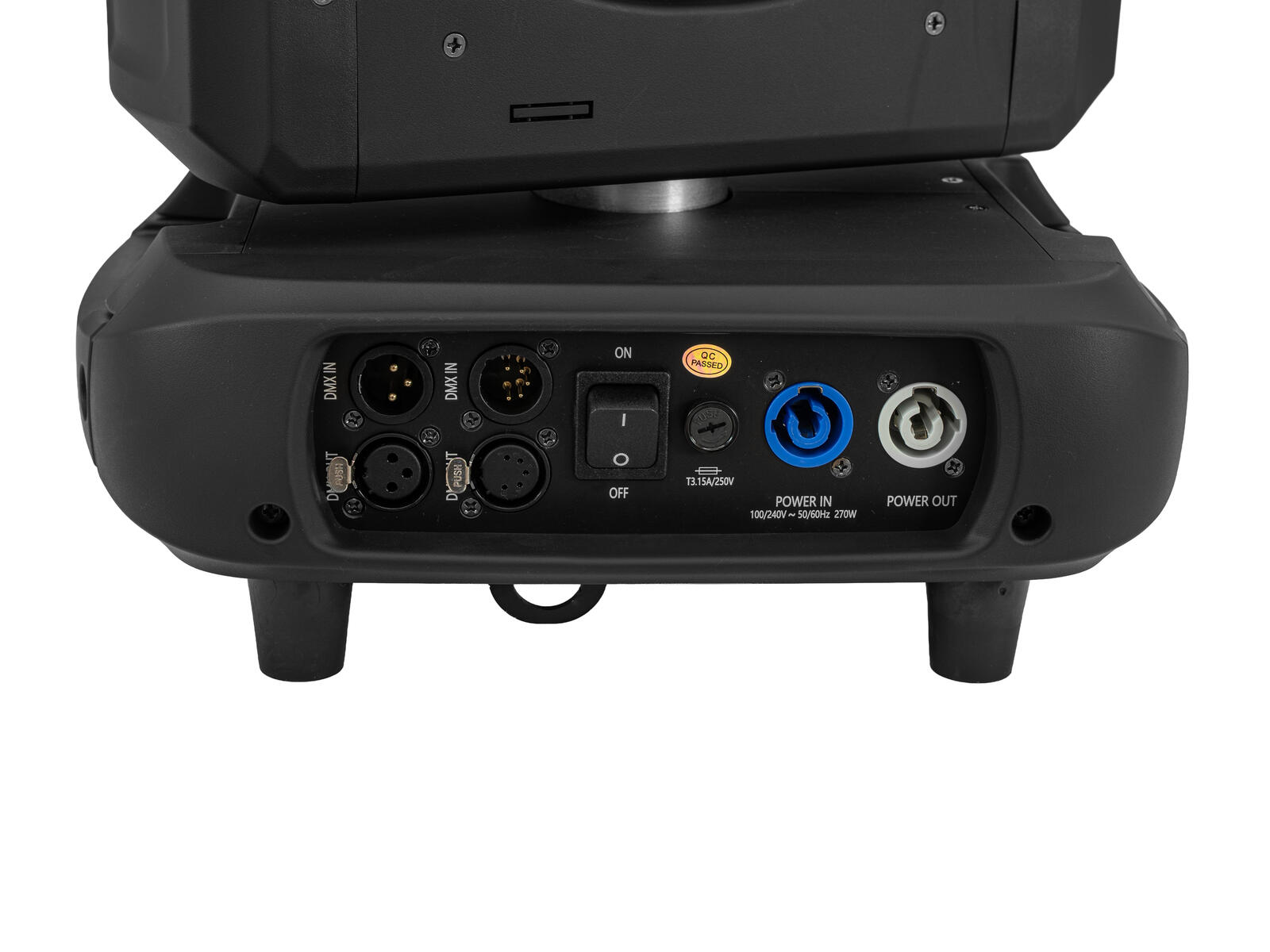

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash - Afbeelding 3

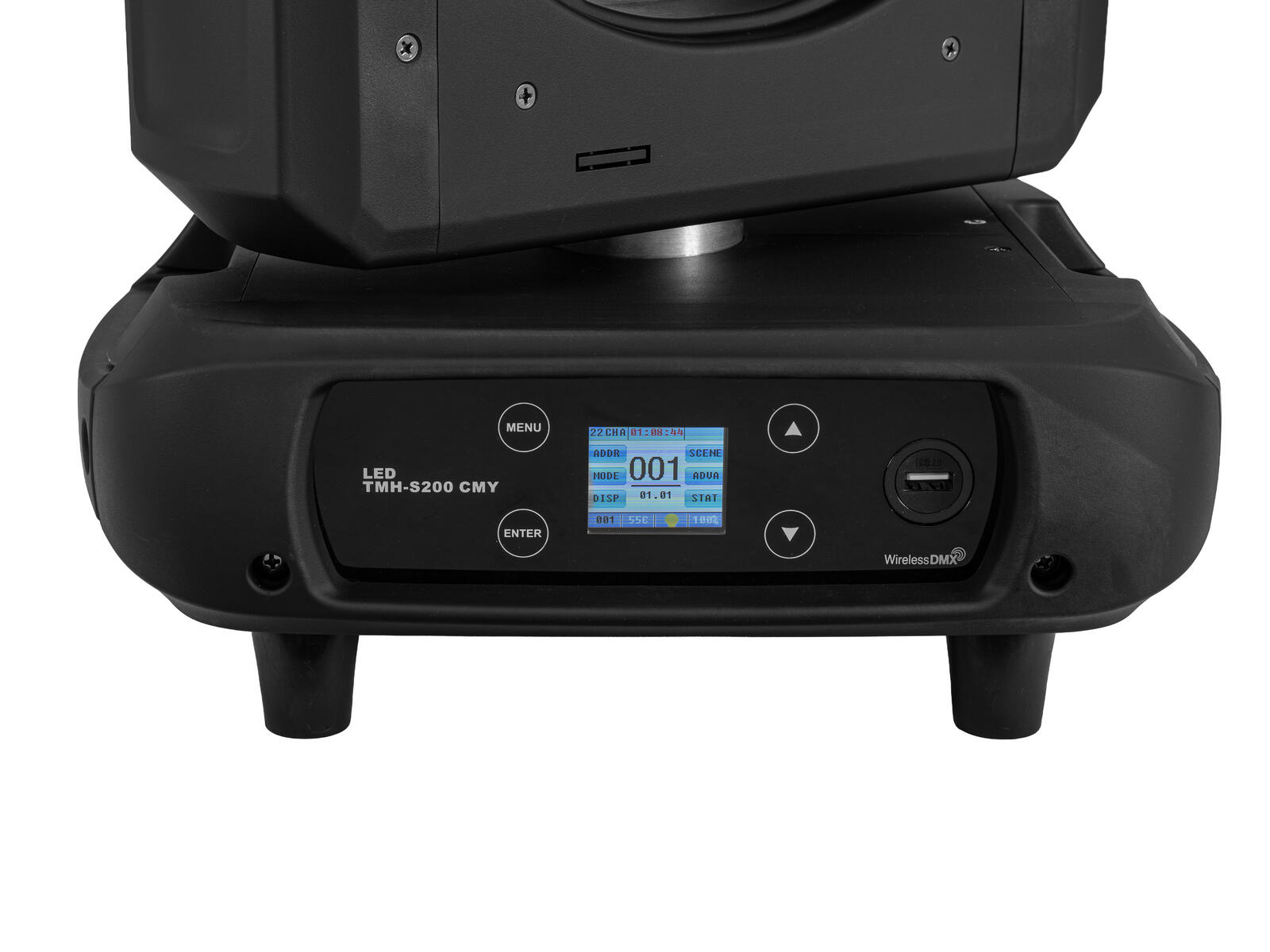

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash - Afbeelding 4

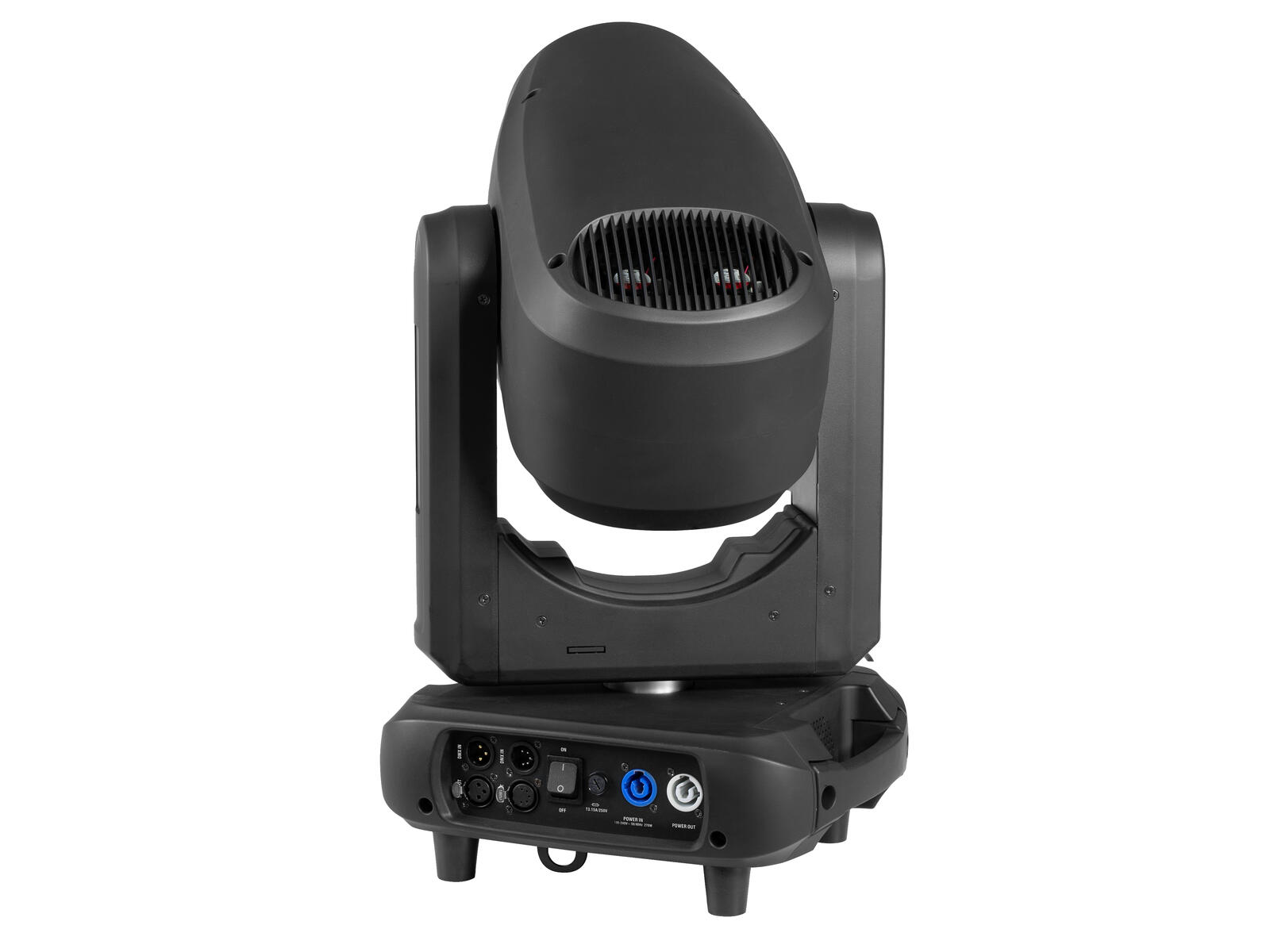

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash - Afbeelding 5

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash

  • With a beam angle of 4° - 32°
  • Can be used as a beam, spot and wash
  • CMY+CTO color mixing for indefinite color variations
  • Color wheel with 6 dichroic filters plus open and CTO correction filterhalf colors selectable
  • Half colors selectable

Oorspronkelijke prijs was: €1.188,81.Huidige prijs is: €999,00.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 27 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51786087 Categorie:
The S200 CMY offers an extensive feature set with solid build quality at a highly attractive price. Equipped with a powerful 200 W LED and a wide zoom range from 4° to 32°, it is highly versatile and can be used as a beam, spot, or washlight.The CMY color mixing system allows for virtually unlimited color options and smooth transitions. This is complemented by a continuously variable CTO filter for adjusting the color temperature. In addition, six color filters provide further colors as well as split-color effects.Creative possibilities are enhanced by a gobo wheel with seven rotating gobos and another with nine static gobos. A rotating 8-facet prism and a frost filter complete the feature set, enabling a wide variety of dynamic lighting effects.

LED moving head hybrid with 200 W COB LED, CMY&CTO color mixing, large zoom range and extensive features

  • With a beam angle of 4° - 32°
  • Can be used as a beam, spot and wash
  • CMY+CTO color mixing for indefinite color variations
  • Color wheel with 6 dichroic filters plus open and CTO correction filter
    half colors selectable
  • Half colors selectable
  • Gobo wheel with rotating gobos, 7 gobos and open
    slot-in gobo system for easy gobo replacement
  • Gobo wheel with static gobos, 9 gobos and open
    shake effect
  • Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven
  • 1 LED 200 W COB (chip-on-board) cold white (CW)
  • Flicker-free
  • Positioning within 540° PAN, 220° TILT
  • Auto position correction (feedback)
  • Control via stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
  • Application possibility: Standing; suspended


Scope of delivery
  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket
  • 1 x XLR cable
  • 1 x plug (male)


Power supply
100-240 V AC, 50/60 Hz
Power consumption
270 W
Protection class
Protection class I
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction
3 x 1.5 mm² H05VV-F
Power output
P-Con (gray), mounting version
Fuse
5 x 20 mm, T 3.15 A fuse replaceable
Lamp type
LED lamp
LED type
1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement
220° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate
1 - 18 Hz
Equipment
Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; prism 8-fold rotating; frost filter; zoom motor driven; focus motor-driven
Color generation
Color wheel with 6 dichroic filters plus open and CTO correction filterHalf colors selectable
Gobos
Gobo wheel with static gobos, 9 gobos and openShake effectGobo wheel with rotating gobos, 7 gobos and openOutside diameter 19.5mmImage diameter 10mmSlot-in gobo system for easy gobo replacementShake effectGobo indexable
DMX channels
22
DMX input
3-pin XLR (M) mounting version5-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version5-pin XLR (F) mounting version
Cooling
4 x temperature-controlled fan at the head1 x temperature-controlled fan at the base
Control
Stand-alone; sound to light via microphone; DMX; master/slave function; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Fixtures available for
Light Captain; GDTF (GrandMA3)
Projection
Flicker-free
PWM frequency
23000 Hz
DMX fail mode
Hold; zero values
Beam angle
4° - 32°
Beam angle (1/2 peak)
4 - 32°
Beam angle (1/10 peak)
4 - 32°
Illuminance in Lux (lx)
Narrow cold white (CW) 3m: 98862 lx, 6m: 25686 lxWide cold white (CW) 1m: 31366 lx, 3m: 3246 lx, 6m: 812 lx
Lamp life
20000 h
Housing color
Black
Attachment system
2x omega bracket
Display type
Multicolor LCD display
Control elements
Power switch
Carrying handle
2 pc/pcs
Transport aid
4 x rubber feet
Diameter mounting holes
2 x Ø12mm
Material
Metal
Dimensions
Width: 32.4 cmDepth: 25.5 cmHeight: 57.0 cm
Weight
15.05 kg
Noise classification
Class 2 (slight noise) depending on mode used
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting
