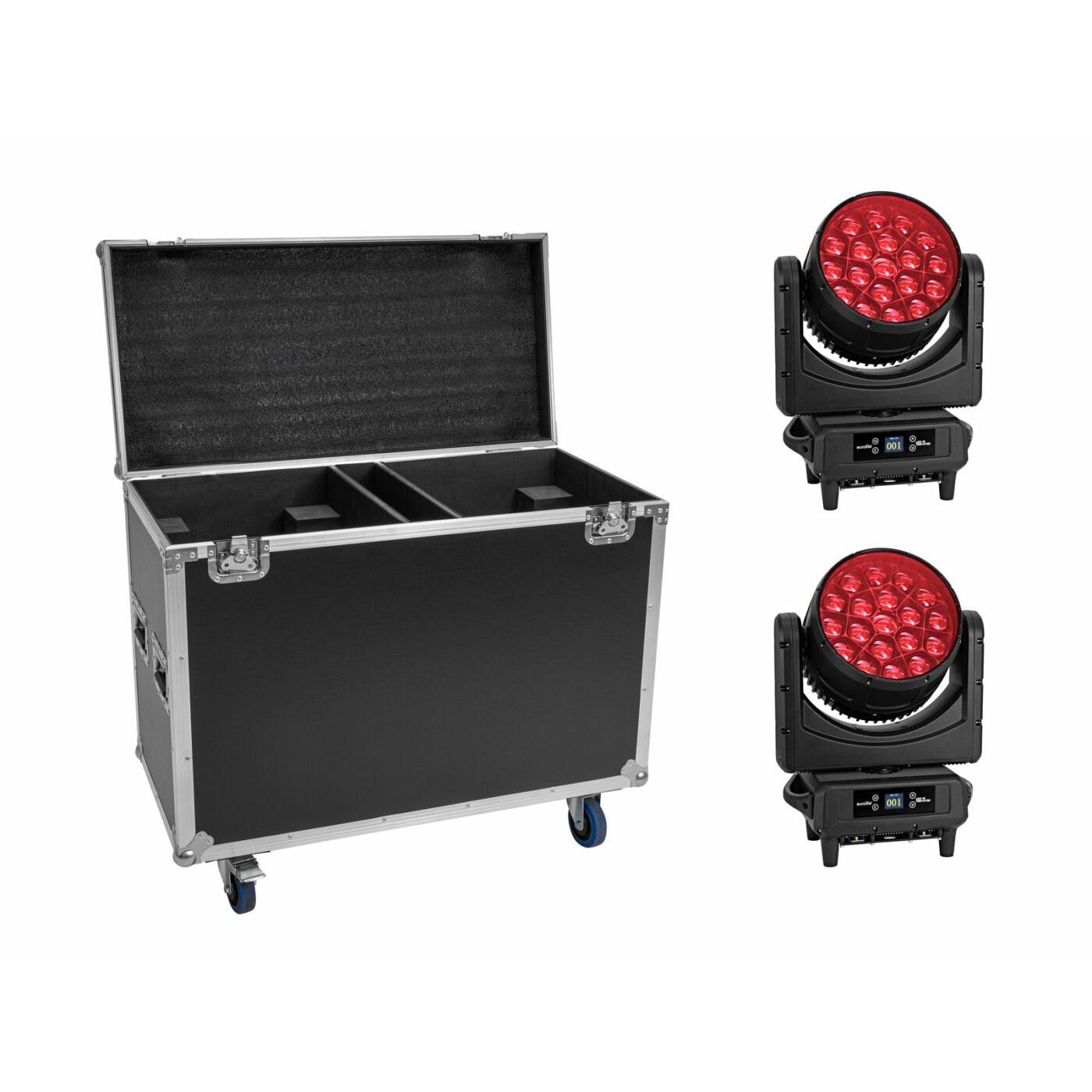

EUROLITE Set 2x LED IP TMH-H760 + Case with wheels

EUROLITE Set 2x LED IP TMH-H760 + Case met wielen

  • 19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix) LEDs controlled separately
  • Positioning within 540° PAN, 210° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Zoom motor-driven rotating; lens rotation

Oorspronkelijke prijs was: €4.199,00.Huidige prijs is: €3.594,34.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Verzendkosten €38 excl. btw*Gratis vanaf €750 · grootgoederen
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 20001018 Categorieën: , ,


EUROLITE LED IP TMH-H760 Beam/Wash/Flower effect

Powerful weather-proof moving washlight with 19x 40W RGBW LEDs, rotating flower effect and pixel control

  • 19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix)
    LEDs controlled separately
  • Positioning within 540° PAN, 210° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Zoom motor-driven rotating; lens rotation
  • Flower effect; Strobe effect; Wash effect
  • With a beam angle of 2° - 30°
  • With bracket with hinged hooks
  • Multicolor LCD display
  • The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
  • For application areas such as: Stage; Rental
  • Application possibility: Standing; suspended
  • Color blend stepless; colors preset; pulse-width modulation
  • Control via stand-alone; DMX; Master/slave function
  • Flicker-free
  • DMX fail mode (hold; null)
  • 2 Rugged carrying handles
  • 4 rubber feet
  • Mains input and output for power linking up to 3 units
  • Built with SEETRONIC connector
  • Suitable for outdoor use IP65
  • With pressure compensation membrane
  • Very quiet working noise

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x xLR cable

ROADINGER Flightcase 2x IP TMH-H760 with wheels

Trunk case with castors

  • Interior with foam padding
    cover with foam padding
  • Aluminum profile frames 30mm with rounded edges
  • 4 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • 4 castors with 2 locking brakes
  • 4 built-in stacking trays in the cover


Weight
77,50 kg
EUROLITE LED IP TMH-H760 Beam/Wash/Flower effectPower supply
100-240 V AC, 50/60 Hz
Power consumption
780 W
IP classification
IP65
Protection class
Protection class I
Power connection
Mains input via IP T-Con (M) power supply cord with safety plug
Cable construction
3 x 1,5 mm² H07RN-F
Power output
IP T-Con (F) mounting version
Fuse
5 x 20 mm, T 8 A Fuse replaceable
Lamp type
LED lamp
LED
19 x 40 W SMD 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement
210° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement
540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate
1 - 20 Hz
Equipment
Zoom motor-driven rotating; lens rotation
DMX channels
18; 30; 94
DMX input
3-pin XLR (M) mounting version IP5-pin XLR (M) mounting version IP
DMX output
3-pin XLR (F) mounting version IP5-pin XLR (F) mounting version IP
Cooling
2 x temperature-controlled fan at the Head2 x cooling fan at the Base
Control
Stand-alone; DMX; Master/slave function
Projection
Flicker-free
DMX fail mode
Hold; null
Beam angle
2° - 30°
Beam angle (1/2 peak)
2 - 16°
Beam angle (1/10 peak)
7 - 30°
Illuminance in Lux (lx)
Narrow red (R) 1m: 13602 lx, 3m: 11354 lx, 6m: 4333 lxNarrow green (G) 1m: 31916 lx, 3m: 29390 lx, 6m: 9454 lxNarrow blue (B) 1m: 3891 lx, 3m: 3565 lx, 6m: 1777 lxNarrow cold white (CW) 1m: 52981 lx, 3m: 45405 lx, 6m: 14131 lxNarrow all 3m: 78579 lx, 6m: 27552 lxWide red (R) 1m: 9199 lx, 3m: 1243 lx, 6m: 336 lxWide green (G) 1m: 19373 lx, 3m: 2700 lx, 6m: 736 lxWide blue (B) 1m: 2768 lx, 3m: 575 lx, 6m: 163 lxWide cold white (CW) 1m: 29680 lx, 3m: 4088 lx, 6m: 1109 lxWide all 1m: 56588 lx, 3m: 8061 lx, 6m: 2192 lx
Lamp life
10000 h
Housing color
Black
Attachment system
Ø 50 mm2x bracket with hinged hooks
Display type
Multicolor LCD display
Carrying handle
2 pc/pcs
Transport aid
4 x rubber feet
Use of brands
Built with SEETRONIC connector
Material
Aluminum casting
Dimensions
Width: 41,0 cmDepth: 24 cmHeight: 55,5 cm
Noise classification
Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used; class 3 (clearly perceptible sounds)
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting
ROADINGER Flightcase 2x IP TMH-H760 with wheelsMaximum load
100 kg
Aluminum profile frames
30 mm
Case handle
4 pc/pcs
Stop hinge
2 pc/pcs
Lock
Butterfly lock: 2 pc/pcs
Color
Black, laminated
Device compartment
39 cm x 42 cm x 61 cm
Accessory compartment
8 cm x 42 cm x 24 cm
Inside dimensions
90 cm x 42 cm x 61 cm
