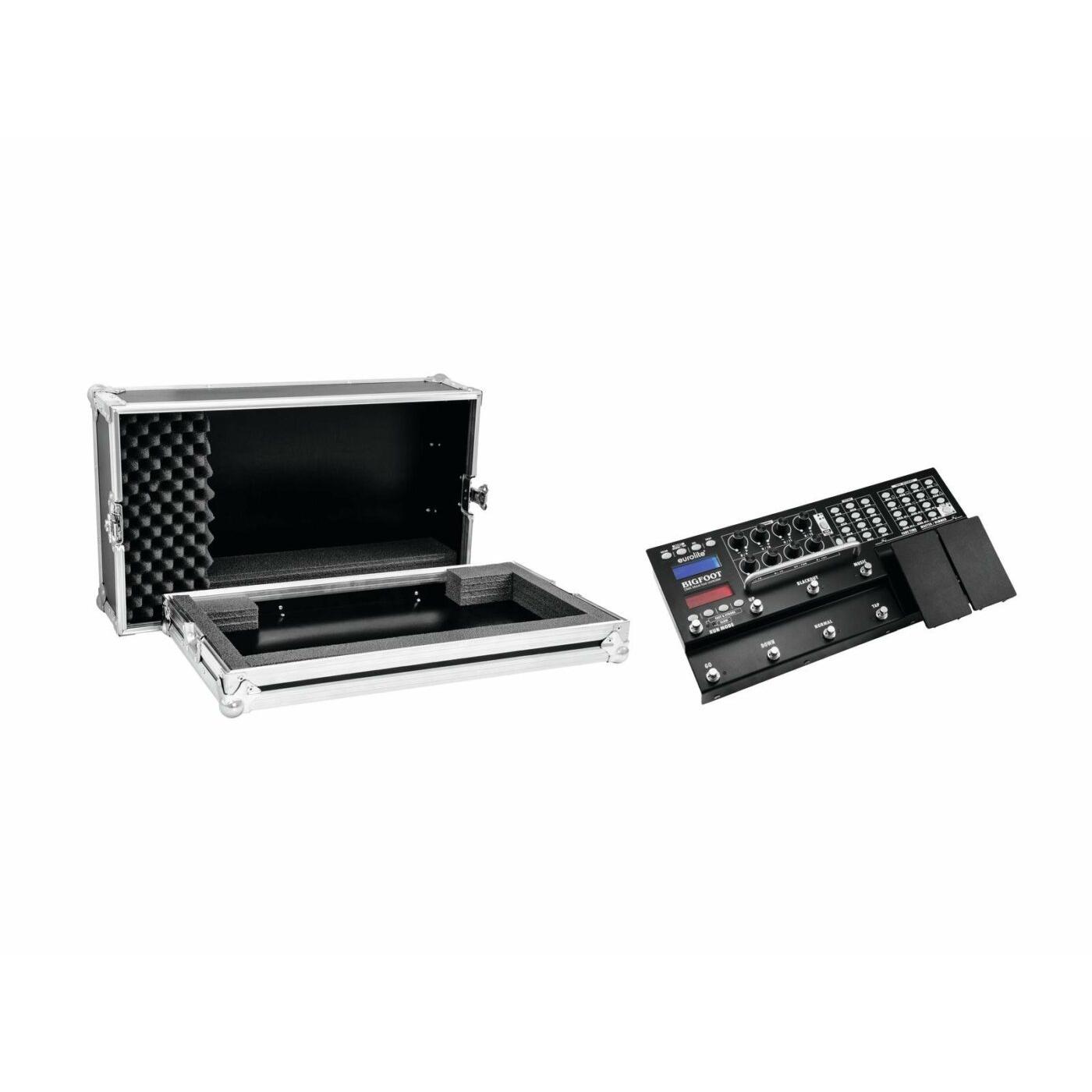

EUROLITE Set DMX Move Bigfoot + Case

Beschrijving

70064517 EUROLITE DMX Move Bigfoot Foot Controller 192

A full-fledged DMX light controller in a foot bar, with FX generator
• Fully programmable DMX foot controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 192 DMX channels can be assigned and inverted as desired to 16 control channels (softpatch)
• For 12 fixtures with max. 16 control channels each
• USB port for storing program data
• Quick programming thanks to the integrated FX generator with movement patterns and color effects
• Several effects can be used simultaneously
• 15 programmable chases with a total of 100 steps can be stored
• Programs can be freely named
• Simply preselect the desired program and trigger it with GO
• Beat control via music signal or TAP button
• Convenient control of dimmer, fade time and other functions by foot
• 8 encoders on 2 levels for adjusting DMX values
• Blackout function
• 2 x backlit LCD (2 x 16 characters each)
• Sound control via built-in microphone or line input
• 3-pin XLR connector
• Firmware update via USB
• Solid metal housing with handle

31005124 ROADINGER Flightcase DMX Move Bigfoot

PRO flightcase for one DMX Move Bigfoot
• Suitable for one Eurolite DMX Move Big Foot Controller (no. 70064517)
• Interior and cover upholstered with foam
• High-quality workmanship with multiplex birch wood, dark brown laminated
• Aluminum profile frames with rounded edges
• Three-leg steel ball corners
• Butterfly lock
• Case handle

• Made in Europe

70064517 EUROLITE DMX Move Bigfoot Foot Controller 192

Power supply:   100-240 V AC, 50/60 Hz
      via power unit included in the delivery (9 V DC, 800 mA)
Power consumption:   <10 W
Number of control channels:   192
Storable chases:   15 with 100 steps max.
DMX512/RDM output:   3-pin XLR connector
Available storage media:   USB devices (FAT32)
Sound control:   via built-in microphone or via audio input
Audio input:   RCA
Input sensitivity:   0.1-1 V
Dimensions (L x W x H):   450 x 240 x 100 mm
Weight:   4.5 kg

31005124 ROADINGER Flightcase DMX Move Bigfoot

Strength:   7 mm
Outside dimensions (W x D x H):   530 x 320 x 175 mm
Inside dimensions (W x D x H):   450 x 195 x 40 mm
Weight:   4.4 kg
