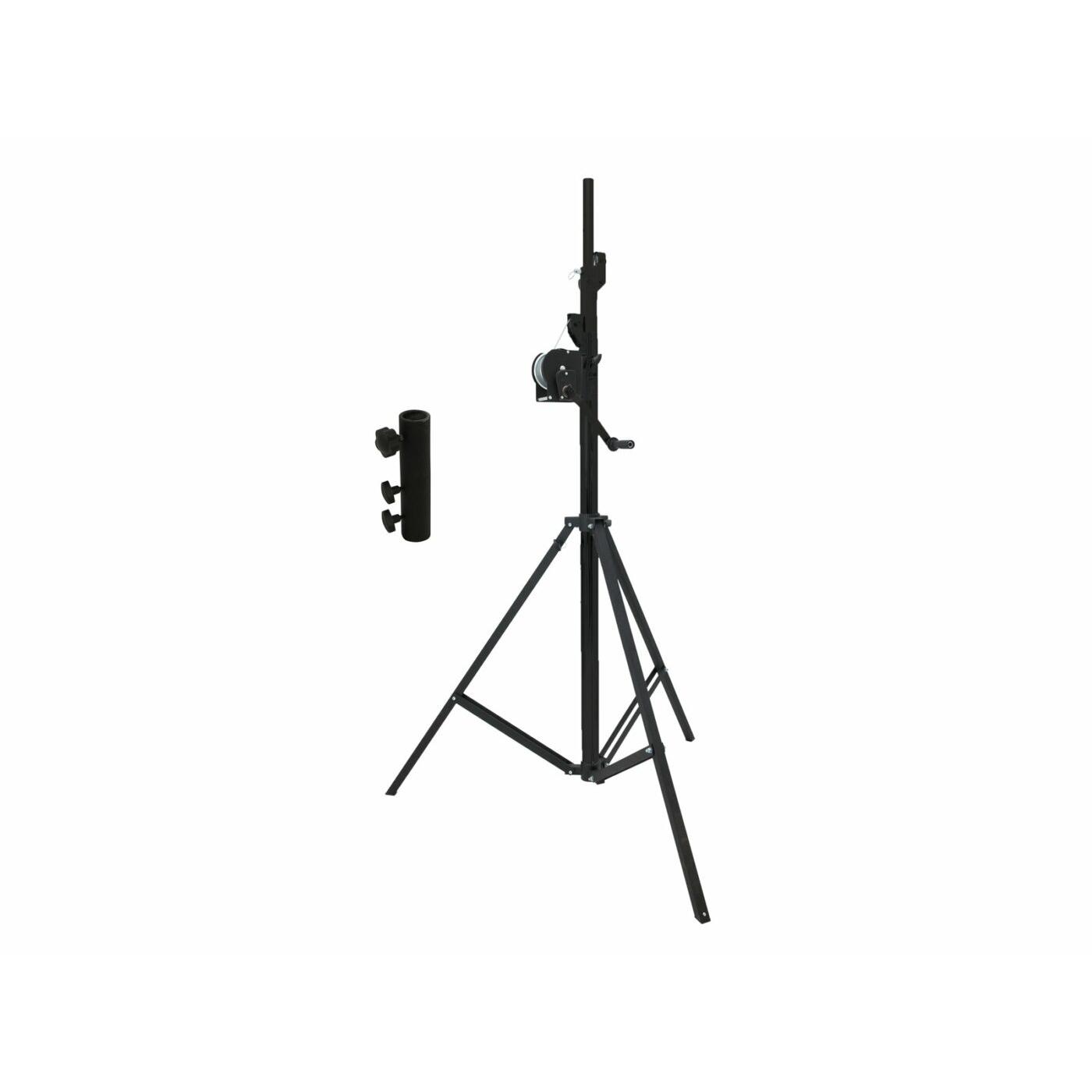

EUROLITE Set STT-400/85 Winch Stand T√úV/GS black + STV-3529 Adapter long
Oorspronkelijke prijs was: €299,00.€255,94Huidige prijs is: €255,94.
Beschrijving
59007041 EUROLITE STT-400/85 Winch Stand TÃ?V/GS black
The EUROLITE STT-series are winch-driven stands manufactured under strict TUV monitoring. These stands boast of high quality, exraordinary ruggedness, highest versatility and high stability. The production is monitored by the German TÃ?V SÃ?D which means that they comply with the highest safety standards.The GS mark signals to the buyer, customer, or consumer that the chosen product as well as the user manual and production (process) have been tested by an authorized institution such as TÃ?V SÃ?D, with priority being given to aspects of safety. In the meantime, the German GS-mark has been recognized as one of the crucial marks within product safety.
59007041 EUROLITE STT-400/85 Winch Stand TÃ?V/GS black
- High-quality winch-stand, max. load 85 kg, max. height 400 cm
- Made of steel
- TÃ?V/GS certified, certificate available
- CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
- 1-gear winch for easy lifting of the loads
- 4 mm steel rope
- Automatic braking system
- Safety-pins for mechanic locking
- Ideal for mobile, professional lighting-systems or PA-systems
- Easy handling
59007081 EUROLITE STV-3529 Adapter long
- Massive adapter for 35 mm tube, with 28 mm TV spigot, max. load WLL 100 kg
- For stands with 35 mm telescopic tube
- Connection element for cross beam with 28 mm spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
59007041 EUROLITE STT-400/85 Winch Stand TÃ?V/GS black
Type: Winch-driven stand
Construction: DIN 15560-27, DIN EN ISO 12100-2
Certified by: CE, TÃ?V/GS
Sections: 3 (60/40/34 mm)
Maximum load: 85 kg
Minimum load: 25 kg
Maximum height: 4.00 m
Minimum height: 1.75 m
Material: 2 mm steel
Steel rope: 4 mm
Adapter: D = 35 mm
Base area: D = 1.60 m
Transport dimensions: 1.75 x 0.30 x 0.27 m
Weight: 25 kg
59007081 EUROLITE STV-3529 Adapter long
Maximum load WLL (4-fold): 100 kg
Maximum load BGV C1 (8-fold): 50 kg
Receiver: D = 36.5 mm
Receiver: L = 80 mm
Adapter receiver: D = 30 mm
Adapter receiver: L = 115 mm
Strength: 6 mm
Dimensions (L x W x H): 85 x 50 x 195 mm
Weight: 1.5 kg
Specificaties
| Gewicht | 25,724 kg |
|---|---|
| Afmetingen | 0,0000 × 0,0000 × 0,0000 m |
| Type lichteffect | Disco lichteffect |
| Lichtbron | LED-verlichting |
