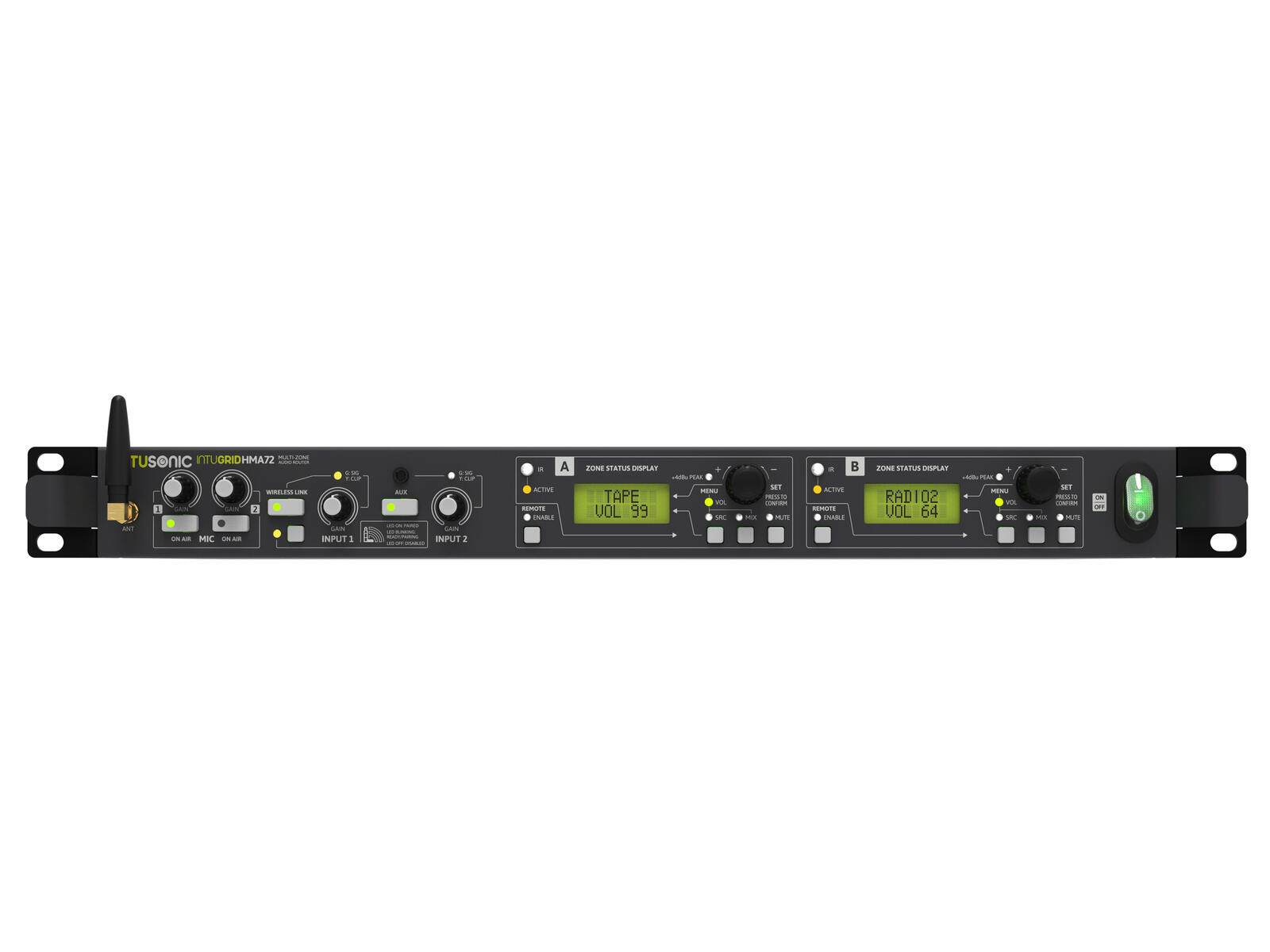

INTUSONIC HMA72 2-zone Audio Router

INTUSONIC HMA72 2-zone Audio Router

  • (19") 48.3 cm rack installation 1 U
  • Control via IR remote control; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
  • LCD display
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Oorspronkelijke prijs was: €470,05.Huidige prijs is: €395,00.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 18 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 12604187 Categorie:
The INTUGRID HMA72 is a core unit for Intusonic's digitally controlled audio zoning, which is complemented by the HZE11 zone remote wall panel. Together they deliver a scalable audio routing system for background music. The HMA72 offers two microphone inputs, 5 line inputs, a front-panel 3.5mm TRS input and a LINKOUSTIC 4.2 wireless audio link, which can be flexibly routed to its two output zones, with each of these zones controllable either by the on-board user interface, the included IR remote or a wall remote control panel. Every zone can be configured extensively to meet the application's demands, while keeping user interaction extremely simple. The HZE11 zone remote wall panel allows to remotely control all zone settings plus accepts a local audio feed.

19" audio router, 5 stereo & 2 mic inputs, IR remote an RS485 control option

  • (19") 48.3 cm rack installation 1 U
  • Control via IR remote control; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
  • LCD display
  • For further information about this product, please refer to the Data Sheet under "Downloads"


Scope of delivery
  • 1 x device
  • 1 x power cord
  • 8 x screw plug-in terminal
  • 1 x plug (male)
  • 4 x foot
  • 1 x antenna
  • 1 x remote control
  • 1 x battery
  • 1 x user manual


Power supply
115/230 V AC, 50/60 Hz
Power consumption
Max. 10 W
Protection class
Protection class I
Power connection
Mains input via IEC (M) power supply cord with safety plug (provided)
Device fuse
5 x 20 mm, T 0.5 A fuse replaceable
Frequency range
20 - 20000 Hz
S/N ratio
>104 dB
THD
<0.01 % at 1 kHz
Control
IR remote control; RS 485; LINKOUSTIC 4.2 Wireless Audio Link
Crosstalk
>70 dB
Display type
2 x LCD display
Control elements
Power switch, encoder, level control per channel, phantom power switch, mute control; source selector, low cut switch
Connections
Input: stereo via 4 x stereo RCAInput: stereo via 2 x 6.3-mm-jack (bal.)Input: microphone via 2 x screw plug-in terminalOutput: zones via 2 x screw plug-in terminalAntenna via 1 x SMA (F) mounting versionRS 485 via 3 x RJ-45 (F) mounting versionMute function via screw plug-in terminalEmergency via screw plug-in terminal
Equalizer
Master: 2 x 2-band tone control
Color
Black
Housing design
(19") 48.3 cm rack installation 1 U
Dimensions
Width: 48.3 cmDepth: 25 cmHeight: 4.4 cm
Weight
3.35 kg

Download de handleiding (PDF, Duits + Engels):

📖 Handleiding openen

Bron: fabrikant (Steinigke / Eurolite).
