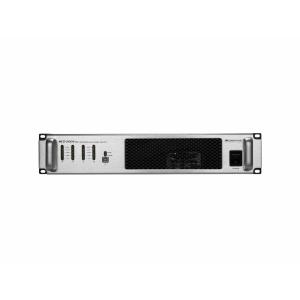

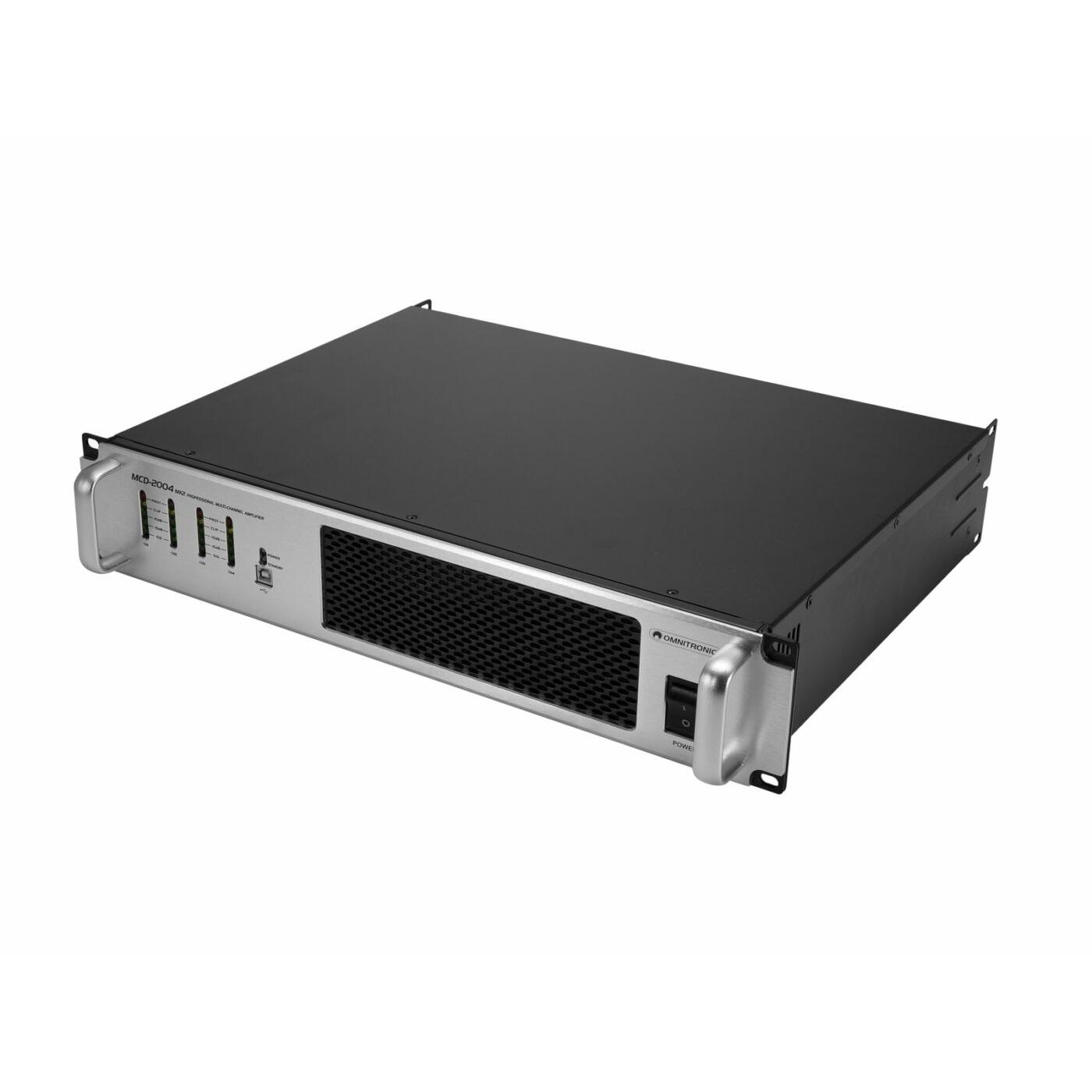

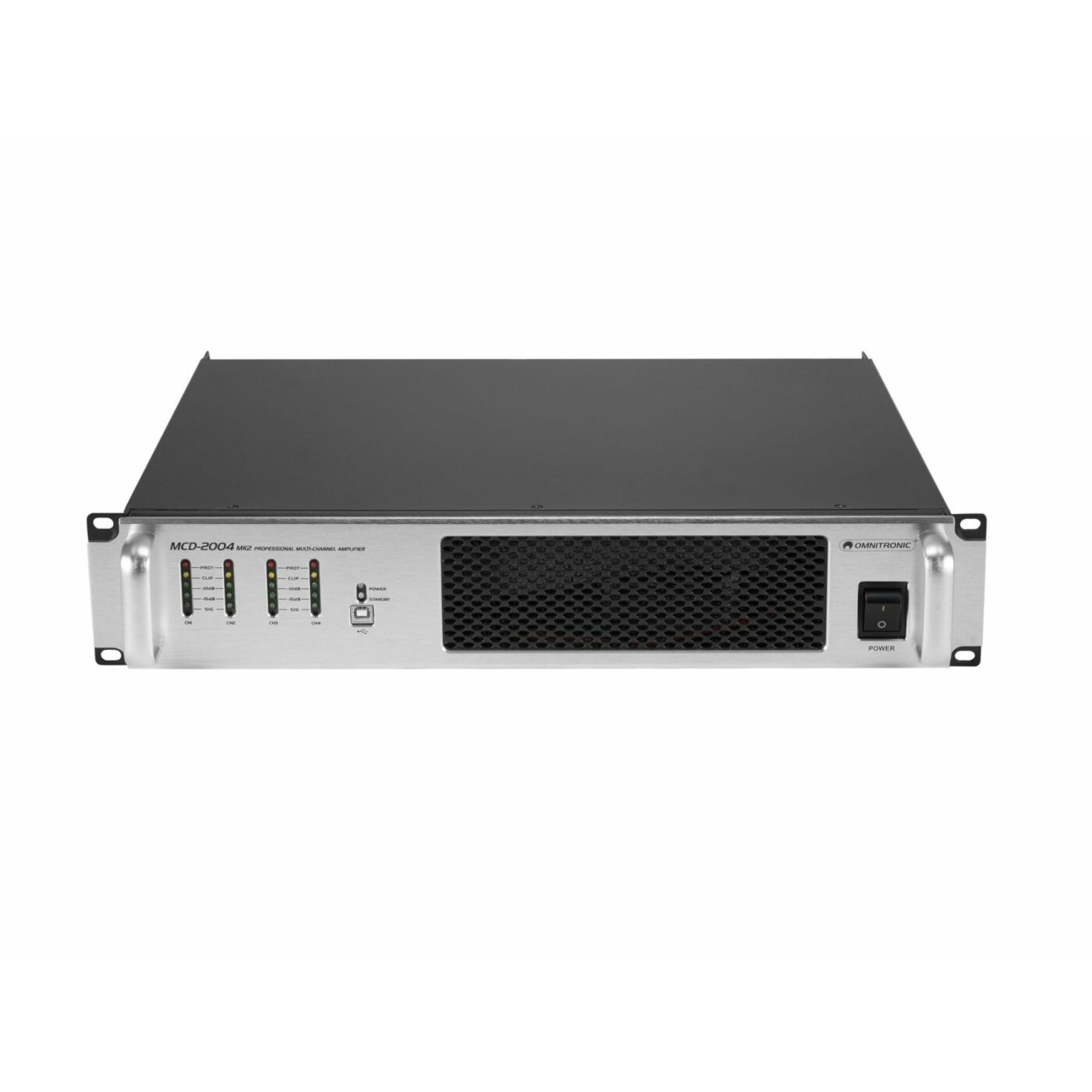

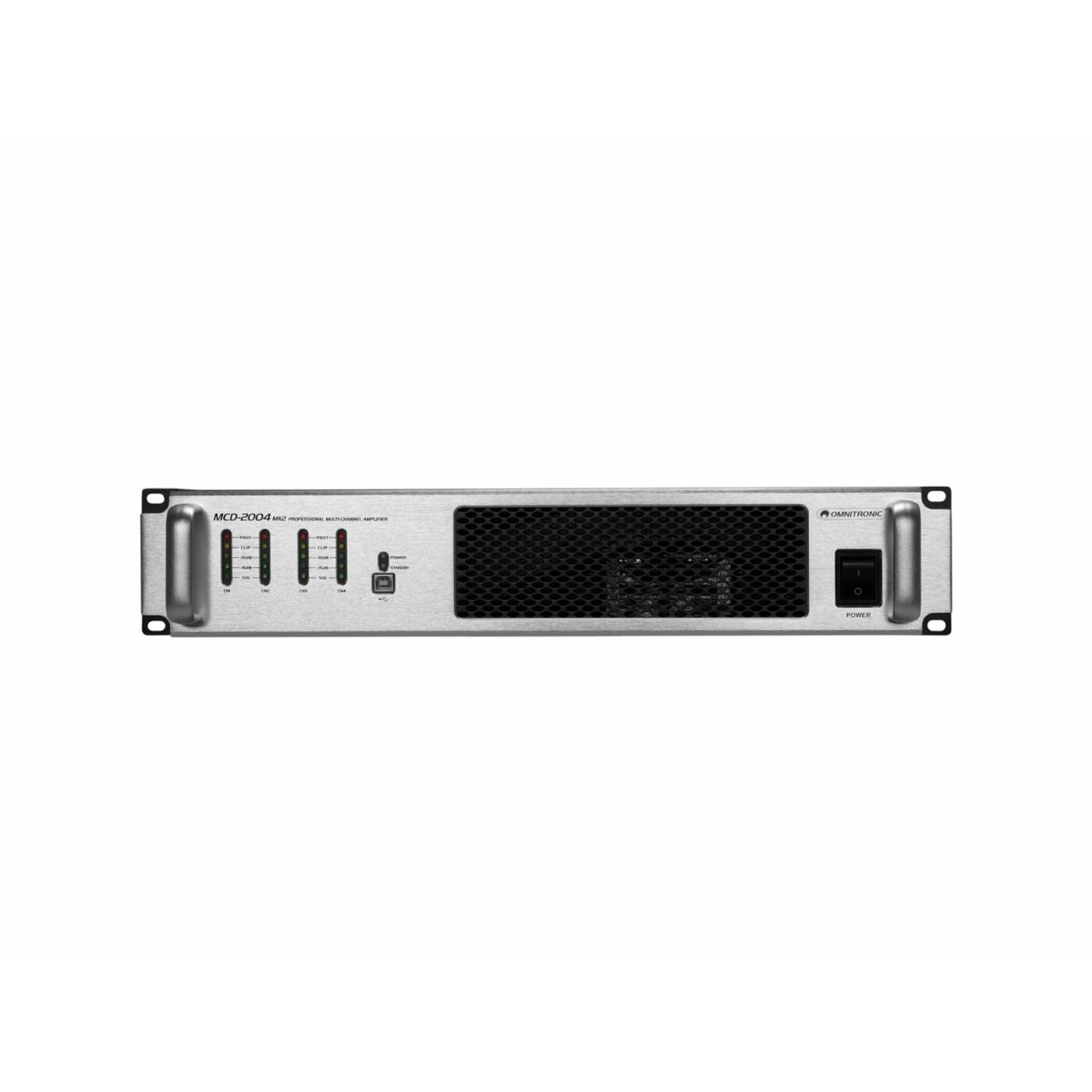

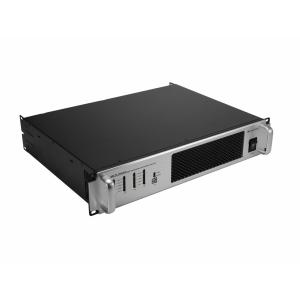

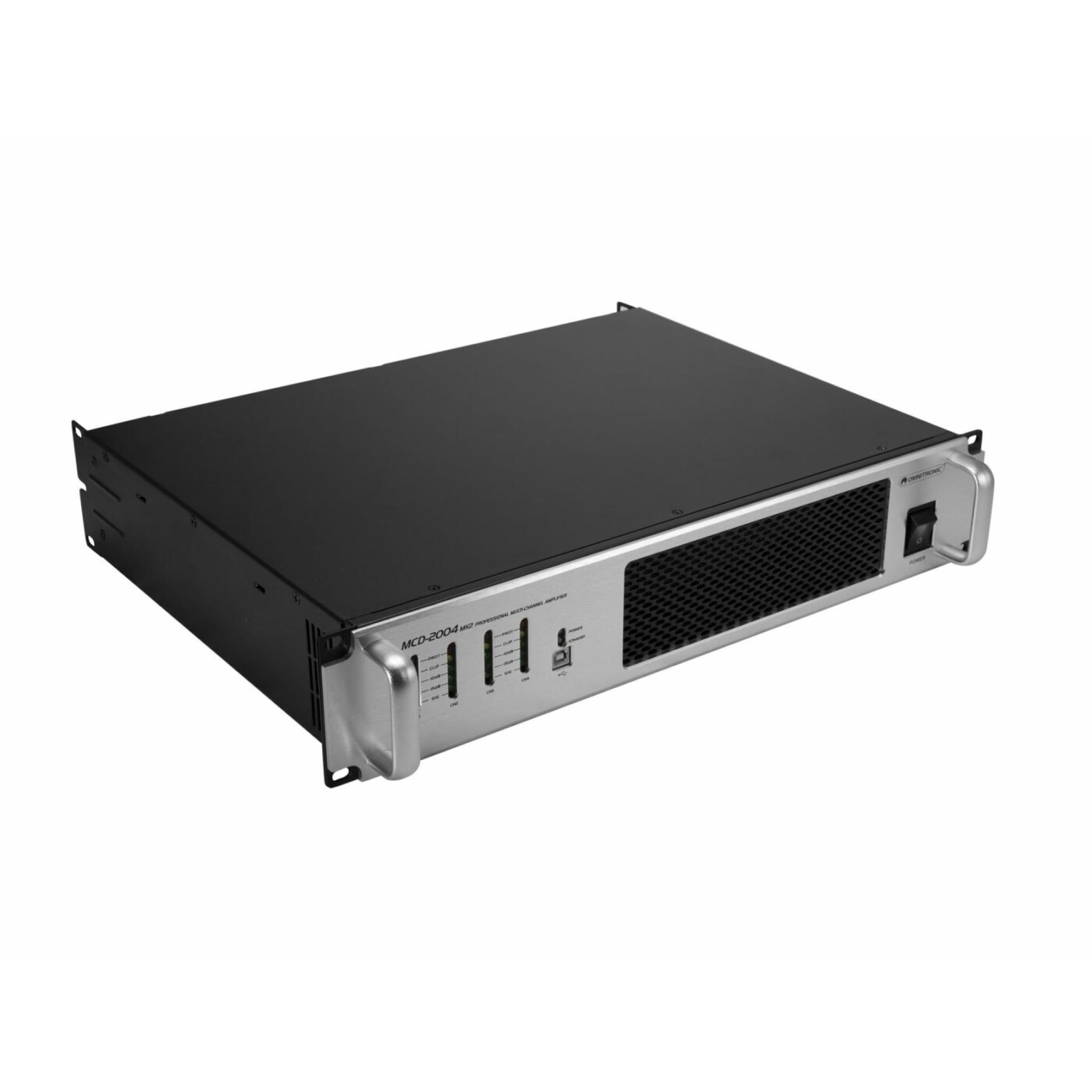

OMNITRONIC MCD-2004 MK2 4-kanaals installatieversterker

Name: OMNITRONIC MCD-2004 MK2 4-kanaals installatieversterker
SKU: 10452414
Availability: InStock

Oorspronkelijke prijs was: €499,00.Huidige prijs is: €427,14.

Advies nodig? Neem contact op — we helpen je graag!

Internationale verzending in heel Europa.

Op voorraad — vandaag besteld, in huis op 14 mei

Artikelnummer: 10452414 Categorieën: Audio & PA, Versterkers

Beschrijving

4-channel PA amplifier with SMPS, 4 ohms: 4 x 500 W, 8 ohms: 4 x 250 W

PA amplifier with integrated limiter for multi-zone applications
4 x 500 W/4 ohms
Signal inputs via balanced XLR mounting jacks and terminal blocks
Speaker connection via terminal blocks
Tamper-proof level adjustment on the rear panel
3-fold output meter with clip LED per channel
Speaker switch-on delay
Robust steel chassis with aluminum front
Complete protection set against short-circuit, overheat, overload, and DC voltage overlay at the outputs
Rack installation with 3 units
Air flow from front to rear
The device is cooled by 1x cooling fan
(19") 48.3 cm rack installation 2 U

Specificaties

Power supply: 230 V AC, 50 Hz
Power consumption: 350 W 1/8 power
Output power: 4 x 250 W RMS (8 ohms)4 x 500 W RMS (4 ohms)
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range: 22 - 25000 Hz
S/N ratio: >120 dB
Cooling: 1 x cooling fan , Air flow from front to rear
Impedance: Input 22 kOhm , bal.Input 12 kOhm , unbal.
Gain: 26 dB
Circuitry: Class D
Slew rate: >10 V/µs
Damping factor: >500
Control elements: Power switch, level control per channel
Controls: Overheat; short-circuit; softstart; overload; DC voltage; power on/off transient
Status LED: Power, level meter, clip, protect

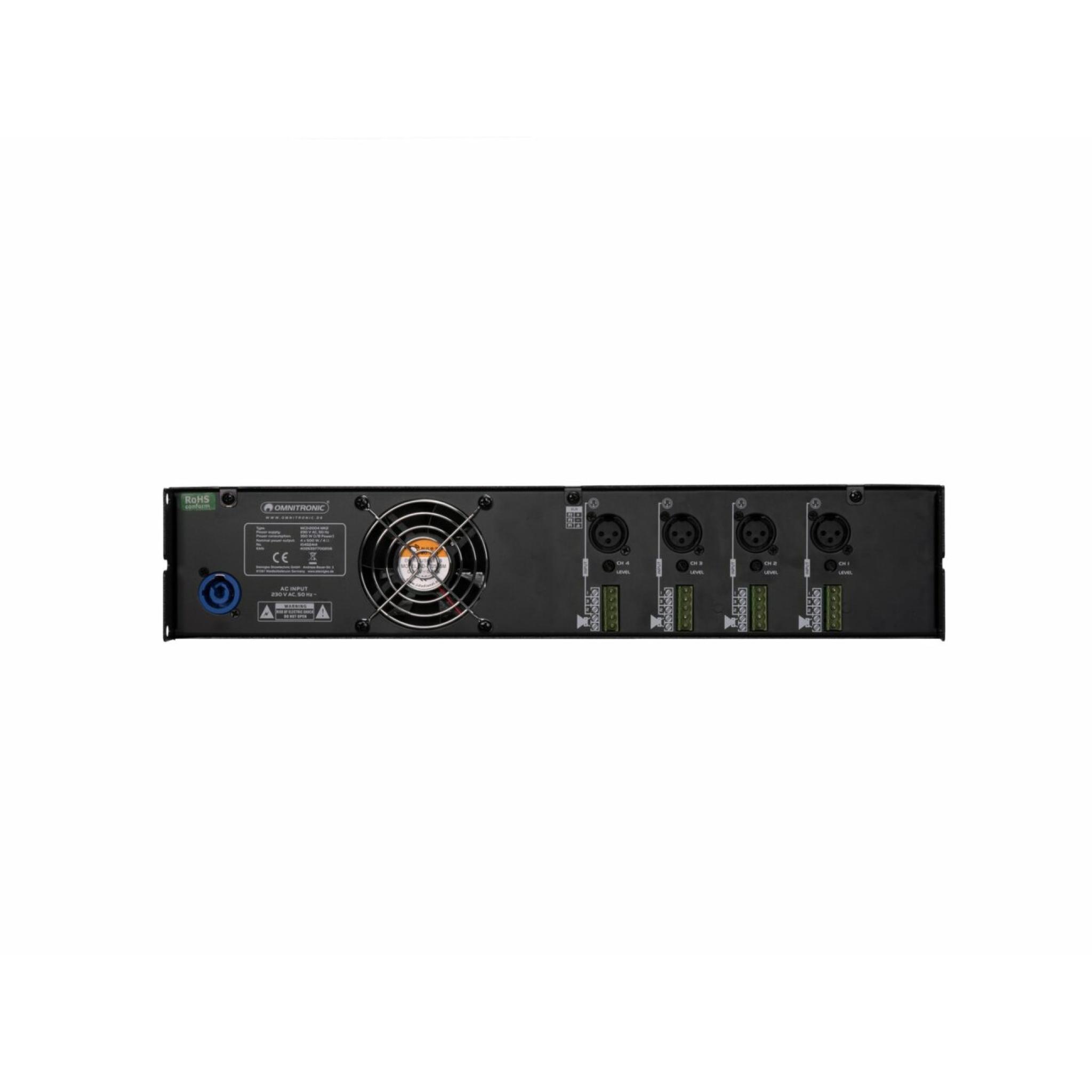

Connections: Input: line via 4 x 3-pin XLRInput: line via 4 x screw terminalOutput: speakers via 4 x screw terminal
Housing design: (19") 48.3 cm rack installation 2 U
Dimensions: Width: 48,3 cmDepth: 38,8 cmHeight: 8,9 cm
Weight: 7,45 kg
