OMNITRONIC MTC-3204DSP 4-Channel Amplifier with DSP
  • OMNITRONIC MTC-3204DSP 4-Channel Amplifier with DSP
OMNITRONIC MTC-3204DSP 4-kanaals versterker met DSP - Afbeelding 2
OMNITRONIC MTC-3204DSP 4-kanaals versterker met DSP - Afbeelding 3
OMNITRONIC MTC-3204DSP 4-kanaals versterker met DSP - Afbeelding 4
OMNITRONIC MTC-3204DSP 4-kanaals versterker met DSP - Afbeelding 5

OMNITRONIC MTC-3204DSP 4-kanaals versterker met DSP

  • Efficient Class D technology
  • Full configuration and real-time network communication via the built-in Ethernet interface
  • The intelligent software for allows convenient control with a computer
  • Presets are easy to store, transfer and manage
  • Up to 100 user presets storable in the device via software

Oorspronkelijke prijs was: €799,00.Huidige prijs is: €683,94.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 10452431 Categorieën: , ,


4-channel PA amplifier with DSP & SMPS, 4 x 800 W, 4 x 400 W

  • Efficient Class D technology
  • Full configuration and real-time network communication via the built-in Ethernet interface
  • The intelligent software for allows convenient control with a computer
  • Presets are easy to store, transfer and manage
  • Up to 100 user presets storable in the device via software
  • Digital signal processor FIR Filter
  • Sample rate: 96 kHz
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Extremely low weight and height due to integrated switch mode power supply
  • Level control per channel
  • 10-band parametric EQ per input and output
  • Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
  • Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • LCD display
  • 2 Ethernet ports for easy wiring
  • The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
    firmware can be updated
  • The device is cooled by temperature-controlled fan
  • Highly efficient Air flow from front to rear
  • (19") 48.3 cm rack installation 2 U
  • Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
  • For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms

Package contents

  • 1 x amplifier, 1 x power cord, 1 x user manual


Power supply
100-240 V AC, 50/60 Hz
Power consumption
600 W 1/8 power
Protection class
Protection class I
Output power
4 x 800 W RMS (4 ohms); 4 x 400 W RMS (8 ohms); 2 x 1500 W RMS bridged (8 ohms); 4 x 200 W RMS (100 V); 2 x 1500 W RMS bridged (100 V)
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length
1,2 m detachable
Frequency range
20 - 20000 Hz
S/N ratio
>119 dB
Network connection
Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version
DSP
Digital signal processor FIR Filter
Cooling
1 x temperature-controlled fan , Air flow from front to rear
Impedance
Input: 20 kOhm , bal.Input: 10 kOhm , unbal.
Gain
28,2 dBBridged 34,2 dB
Filter
Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt
Delay
Input: 0 - 2000 ms
Housing color
Black
Sample rate
96 kHz
Circuitry
Class D
Damping factor
350
Display type
LCD display
Control elements
Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu
Controls
Softstart; overheat; overload; short-circuit; DC voltage
Status LED
Power, signal, clip, bridged, protect

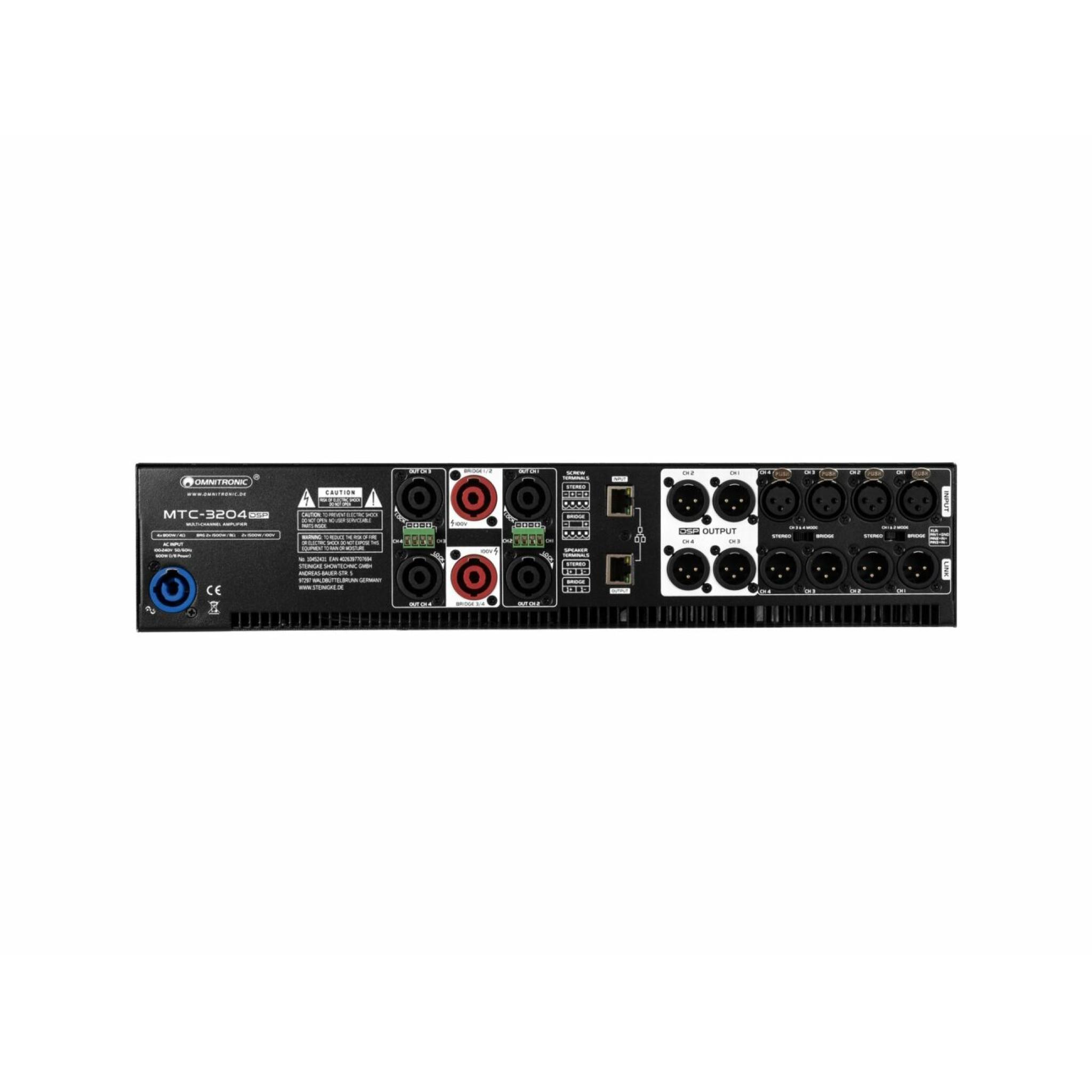

Connections
Input: line via 4 x 3-pin XLRLink: line via 4 x 3-pin XLROutput: DSP via 4 x 3-pin XLR (F) mounting versionOutput: speaker via screw plug-in terminalOutput: 4 x speaker built-in socket (F)Output: Speaker (bridge) via 2 x speaker built-in socket (F)2 x RJ-45 (F) mounting version
PC connect
DXO Software via RJ-45 (F) mounting version, firmware can be updated
Housing design
(19") 48.3 cm rack installation 2 U
Dimensions
Width: 48,3 cmDepth: 40,8 cmHeight: 8,8 cm
Weight
7,60 kg
Operating system
Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
