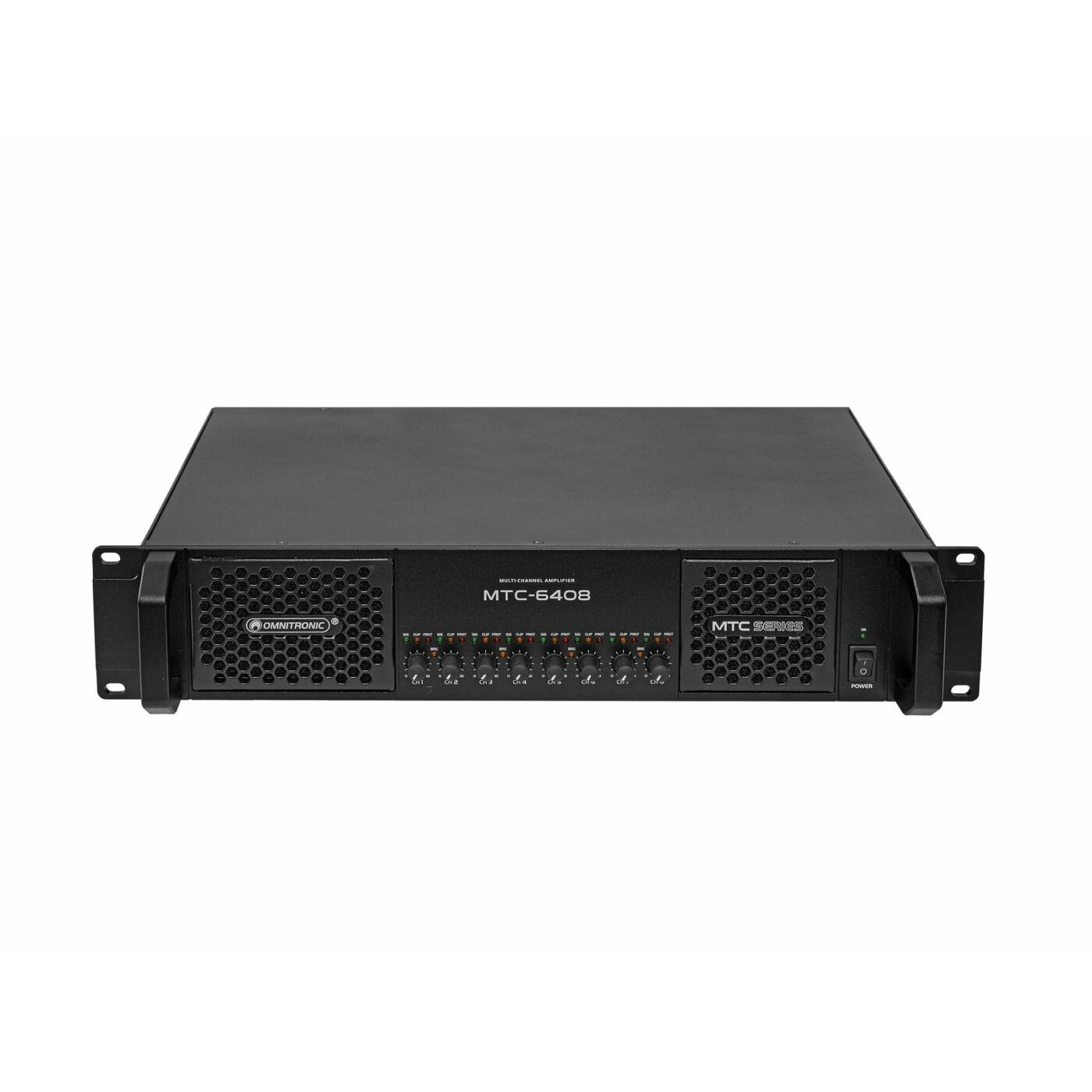

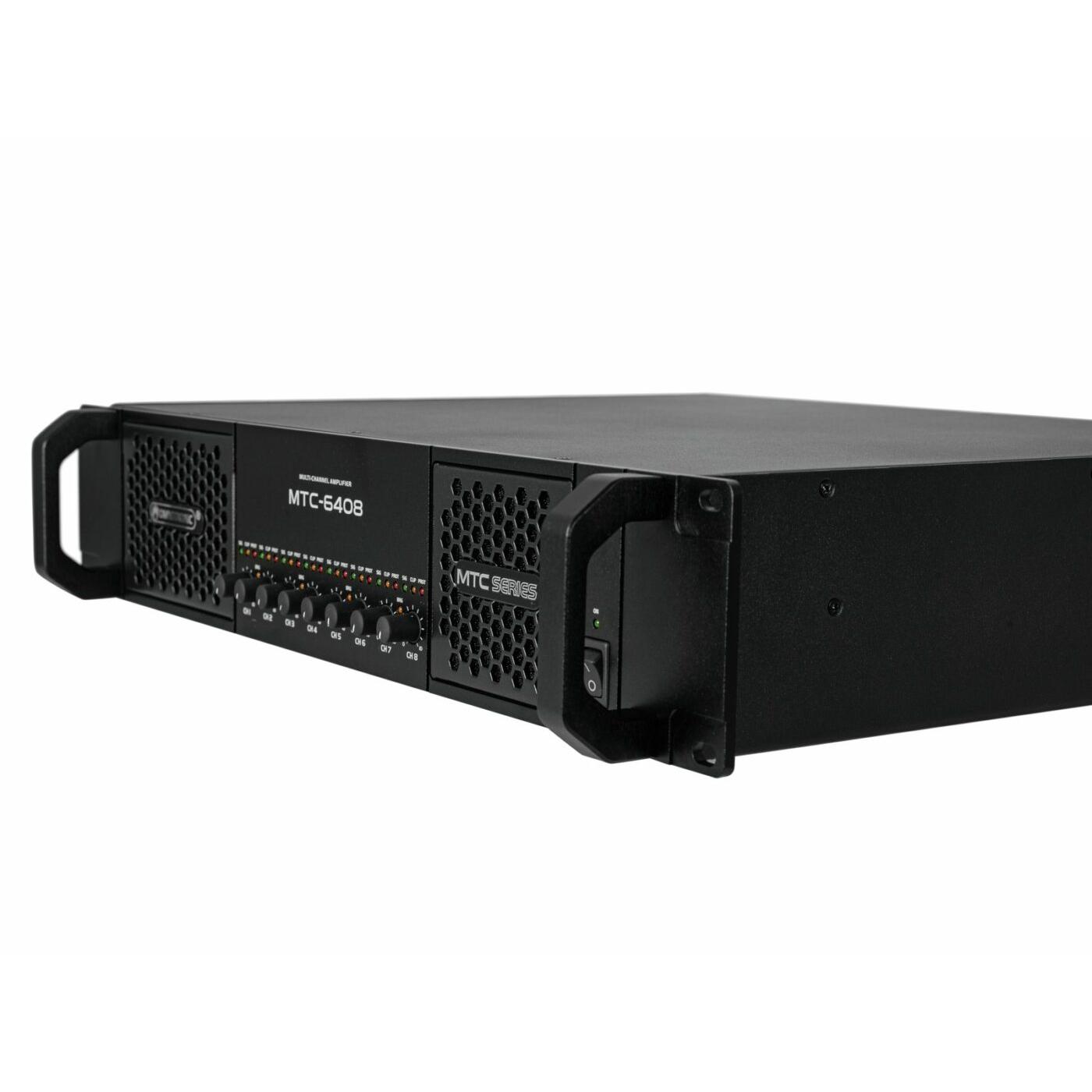

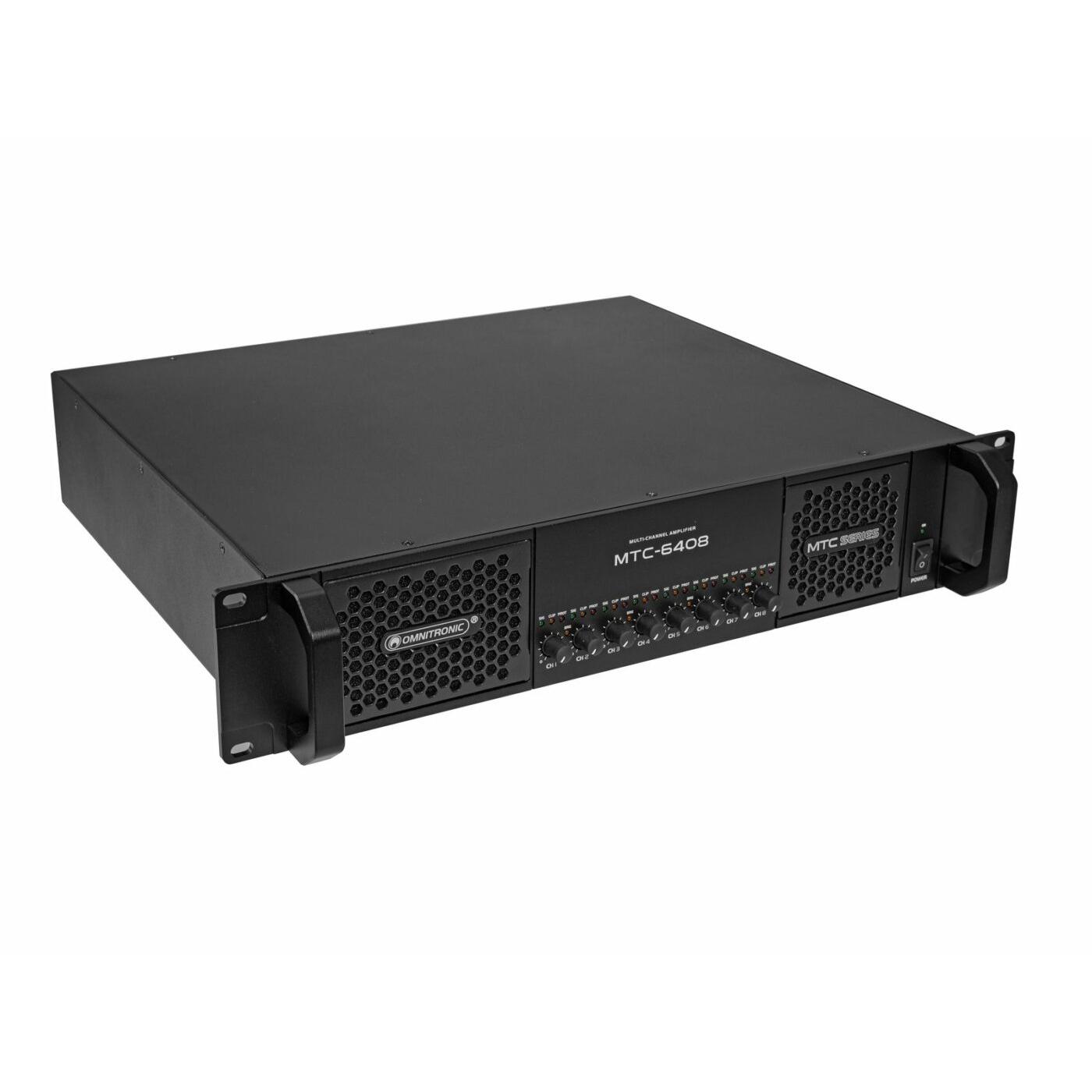

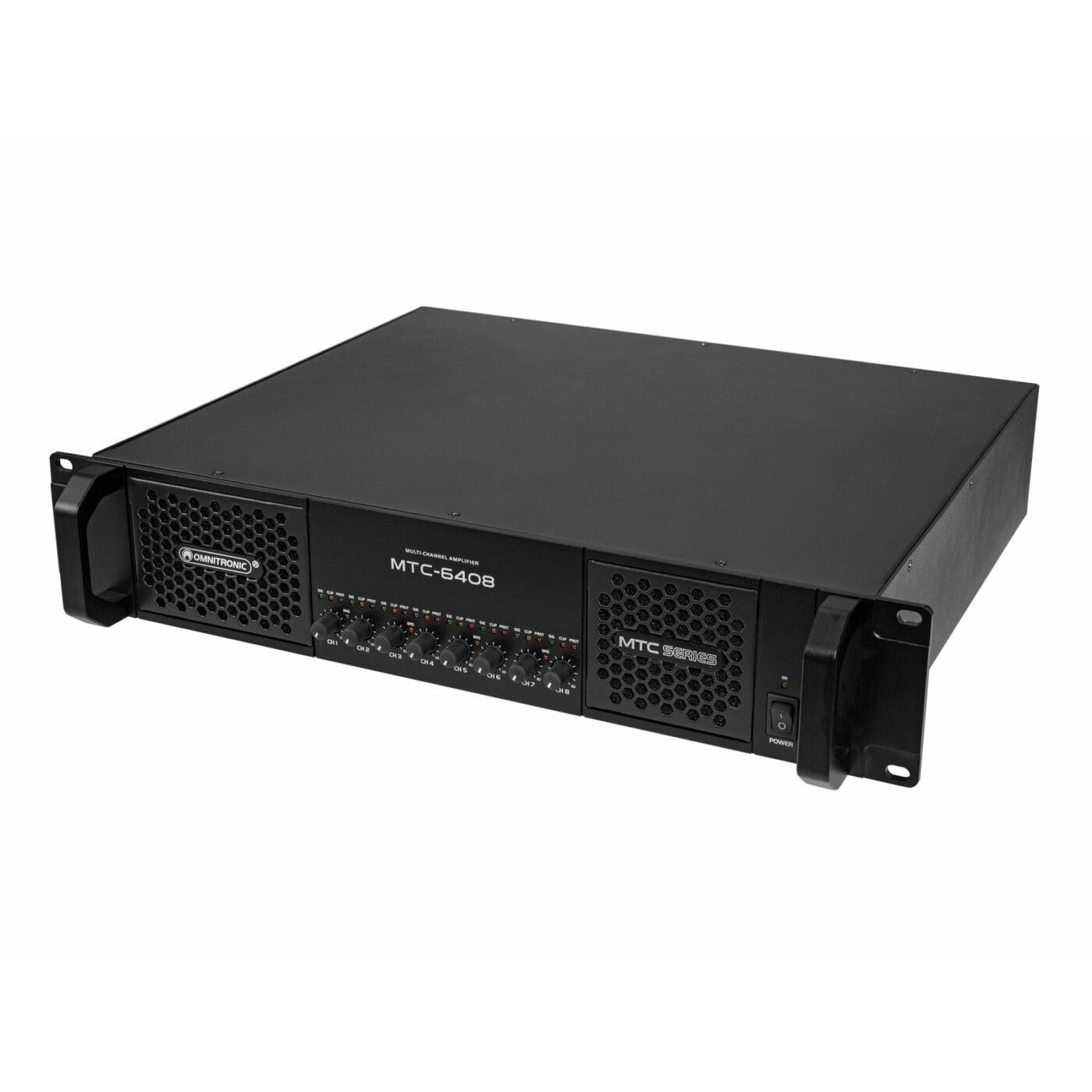

OMNITRONIC MTC-6408 8-Channel Amplifier
  • OMNITRONIC MTC-6408 8-Channel Amplifier
OMNITRONIC MTC-6408 8-kanaals versterker - Afbeelding 2
OMNITRONIC MTC-6408 8-kanaals versterker - Afbeelding 3
OMNITRONIC MTC-6408 8-kanaals versterker - Afbeelding 4
OMNITRONIC MTC-6408 8-kanaals versterker - Afbeelding 5

OMNITRONIC MTC-6408 8-kanaals versterker

  • Extremely low weight and height due to integrated switch mode power supply
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Level control per channel
  • (19") 48.3 cm rack installation 2 U
  • Highly efficient Air flow from front to rear

Oorspronkelijke prijs was: €999,00.Huidige prijs is: €855,14.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 10452435 Categorieën: , ,


Class D multichannal PA amplifier with SMPS, 8 x 800 W RMS (4 ohms), 8 x 400 W RMS (8 ohms)

  • Extremely low weight and height due to integrated switch mode power supply
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Level control per channel
  • (19") 48.3 cm rack installation 2 U
  • Highly efficient Air flow from front to rear
  • The device is cooled by temperature-controlled fan

Package contents

  • 1 x amplifier, 1 x power cord, 1 x user manual


Power supply
100-240 V AC, 50/60 Hz
Power consumption
1200 W 1/8 power
Protection class
Protection class I
Output power
8 x 800 W RMS (4 ohms)8 x 400 W RMS (8 ohms)Bridged (8 ohms)4 x 1500 W RMS4 x 1500 W RMS bridged (100 V)8 x 200 W RMS (100 V)
Power connection
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length
1 m
Device fuse
5 x 20 mm, T 10 A Fuse fix on board
Frequency range
20 - 20000 Hz
S/N ratio
>119 dB
Cooling
2 x temperature-controlled fan , Air flow from front to rear
Impedance
Input: 20 kOhm , bal.Input: 10 kOhm , unbal.
Gain
28,2 dB
Housing color
Black
Circuitry
Class D
Damping factor
350
Control elements
Power switch, level control per channel, mode switch (stereo/bridged)
Controls
Softstart; overheat; overload; short-circuit; DC voltage
Status LED
Power, signal, clip, bridged, protect

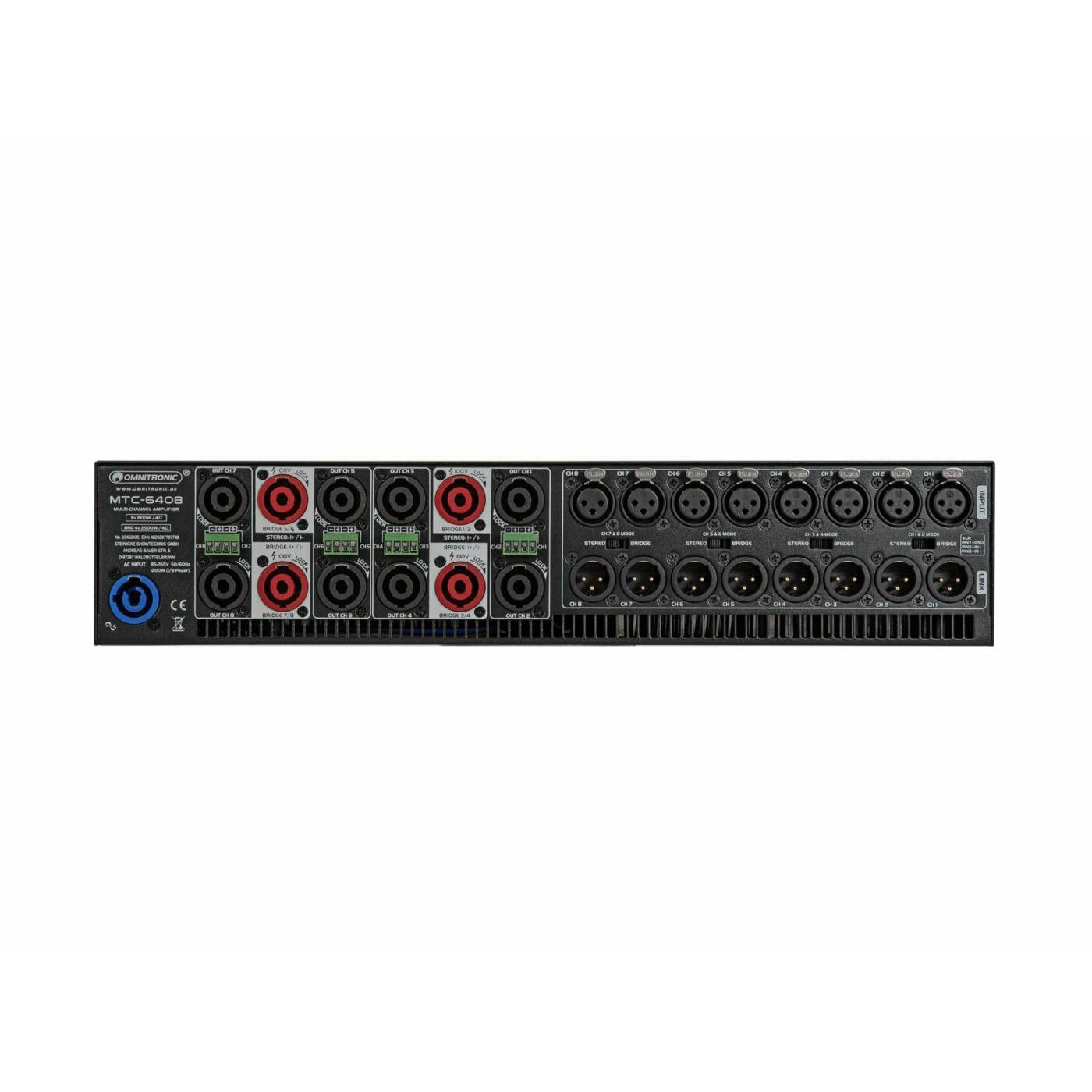

Connections
Input: line via 8 x 3-pin XLRLink: line via 8 x 3-pin XLROutput: speaker via 6 x screw plug-in terminalOutput: 8 x speaker built-in socket (F)
Housing design
(19") 48.3 cm rack installation 2 U
Dimensions
Width: 48,3 cmDepth: 40,8 cmHeight: 8,8 cm
Weight
9,42 kg
