OMNITRONIC PM-404F 4-channel DJ Mixer with Filter and Bluetooth

  • Bluetooth signal routable to channel 1 to 4
  • DJ filter LPF/HPF bipolar per channal
  • DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
  • Crossfader with adjustable curve and reverse function
  • Master channel with level and balance control

Oorspronkelijke prijs was: €320,11.Huidige prijs is: €269,00.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 18 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 10006867 Categorie:


DJ mixer with Bluetooth connectivity and sound filter

  • Bluetooth signal routable to channel 1 to 4
  • DJ filter LPF/HPF bipolar per channal
  • DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
  • Crossfader with adjustable curve and reverse function
  • Master channel with level and balance control
  • 6 line and 2 phono inputs via RCA jacks
  • Additional recording output
  • Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
  • Control via Bluetooth
  • Bluetooth: operating range up to 20m
  • Desktop console housing


Scope of delivery
  • 1 x mixer
  • 1 x power cord
  • 1 x antenna
  • 1 x RCA cable
  • 1 x user manual
  • 1 x declaration of conformity


Power supply
100-240 V AC, 50/60 Hz
Power consumption
15 W
Power connection
Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range
20 - 20000 Hz
S/N ratio
>75 dB
THD
<0.1 % at 1 kHz
DJ filter
Per channal: LPF/HPF bipolar,
Control
Bluetooth
Bluetooth device name
PM-404F
Range
Bluetooth: range up to 20m
Carrier frequency
2.4 GHz
Housing color
Black matte
Crosstalk
>60 dB
Control elements
Power switch, Master control, level control per channel, Input sensitivity switch, source selector; tone control, talkover, crossfader selector switch, crossfader, connect; cue mix function, Crossfade curve control, crossfade reverse switch, balancecontrol
Status LED
Power, master level meter, channel level meter, CUE, pairing

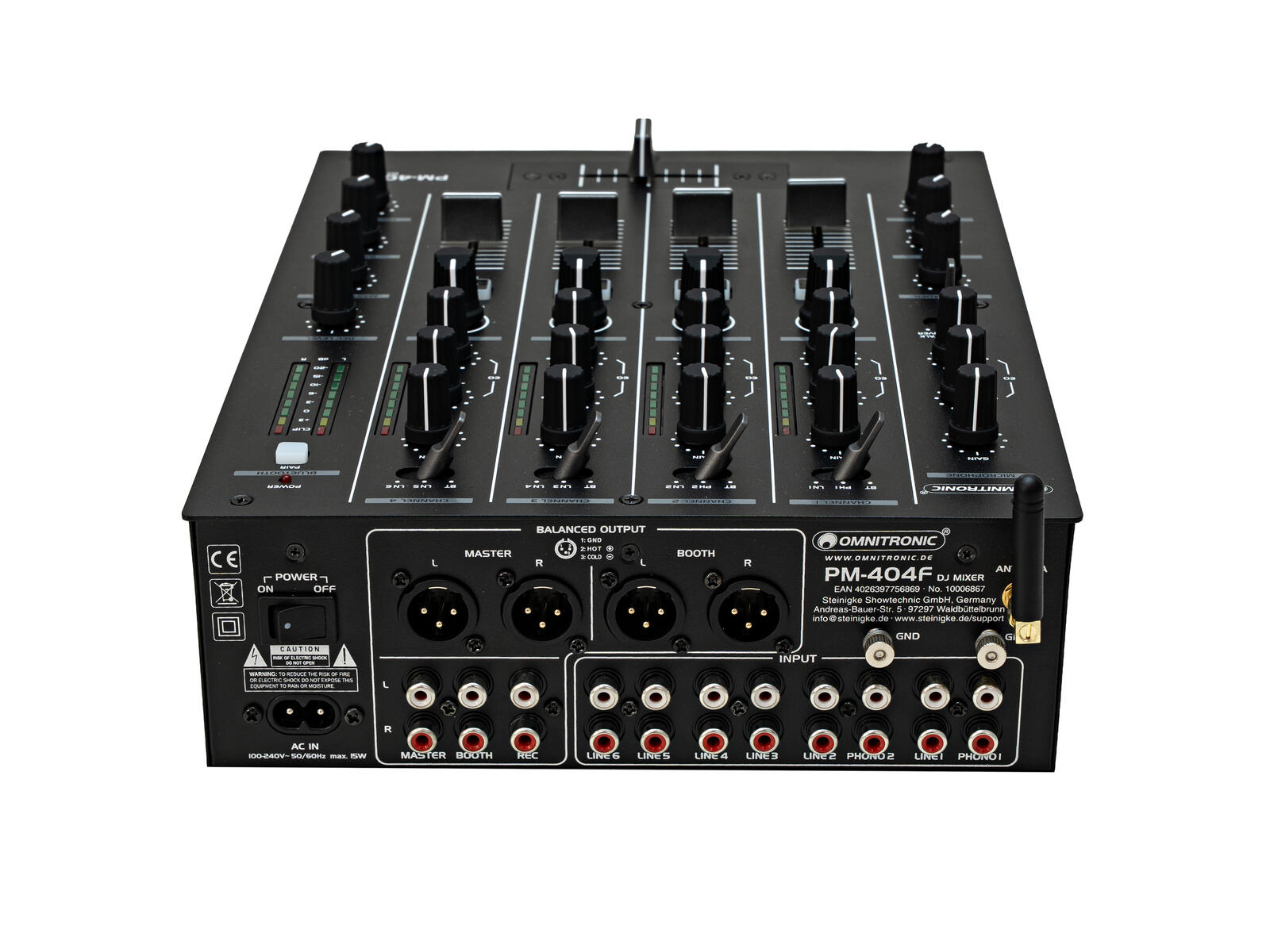

Connections
Input: line via 6 x stereo RCAInput: phono via 2 x stereo RCAInput: microphone via 1 x 3-pin XLR (F) mounting versionInput: antenna via 1 x SMA (F) mounting versionInput: Earthing connection via 2 x screw terminalOutput: master via 2 x 3-pin XLR (M) mounting versionOutput: master via 1 x stereo RCAOutput: rec. via 1 x stereo RCAOutput: booth via 1 x stereo RCAOutput: booth via 2 x 3-pin XLR (M) mounting versionOutput: headphones via 1 x 6.3 mm jack socket (stereo) mounting versionOutput: headphones via 1 x 3.5 mm jack (stereo) mounting version
Channels
Input channel: 2 x stereo with Line-Phono-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolarInput channel: 2 x stereo with Line-Line-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolarMicrophone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ, talkover switch, gain controlMaster output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrolBooth output: 1 x stereo via XLR or RCA, channel control via rotary dialRec. output: 1 x stereo via RCA, channel control via rotary dialHeadphones output: 2 x stereo via jack, channel control via rotary dial
Material
Metal
Housing design
Desktop console housing
Dimensions
Width: 24 cmDepth: 33.8 cmHeight: 11 cm
Weight
2.85 kg

Download de handleiding (PDF, Duits + Engels):

📖 Handleiding openen

Bron: fabrikant (Steinigke / Eurolite).
