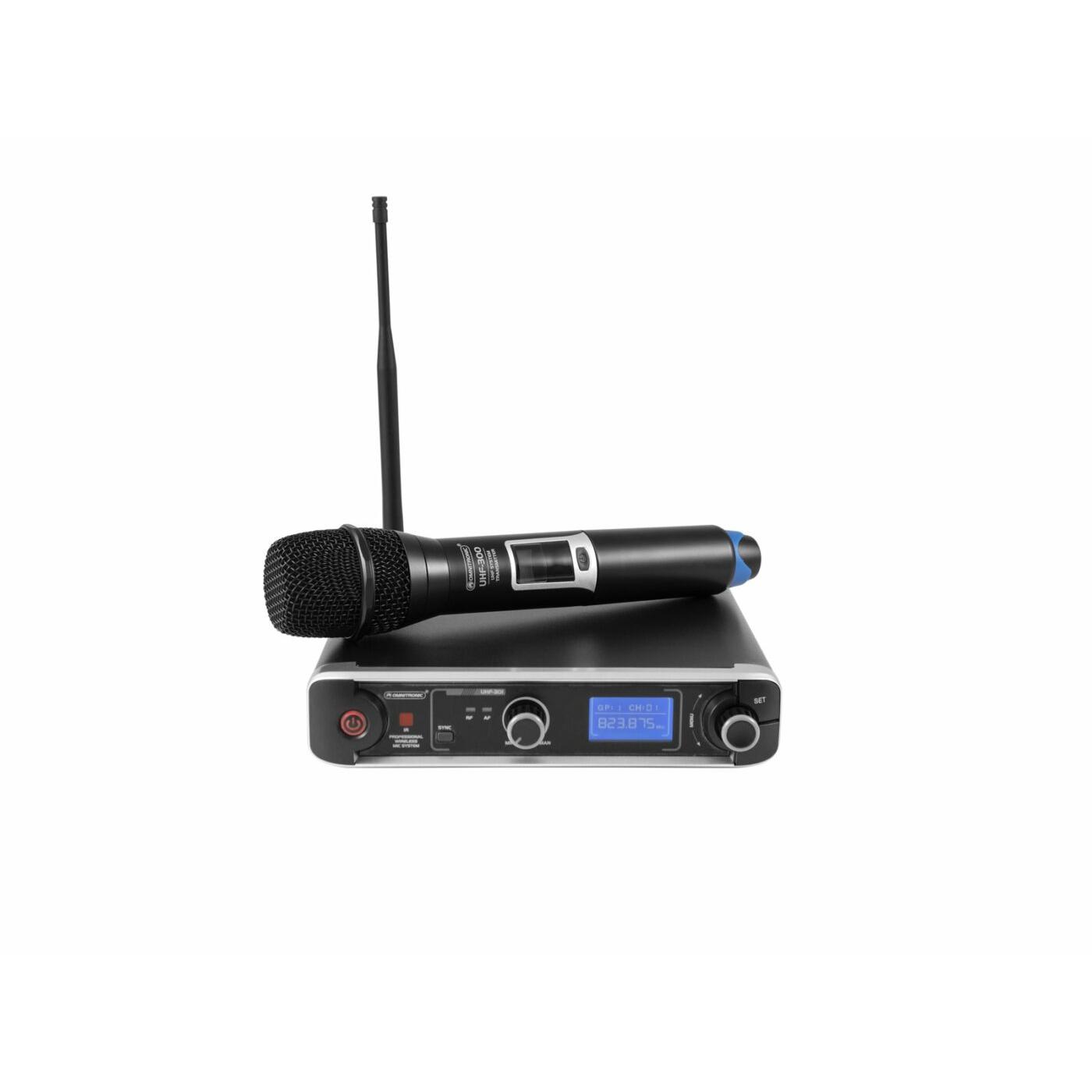

1-channel UHF PLL microphone system
- 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
- Operation in the license-free frequency ranges 823-832 MHz and 863-865 MHz
- 93 preset channels in 10 channel groups
- Operation range with line of sight approx. 60 meters
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCDs for group, frequency and channel
- LEDs for carrier and audio signal
- Volume control

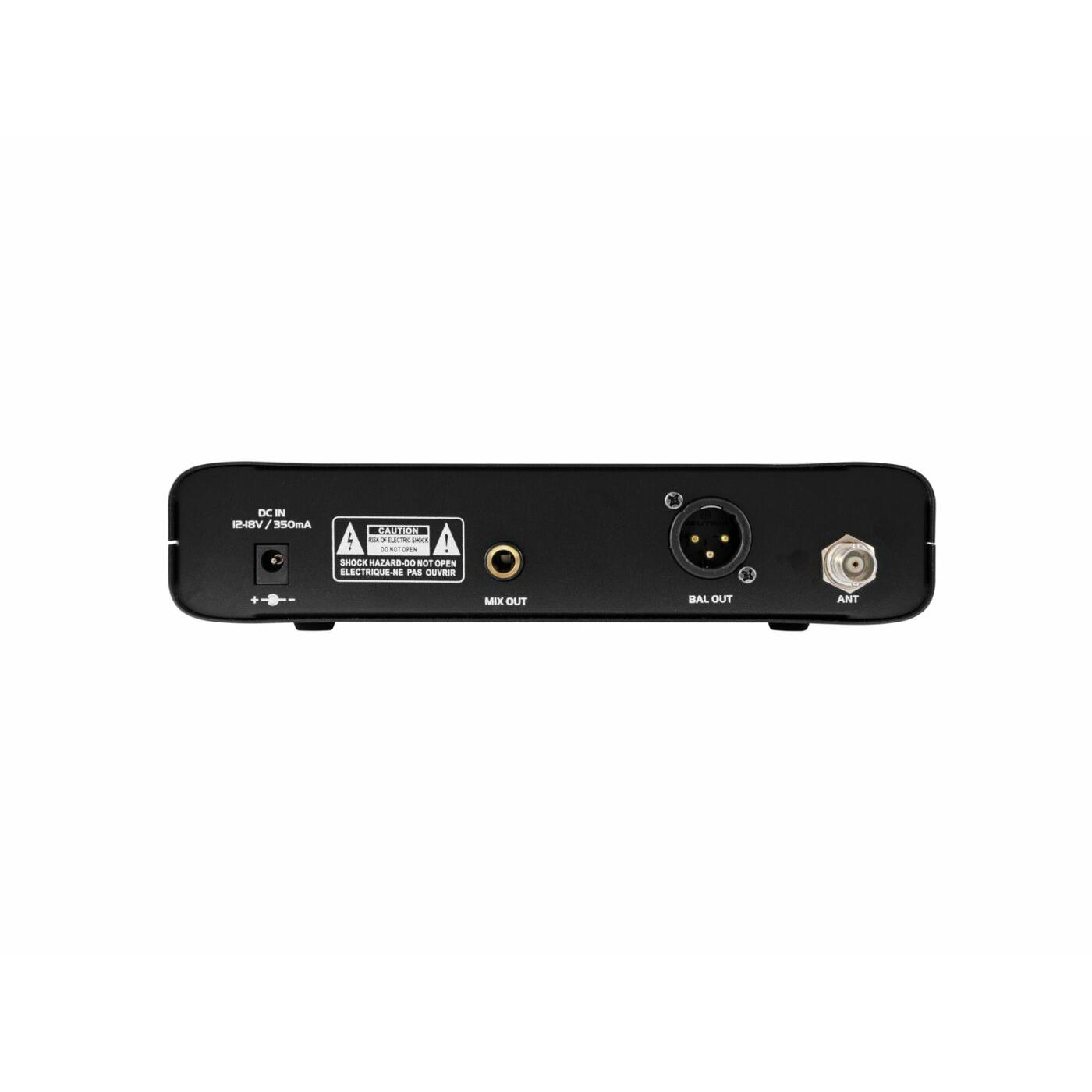

- Balanced XLR output
- Unbalanced 6.3 mm jack
- Jack cable included
- Removable antenna (BNC connection)
- Incl. mounting brackets for 483 mm rack installation
- 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
- Matching pocket transmitter can be ordered separately
- License-free and approved in large parts of the EU (please check on a country-by-country basis)

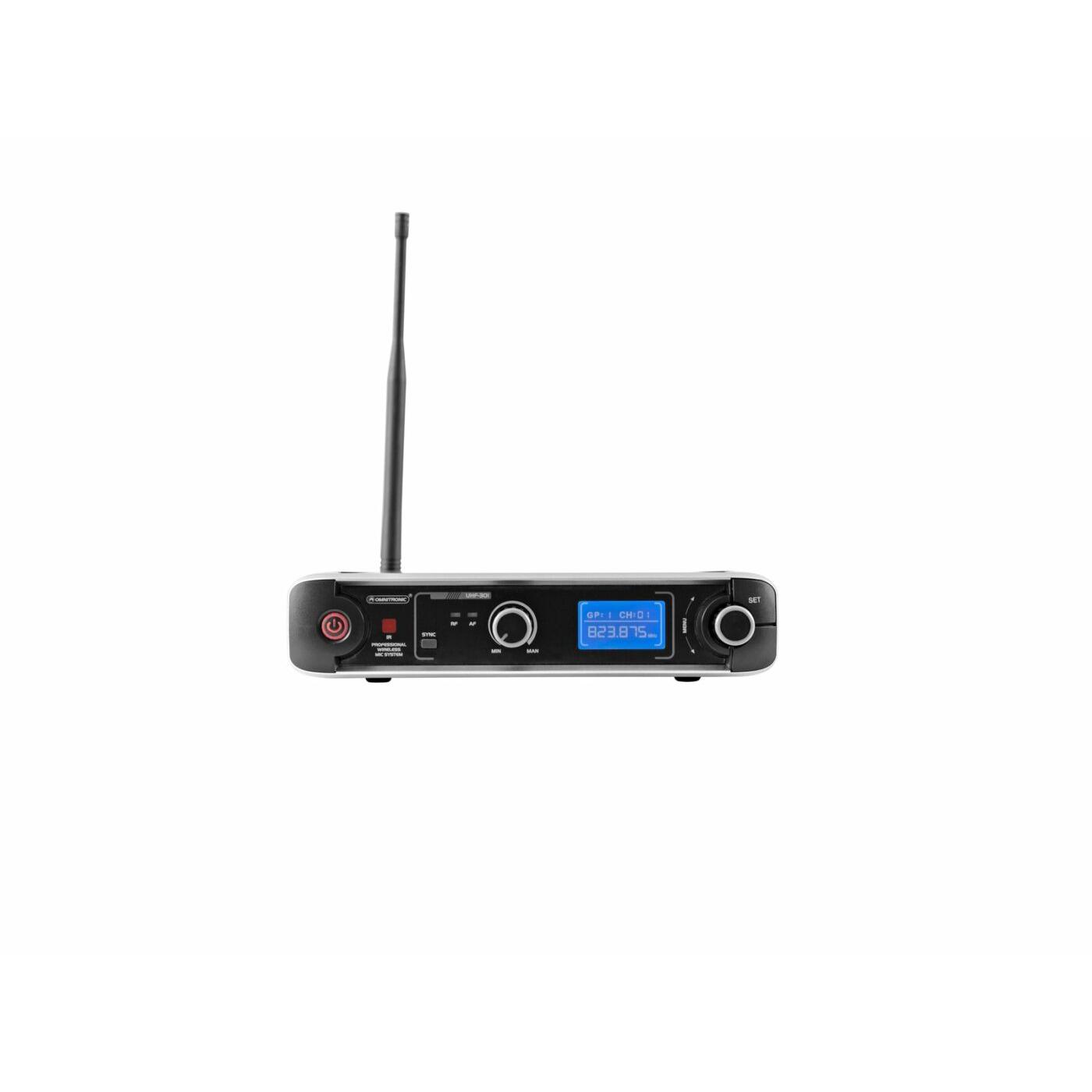

Receiver
- Height unit: 1 U
- Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
- Housing design: (19") 48,3 cm rack installation possible
Microphone
- Battery: 2 x Mignon (AA) (not included)
- Mute function: No
- Polar pattern: Unidirectional
- Power connection: Battery/battery pack (not included)
