OMNITRONIC UHF E-FLEX 2
  • OMNITRONIC UHF E-FLEX 2
  • Wireless Mic System 559-575 MHz
Wireless Mic System 559-575 MHz
OMNITRONIC UHF E-FLEX 2, Draadloos microfoonsysteem 559-575 MHz - Afbeelding 3
OMNITRONIC UHF E-FLEX 2, Draadloos microfoonsysteem 559-575 MHz - Afbeelding 4
OMNITRONIC UHF E-FLEX 2, Draadloos microfoonsysteem 559-575 MHz - Afbeelding 5

OMNITRONIC UHF E-FLEX 2, Draadloos microfoonsysteem 559-575 MHz

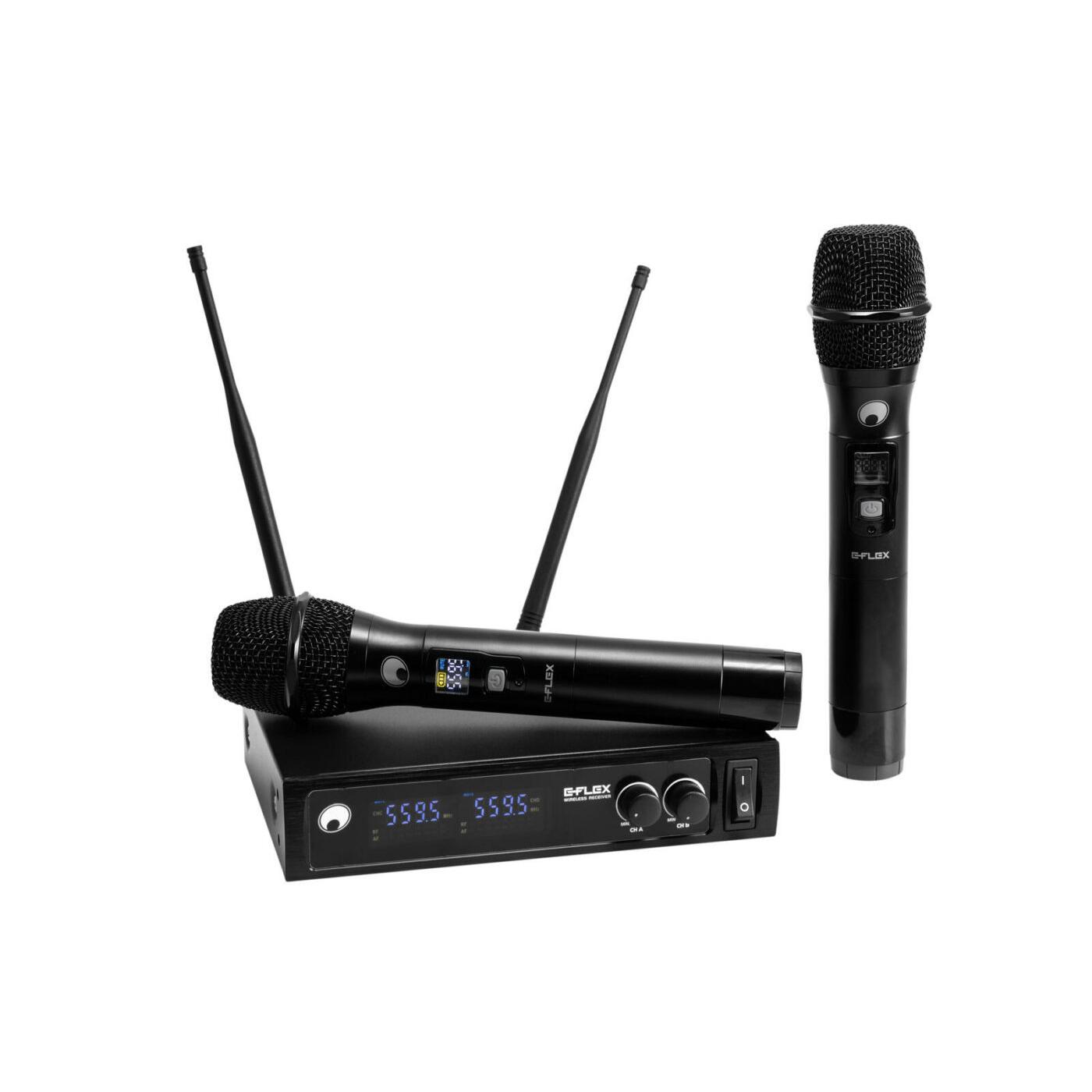

  • 2-channel receiver and 2 hand-held microphones with UHF PLL technology
  • Quick and easy frequency adjustment at handheld transmitter
  • 16 channels selectable
  • 2 separate channels with volume controls
  • Balanced XLR output per channel

Oorspronkelijke prijs was: €99,00.Huidige prijs is: €84,74.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 14 mei
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 13063371 Categorieën: ,


License-free 2-channel microphone system (UHF 559 - 575 MHz, #A#88_1_0#) with auto sync, incl. rack kit

  • 2-channel receiver and 2 hand-held microphones with UHF PLL technology
  • Quick and easy frequency adjustment at handheld transmitter
  • 16 channels selectable
  • 2 separate channels with volume controls
  • Balanced XLR output per channel
  • 6.3 mm jack for mixed signal output
  • Detachable BNC antennas
  • Operating range up to 30m with line-of-sight

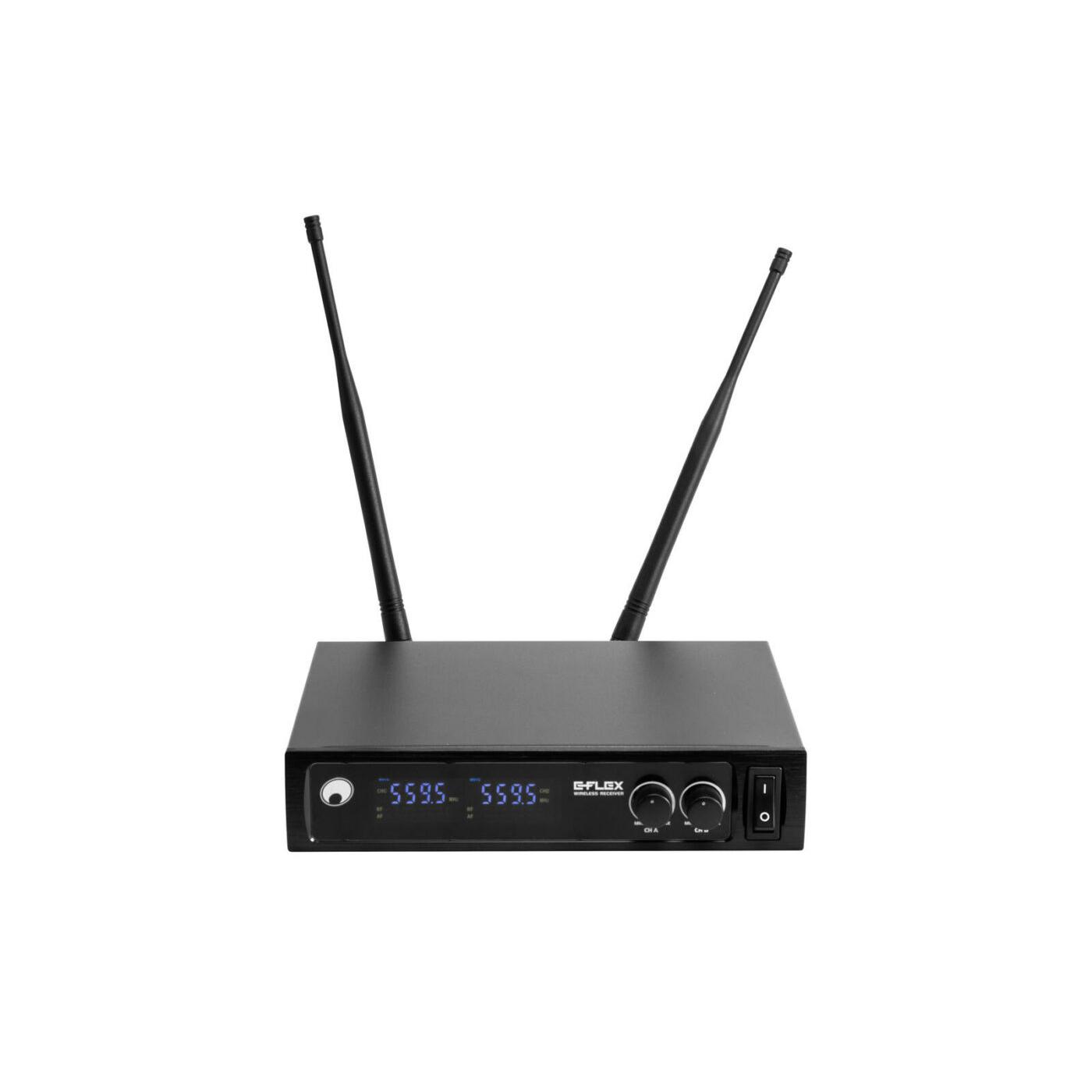

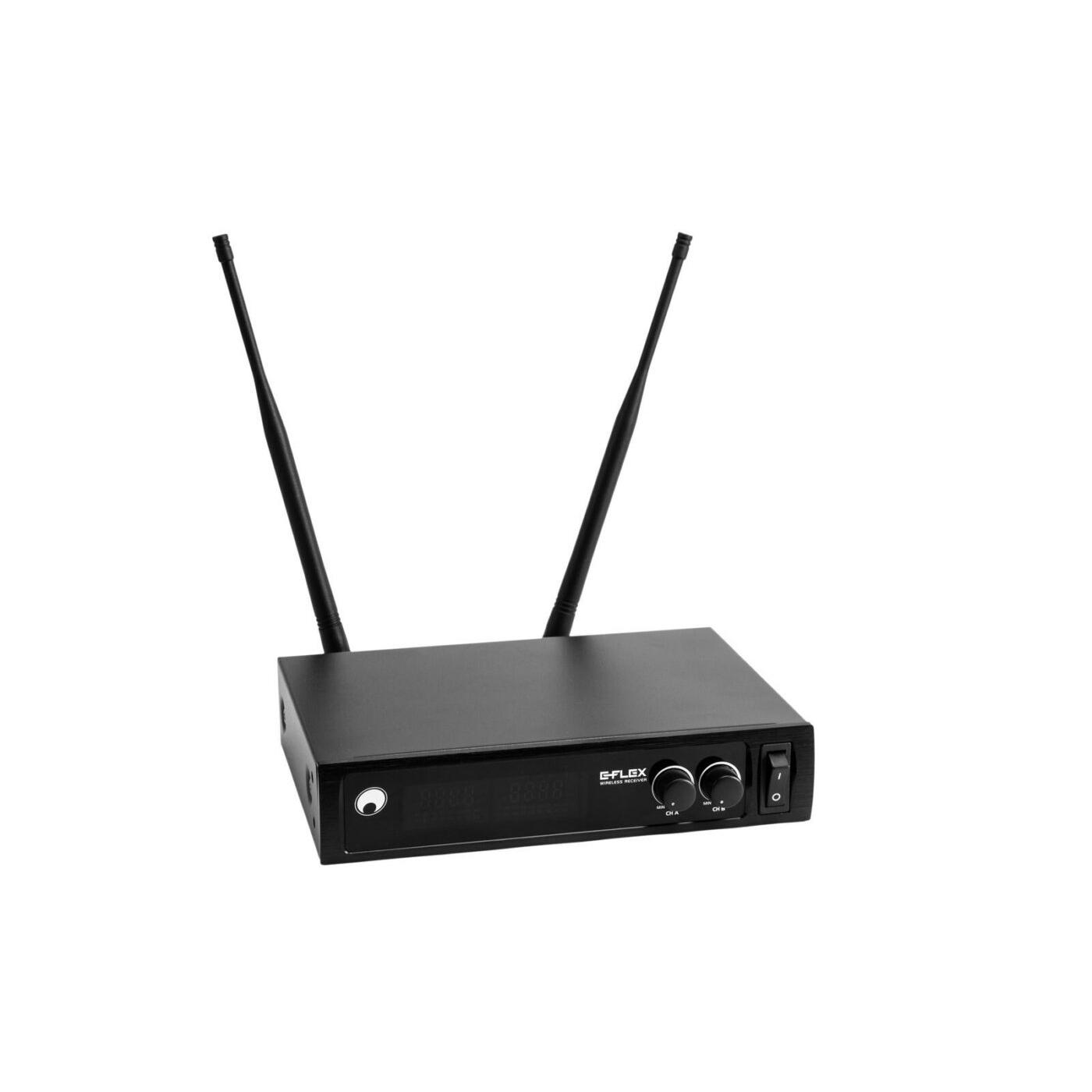

receiver

  • Multicolor 4 digit 7-segment LED display
  • Desktop console housing
  • (19") 48.3 cm rack installation possible

microphone

  • Polar pattern: Cardioid
  • Multicolor 4 digit 7-segment LED display
  • Charge status indicator

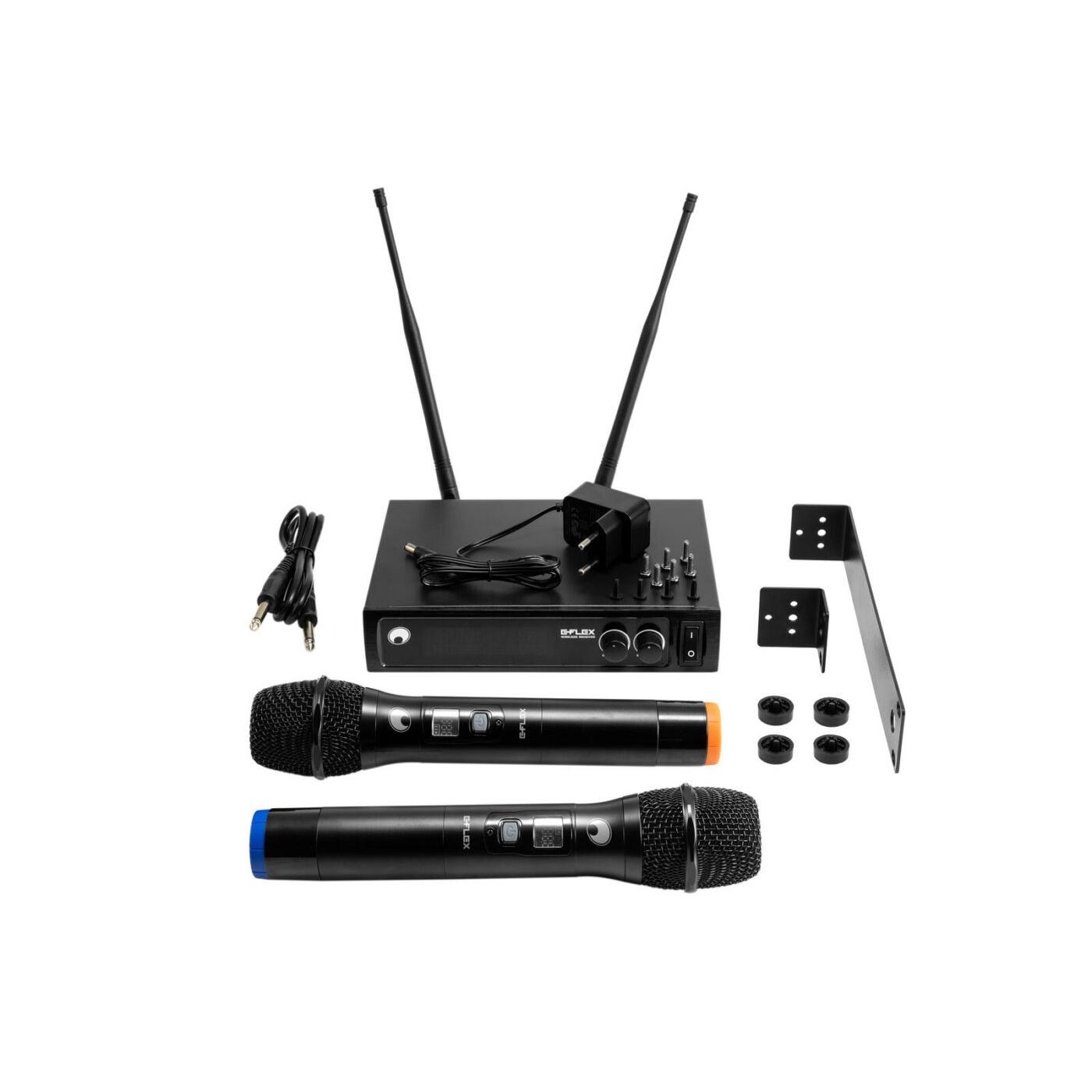

Package contents

  • 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x microphone, 1 x jack cable, 2 x mounting bracket, 6 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity

Type
Wireless set
Protection class
Protection class III
Number of channels
2
Frequency range
50 - 15000 Hz
Range
Range up to 30m with line-of-sight
Frequency band
UHF 559 - 575 MHz
Modulation
FM
Frequency selection
16 switchable frequencies In 2 groups
Weight
1,87 kg
Receiver Power supply
100-240 V AC, 50/60 Hz 12V DC 500 mA
Power consumption
Max. 3,1 W
Power connection
Mains input via coaxial power connector (M) power supply cord with AC unit (provided)
S/N ratio
>90 dB
THD
<0,05 % at 1 kHz
Housing color
Black
Display type
Multicolor 4 digit 7-segment LED display
Display
Mute; channel , frequency , AF audio level , RF signal level
Control elements
Power switch, level control per channel

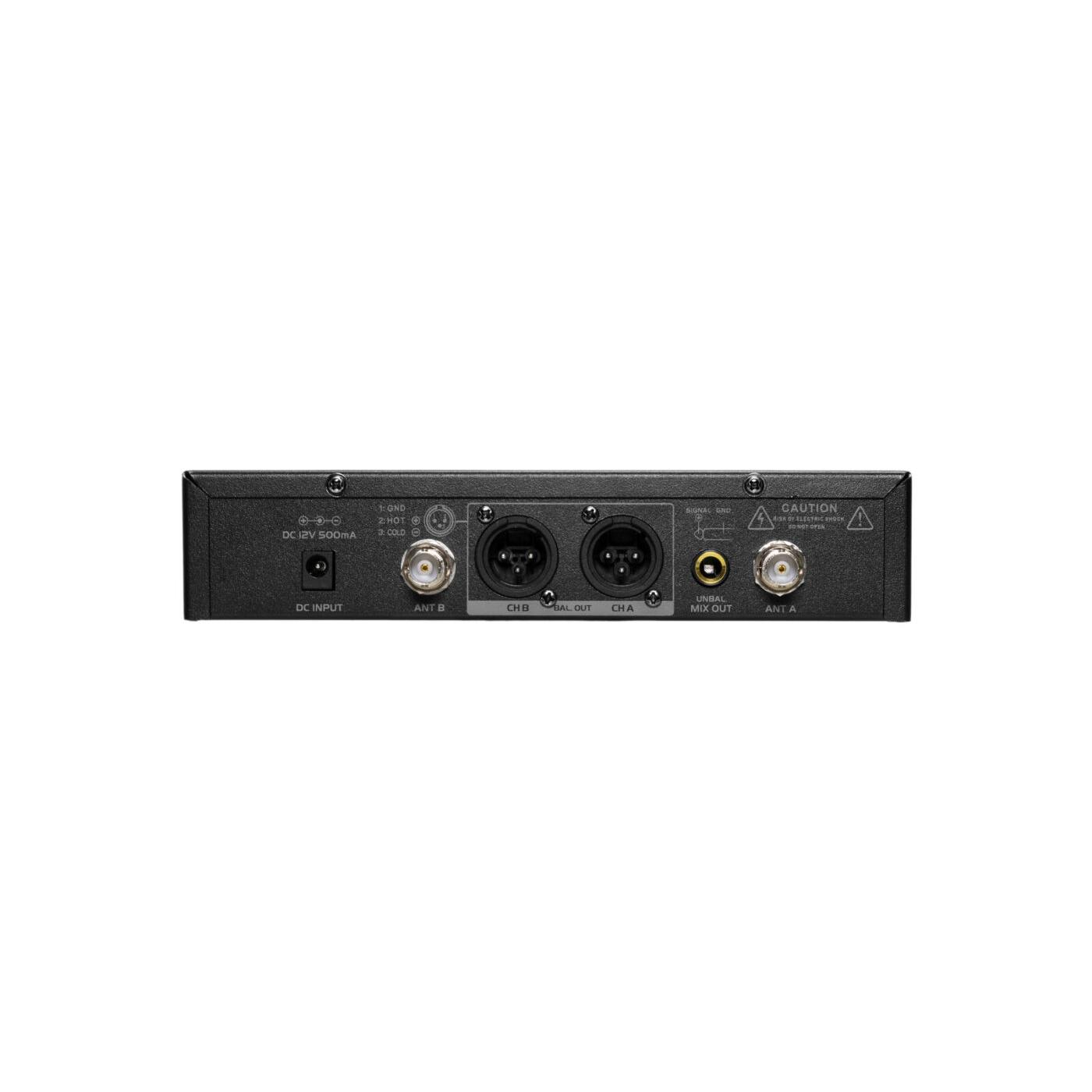

Connections
Input: antenna via 2 x BNC (F) Output: microphone via 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR (M) mounting version
Material
Metal
Housing design
Desktop console housing (19") 48.3 cm rack installation possible
Mounting depth
18,5 cm
Dimensions
Width: 21,1 cm Depth: 14,4 cm Height: 4,2 cm
Microphone Type
Hand-held transmitter
Power supply
3V DC
Capsule type
Dynamic
Polar pattern
Cardioid
Battery
Mignon (AA) (not included)
Sensitivity
-54 dB
RF power output
10 mW
Switch
On/off/mute switch
