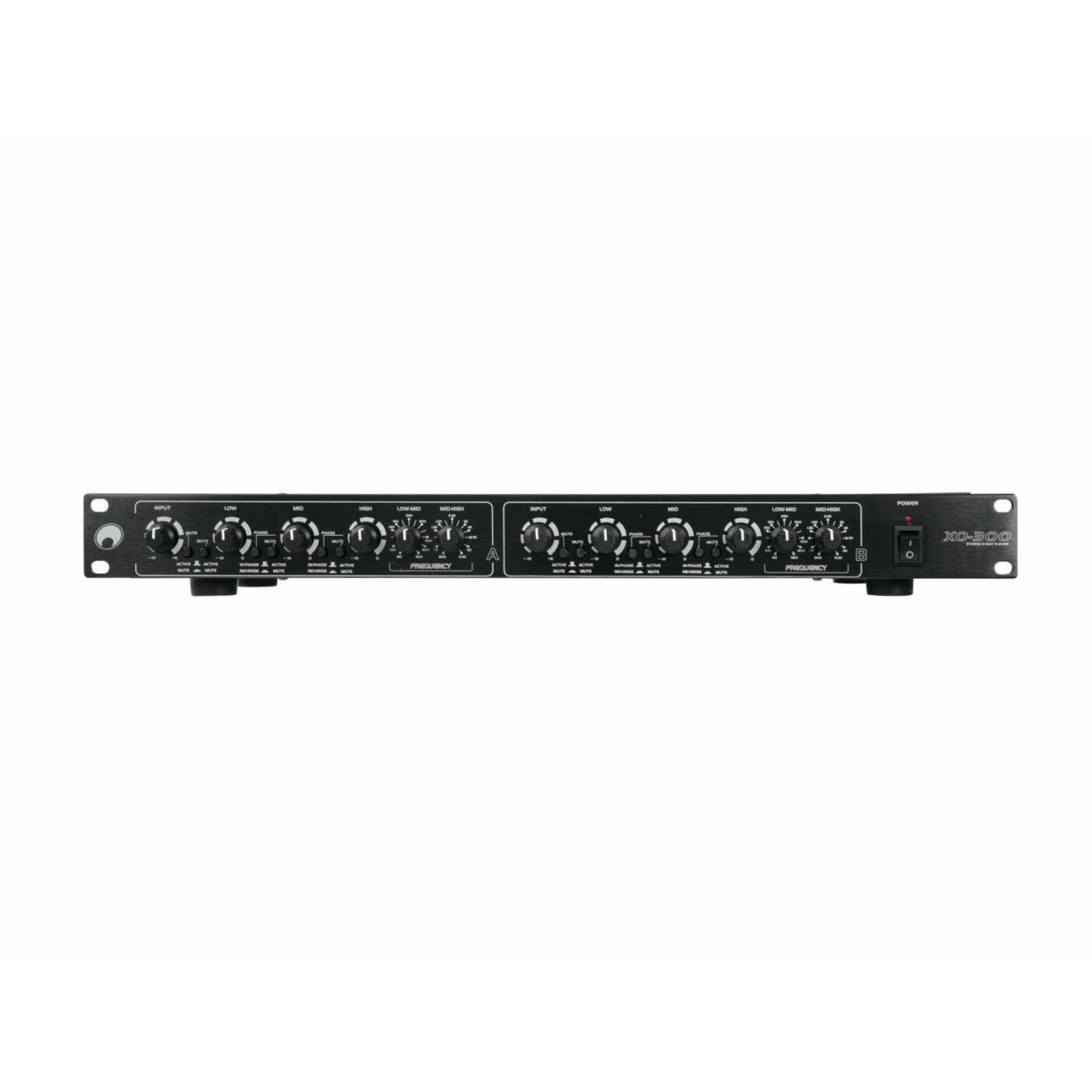

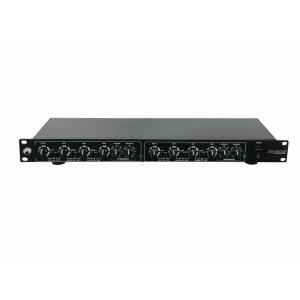

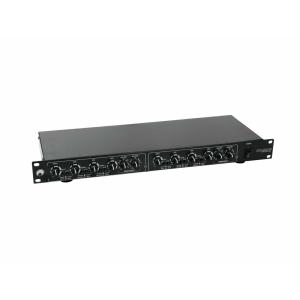

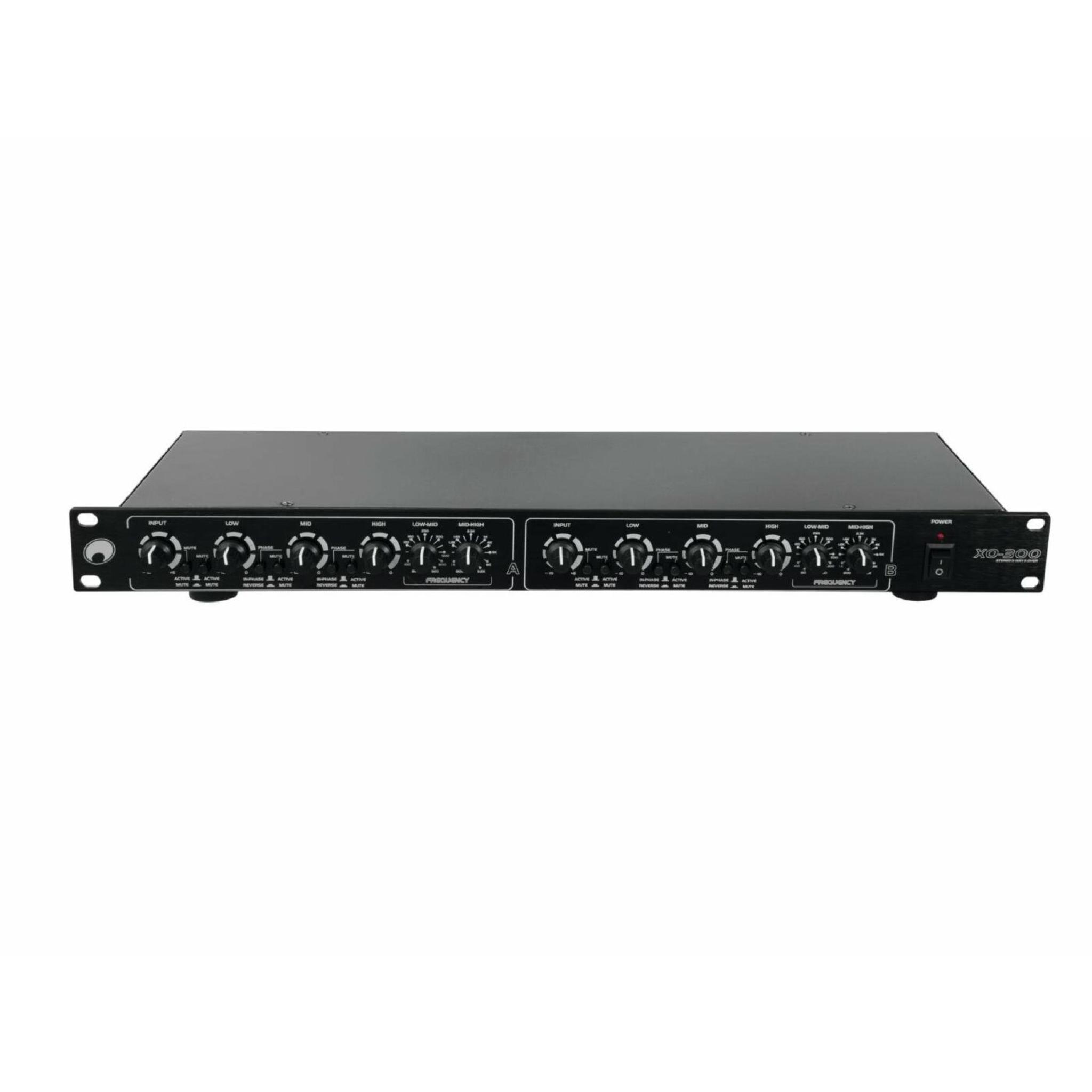

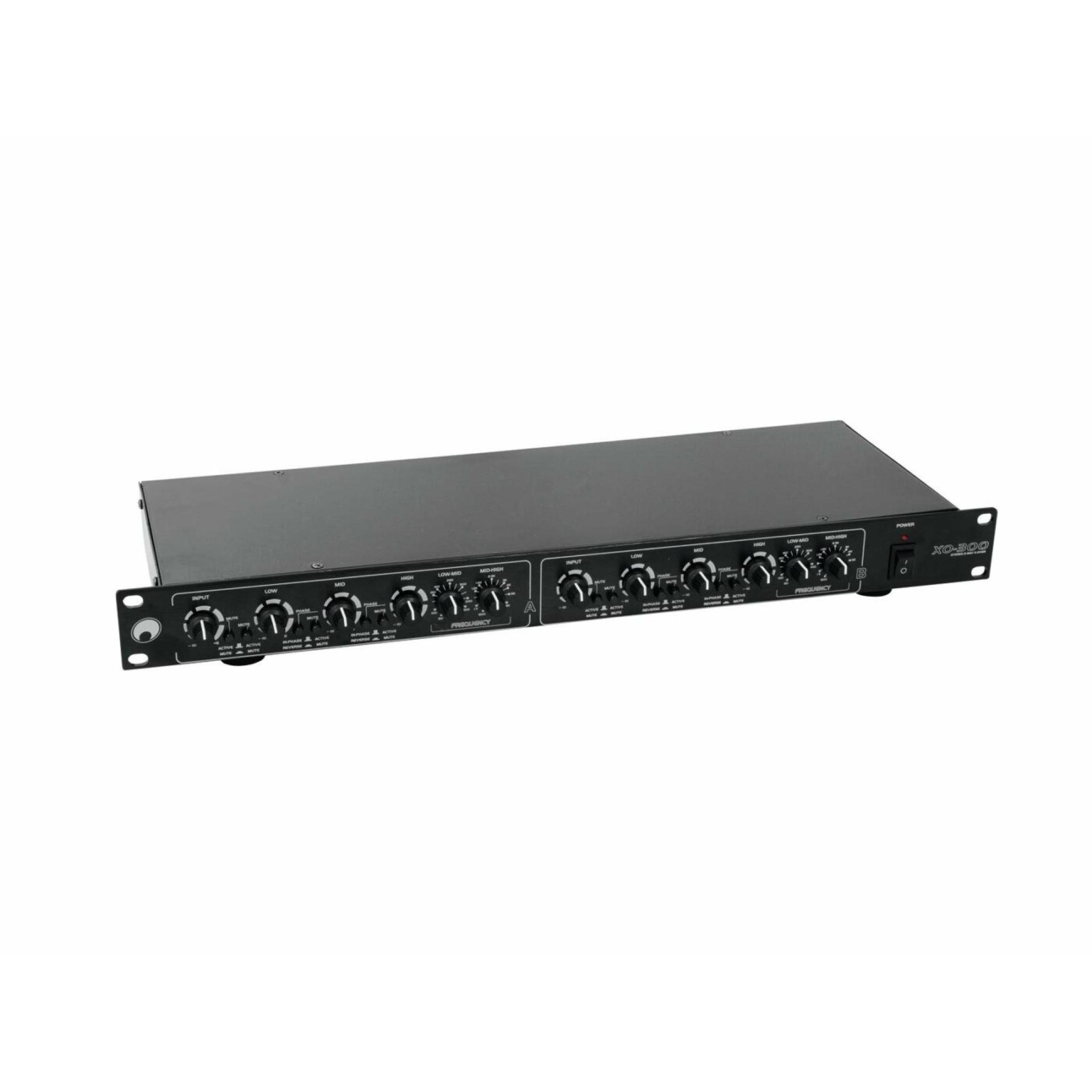

OMNITRONIC XO-300 Active Crossover
Oorspronkelijke prijs was: €125,00.€107,00Huidige prijs is: €107,00.
Beschrijving
Active crossover, stereo 3-way operation
- 3-way stereo operation
- Variable 24 dB per octave Linkwitz-Riley filters
- Individual output level controls for each frequency range
- Continuously adjustable crossover frequencies low/mid and mid/high
- Individual muting for input signal and each frequency range
- CD horn EQ for smoother treble selectable
- Switchable low and mid phase
- Input level adjustable

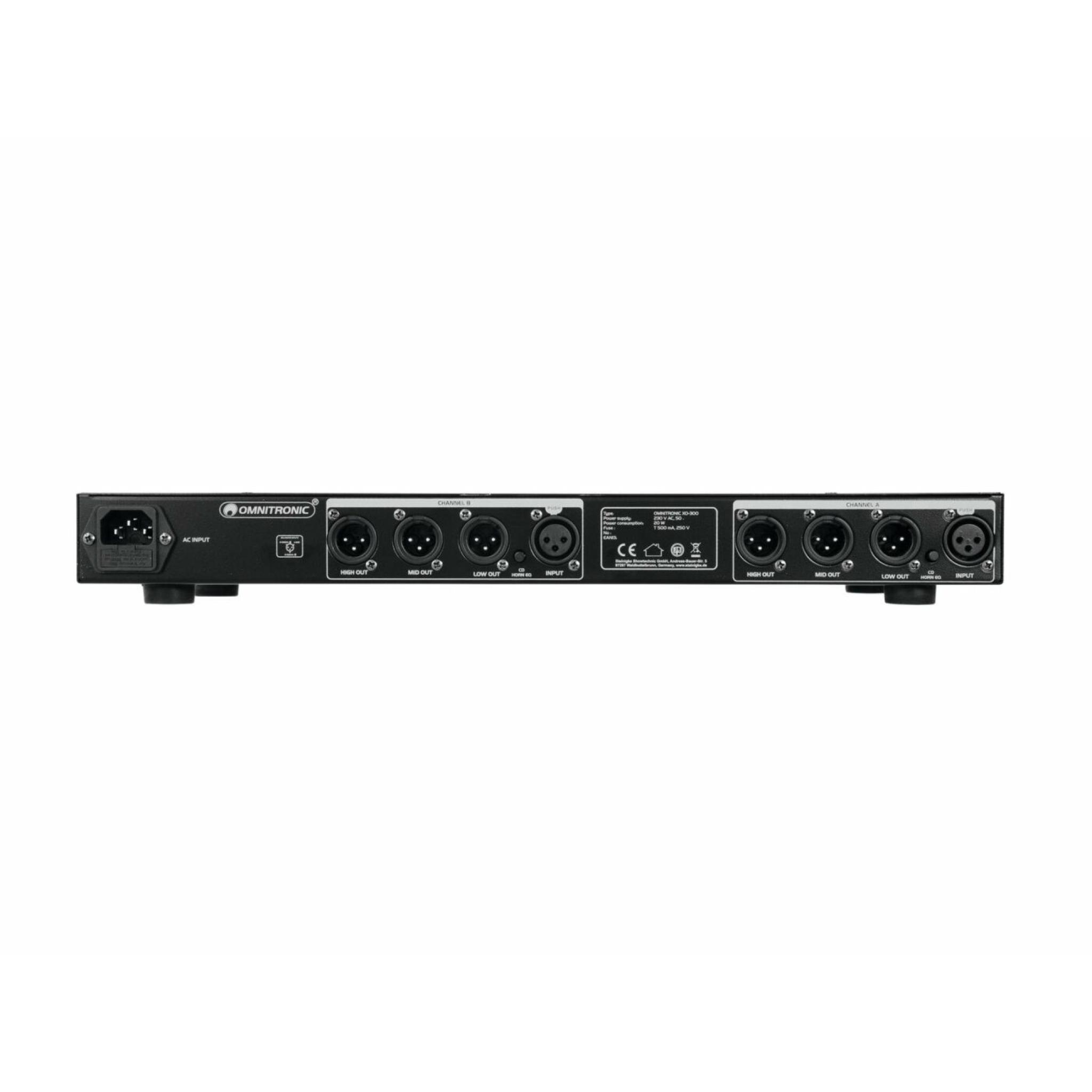

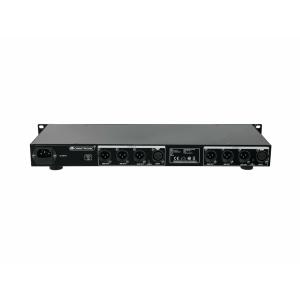

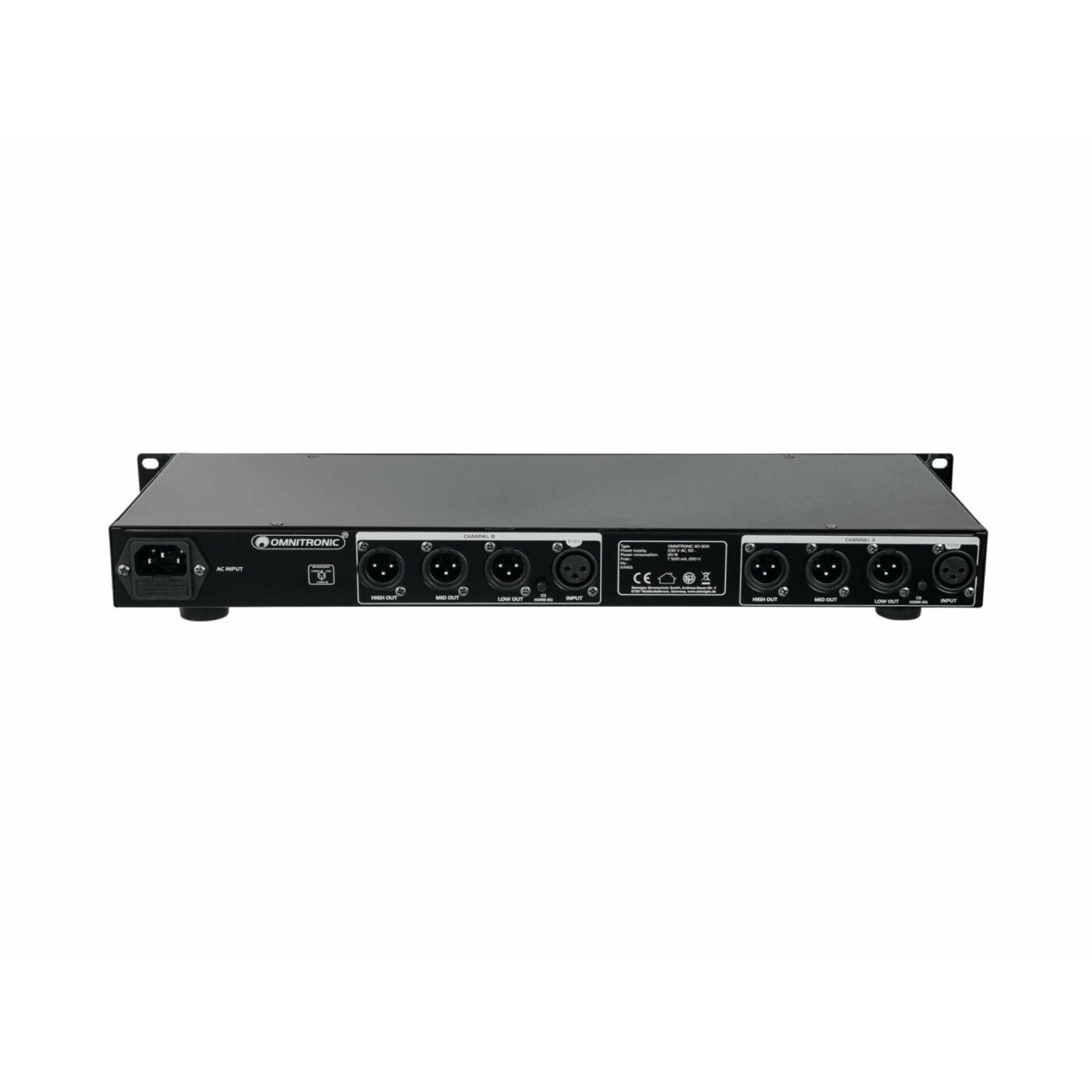

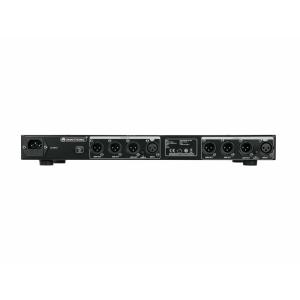

- Balanced XLR inputs and outputs
- Rack installation, 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 20 W |
| Operation modes: | 3-way stereo |
| Inputs: | XLR, electronically balanced/unbalanced |
| Impedance: | balanced >50 kohms, unbalanced >25 kohms |
| Max. input level: | +22 dBu typical, balanced or unbalanced |
| Outputs: | XLR, electronically balanced/unbalanced |
| Impedance: | balanced 200 ohms, unbalanced 100 ohms |
| Max. output level: | >+21 dBu balanced/unbalanced into 2 kohms or greater |
| S/N ratio: | >100 dB |
| THD: | 0.05% |
| Crosstalk: | >80 dB, -3 dB |
| Crossover frequency low/mid: | 80-920 Hz |
| Crossover frequency mid/high: | 800-9200 Hz |
| Filter type: | Linkwitz-Riley, 24 dB/octave, state-variable |
| Phase invert: | low/mid output |
| Input gain: | – ~ to +6 dB |
| Output gain: | – ~ to +0 dB |
| Dimensions (W x D x H): | 483 x 187 x 48 mm |
| Weight: | 2.3 kg |
Specificaties
| Gewicht | 2,844 kg |
|---|---|
| Afmetingen | 0,1000 × 0,5400 × 0,2400 m |
| Weight kg | 2,3 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 20 |
