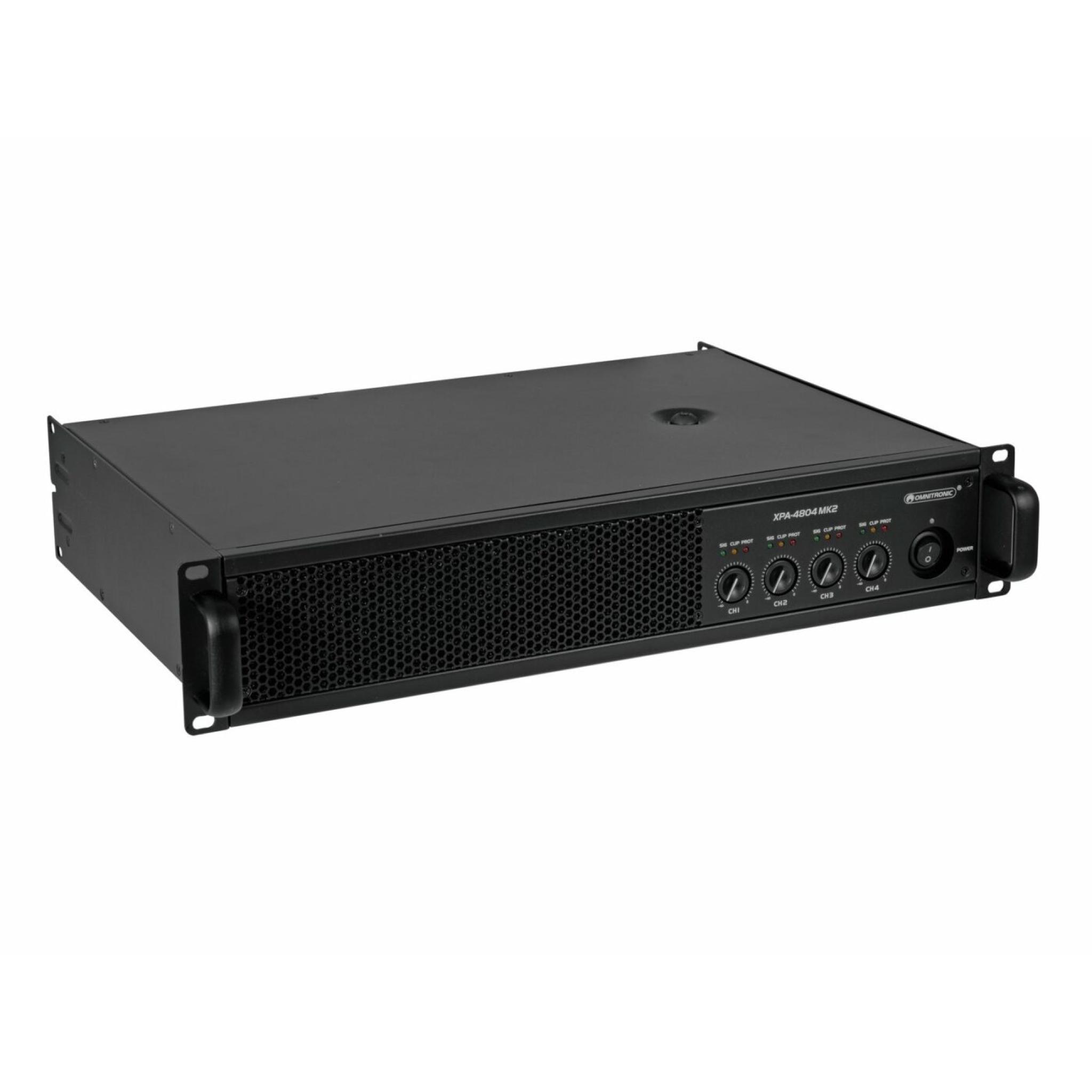

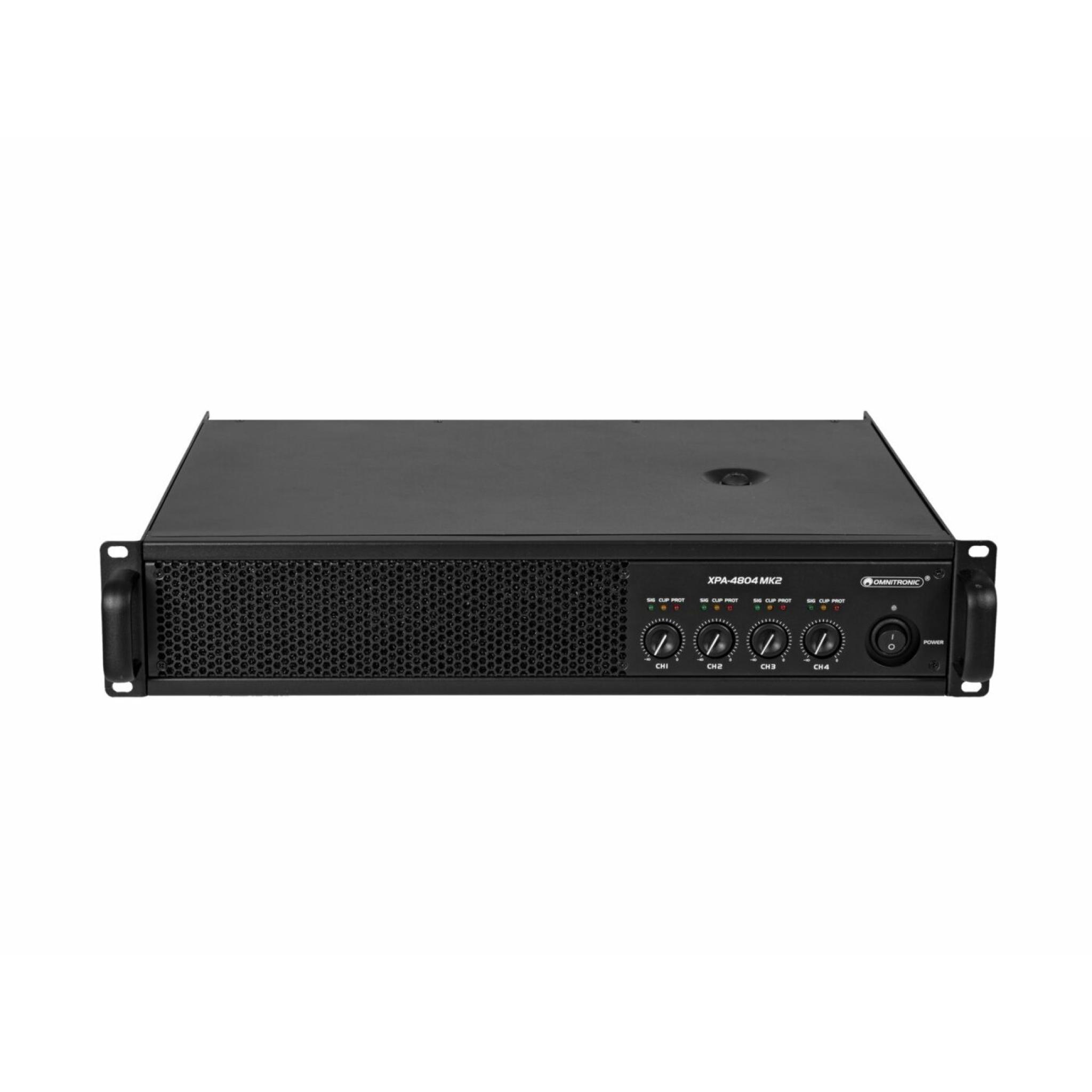

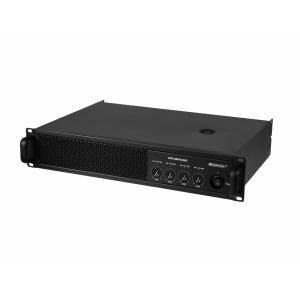

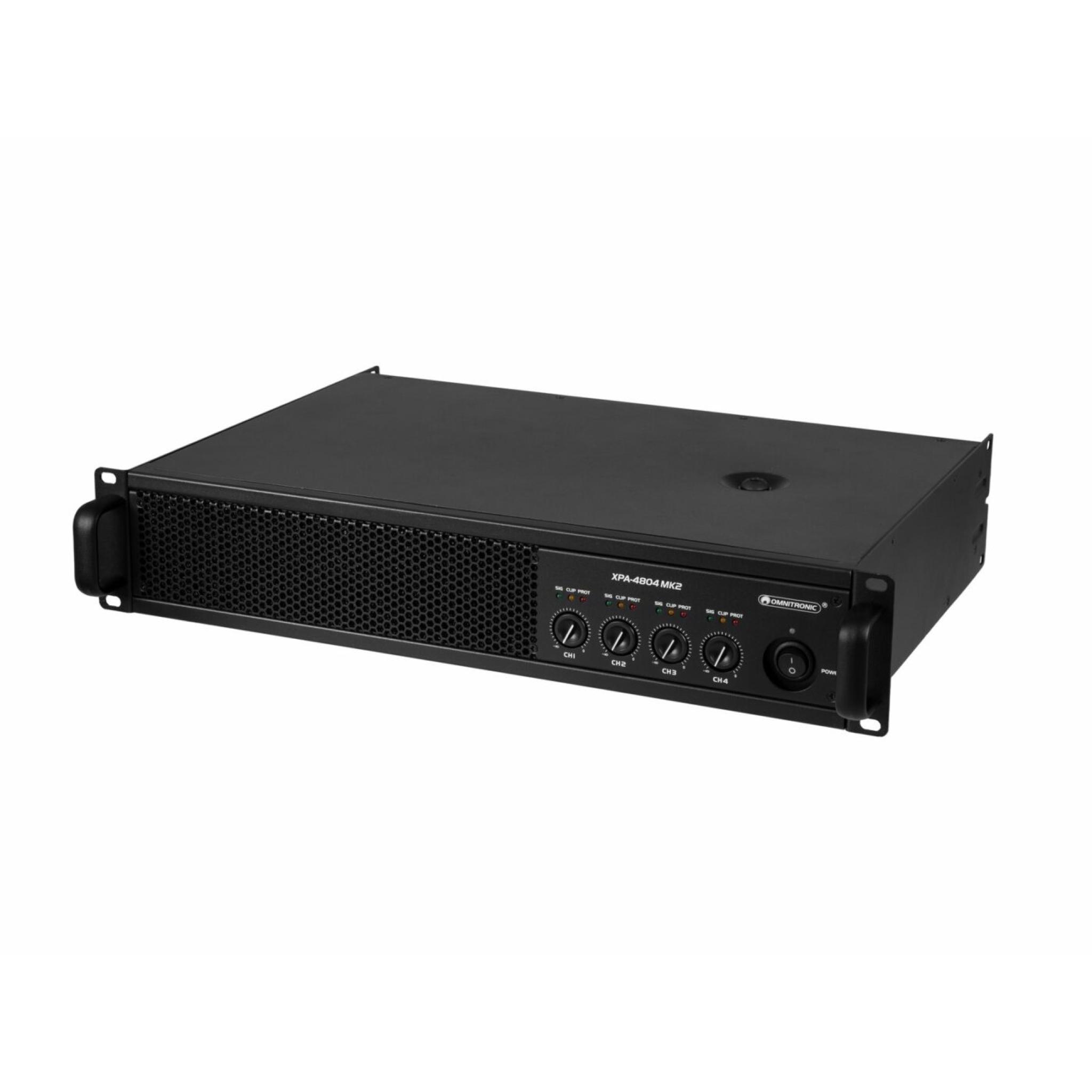

OMNITRONIC XPA-4804 MK2 Versterker

3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
Level control per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs

Oorspronkelijke prijs was: €649,00.Huidige prijs is: €555,54.

Advies nodig? Neem contact op — we helpen je graag!

Internationale verzending in heel Europa.

Op voorraad — vandaag besteld, in huis op 14 mei

Artikelnummer: 10451010 Categorieën: Audio & PA, Nieuwe producten, Versterkers

Beschrijving

Class D PA amplifier with limiter, 4 x 1800 W RMS (2 ohms), 4 x 1200 W RMS (4 ohms)

3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
Level control per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Highly efficient Air flow from front to rear
The device is cooled by cooling fan
(19") 48.3 cm rack installation 2 U
For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms

Package contents

Specificaties

Power supply: 230 V AC, 50 Hz
Power consumption: 1380 W 1/8 power
Protection class: Protection class I
Output power: 4 x 1800 W RMS (2 ohms); 4 x 1200 W RMS (4 ohms); 4 x 800 W RMS (8 ohms); 2 x 2500 W RMS bridged (4 ohms); 2 x 2400 W RMS bridged (8 ohms)
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >102 dB
Cooling: 2 x cooling fan , Air flow from front to rear
Impedance: Input: 20 kOhm , bal.Input: 10 kOhm , unbal.
Gain: 40 dB/ 0,775 V38 dB/ 1 V32 dB/ 2 V
Housing color: Black
Circuitry: Class D
Slew rate: >30 V/µs
Damping factor: >500

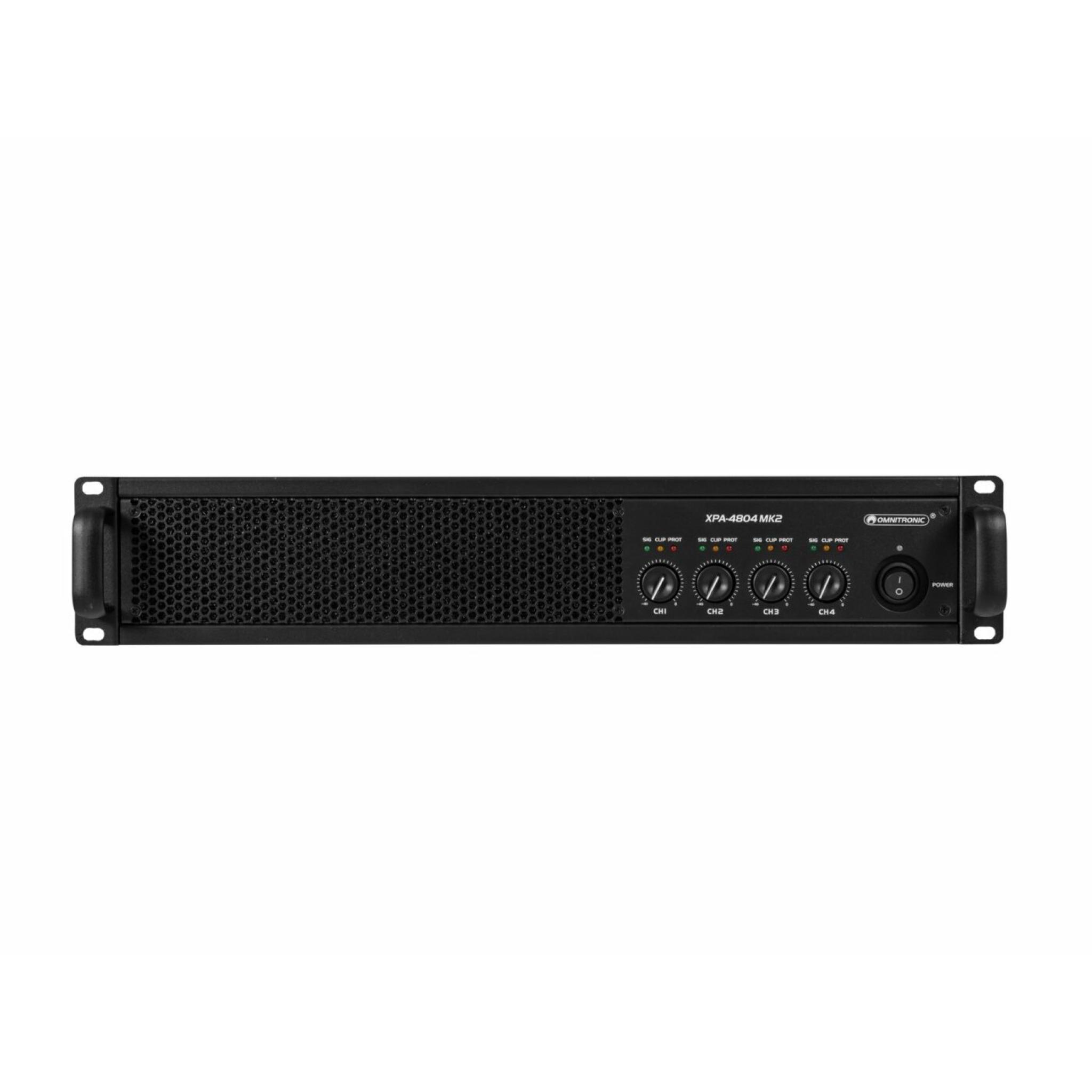

Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls: Overheat; overload; short-circuit; softstart; DC voltage; VHF; current limiting; limiter
Status LED: Power, signal, clip, protect

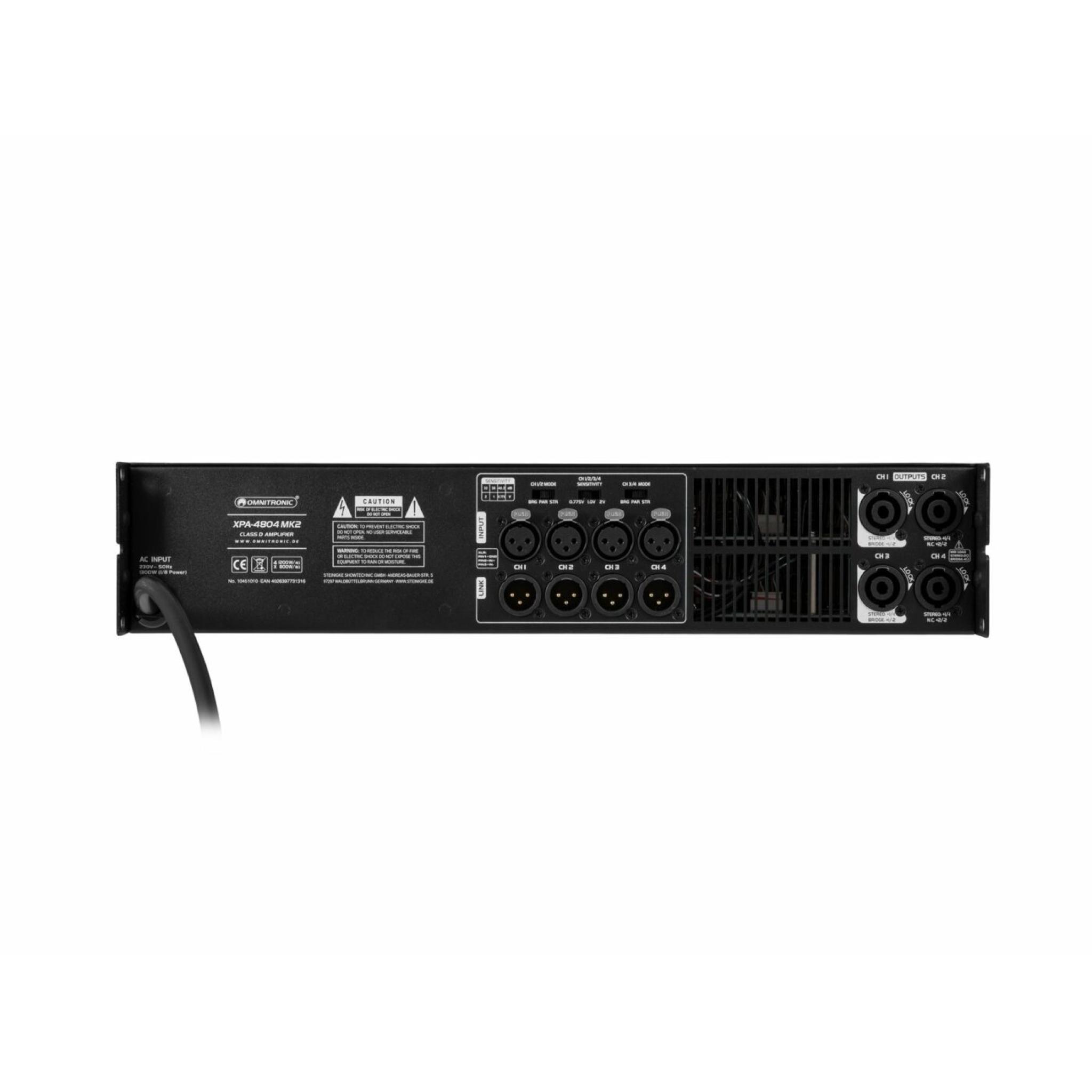

Connections: Input: line via 4 x 3-pin XLR (F) mounting versionLink: line via 4 x 3-pin XLR (M) mounting versionOutput: speaker via 4 x speaker built-in socket (F)
Input sensitivity: 0,775 V; 1 V; 2 V , switchable
Housing design: (19") 48.3 cm rack installation 2 U
Dimensions: Width: 48,3 cmDepth: 33,0 cmHeight: 8,8 cm
Weight: 14,20 kg
