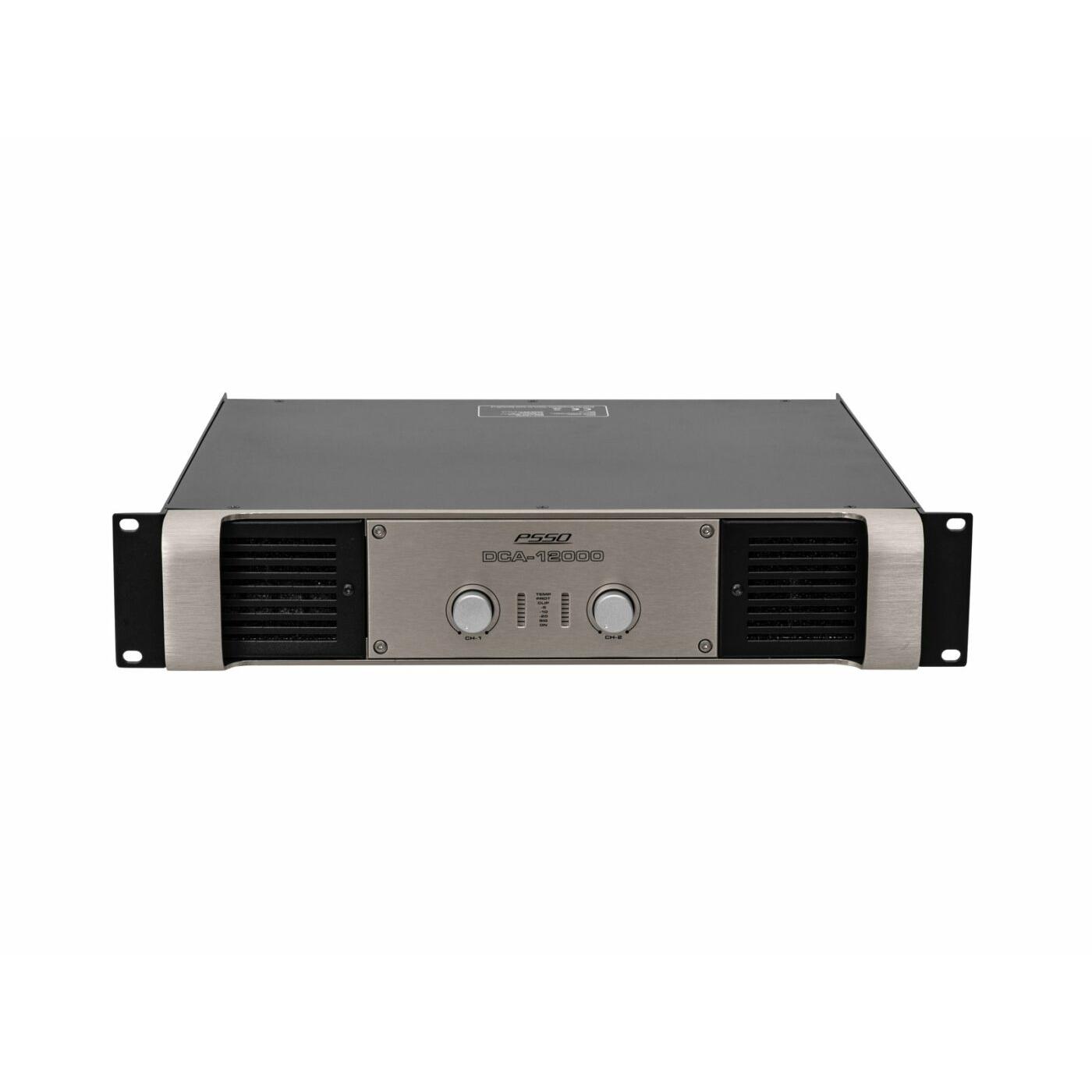

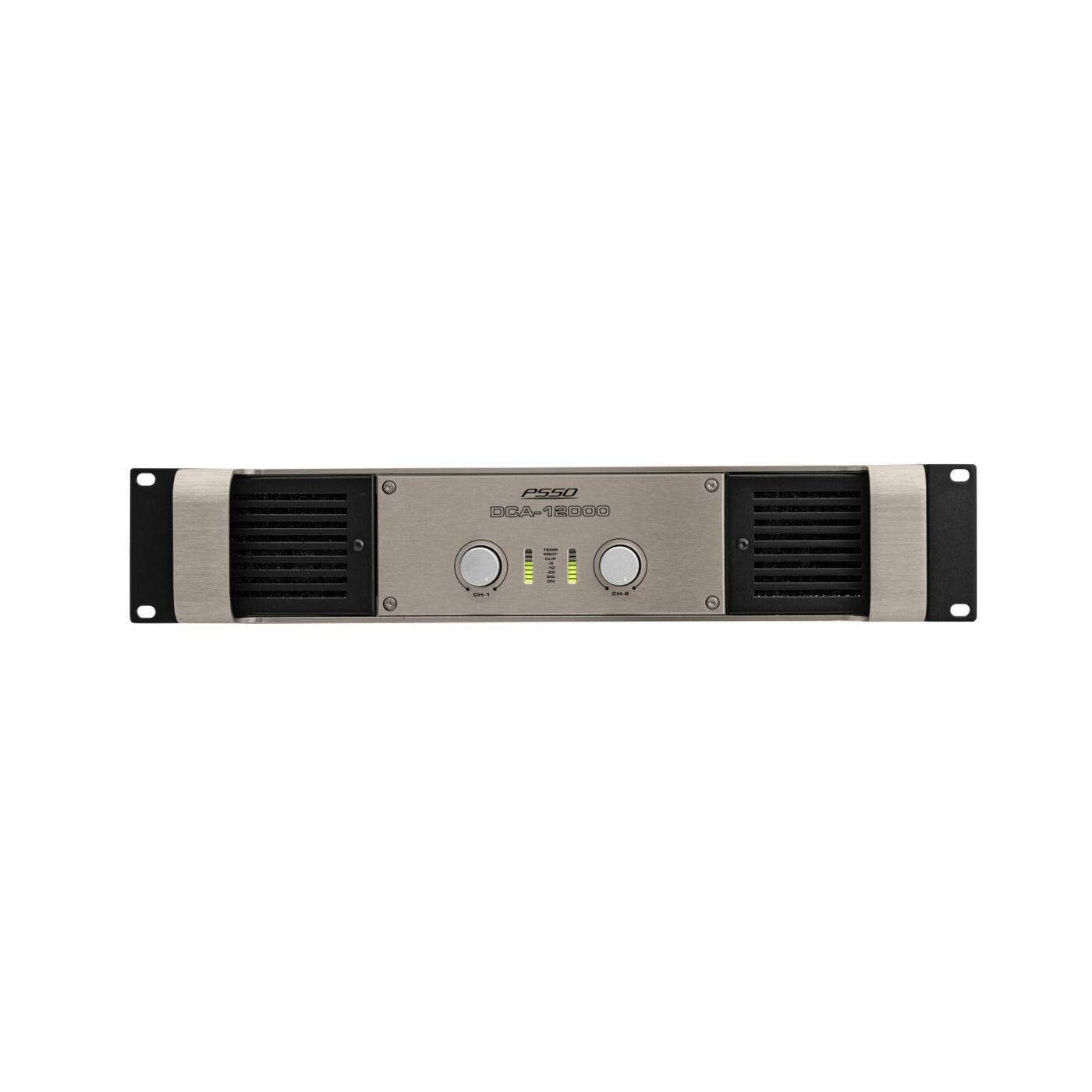

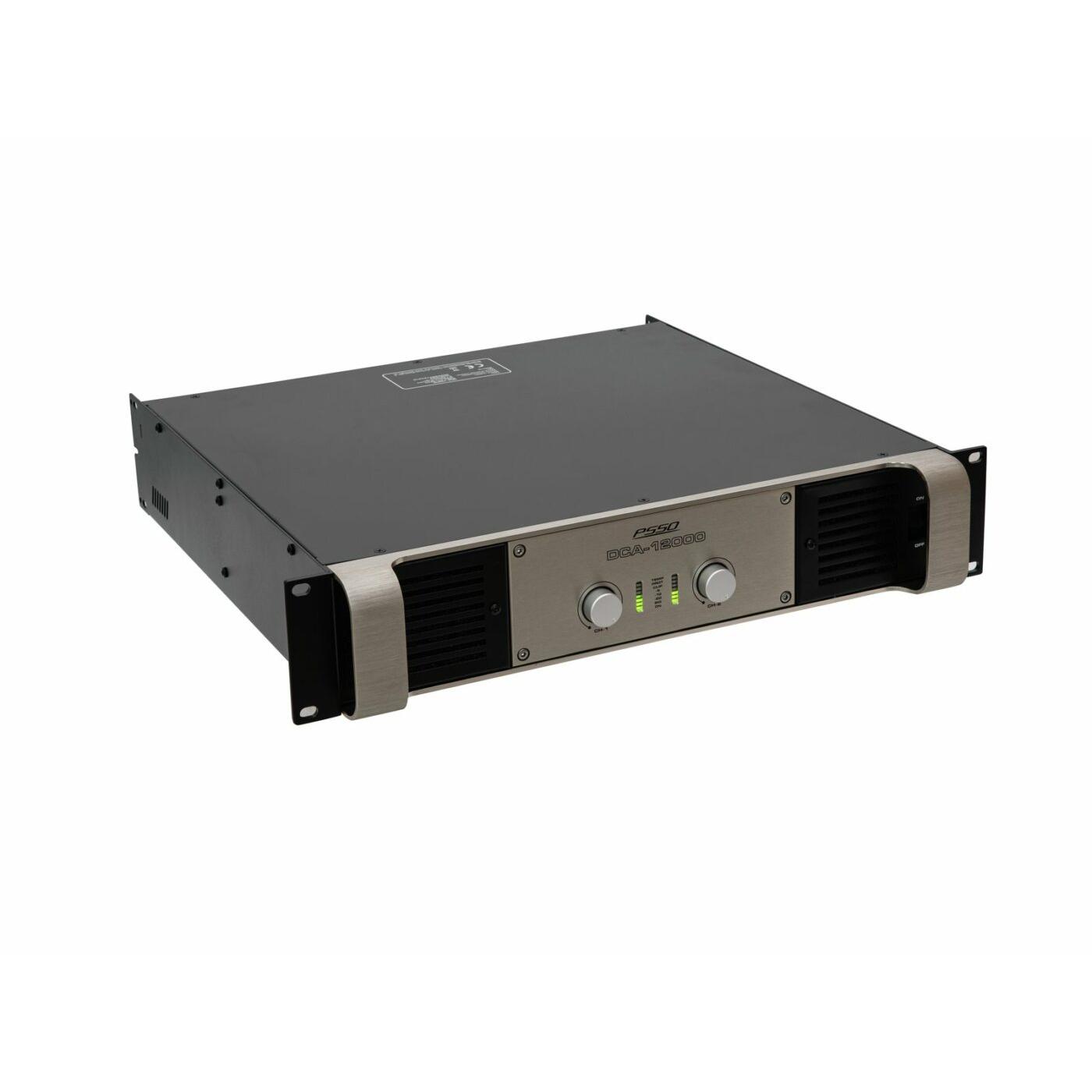

PSSO DCA-12000 2-kanaals SMPS-versterker

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel

Oorspronkelijke prijs was: €1.699,00.Huidige prijs is: €1.454,34.

Advies nodig? Neem contact op — we helpen je graag!

Internationale verzending in heel Europa.

Op voorraad — vandaag besteld, in huis op 14 mei

Artikelnummer: 10451693 Categorieën: Audio & PA, Nieuwe producten, Versterkers

Beschrijving

Class I stereo PA amplifier with SMPS, 2 x 6000 W RMS (2 ohms), 2 x 3900 W RMS (4 ohms)

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
Built with NEUTRIK connector
(19") 48.3 cm rack installation 2 U
For application areas such as: Stage; concerts/FoH's; Rental

Package contents

Specificaties

Power supply: 230 V AC, 50 Hz
Power consumption: 1050 W 1/8 power
Protection class: Protection class I
Output power: 2 x 6000 W RMS (2 ohms)2 x 3900 W RMS (4 ohms)2 x 2300 W RMS (8 ohms)1 x 10000 W RMS bridged (4 ohms)1 x 6200 W RMS bridged (8 ohms)
Power connection: Fixed power supply cord with safety plug
Cable length: 1,6 m
Frequency range: 20 - 20000 Hz
S/N ratio: >90 dB
Cooling: 3 x temperature-controlled fan , Air flow from front to rear
Impedance: Input: 10 kOhm , unbal.Input: 20 kOhm , bal.
Gain: 38 dB/ 0,775 V32 dB/ 1,0 V26 dB/ 1,4 V
Housing color: Black
Circuitry: Class I
Slew rate: >10 V/µs
Damping factor: >200
Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch, limiter selector
Controls: Overheat; overload; short-circuit; softstart; DC voltage; VHF; limiter
Status LED: Power, level meter, clip, protect

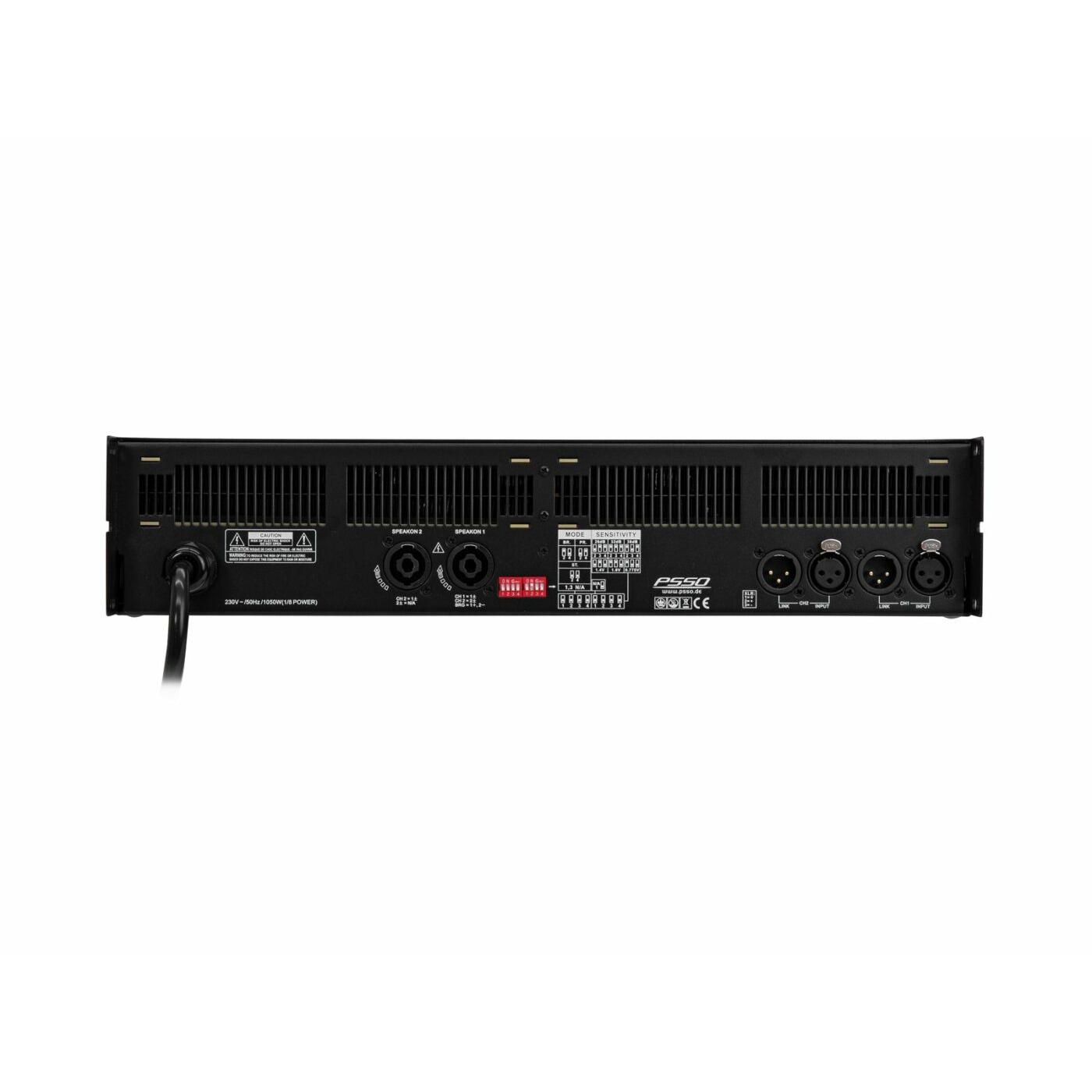

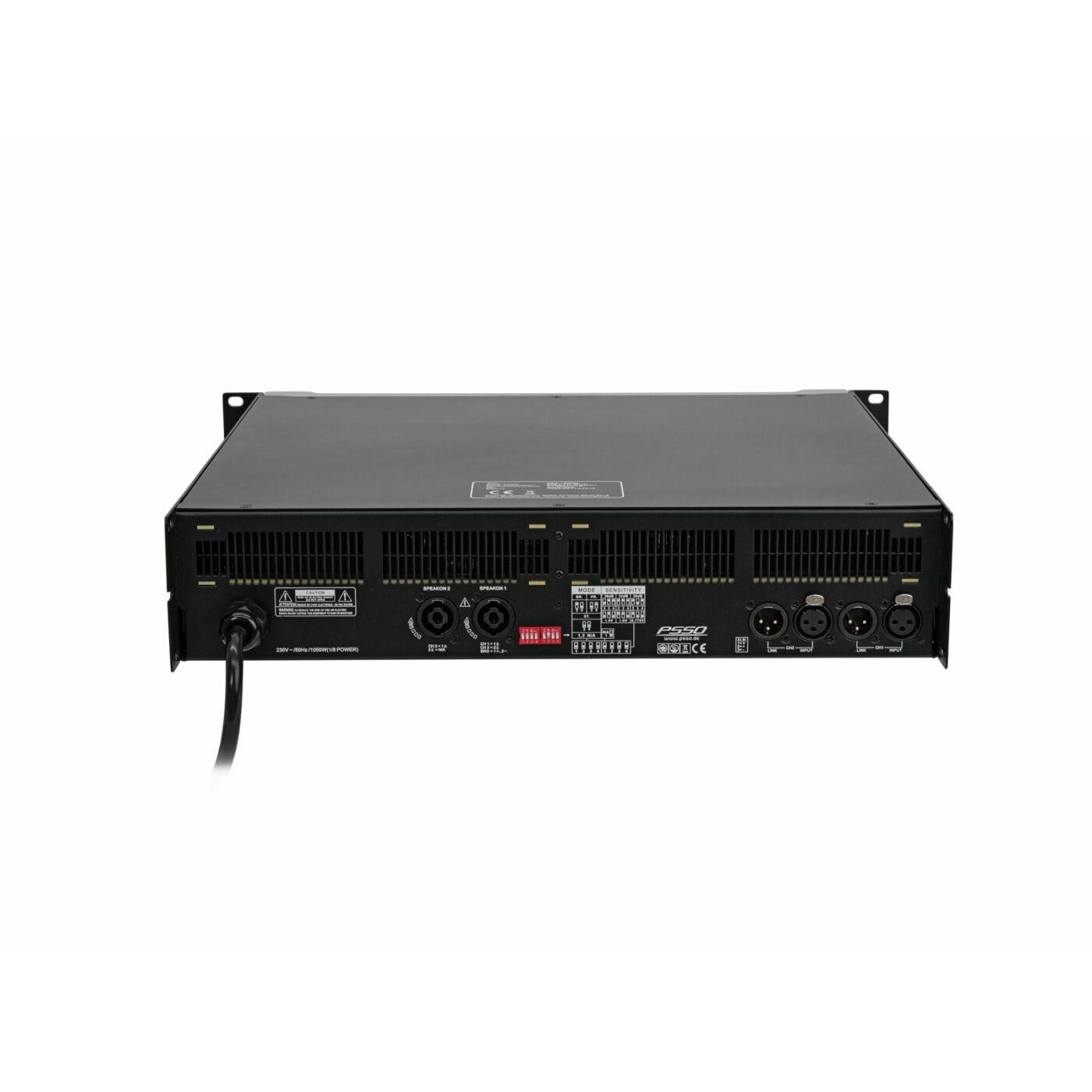

Connections: Input: line via 2 x 3-pin XLR (F) mounting versionOutput: line via 2 x 3-pin XLR (M) mounting versionOutput: speaker via 2 x speaker built-in socket (F)
Input sensitivity: 0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands: Built with NEUTRIK connector
Material: Steel
Housing design: (19") 48.3 cm rack installation 2 U
Dimensions: Width: 48,3 cmDepth: 44,0 cmHeight: 8,9 cm
Weight: 14,20 kg
