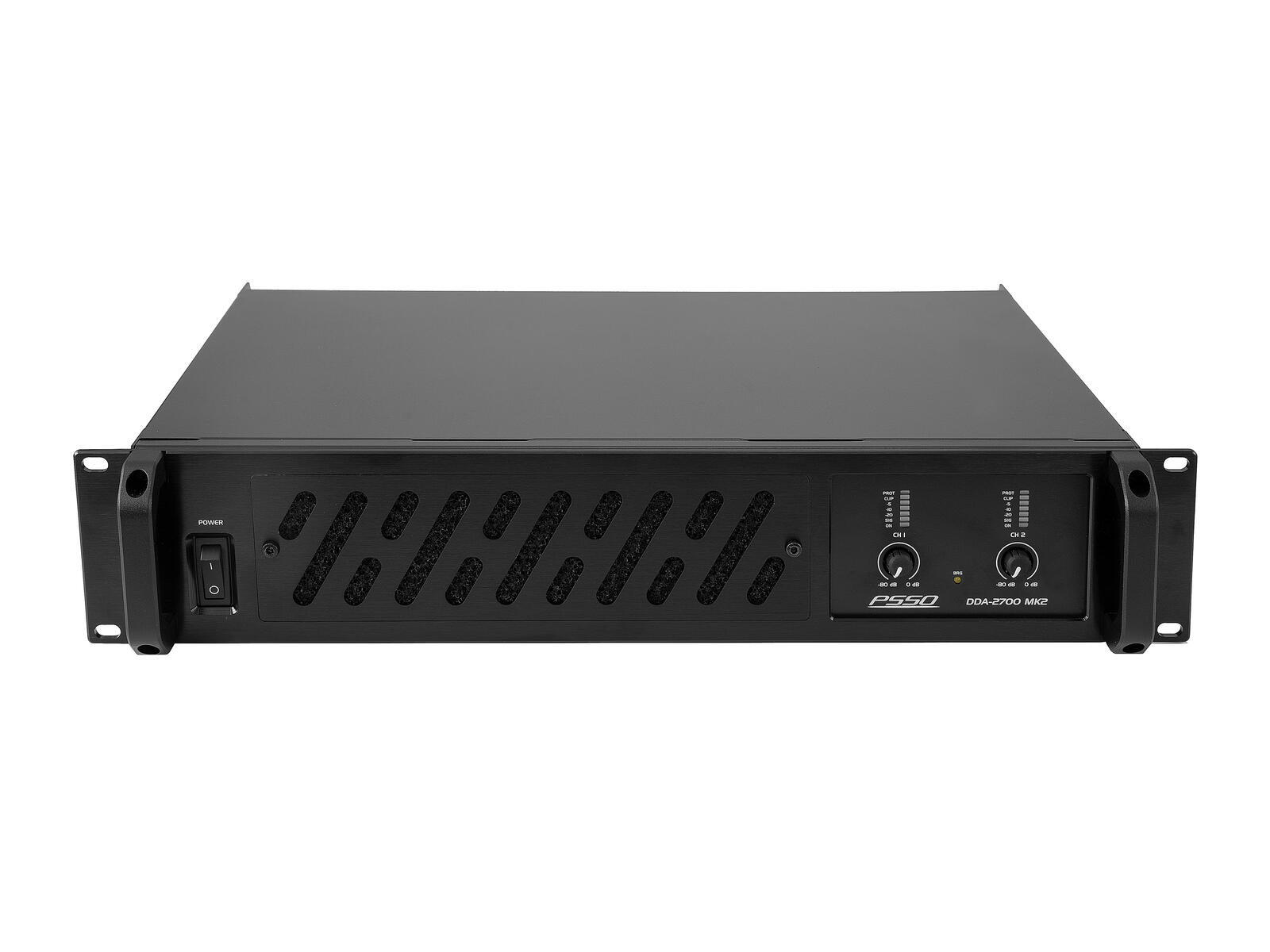

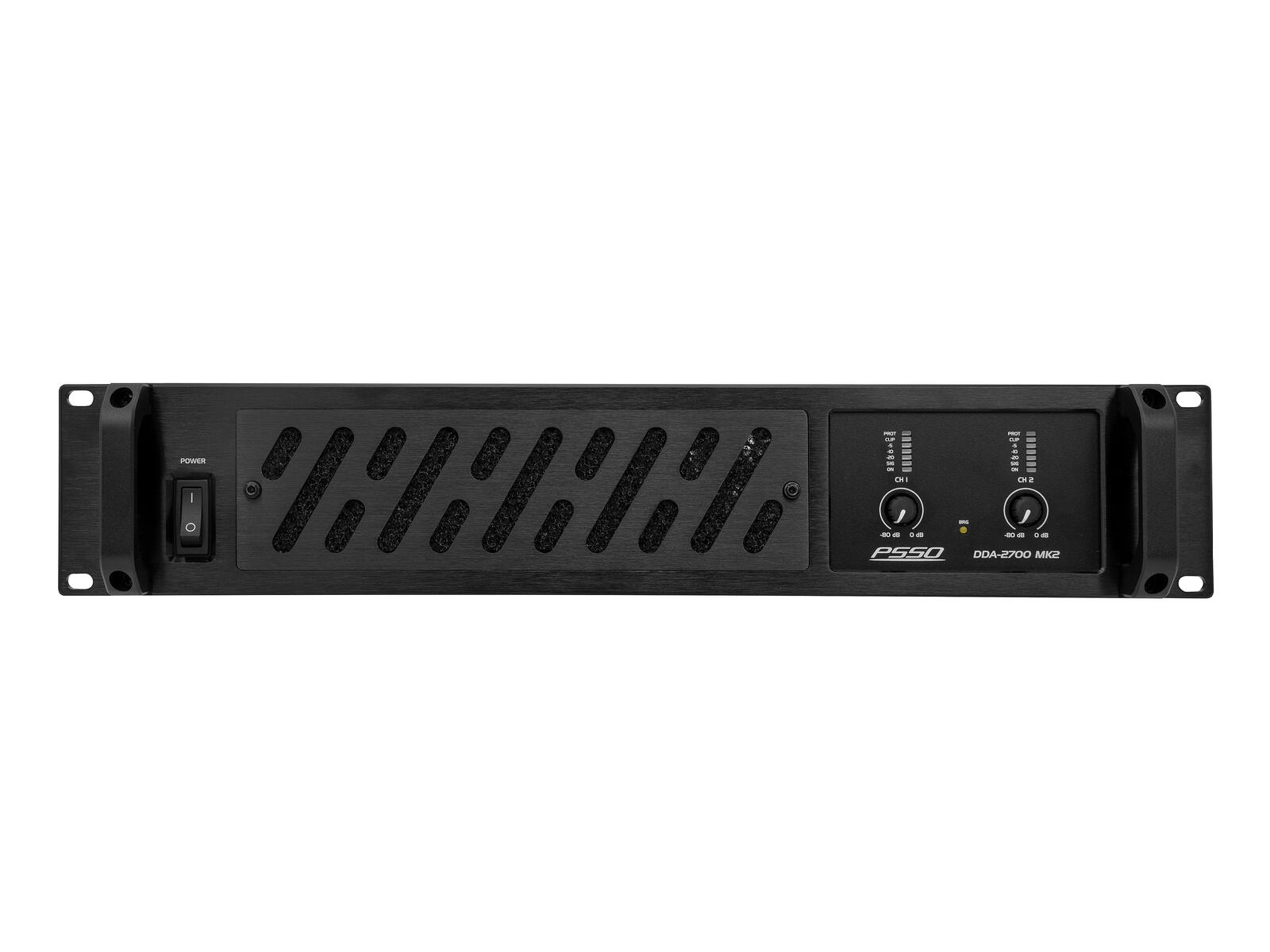

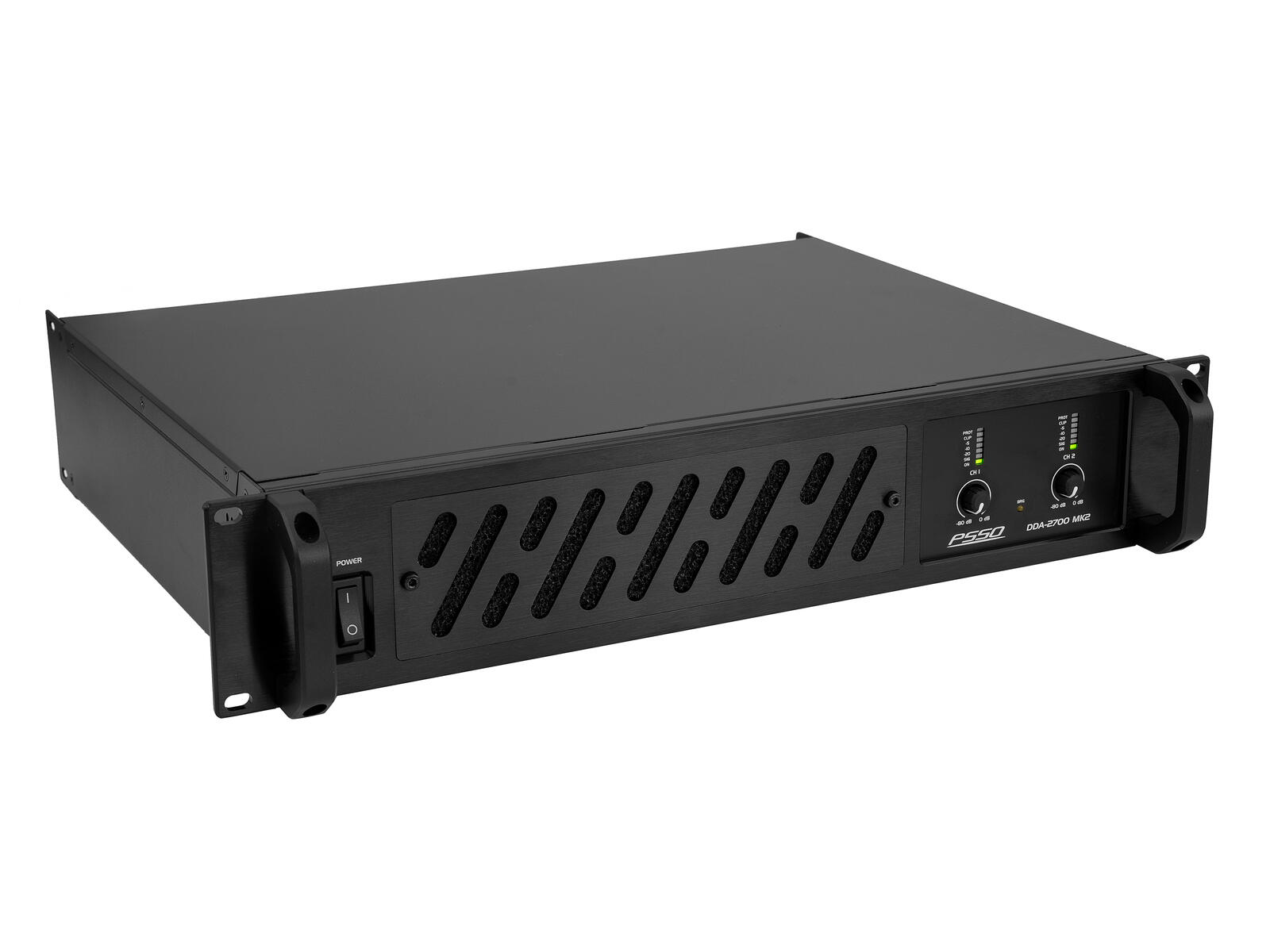

PSSO DDA-2700 MK2 2-channel Amplifier

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
2 calibrated level controls for precise level adjustment

Oorspronkelijke prijs was: €653,31.Huidige prijs is: €549,00.

Advies nodig? Neem contact op — we helpen je graag!

Internationale verzending in heel Europa.

Op voorraad — vandaag besteld, in huis op 26 juni

Artikelnummer: 10451688 Categorie: Versterkers

Beschrijving

Class TD stereo PA amplifier with SMPS, 2 x 1350 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
2 calibrated level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Rugged steel chassis with aluminum front panel
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan

Scope of delivery

Specificaties

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 740 W 1/8 power
Protection class: Protection class I
Output power: 2 x 1350 W RMS (4 ohms)2 x 1000 W RMS (8 ohms)1 x 2600 W RMS bridged (8 ohms)
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug included
Cable construction: 3 x 1 mm² H05VV-F
Frequency range: 20 - 20000 Hz ±
S/N ratio: >100 dB
THD: <0.05 % at 1 kHz
Cooling: 2 x temperature-controlled fan , air flow from front to rear
Gain: 32 dB36 dB41 dB
Housing color: Black matte
Circuitry: Class TD
Slew rate: >15 V/µs
Damping factor: >400
Crosstalk: >70 dB
Control elements: Power switch, level control per channel, Input sensitivity switch, mode switch (stereo/parallel/bridged)
Controls: DC voltage; short-circuit; limiter; softstart; overheat; VHF; overload
Status LED: Power, signal, level meter, clip, protect; bridged

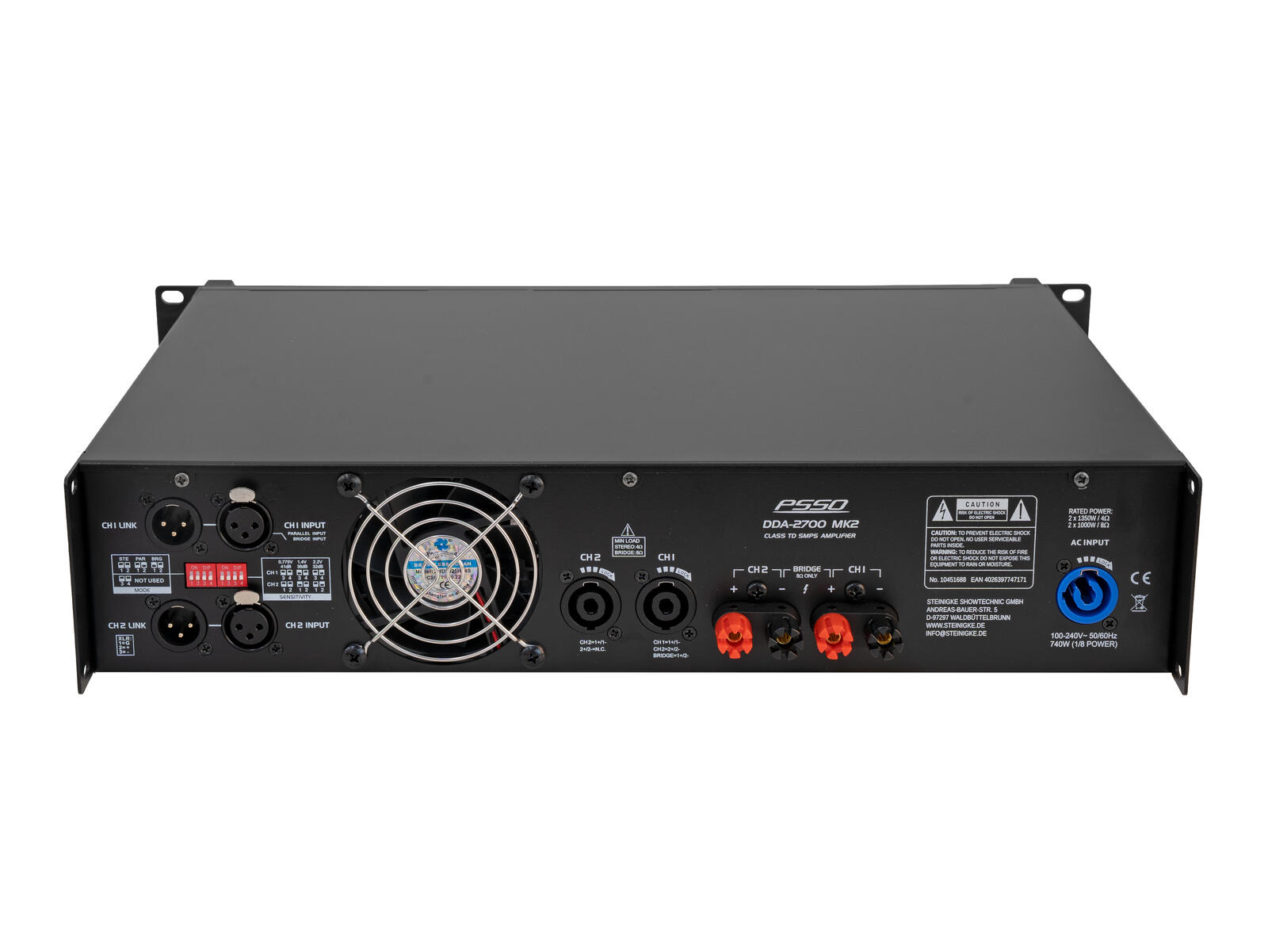

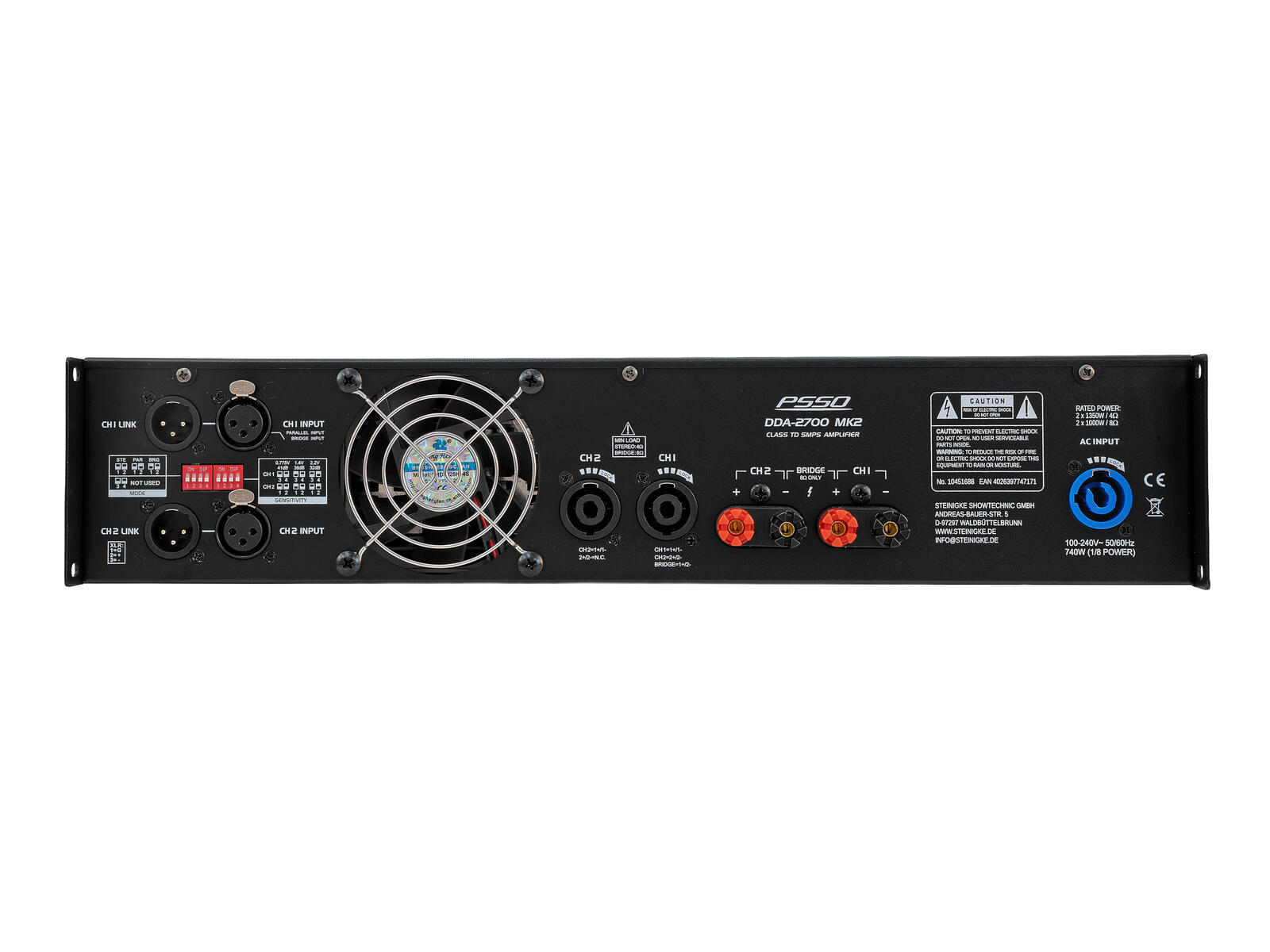

Connections: Input: line via 2 x 3-pin XLR (F) mounting versionOutput: line via 2 x 3-pin XLR (M) mounting versionOutput: speaker via 2 x speaker built-in socket (F)Output: speaker via screw terminal
Input sensitivity: 0.775 V; 1.4 V; 2.2 V , switchable
Max. level: Input: +20 dBuInput: +9 V
Housing design: (19") 48.3 cm rack installation 2 U
Mounting depth: 33.8 cm
Dimensions: Width: 48.3 cmDepth: 34.0 cmHeight: 8.9 cm
Weight: 6.80 kg
AmplifierWeight: 6.8 kg
Power cordWeight: 0.26 kg

Handleiding

Download de handleiding (PDF, Duits + Engels):

Bron: fabrikant (Steinigke / Eurolite).
