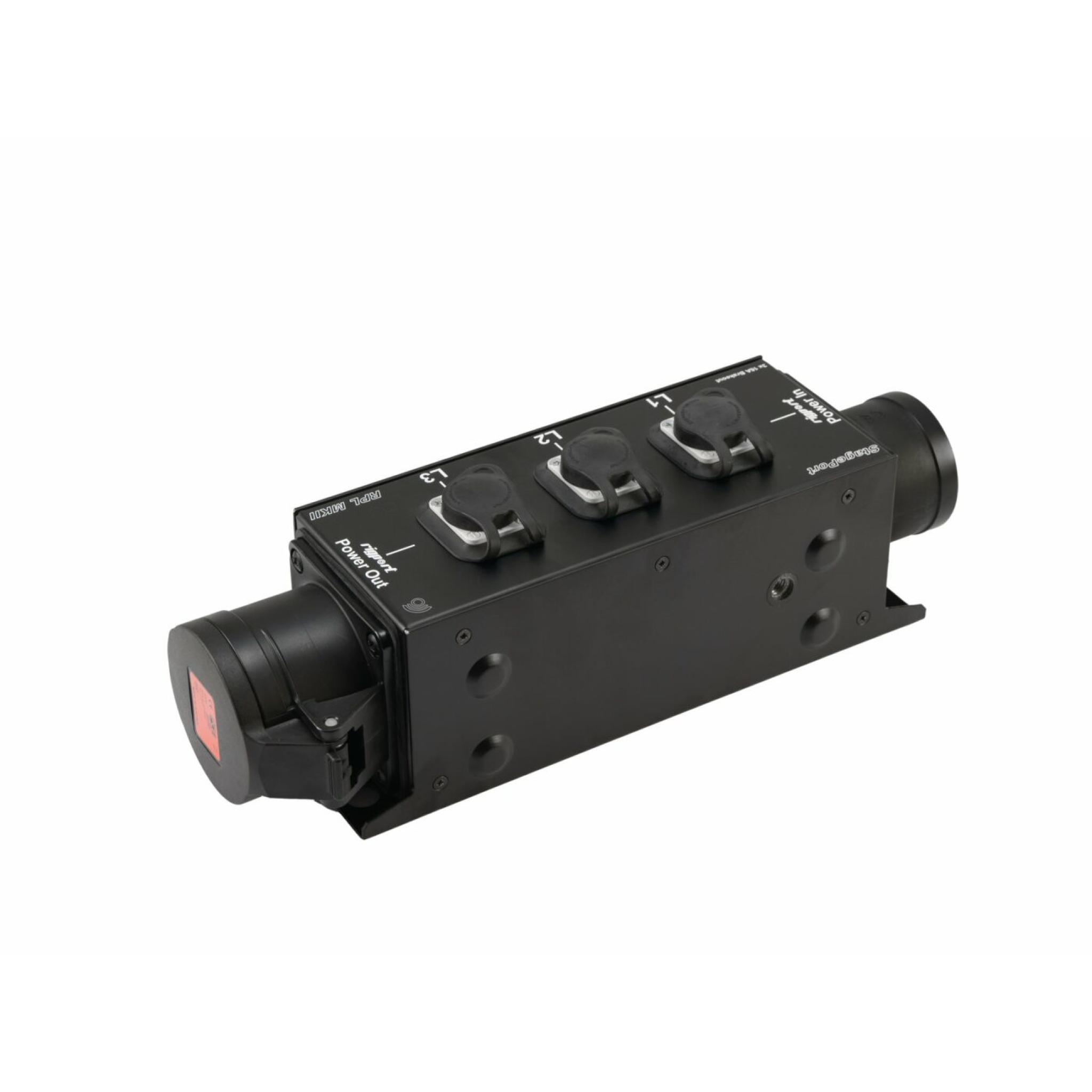

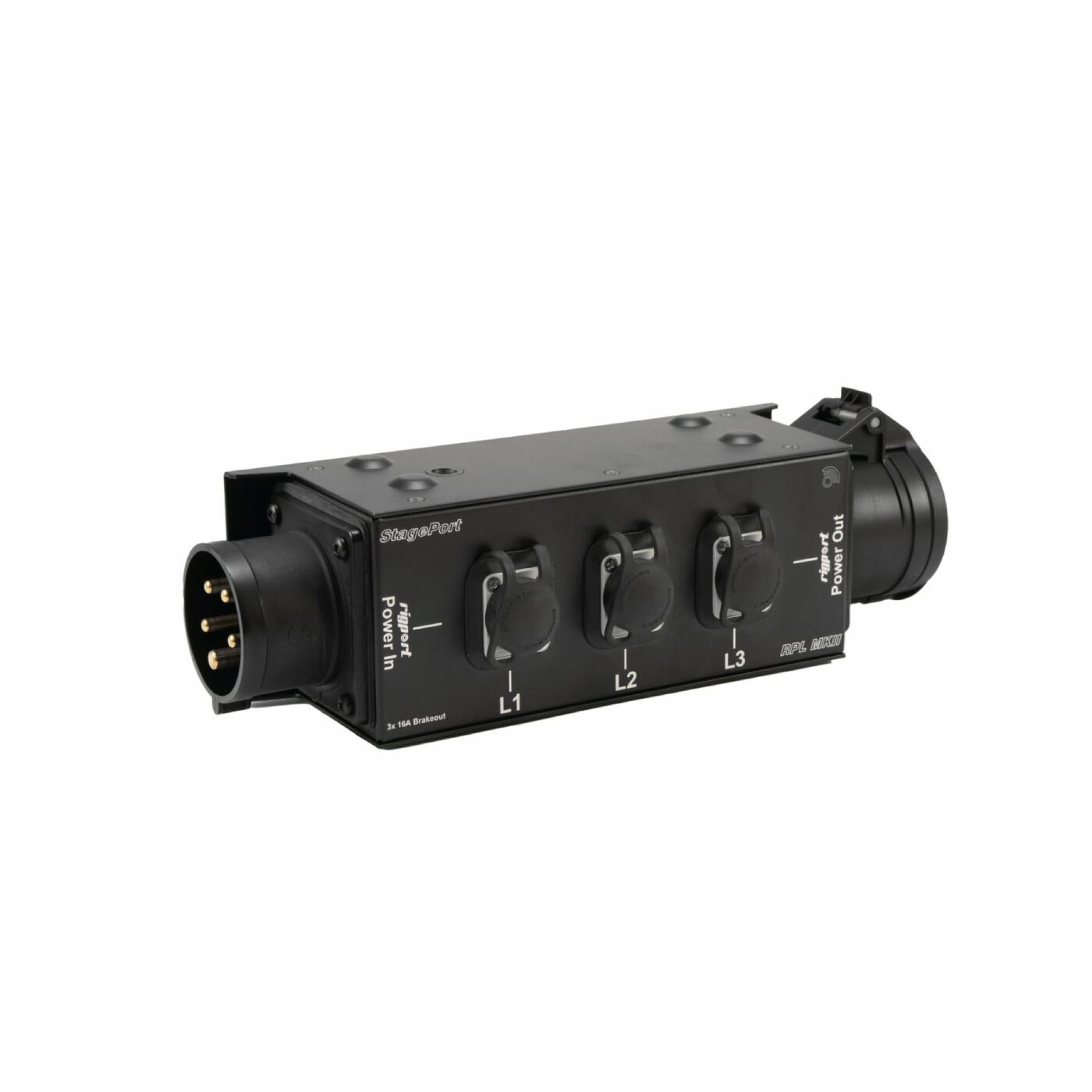

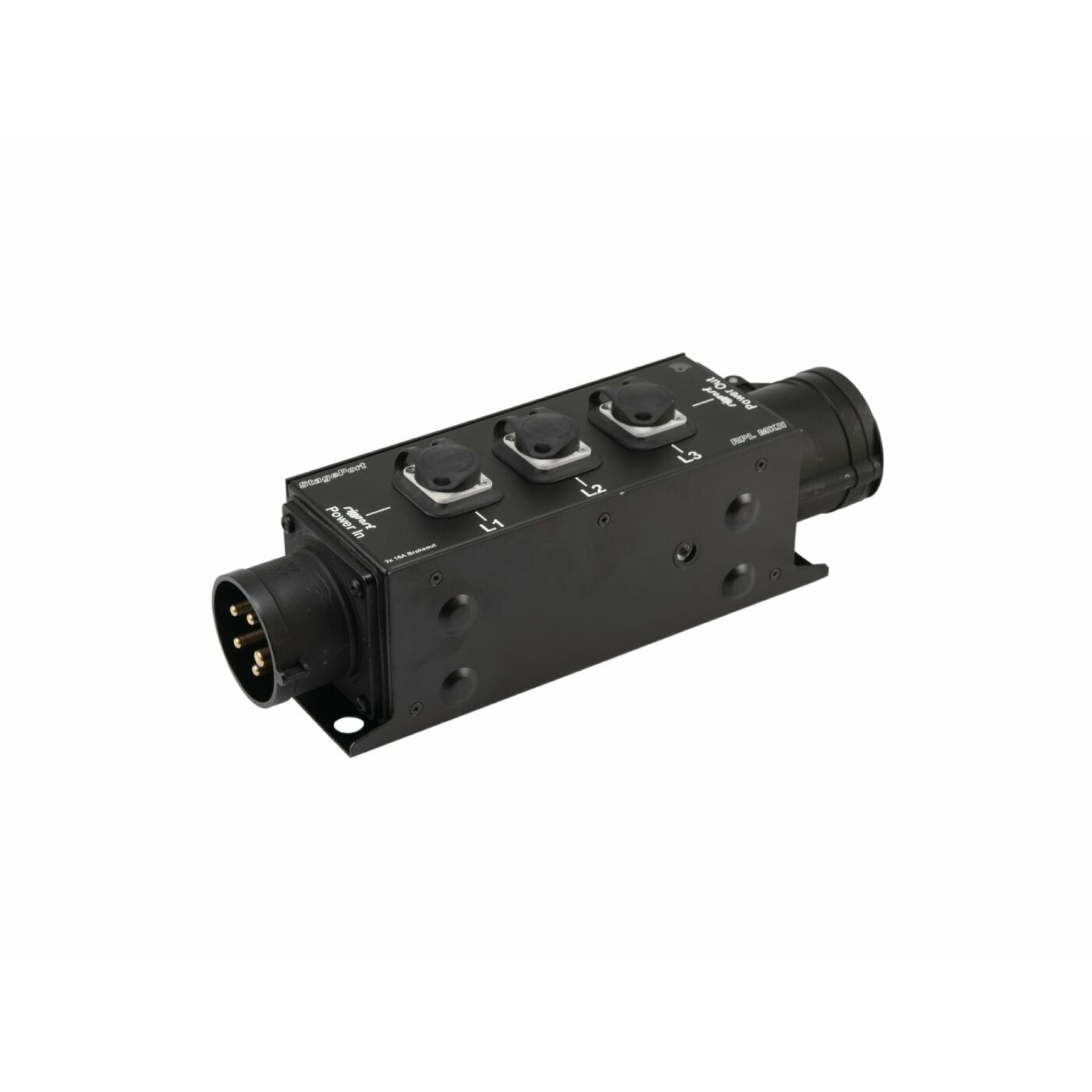

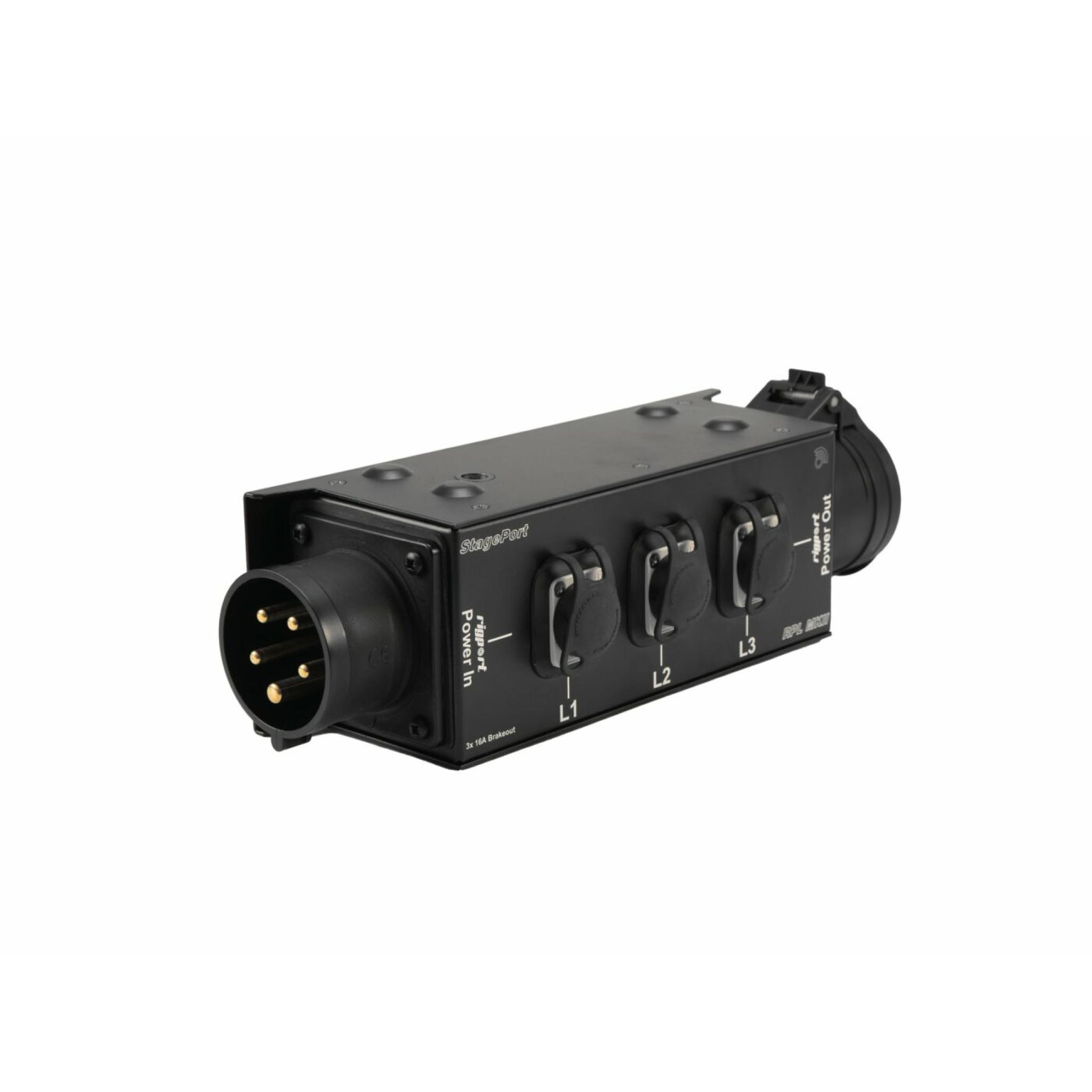

RIGPORT RPL-16 MK2 Stroomverdeler

Beschrijving

Rigport CEE line

• CEE In + Out, 3 x PowerCon
• Technical specifications: 2.5 mm², 3 x 16 A, 400 g
• For more robust ground applications
• Black CEE connectors for unobtrusive use (e.g. stage, active PA-system)
• Suitable for outdoor, IP54 (closed)
• Processibility of existing cables
• Designed for use in flexible rig/theater/fair
• Extremely small – less than 50 mm so that it does not exceed the trusspipe
• Invisible use in theaters, moving trusses, fair
• Easy installation compared with conventional wiring
• Various mounting options for safety, standard coupler, RPL clamp or pipe clamps
• Strain relief
• International use
• If an error occurs very quickly interchangeable
• A separate system for each application (1 phase, 3 phases 16 A or 40 A)
• Individual ports in the main line are easily replaceable, e.g. against ports within function as dimmers, switch, motor controllers, DMX splitters
• Power connection: Mains Input Socket (M) CEE 16A 5-pol (m) recessed mounting
• Made in Europe
• Power out: 1 x CEE 16A 5-pol (f) recessed mounting; 3 x Powercon (Power out) gray, mounting version
