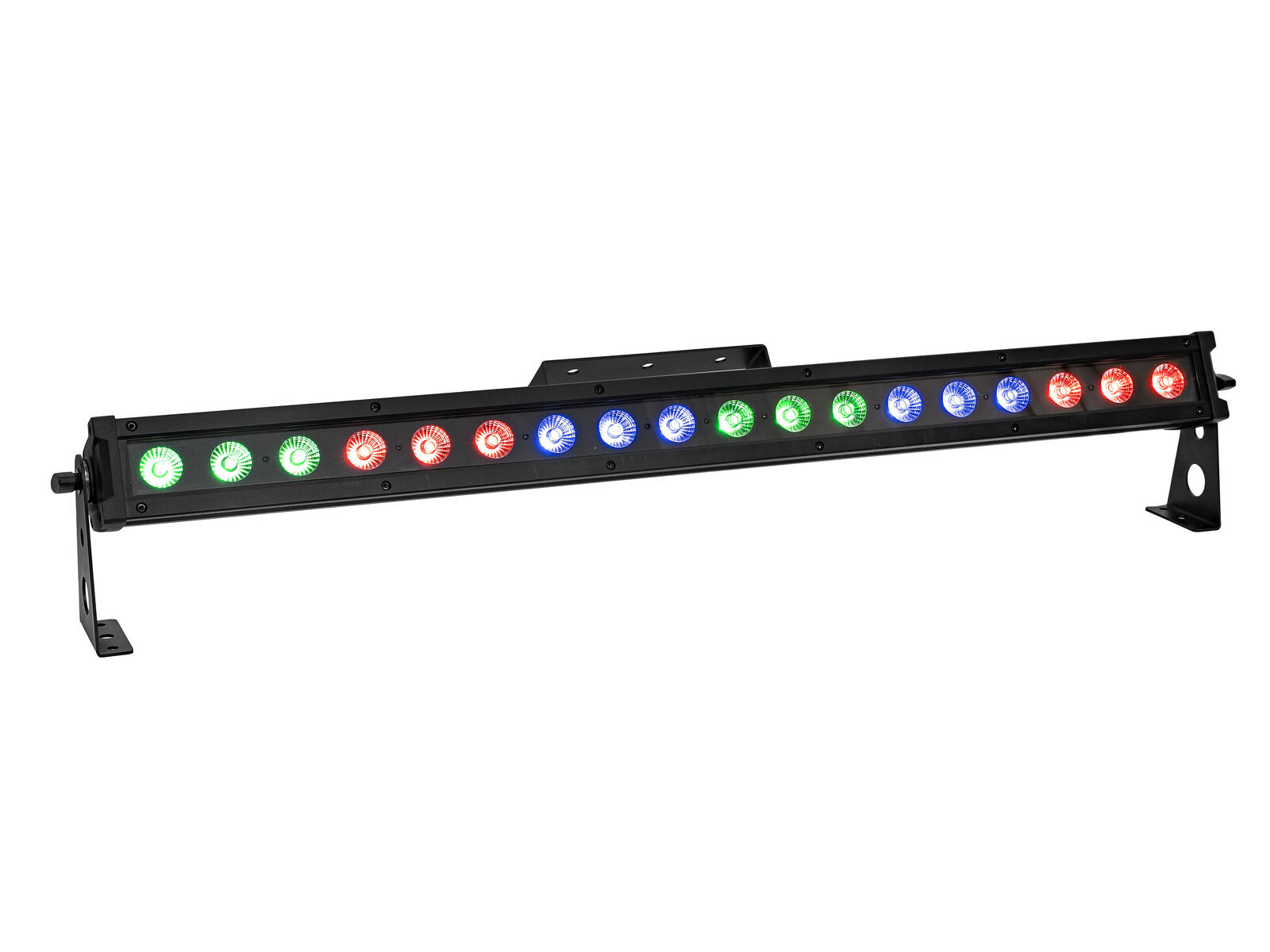

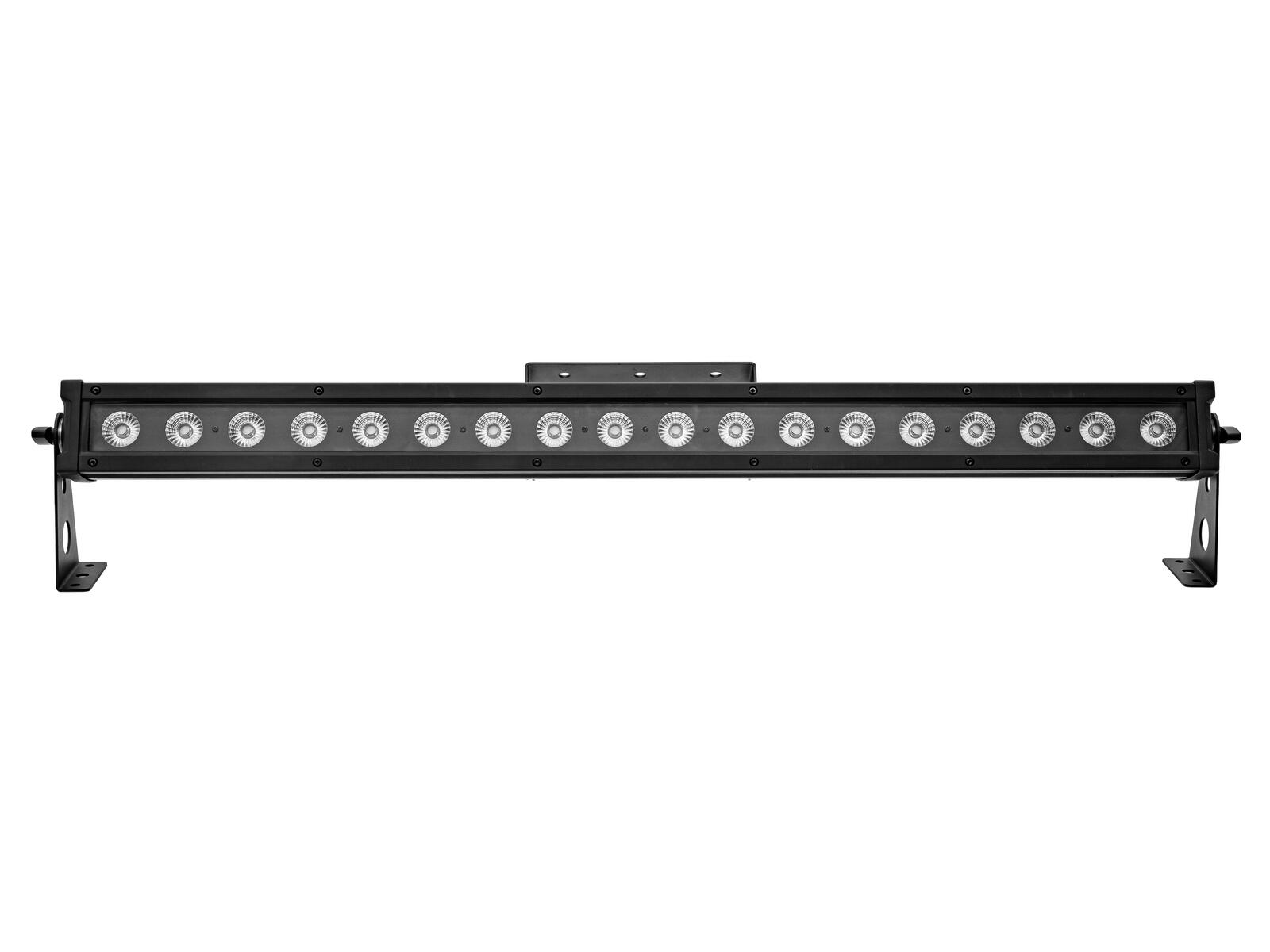

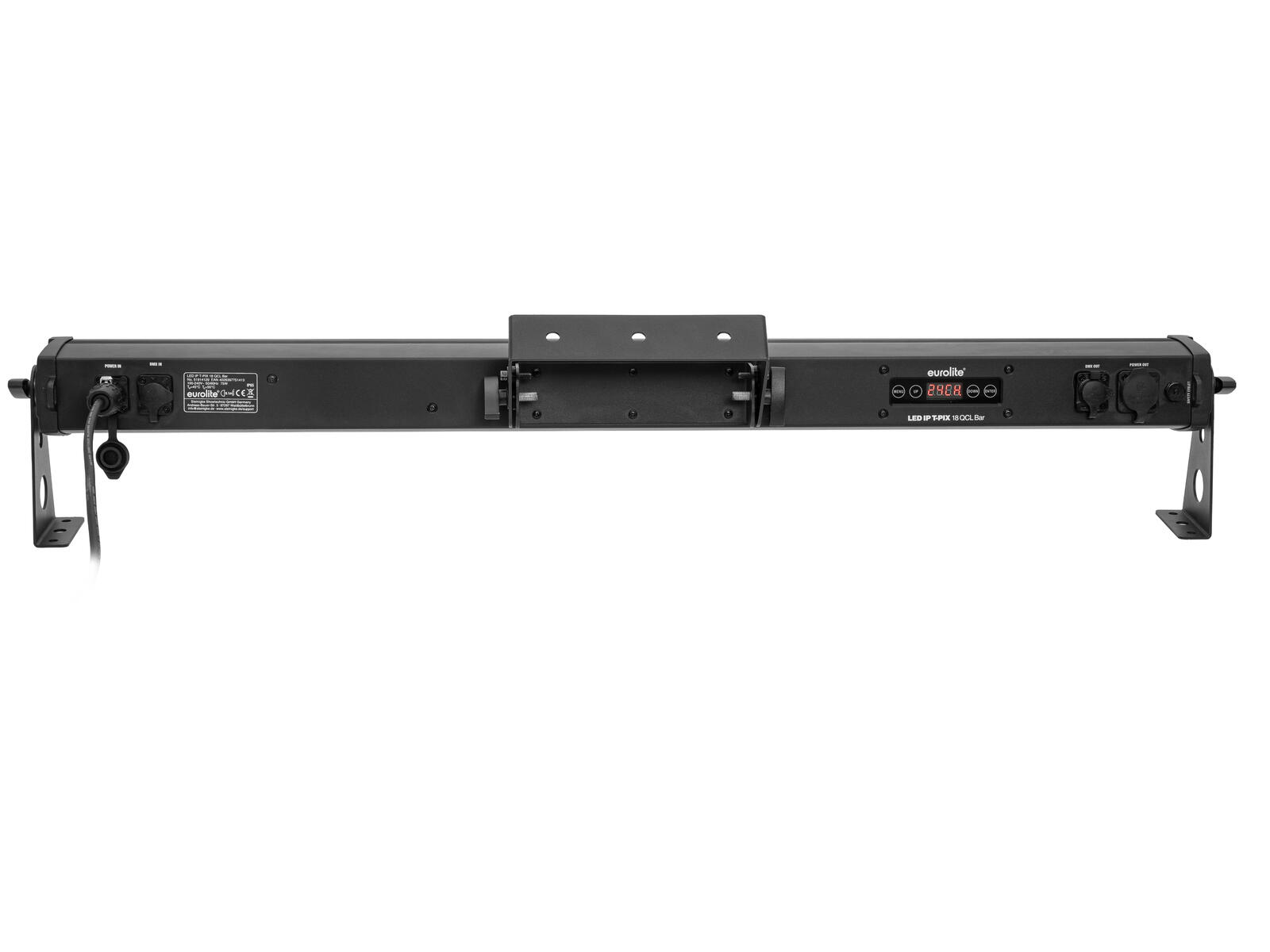

EUROLITE LED IP T-PIX 18 QCL Bar

  • 18 LEDs 8 W SMD 9080 4in1 RGBW (homogenous color mix) LEDs controlled separately
  • Dimmer electronic; color change adjustable
  • Wash effect; strobe effect
  • 12 integrated show programs
  • Direct color selection for 19 preset colors

Oorspronkelijke prijs was: €474,81.Huidige prijs is: €399,00.

Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 18 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 51914129 Categorie:
This weatherproof bar delivers versatile pixel effects across a length of 106.5 centimeters. It features 18 individually controllable LEDs with RGBW color mixing, enabling creative lighting designs. For easier operation, reduced DMX modes with fewer pixels are also available.With an IP65 rating, the bar is suitable for both permanent installations and outdoor events, even in heavy rain.Thanks to its fanless design, it operates whisper-quiet and prevents dust from entering the unit, making it an excellent choice for many indoor installation scenarios as well.

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control

  • 18 LEDs 8 W SMD 9080 4in1 RGBW (homogenous color mix)
    LEDs controlled separately
  • Dimmer electronic; color change adjustable
  • Wash effect; strobe effect
  • 12 integrated show programs
  • Direct color selection for 19 preset colors
  • The device is cooled by passive convection cooling
  • Control via stand-alone; IR remote control; DMX; master/slave function
  • Flicker-free
  • With a beam angle of 18°

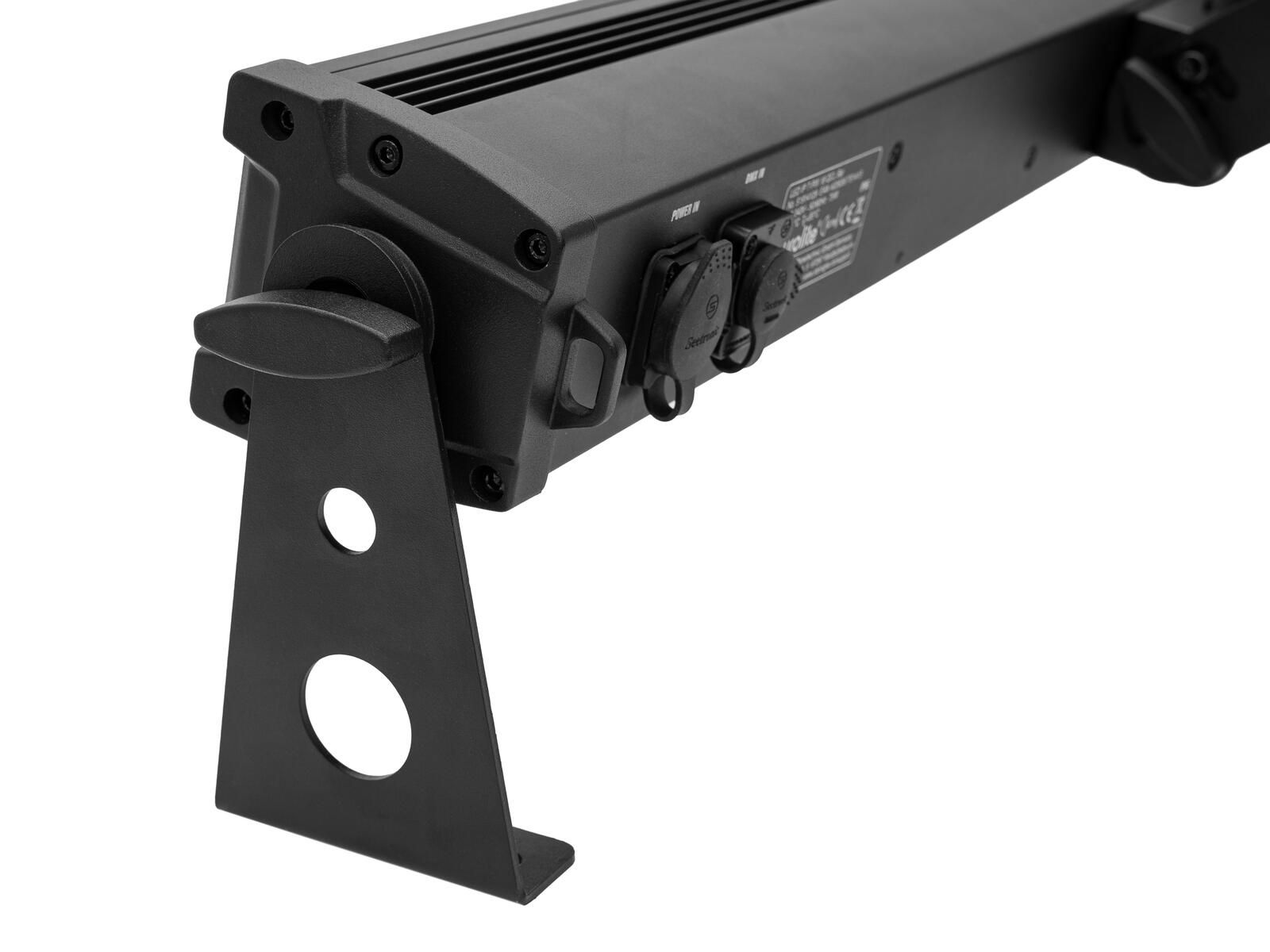

  • With mounting bracket; with bracket for floor use

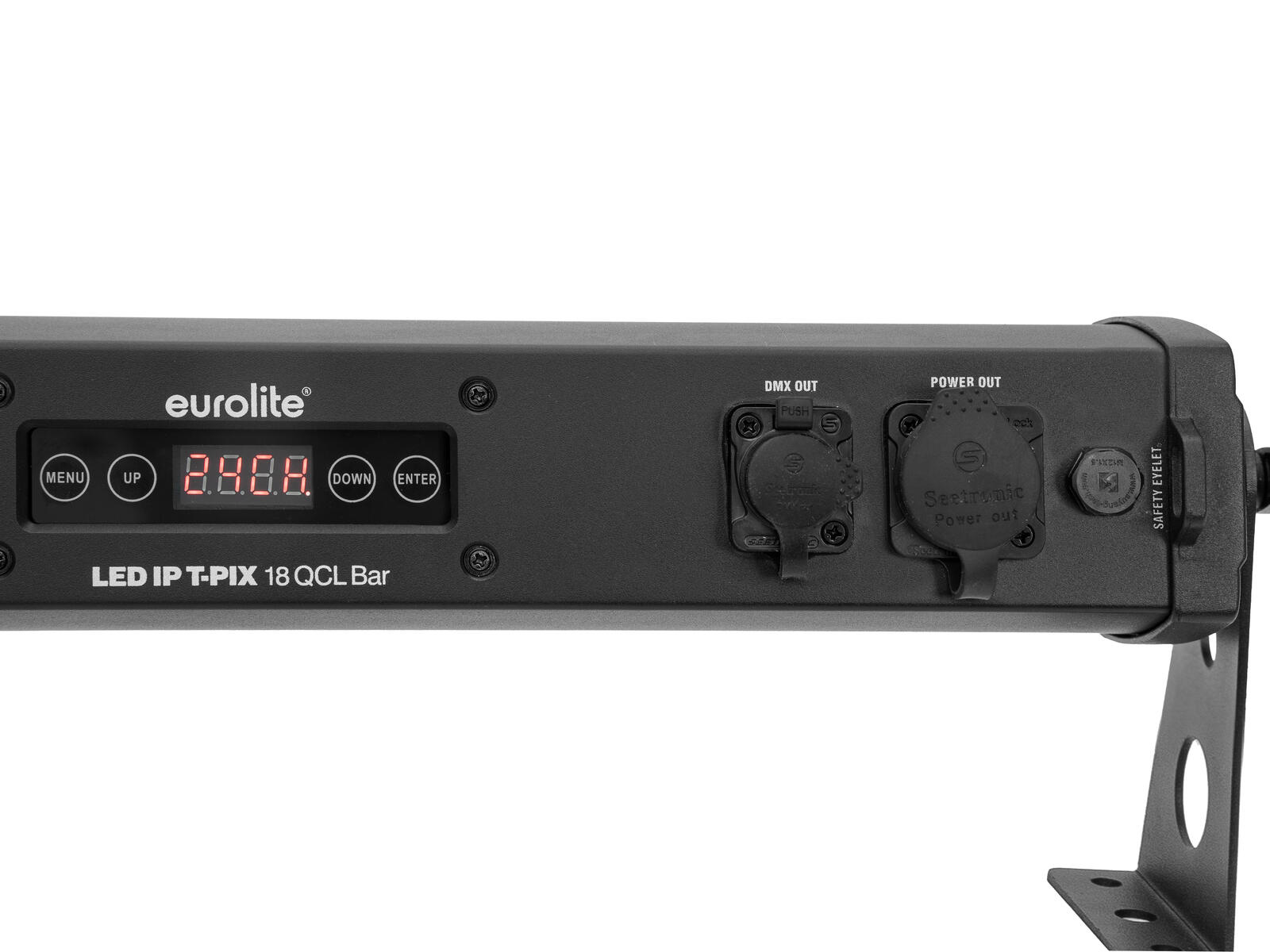

  • 4 digit 7-segment LED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Suitable for outdoor use IP65
  • With pressure compensation membrane
  • For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels; installation
  • Silent operation
  • Application possibility: Suspended


Scope of delivery
  • 1 x spotlight
  • 1 x user manual
  • 1 x power cord
  • 1 x remote control
  • 1 x battery
  • 2 x mounting bracket
  • 2 x screw
  • 4 x washer


Power supply
100-240 V AC, 50/60 Hz
Power consumption
75 W
IP classification
IP65
Protection class
Protection class I
Power connection
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction
3 x 1.0 mm² H05RN-F
Power output
IP T-Con (F) mounting version
Lamp type
LED lamp
LED type
18 x 8 W SMD 9080 4in1 RGBW (homogenous color mix)
Flash rate
0.5 - 24 Hz
DMX channels
3; 4; 6; 9; 22; 24; 36; 72
DMX input
3-pin XLR (M) mounting version IP
DMX output
3-pin XLR (F) mounting version IP
Cooling
Passive convection cooling
Control
Stand-alone; IR remote control; DMX; master/slave function
Fixtures available for
Light Captain
Projection
Flicker-free
PWM frequency
4100 Hz
DMX fail mode
Blackout; hold; full on; static; auto
Beam angle
18°
Beam angle (1/2 peak)
18°
Beam angle (1/10 peak)
38°
Lamp life
50000 h
Housing color
Black
Attachment system
Mounting bracket2x bracket for floor use
Display type
4 digit 7-segment LED display
Use of brands
Built with SEETRONIC connector
Material
Aluminum casting
Dimensions
Width: 106.5 cmDepth: 13.3 cmHeight: 21.0 cm
Weight
6.40 kg
Noise classification
Class 0 (no noise at all)
Remote controlBattery
1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting

Download de handleiding (PDF, Duits + Engels):

📖 Handleiding openen

Bron: fabrikant (Steinigke / Eurolite).
