EUROLITE Set Pixel Ball 360° incl. Madrix Start

  • 6 LEDs SMD 3535 3in1 R/G/B (homogenous color mix)5 segments controlled separately
  • With a beam angle of 360°
  • Matrix effect
  • Flicker-free
  • The device is cooled by passive convection cooling

Oorspronkelijke prijs was: €1.307,81.Huidige prijs is: €1.099,00.

Alles over de verzendkosten
30 dagen retour zonder gedoe — altijd gratis
Veilig winkelen en betalen met Wero / iDEAL, Creditcard en Bancontact.
Advies nodig? Neem contact op — we helpen je graag!
Internationale verzending in heel Europa.


Op voorraad — vandaag besteld, in huis op 18 juni
  • Gratis verzending vanaf €100*
  • 30 dagen retourrecht
  • 2 jaar garantie
  • Hulp nodig? Bel ons
Artikelnummer: 20001058 Categorie:

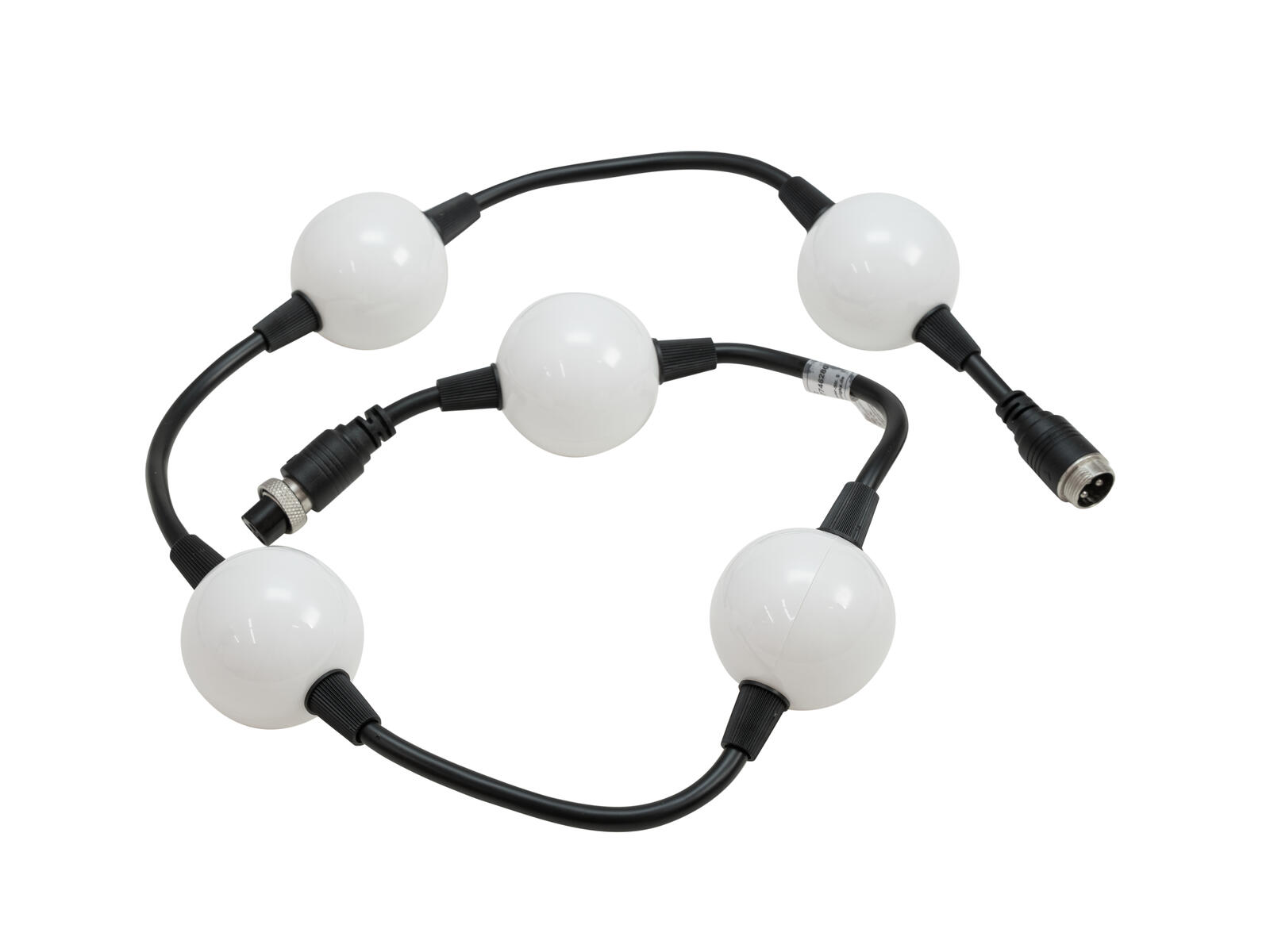

EUROLITE LED Pixel Ball 360° 1m MK2

Flexible LED pixel string

  • 6 LEDs SMD 3535 3in1 R/G/B (homogenous color mix)
    5 segments controlled separately
  • With a beam angle of 360°
  • Matrix effect
  • Flicker-free
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended

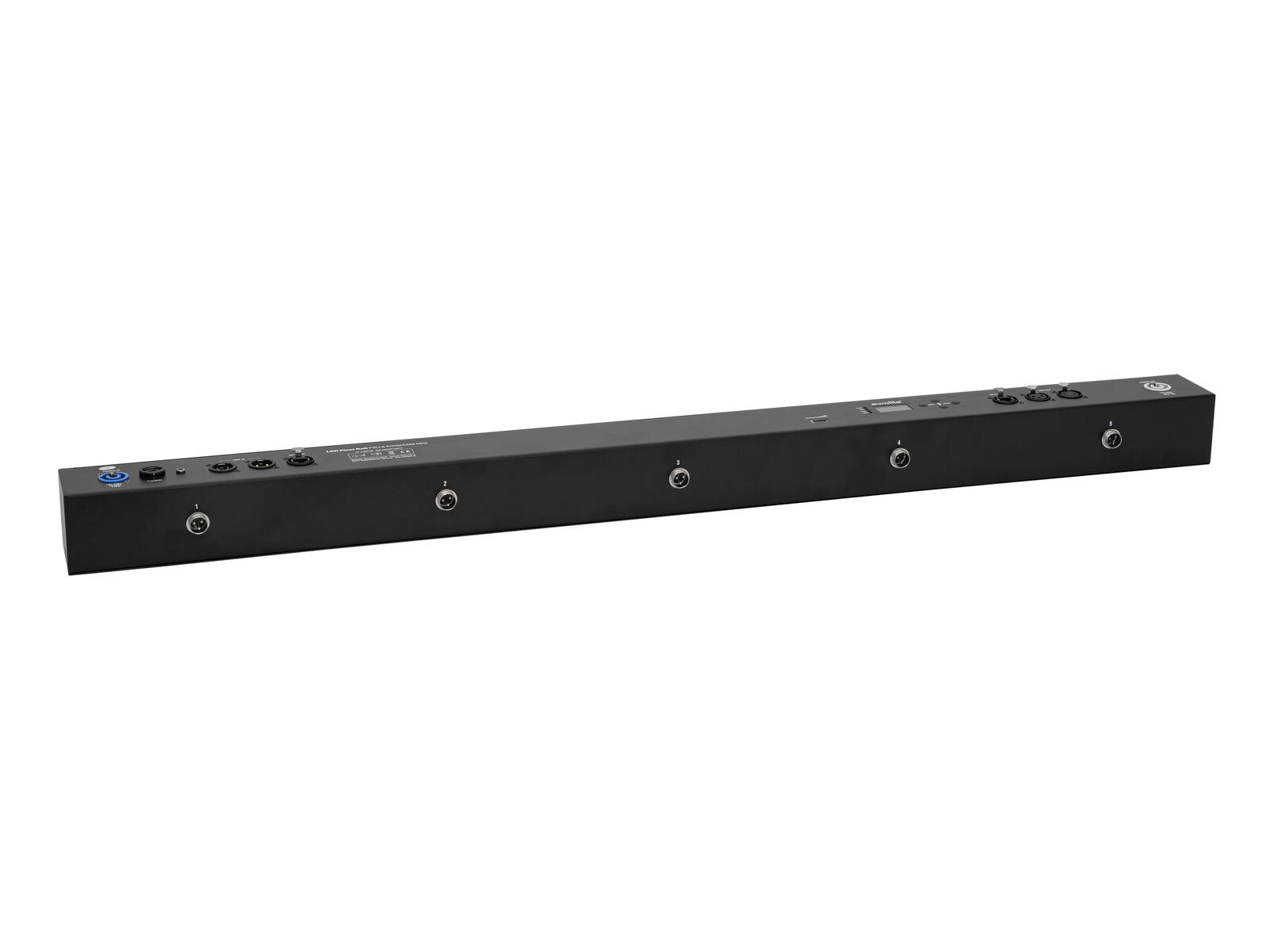

EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2

  • Series connection of 6 strings per output possible
  • Up to 150 pixel balls per bar can be controlled
  • 30 integrated show programs
  • Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Interface
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; wedding/gala/events; installation; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended; wall mounting

MADRIX Software 5 License start

MADRIX 5 licence "start"

  • Includes 1x MADRIX 5 License "start"
  • Requires a valid, empty, and metallic MADRIX KEY
  • Can transmit up to 1024 DMX channels
  • Compatible with Win 7, Win 8, Win 10,
  • Made in Germany
  • Engineered in Germany
  • For further information about this product, please refer to the Data Sheet under "Downloads"

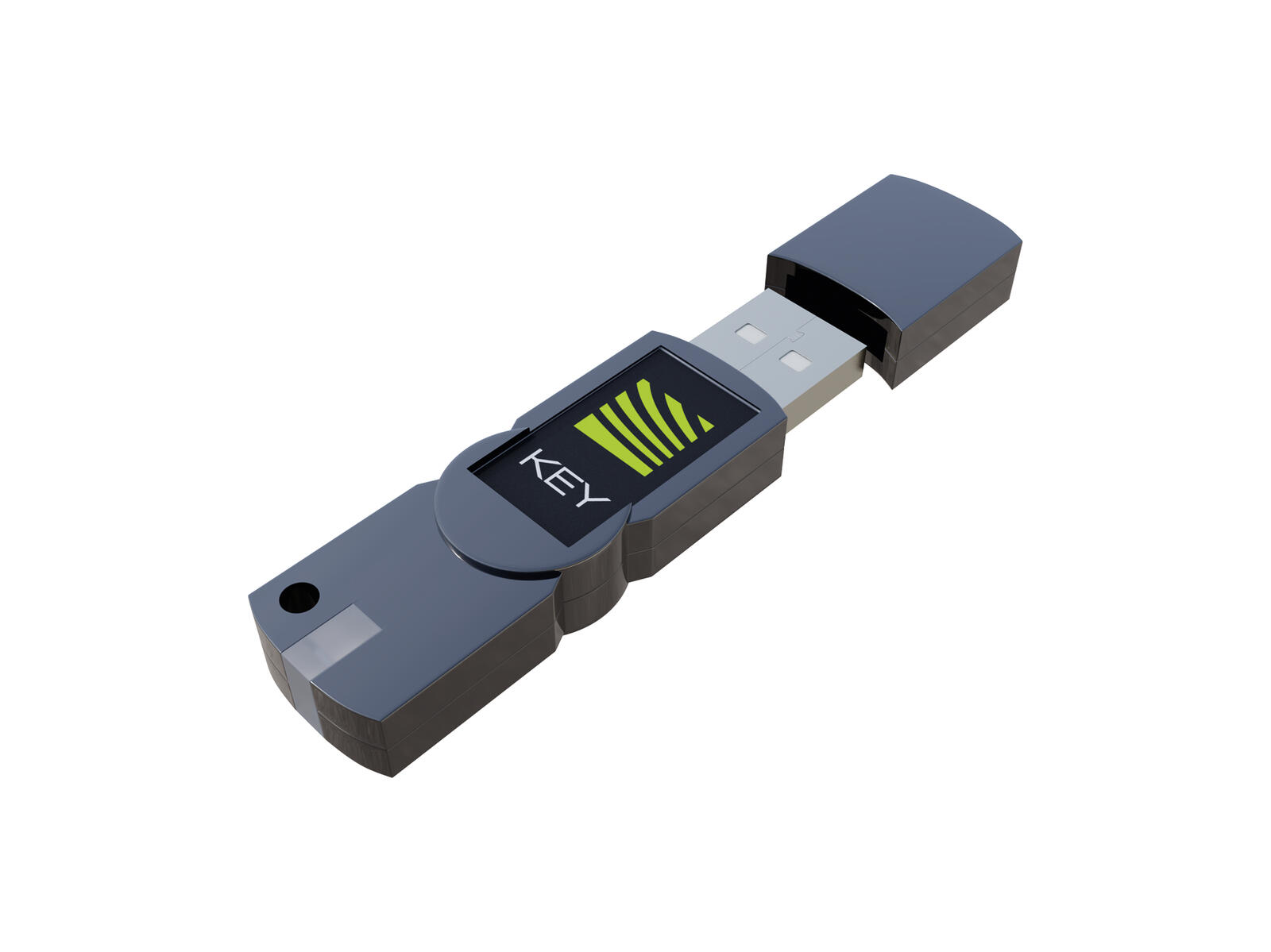

MADRIX KEY

MADRIX 5 KEY - without license

  • Includes an empty MADRIX KEY
  • Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
  • The device can be connected via USB to the PC
  • Made in Germany

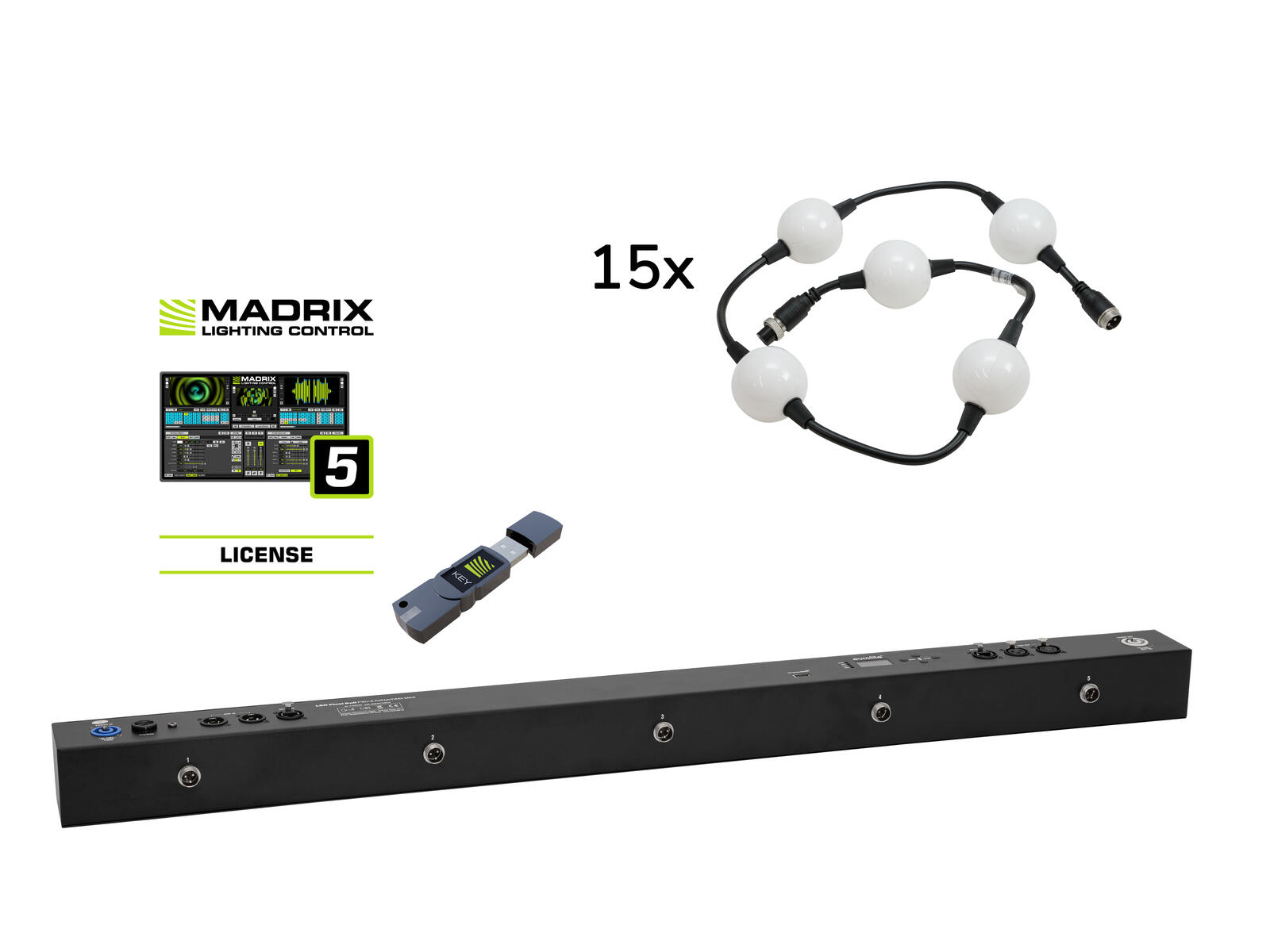

Scope of delivery

15 x EUROLITE LED Pixel Ball 360° 1m MK2

  • 1 x light effect

1 x EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

  • 1 x device
  • 1 x user manual
  • 1 x power cord


Weight
8.28 kg
EUROLITE LED Pixel Ball 360° 1m MK2Power supply
24V DC
Power consumption
4 W
IP classification
IP4X
Protection class
Protection class III
Power connection
Fixed power supply cord with special plug
Cable length
0.95 m
Lamp type
LED lamp
Number of lamps
5 pieces20 cm Distance between the lamps
LED type
Each 6 x SMD 3535 3in1 R/G/B (homogenous color mix)
Flash rate
2 - 20 Hz
Cooling
Passive convection cooling
Projection
Flicker-free
PWM frequency
3500 Hz
Beam angle
360°
Beam angle (1/2 peak)
360°
Material
Plastic
Dimensions
Length: 95 cmDiameter: Ø 5.0 cm
Noise classification
Class 0 (no noise at all)
Legal specificationsSpecial product
Not designed for household room illumination
Intended use
Show effect lighting
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2Power supply
100-240 V AC, 50/60 Hz
Cable construction
3 x 1.0 mm² H05VV-F
Power output
P-Con (gray), mounting version
Fuse
5 x 20 mm, T 1 A fuse replaceable
DMX channels
3; 5; 7; 10; 15; 19
DMX input
3-pin XLR (M) mounting version5-pin XLR (M) mounting version
DMX output
3-pin XLR (F) mounting version5-pin XLR (F) mounting version
Network connection
Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Control
Stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode
Hold; blackout
Housing color
Black
Display type
Monochrome OLED display
USB port
Type A
Use of brands
Built with SEETRONIC connector
Housing design
Interface
MADRIX Software 5 License startDMX channels
Output 1024
Operating system
Win 7, Win 8, Win 10,
MADRIX KEYPower connection
Mains input via USB A (M) connectable version
PC connect
Via USB
