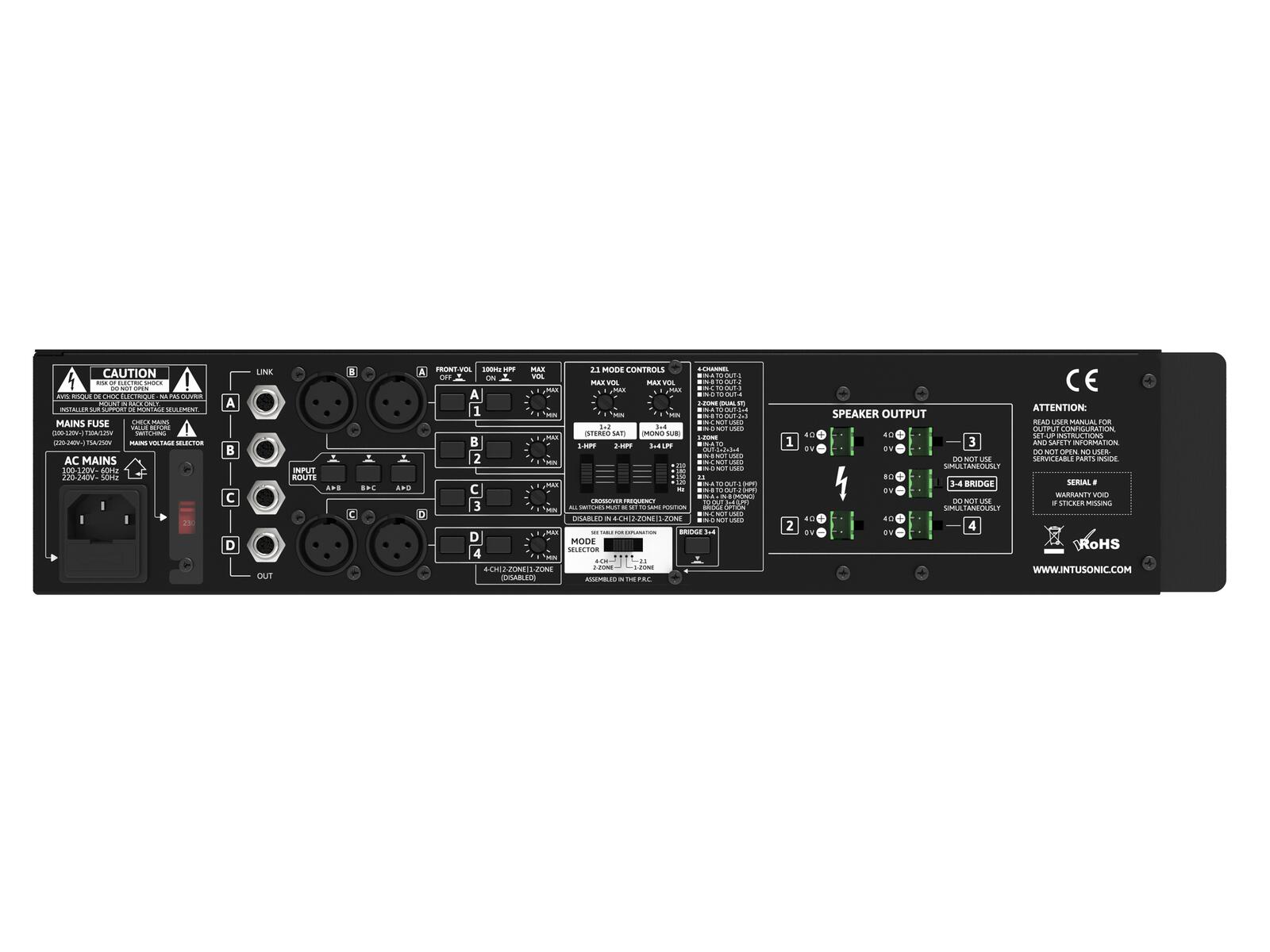

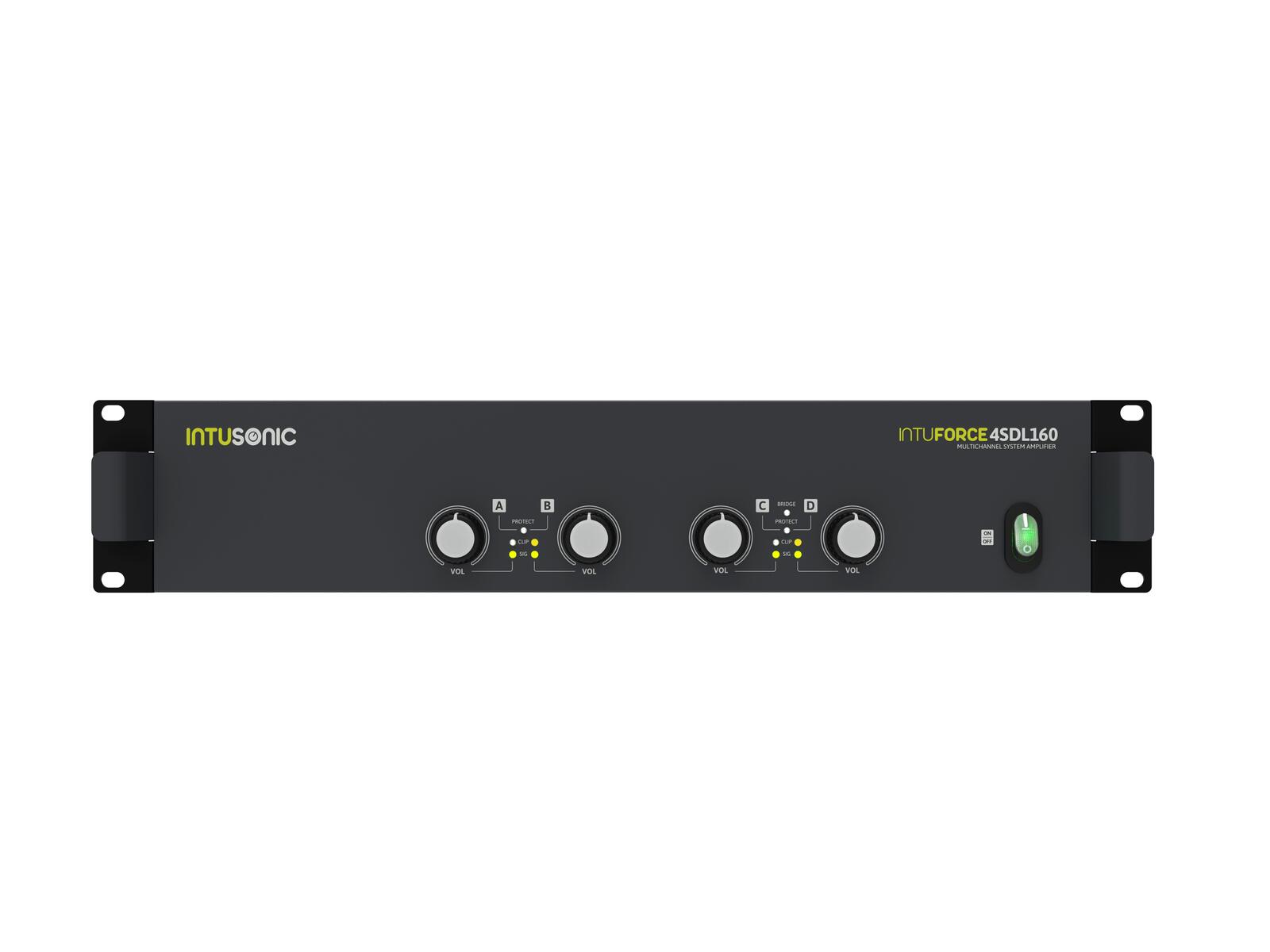

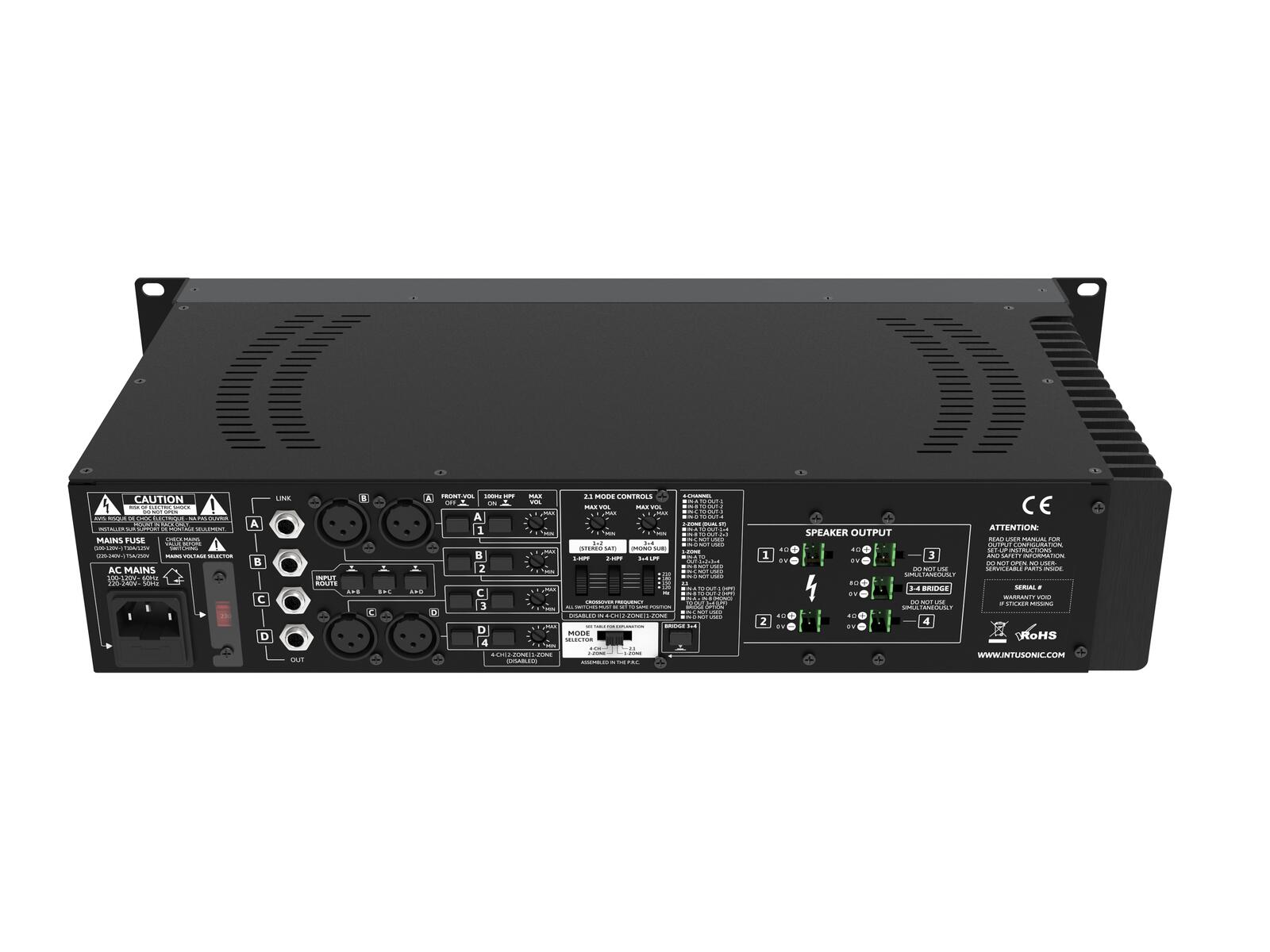

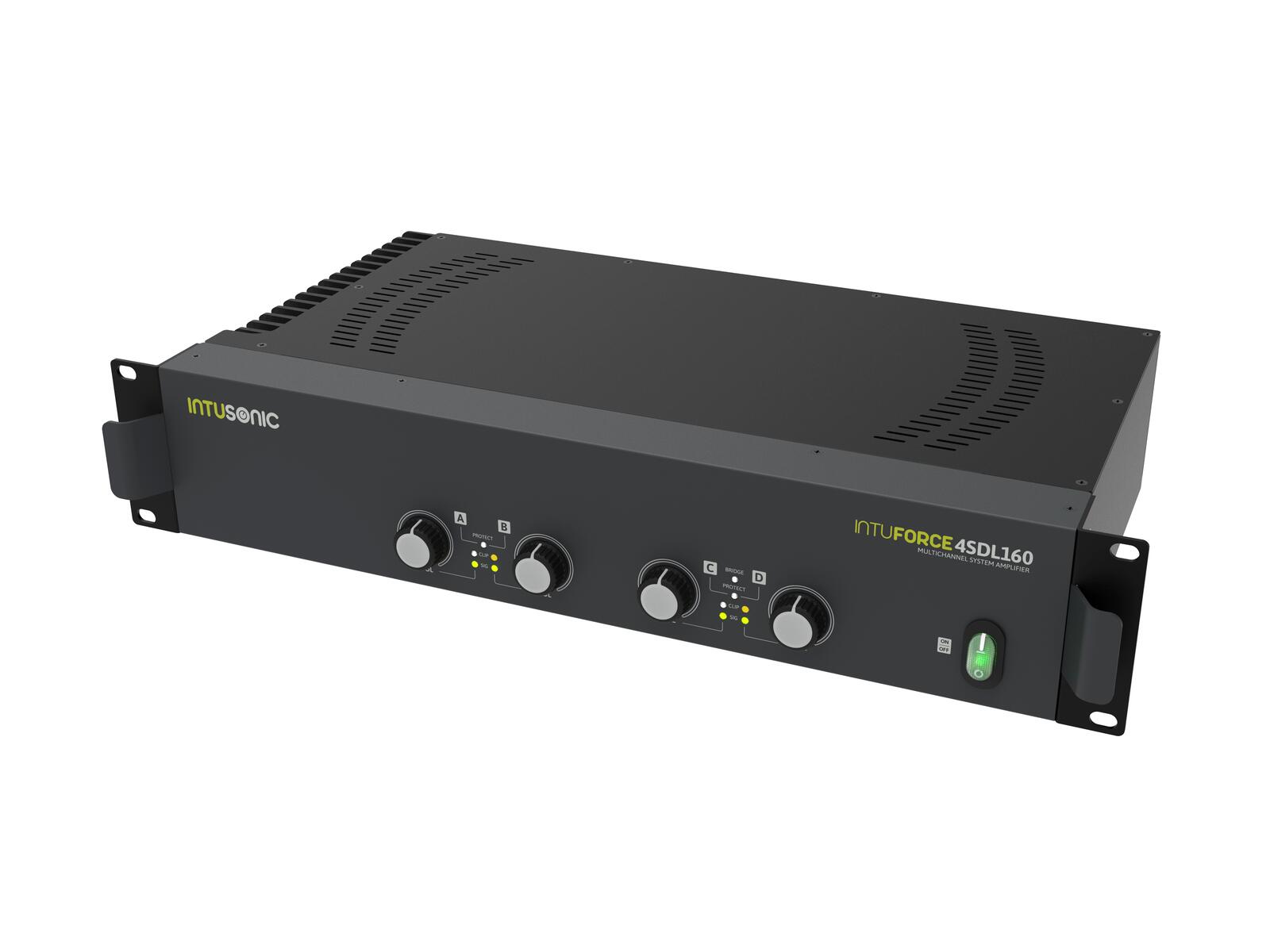

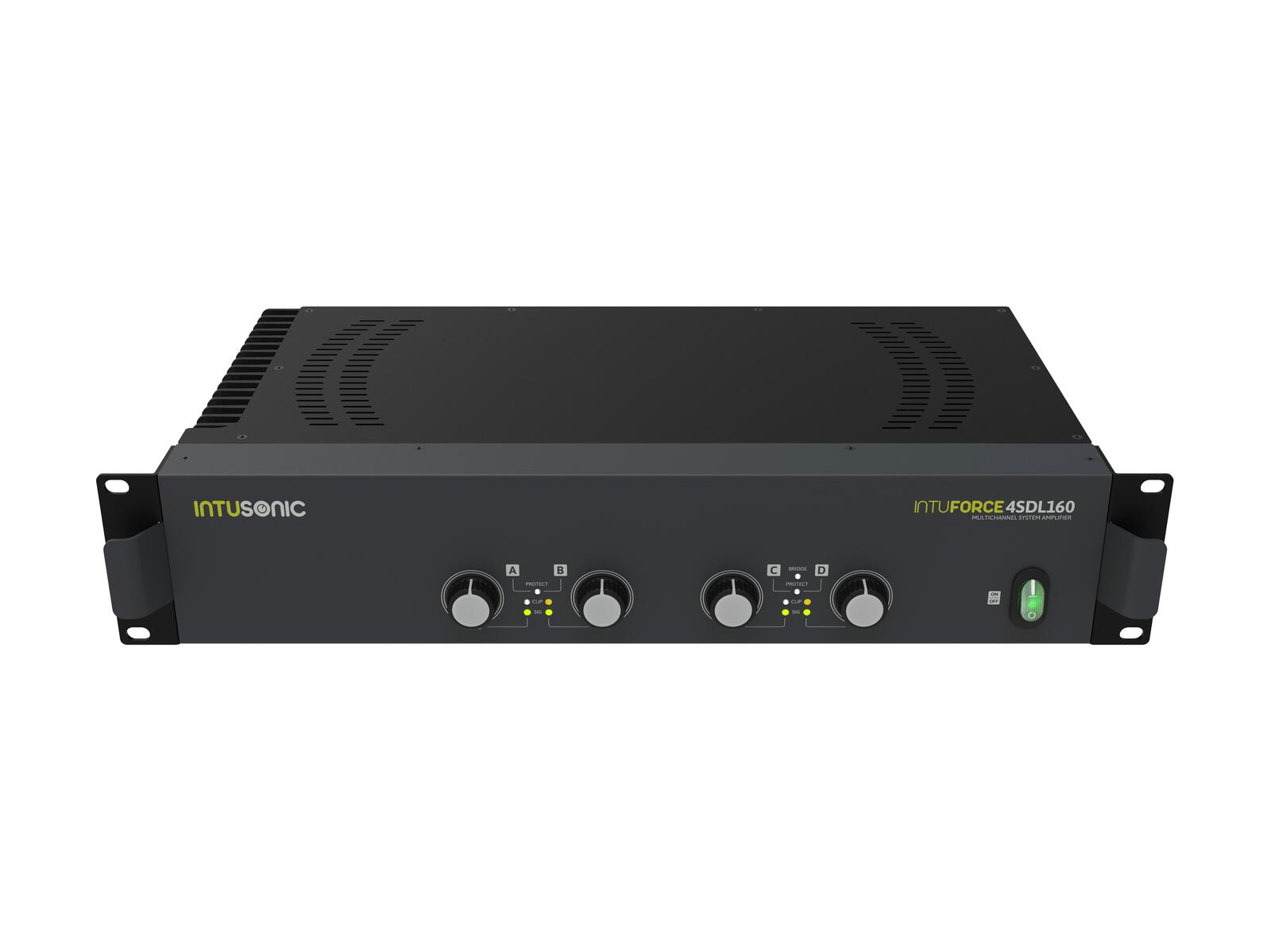

The INTUFORCE 4SDL160 is -- despite its simple front panel layout -- a highly versatile system amplifier for low-impedance sound systems. Via its comprehensive rear-panel controls, it can be set from a 4-zone amplifier to a dual stereo amplifier or a 2.1 satellite and subwoofer system amplifier. The latter is facilitated by its built-in active crossover with 4 selectable crossover frequencies and its bridging feature for the 3rd and 4th channel. Larger systems are easily set up via the link connectors. Built on cutting edge class D technology, the unit is convection cooled and hence suitable for applications sensitive to background noise. The conservative switch mode PSU design delivers not only peak power, but also long-term endurance. Best to be combined with 2 or 4 satellite speakers and a subwoofer as one compact system.
Scope of delivery
Multichannel system amplifier, 4 x 150 W / 4 ohms
- 4-zone, 2-zone, 1-zone and 2.1 modes
- Amplifier 3 and 4 bridgeable
- Active crossover with 4 selectable frequencies for 2.1 Mode, separate sat/sub volume controls
- Ultra-high CMRR input circuitry for long cable runs
- (19") 48.3 cm rack installation 2 U
- The device is cooled by passive convection cooling
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x user manual
- 1 x amplifier
- 1 x power cord
- 5 x screw plug-in terminal
- 1 x plug (male)
- 4 x foot
